SKU: 156-1006 | UPC: 672036046774

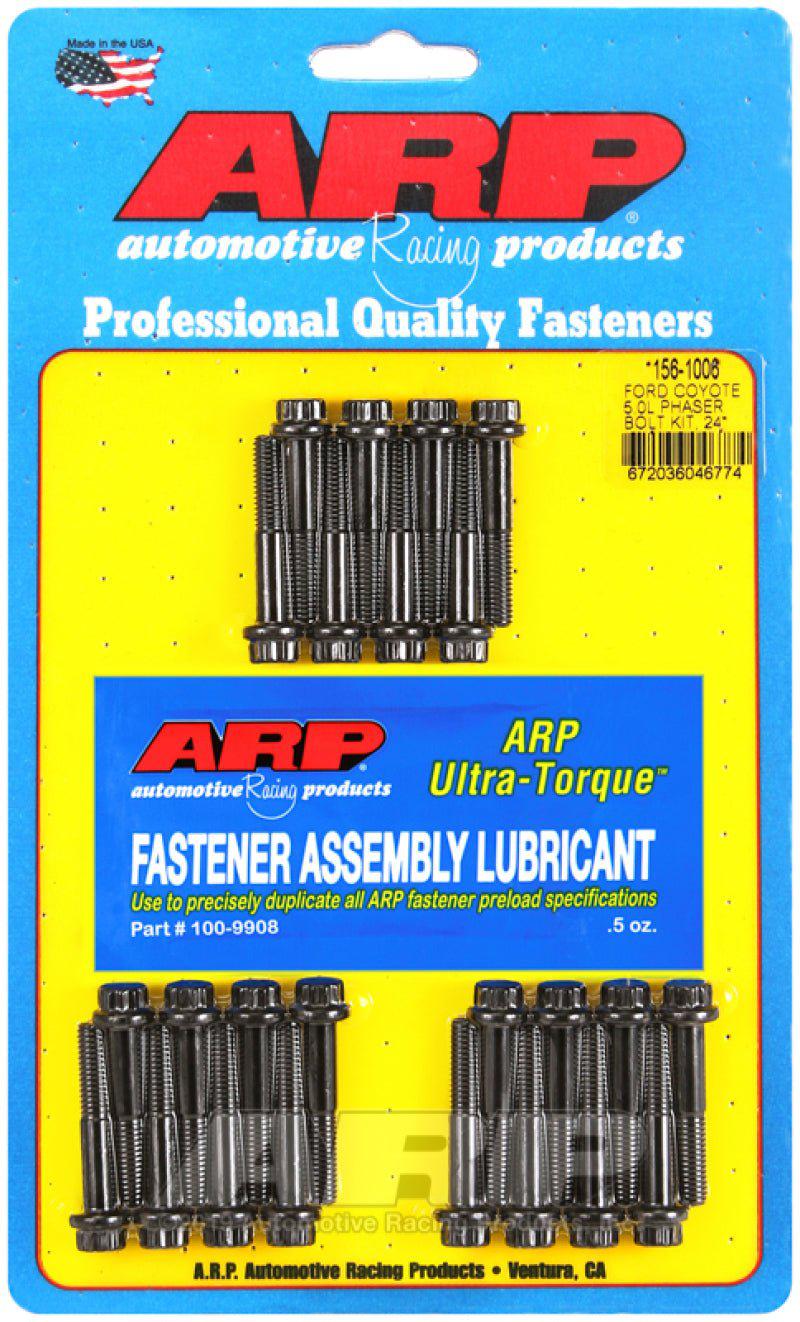

ARP Cam Bolt Kit for Ford 5.0L Cam Phaser 24 Bolts Fits 2011-2023 Mustang GT 2011-2020 F-150
Secure your Ford 5.0L Coyote engine cam phasers with the ARP 156-1006 bolt kit including 24 high-strength fasteners. Designed for 2011-2023 Ford Mustang GT and 2011-2020 F-150 5.0L models this kit replaces weak factory bolts prone to failure. Gain higher clamping force precise timing gear alignment and resistance to valve train stress for dependable performance.
Key Features
- 8740 Chrome Moly Construction: Delivers high tensile strength to handle extreme loads and prevent fatigue failure under high RPM
- Increased Pre-Load Clamping: Locks cam phasers in place eliminating timing chain walk and phaser rattle
- Positive Timing Gear Register: Ensures accurate camshaft positioning for optimal valve timing and power
- Oversized Bolt Head Flange: Provides secure cam button retention during operation
- Reduced Socket Head Size: Simplifies installation and removal in tight engine bays
Product Notes
- Complete kit with 24 bolts covers both cylinder banks on Coyote engines
- Black oxide finish resists corrosion for long-term durability
- Made in USA ships in protective packaging
Installation Notes
- Professional installation recommended.
- Torque bolts to ARP specs with ARP Ultra-Torque lubricant for maximum holding power
- Compatible with OEM and aftermarket cam phasers and timing components
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2011-2023 | Ford | Mustang | GT V8 5.0L |
| 2011-2020 | Ford | F-150 | XL XLT Lariat King Ranch Platinum V8 5.0L |
| 2011-2017 | Ford | Mustang | Shelby GT350 V8 5.2L Coyote Variant |
| 2011-2014 | Ford | F-150 | SVT Raptor V8 5.0L |
Why Choose ARP?
- Decades of leadership in racing fasteners trusted by engine builders worldwide
- Material strength far exceeds OEM bolts for real-world durability
- Precision CNC machining guarantees exact fit and consistent performance
Frequently Asked Questions
-
Q: Will this kit fit 2018+ Ford Mustang 5.0L Coyote engines?
A: Yes ARP 156-1006 bolts match Gen 3 Coyote cam phasers used in 2018-2023 Mustang GT models providing full compatibility -
Q: What material are these cam phaser bolts made from?
A: Forged 8740 chrome moly steel with black oxide finish offers 200000 PSI tensile strength superior to stock hardware -
Q: Is special tooling needed for installation?
A: Standard 10mm socket works due to reduced hex size torque wrench and ARP lube recommended for proper procedure
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact box 6 x 4 x 1 inches
- Weight: 0.25 lbs
