SKU: 100-7728 | UPC: 672036048310

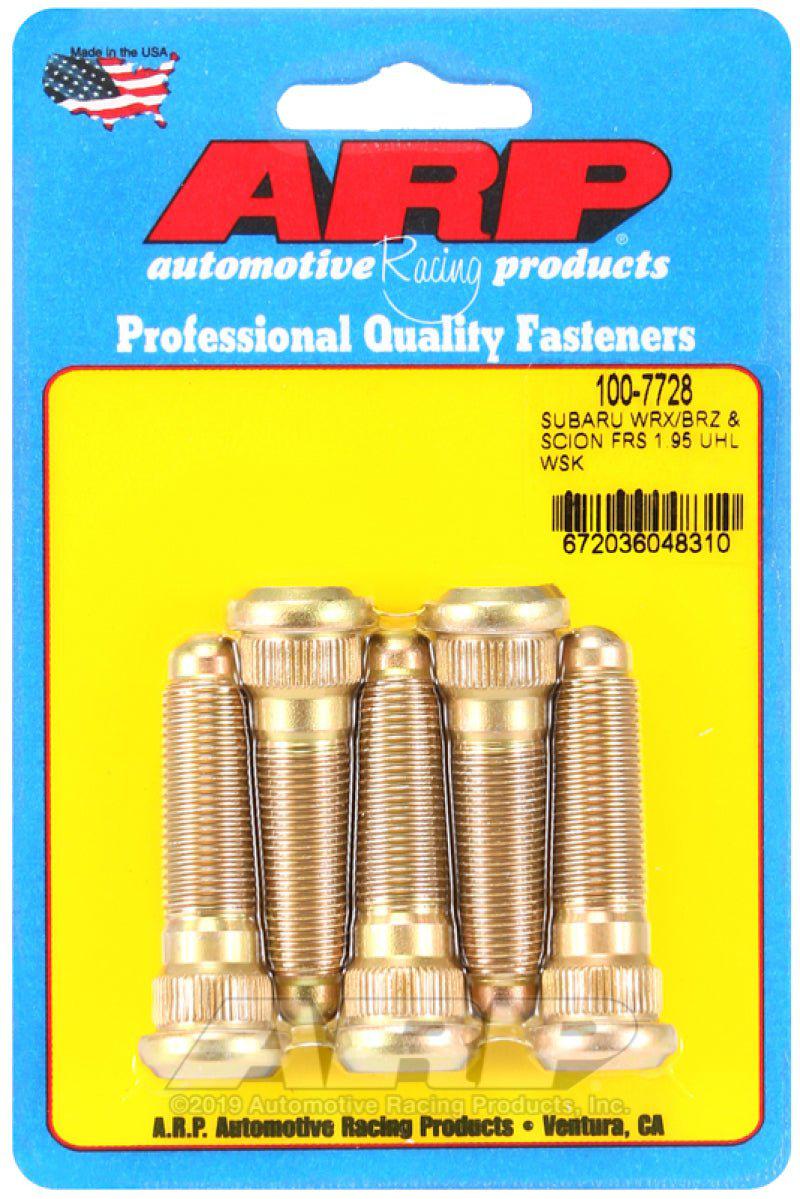

ARP Subaru WRX 2015-21, BRZ 2013-21 & Scion FRS 2013-16 1.95 UHL 12mm x 1.25 Wheel Stud Kit (5 Pack)
Upgrade your wheel retention with this ARP wheel stud kit featuring 1.95-inch under head length and 12mm x 1.25 threads. Designed for Subaru WRX, BRZ and Scion FRS models, these studs deliver reliable clamping force for performance wheels and track use. Replace stock studs to handle increased torque from wider tires and drag racing.
Key Features
- Extended Length: 1.95-inch under head length (UHL) allows fitment of deeper lug nuts and aftermarket wheels requiring extra thread engagement
- High Strength Material: Forged from 8740 chromoly steel with 200,000 PSI tensile strength surpasses OEM specs for extreme load handling
- Rolled Threads: Threads formed after heat treatment resist fatigue and stripping during high torque applications
- Corrosion Protection: Black oxide finish guards against rust in harsh conditions like salted roads or track environments
- Convenient Pack Size: 5 studs per kit services one wheel, with knurled shank for secure press-in hub installation
Product Notes
- Confirm wheel offset and lug nut seat type before install to ensure proper fit
- Clean hub bore thoroughly to prevent stud pull-out during press-in
- Packaged to prevent damage during transit
Installation Notes
- Professional installation recommended.
- Use ARP stud installation kit or hydraulic press with hub heated to 250-300°F for easy press-in
- Compatible with OEM hubs and 12mm x 1.25 lug nuts from major aftermarket brands
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013-2021 | Subaru | BRZ | All |
| 2013-2016 | Scion | FR-S | All |
| 2015-2021 | Subaru | WRX | Base, Premium, Limited, GT |
| 2017-2021 | Toyota | 86 | All |
Why Choose ARP?
- ARP fasteners power wins in NHRA, NASCAR and endurance racing worldwide
- Every stud undergoes rigorous testing for consistent performance
- Exact tolerances ensure drop-in replacement without modifications
Frequently Asked Questions
-
Q: Will this kit fit my 2018 Subaru WRX with aftermarket wheels?
A: Yes, it fits 2015-2021 WRX models including Base, Premium and Limited trims. The 1.95 UHL clears most big brake kits and wide wheels. -
Q: What material and strength rating do these studs have?
A: Made from 8740 chromoly steel, heat treated to 200,000 PSI tensile strength with rolled threads for superior durability over stock. -
Q: Is special hardware needed for installation?
A: No additional hardware required. Press into OEM hubs using proper tools. ARP offers install kits for precise work.
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Durable box 1in x 4in x 6in protects components
- Weight: 0.70 lbs
