ATS Diesel 11-14 Ford Pickup 6.7L Power Stroke Aurora 4000 VNT Stage 2 Turbocharger Kit

ATS Diesel
ATS202-406-3368
840440588238
Turbo Kits
20+ Units In Stock - Ships Next Business Day
$ 2,559.99
$ 2,559.99

SKU: 202-406-3368 / UPC: 840440588238

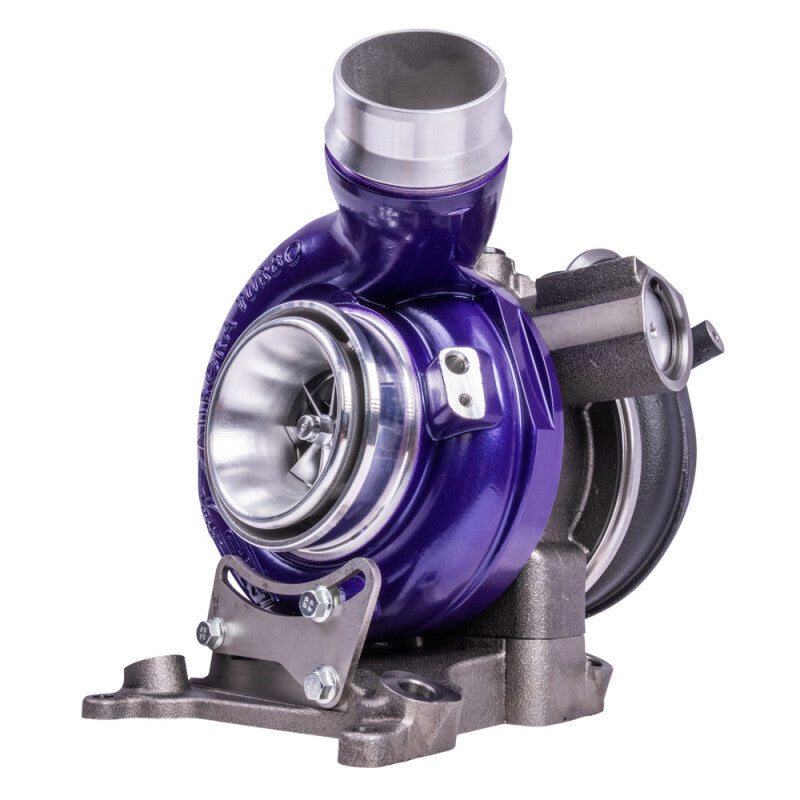

ATS Diesel Aurora 4000 VNT Stage 2 Turbocharger Kit for 2011–2014 Ford Super Duty 6.7L Power Stroke

The ATS Diesel Aurora 4000 VNT Stage 2 Turbocharger Kit is a high-performance upgrade designed for 2011–2014 Ford Super Duty trucks equipped with the 6.7L Power Stroke diesel engine.

This complete bolt-on system replaces the restrictive factory turbo with an advanced variable nozzle turbine (VNT) design, delivering significantly faster spool-up, higher boost capability (up to 45 PSI), and over 100 rear-wheel horsepower gains.

The kit features a large billet compressor wheel, a forged Inconel turbine wheel, and upgraded cast manifolds to improve exhaust flow and reduce backpressure. It is engineered to maintain excellent drivability while supporting serious power levels for towing and performance applications.

Key Features

  • Aurora 4000 VNT Technology – Variable geometry vanes provide excellent spool-up below 1600 RPM and precise boost control
  • Billet Compressor Wheel – 66/92mm dual ball bearing design flows over 110 lbs/min of air for high horsepower capability
  • Forged Inconel Turbine Wheel – 80mm wheel handles extreme heat (over 2000°F) for reliable high-RPM performance
  • Improved Exhaust Flow – Includes cast hump-hose manifolds and T4 up-pipe to reduce restrictions and lower EGTs
  • Direct Bolt-On Kit – Complete system with Y-bridge, downpipe, hardware, and gaskets for plug-and-play installation
  • High Power Potential – Supports 650+ rear-wheel horsepower with proper supporting modifications and tuning

Specifications

Detail Value
Brand ATS Diesel
Type Aurora 4000 VNT Stage 2 Turbocharger Kit
Compatibility 2011–2014 Ford Super Duty 6.7L Power Stroke
Compressor Wheel 66/92mm Billet Dual Ball Bearing
Turbine Wheel 80mm Forged Billet Inconel
Max Horsepower Support 650+ RWHP
Max Boost Up to 45 PSI
Country of Origin United States
Warranty Limited Lifetime on Rotating Assembly

Whats Included

  • ATS Aurora 4000 VNT Turbocharger
  • Y-Bridge and Cast Hump-Hose Manifolds
  • T4 Up-Pipe and Downpipe
  • All Necessary Gaskets and Hardware
  • Installation Instructions

Product Notes

  • Tuning is required to achieve full performance potential
  • Professional installation is strongly recommended (estimated 8–12 hours)
  • Compatible with stock intake and exhaust systems

This Part Fits

Year Range Make Model Notes
2011–2014 Ford F-250 Super Duty 6.7L Power Stroke All Cab Styles
2011–2014 Ford F-350 Super Duty 6.7L Power Stroke All Cab Styles
2011–2014 Ford F-450 Super Duty 6.7L Power Stroke Pickup & Cab Chassis
2011–2014 Ford F-550 Super Duty 6.7L Power Stroke Pickup & Cab Chassis

Why Choose ATS Diesel?

  • Over 20 years of experience engineering high-performance diesel turbo systems
  • Precision CNC-machined billet and Inconel components for extreme durability
  • Proven in both heavy towing and high-horsepower applications
  • Engineered and tested in-house for real-world reliability

Frequently Asked Questions

  • Q: Will this kit fit my 2012 Ford F-350 6.7L Power Stroke?
  • A: Yes, it is a direct bolt-on for all 2011–2014 Ford Super Duty trucks with the 6.7L Power Stroke engine.
  • Q: How much power can this turbo support?
  • A: The Aurora 4000 VNT Stage 2 is capable of supporting over 650 rear-wheel horsepower with proper supporting modifications and tuning.
  • Q: Is tuning required?
  • A: Yes. Tuning is required to safely and fully utilize the performance potential of this turbo system.
  • Q: Does this kit include everything needed for installation?
  • A: Yes. The kit includes the turbo, Y-bridge, manifolds, downpipe, and all necessary gaskets and hardware.

Shipping & Handling

  • Method: Freight Truck (LTL)
  • Availability: In stock – ships same or next business day
  • Packaging: Secure wooden crate (28" x 22" x 18")
  • Weight: 75 lbs (shipped)
