SKU: 314-220-3104

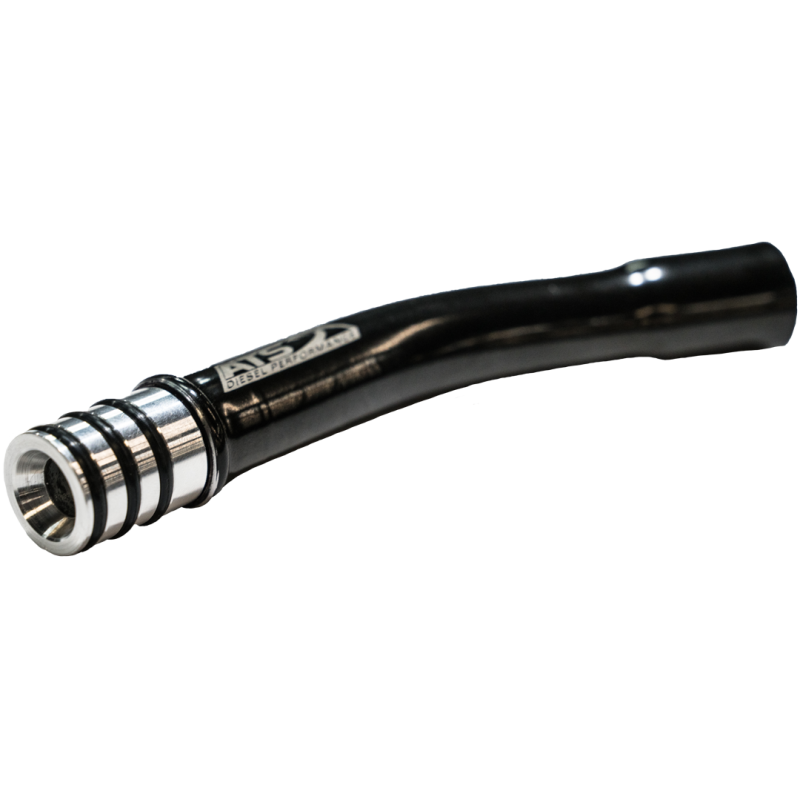

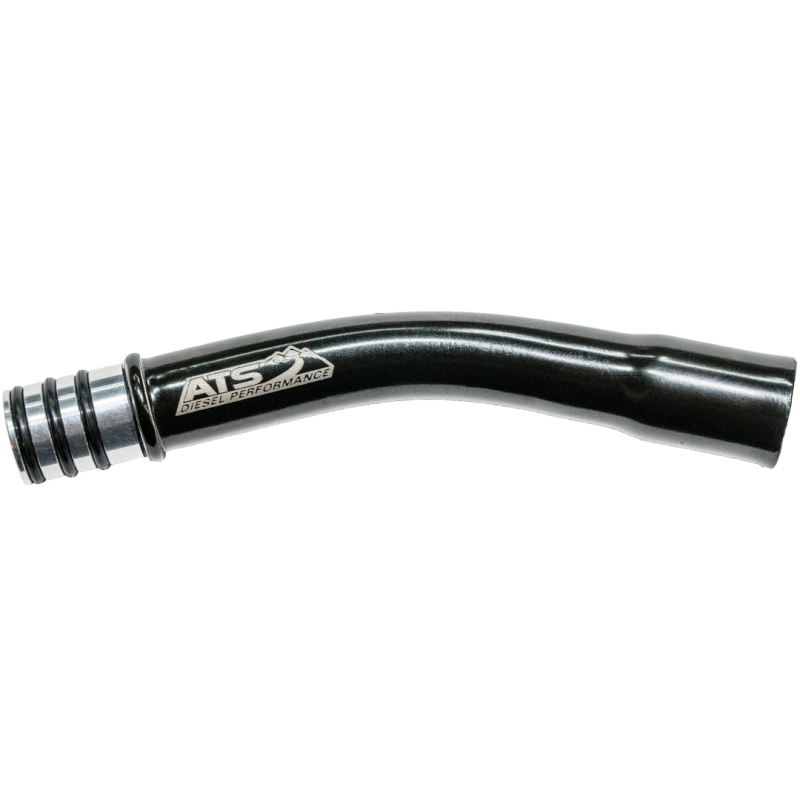

ATS Diesel Transmission Dipstick & Oil Fill Tube for 1989–2010 Ford Powerstroke (E4OD / 4R100 / 5R110)
The ATS Diesel Transmission Dipstick and Oil Fill Tube is a direct replacement for 1989–2010 Ford F-Series trucks and Excursions equipped with Powerstroke diesel engines and E4OD, 4R100, or 5R110 automatic transmissions.
This precision-engineered component provides accurate fluid level readings to help prevent overfilling or underfilling, ensuring proper transmission operation and long-term reliability during routine maintenance and fluid changes.
Key Features
- Accurate Fluid Level Markings – Etched calibration marks provide precise hot and cold readings for safe operation
- Heavy-Duty Steel Construction – Corrosion-resistant steel tubing designed to withstand high heat and pressure
- Factory-Spec Geometry – Correct bend and length for proper engine bay clearance without modifications
- Seal Kit Included – New O-rings and grommets for a leak-free installation
- Ergonomic Handle – Bright zinc-plated handle provides a secure grip for easy checks and fills
- Direct Replacement – Matches OEM specifications for straightforward installation
Specifications
| Detail | Value |
|---|---|
| Brand | ATS Diesel |
| Type | Transmission Dipstick & Oil Fill Tube |
| Compatibility | 1989–2010 Ford Powerstroke with E4OD, 4R100, or 5R110 |
| Material | Heavy-Duty Steel with Zinc Plating |
| Country of Origin | United States |
| Warranty | ATS Diesel Limited Warranty |
Whats Included
- Transmission Dipstick & Oil Fill Tube
- O-Rings and Grommets
- Installation Hardware
- Installation Instructions
Product Notes
- Confirm your transmission model (E4OD, 4R100, or 5R110) before ordering
- Wipe the tube clean after installation to maintain accurate fluid level readings
- Professional installation recommended
This Part Fits
| Year Range | Make | Model | Engine / Transmission |
|---|---|---|---|
| 1989–1997 | Ford | F-250 / F-350 / F-450 / F-550 | 7.3L Powerstroke with E4OD |
| 1999–2003 | Ford | F-250 / F-350 Super Duty | 7.3L Powerstroke with 4R100 |
| 1999–2005 | Ford | Excursion | 7.3L / 6.0L Powerstroke with 4R100 |
| 2003–2007 | Ford | F-250 / F-350 Super Duty | 6.0L Powerstroke with 4R100 |
| 2005–2010 | Ford | F-250 / F-350 / F-450 / F-550 Super Duty | 6.0L / 6.4L Powerstroke with 5R110 |
Why Choose ATS Diesel?
- Proven leader in high-quality Powerstroke transmission components since 2006
- Every part tested for durability in heavy-duty towing and hauling applications
- Precision-machined in the USA for exact OEM compatibility
- Trusted by diesel enthusiasts and professional builders
Frequently Asked Questions
- Q: Will this fit my 2002 F-350 Super Duty with the 7.3L and 4R100?
- A: Yes, it is a direct replacement for 1999–2003 Super Duty models with the 7.3L Powerstroke and 4R100 transmission.
- Q: What material is the tube made from?
- A: Thick-wall steel tubing with zinc plating for rust resistance and durability under high transmission temperatures.
- Q: How long does installation take?
- A: Most installations can be completed in 20–30 minutes using basic hand tools.
- Q: Do I need any special tools?
- A: No special tools are required beyond basic hand tools and a torque wrench.
Shipping & Handling
- Method: UPS Ground
- Availability: In stock – ships same or next business day
- Packaging: Securely boxed (24" x 6" x 6")
- Weight: 4.8 lbs
