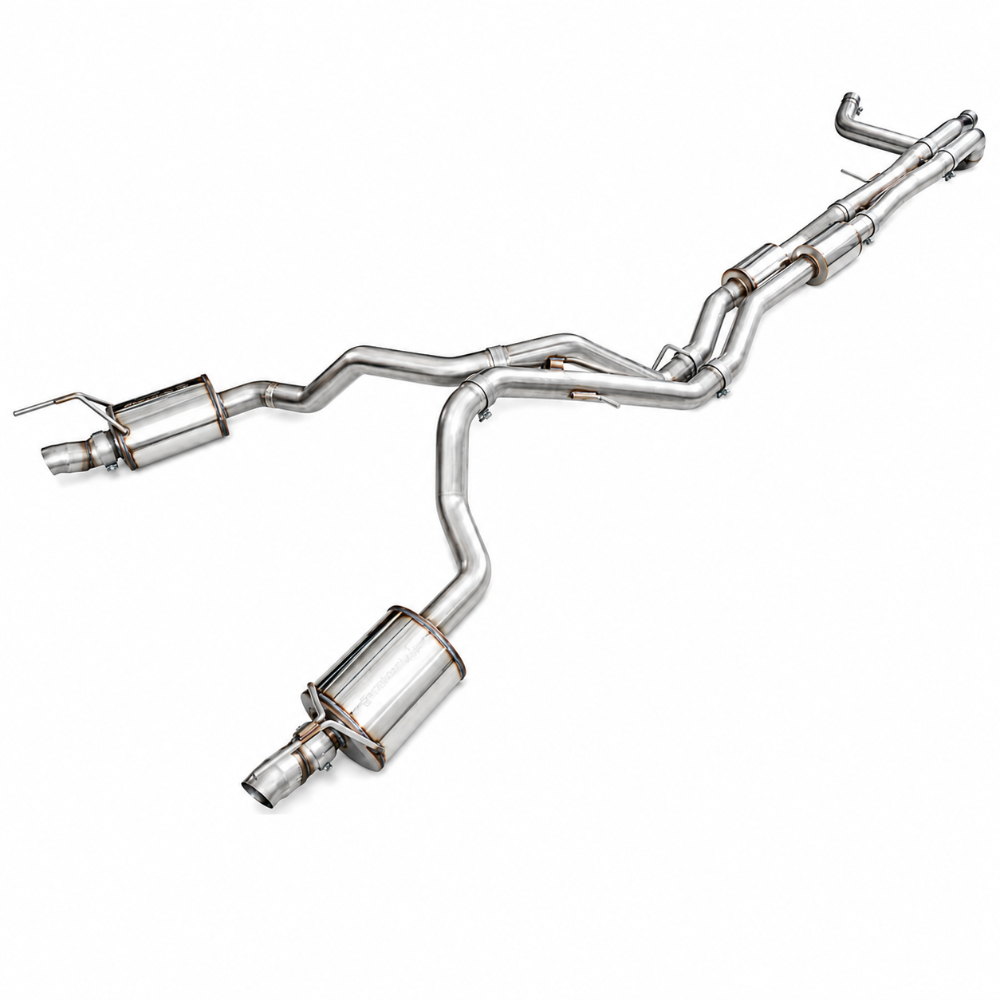

AWE Tuning 2021+ Cadillac Escalade 6.2L 0FG Dual Exit Exhaust System (Reuses OE Tips)

True Dual Stainless Catback That Reuses Your Factory Tips on the 2021 and Newer Cadillac Escalade 6.2L

The AWE Tuning 3015-31321 delivers the same AWE 0FG true-dual catback exhaust experience as the diamond black tip version, but retains and integrates your Cadillac Escalade's factory OEM tip outlets for a fully stock exterior appearance. Handcrafted in the USA from T304L stainless steel with mandrel-bent 3-inch piping, an X-pipe crossover, and AWE's patented 180 Technology drone cancellation, the 3015-31321 transforms the soundtrack of the 2021 and newer Escalade and Escalade ESV 6.2L V8 without any visual modification to the rear bumper fascia.

Key Features

• OE Tip Integration: Engineered to mate directly with your factory Escalade tip outlets for a clean, stock-appearance installation
• Handcrafted in the USA: Mandrel-bent T304L stainless steel construction for maximum corrosion resistance and long-term durability
• AWE 180 Technology: Patented drone-canceling resonator eliminates in-cabin resonance while preserving a deep V8 exhaust note at all driving conditions
• True-Dual 3-Inch Configuration: Full 3-inch diameter dual piping from the cats back with an X-pipe for balanced exhaust flow
• Short and Long Wheelbase Compatible: Fits both the standard Escalade and extended Escalade ESV platforms
• Direct Bolt-On Fitment: No cutting, welding, or modification required; retains all factory mounting points

Fitment

Specifications

What's Included

• AWE Tuning 3015-31321 0FG dual-exit catback exhaust system (full kit)
• OEM tip adapter connectors to mate with factory Cadillac tip outlets
• All clamps, gaskets, and mounting hardware
• AWE Tuning installation instructions

Frequently Asked Questions

This system fits the 2021 and newer Cadillac Escalade and Escalade ESV with the 6.2L V8. Both standard and long-wheelbase ESV variants are supported, including Sport, Premium Luxury, Sport Platinum, and Premium Luxury Platinum trims.

If you want to preserve the factory appearance of your Escalade's rear bumper fascia, this version is the right choice. The system reuses your existing OEM tip outlets so there is no visible change to the exterior, while still delivering the full AWE 0FG exhaust tone improvement.

No. The 3015-31321 bolts directly onto the factory hangers and connection points. All adapters needed to interface with the OE tips are included in the kit.

AWE engineers the resonators on this system to generate opposing sound waves at the frequencies that cause cabin drone. The waves cancel each other out, eliminating the droning buzz common on highway cruises, while the deep exhaust note you want remains fully audible under throttle.

Under the Magnuson-Moss Warranty Act, a dealer cannot void your entire warranty for installing an aftermarket exhaust. They must specifically demonstrate the exhaust caused the failure in question. All unrelated systems on the vehicle remain covered under your factory warranty.

AWE Tuning builds this system entirely in-house in the United States, using mandrel-bending equipment and T304L stainless steel sourced and fabricated at their facility.

The 3015-43321 is the same true-dual 0FG system but includes four quad 5-inch slash-cut tips in a diamond black powder coat finish. This version (3015-31321) uses the factory Escalade tip outlets instead, making it the cleaner option for those who want the performance without changing the exterior look.

Yes. The X-pipe crossover is part of the complete 3015-31321 kit. It connects both sides of the true-dual configuration and helps balance exhaust flow between cylinder banks for a fuller, smoother exhaust note across the RPM range.

AWE Tuning provides a limited lifetime warranty against defects in materials and workmanship for the original purchaser of this exhaust system.

Installation Notes

1. Raise and support the vehicle safely on a lift or jack stands with the exhaust fully cooled before starting any removal work.
2. Disconnect and remove the factory catback exhaust from the catalytic converter outlets rearward, taking note of all hanger positions and clamp locations.
3. If retaining the factory tips, carefully separate the tip assemblies from the factory pipe ends using the method outlined in the AWE installation guide.
4. Install the AWE 3015-31321 sections from the X-pipe rearward, hanging all isolators onto the factory hanger hooks and aligning the OEM tip adapters at the rear exits.
5. Reattach your factory tip assemblies onto the AWE adapter ends, hand-tightening all clamps before doing a final alignment check.
6. Fully torque all clamps per the AWE specification, start the engine, and inspect every joint for exhaust leaks. Perform a final torque check after the first heat cycle.
