Engineered Sound, Confirmed Configuration

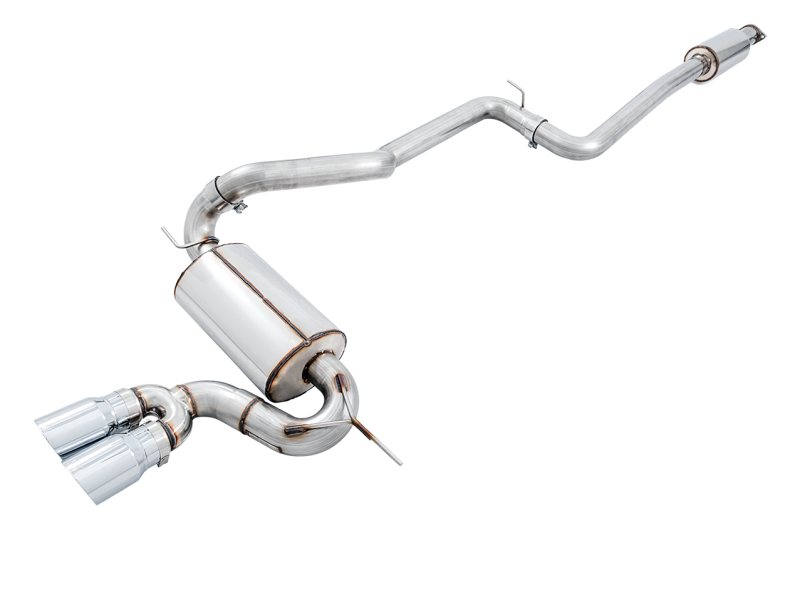

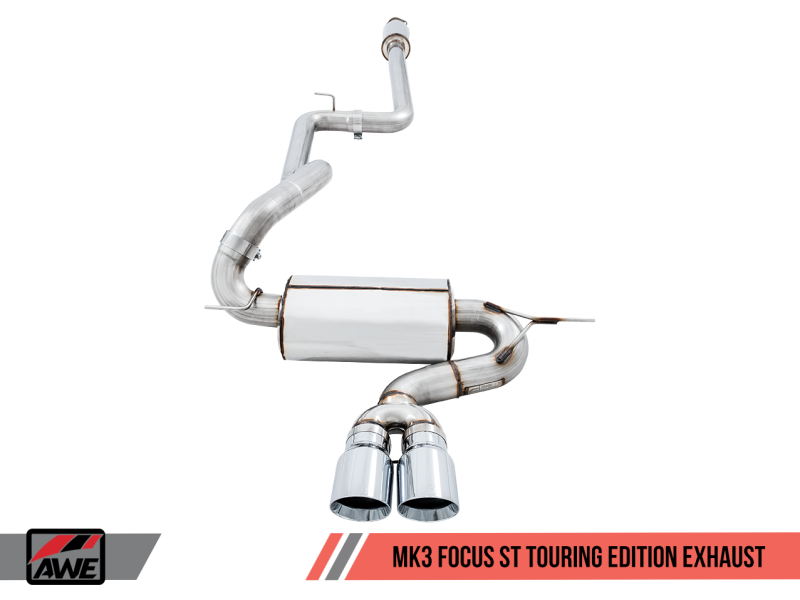

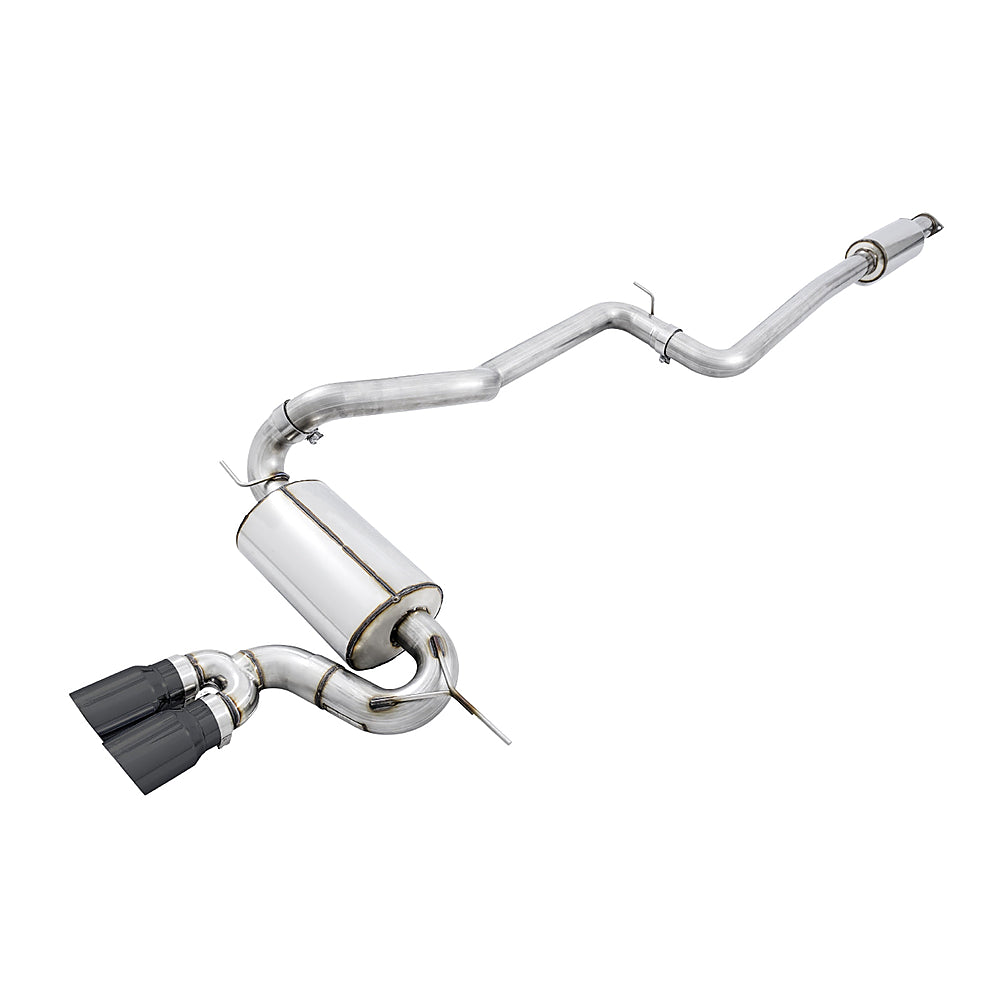

AWE 3020-33040 is the exact configuration described below. Bring out the Focus ST exhaust note with a resonated Touring system that combines a straight-through layout with AWE drone-control chambers.
Key Features
- Resonated front section and Touring rear section with 180 Technology.
- 3-inch U.S.-sourced T304L stainless tubing with 0.065-inch wall thickness.

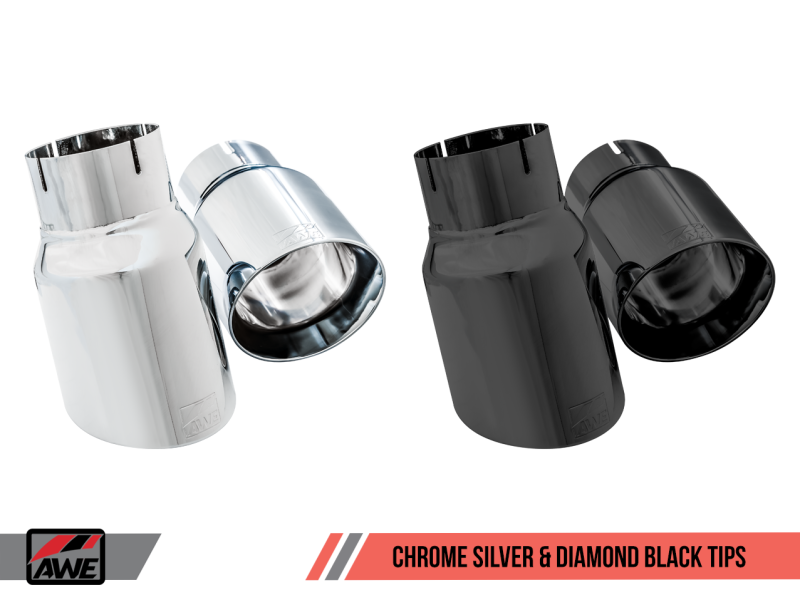

- Two 4-inch double-walled Diamond Black tips with adjustable placement.
- Straight-through configuration joins the factory exhaust connection.
- Manufactured in-house by AWE in the United States.
Vehicle Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| 2013–2018 | Ford | Focus | ST, 2.0L turbocharged; Mk3 hatchback |
Select 3020-33040 only for the stated engine and configuration. Confirm the original exhaust connection and any aftermarket underbody accessories before installation.
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | 3020-33040 |
| Brand | AWE |
| Edition | Touring, resonated |
| Tubing | 3 in T304L stainless steel |
| Tip quantity | Two |
| Tip size and finish | 4 in, Diamond Black |
What's Included
The 3020-33040 package contains:
- Resonated front section, over-axle pipe and 180 Technology rear section.
- Two Diamond Black tips, band and tip clamps, mounting hardware, hanger clamps and Allen wrench.
About AWE
AWE designs and manufactures performance exhaust systems in Pennsylvania, with vehicle-specific routing and sound-control engineering.
Related Parts
Baer non-chlorinated brake-cleaner case — a separate workshop supply for label-approved external metal components. Follow the cleaner label and keep it away from hot surfaces and finished exhaust tips.
Frequently Asked Questions
What is the 3020-33040?It is the AWE Touring Edition cat-back exhaust configuration specified in the table above.
Does installation require cutting?Yes. The exact resonated Touring manual requires cutting the original factory exhaust for removal. The new system then assembles with the supplied clamps and hardware.
What controls the cruising sound?AWE 180 Technology uses tuned chambers to reduce unwanted cabin frequencies.
What material is used?The system is manufactured from T304L stainless steel.
Which tip finish is included?Two 4-inch Diamond Black tips are included.
Does it replace emissions-control hardware?AWE describes this as a cat-back system that leaves factory emissions-control equipment in place.
Is a tune required?AWE lists this configuration as requiring no ECU tune when installed as intended.
What should be checked before ordering?Confirm the vehicle, engine, configuration and existing modifications, then review the exact installation manual.
Installation
Review the manufacturer instructions for 3020-33040 before starting. The original factory exhaust must be cut for removal. Reinstalling the original exhaust later requires a sleeve clamp; preserve the factory flange gasket for reuse.
Exact manufacturer installation manual
- Allow the exhaust to cool fully and support the vehicle securely.
- Inventory the supplied sections and hardware before removing the original exhaust.
- Follow the exact manual for removal, reused hardware and staged pipe assembly.
- Align the outlet or tips and check clearance to the body, suspension and other components.
- Tighten all clamps and fasteners to the manual specifications, then check for leaks and contact.
California Proposition 65 Information
WARNING: AWE products in their physical form as sold do not present a chemical exposure hazard. However, operations including, but not limited to welding, brazing, or thermal cutting can expose you to chemicals including Chromium, Nickel, Cobalt, Arsenic, Cadmium, and Lead which are known to the State Of California to cause cancer, birth defects, or other reproductive harm. Likewise, operating, servicing, and maintaining an automobile can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust fumes, service your vehicle in a well-ventilated area, and wear gloves or wash your hands frequently when servicing your vehicle.
