A Complete Baer SS4+ System, Not a Parts List
This is Baer part number 4301432R, a complete 11 inch SS4+ front brake system for GM A-Body/67-69 F-Body STD Studs. This system features the 4-piston, S4 caliper mounted to a 11", 2 piece slot, drill, zinc plated rotor.
Key Features
- This system features the 4-piston, S4 caliper mounted to a 11", 2 piece slot, drill, zinc plated rotor
- The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1 or HB100 pad type
- Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps
- Rotors are pre-assembled with NAS high grade stainless hardware
- All mounting brackets, stainless braided hoses and hardware are also included
- The 11" SS4+ is designed just like Baer's larger systems, but in a smaller package for 15" wheels
Fitment
| Years | Vehicle | Position | Notes |
|---|---|---|---|
| 1964-1972 | GM A-Body | Front | Confirm against the part number before ordering |
| 1967-1969 | F-Body STD Studs | Front | Confirm against the part number before ordering |
This kit covers Baer part number 4301432R. Other years, spindle types, housing ends or colours use a different Baer part number.
Because of the number of wheel companies and styles on the market, Baer cannot guarantee that a brake system will clear a specific wheel. Baer publishes a printable template for each system, and it should be compared against the wheel you intend to run, including the spare.
Specifications
| Detail | Value |
|---|---|
| Product line | Baer SS4+ brake system |
| Rotor size | 11 inch |
| Caliper | Four piston S4 caliper with DOT compliant dust and weather seals |
| Pad type | Popular DR1, DR1-C, HB100 or HB540 pad type depending on system size |
| Rotor type | Slotted, drilled and zinc plated |
| Caliper finish | Red |
| Brake position | Front |
| Manufacturer part number | 4301432R |
| Brand | Baer Brakes |
| Condition | New |

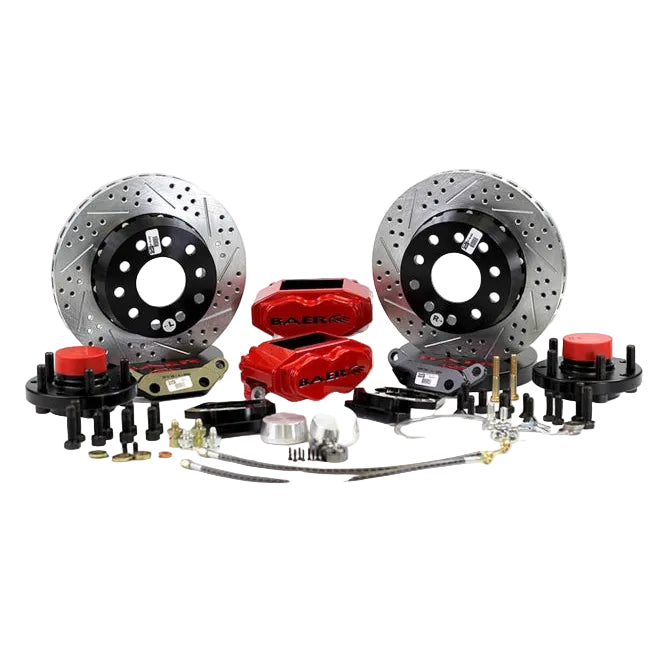

What's Included
- Two Baer SS4+ calipers in the finish listed above
- Two 11 inch rotors, pre assembled with NAS high grade stainless hardware where the system uses a two piece rotor
- Caliper mounting brackets
- Stainless braided brake hoses and fittings
- All mounting hardware
- Instruction sheet
About Baer Brakes
Baer Brakes has engineered and built high performance brake systems in Phoenix, Arizona since 1994. The company designs its own calipers, casts its own rotors and assembles complete systems in house, which is why Baer hardware is a common choice for muscle cars, trucks and modern performance vehicles that need more brake than the factory supplied.
FAQ
What is 4301432R?4301432R is the Baer Brakes part number for this brake kit. Ordering by that number is the only way to be certain you are getting this exact item, because listings that only describe the product can cover several different part numbers.
Will this kit clear my wheels?Baer cannot guarantee clearance with every wheel on the market. Download the Baer template for this system and compare it against your wheel, including the spare, before you install.
Does the kit include everything needed to install?The kit supplies calipers, rotors, brackets, stainless hoses, fittings and hardware. Brake fluid, and a master cylinder if the instructions call for a different bore, are not included.
Do I need to bleed the brakes after fitting this kit?Yes. The hydraulic system is opened when the hoses are fitted, so the system has to be bled until the pedal is firm and no air comes out at any corner.
Is a proportioning valve or master cylinder change required?It depends on the application. Any master cylinder or valve requirement Baer specifies for part number 4301432R is called out in the restrictions above and in the instruction sheet.
Is this the genuine Baer Brakes part or a copy?This is genuine Baer Brakes product sold new in the manufacturer packaging under part number 4301432R. It is not a reproduction or a superseded number.
Does this part come with a warranty?Warranty is handled under the Baer Brakes consumer warranty that applies to part number 4301432R at the time of purchase. Keep your order confirmation, because warranty claims are processed against the original purchase record.
Will you confirm fitment before it ships?Send us the year, make, model, engine and drivetrain of the vehicle along with part number 4301432R and we will check the application against the manufacturer data before the order goes out.
How quickly does this ship?Orders normally leave the warehouse within one to three business days once the order is verified. If part number 4301432R is on factory backorder we will tell you before charging the order.
Installation Instructions
- Read the instruction sheet supplied with the kit completely and confirm every listed component is in the box before starting work.
- Park on level ground, chock the wheels, break the lug nuts loose, then raise the vehicle and support it on rated jack stands.
- Remove the road wheels and take clear photographs of the factory brake assembly for reference.
- Disconnect the factory brake hose or line at the caliper and cap the line to limit fluid loss.
- Remove the factory caliper, bracket, rotor and any dust shield the instructions call out for removal.
- Clean and inspect the hub or spindle, then install the supplied brackets, hubs or bearings exactly as the instruction sheet specifies.
- Mount the rotor assembly, fit the caliper to the bracket and confirm the rotor is centered in the caliper with even pad clearance on both sides.
- Install the supplied stainless braided hoses and fittings, then torque every fastener to the values in the instructions.
- Bleed the system until the pedal is firm and no air comes out at any corner, and verify there are no leaks under pedal pressure.
- Test fit the wheel and confirm clearance to the caliper at full lock and full droop before driving.
- Bed the pads and rotors in with a series of moderate stops from moderate speed, then re-torque the lug nuts after the first short drive.
