SKU: 448063 | UPC: 810031745838
Baja Designs 2021-2025 Ford F-150 Raptor OnX6 Behind Grill Kit 10in Clear D/C

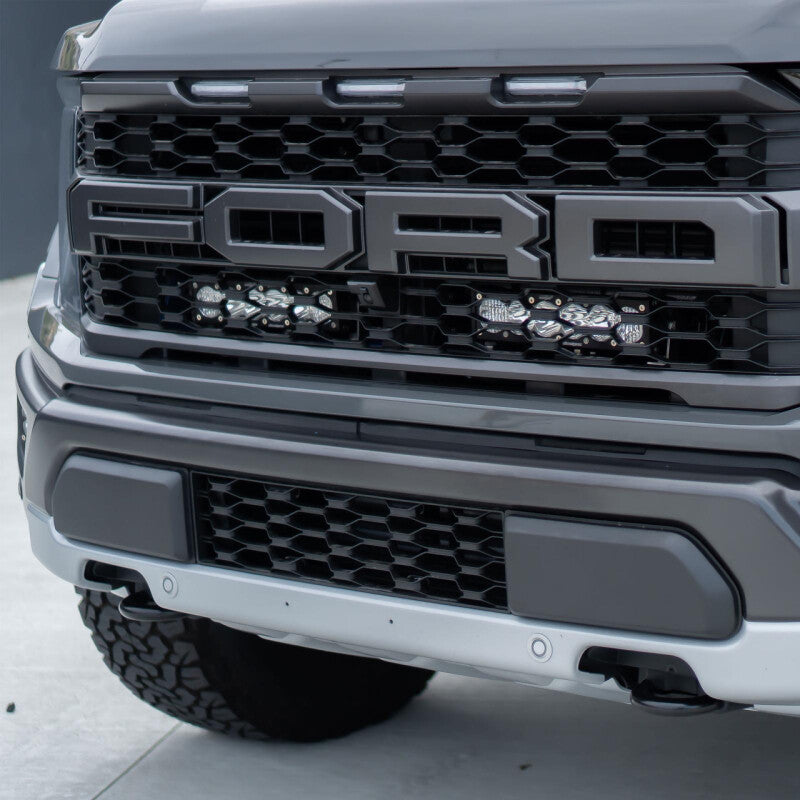

The Baja Designs OnX6 Behind Grill Kit features a 10-inch Clear Dual Control LED light bar with patent-pending mounting hardware designed for 2021-2025 Ford F-150 Raptor. It installs directly behind the factory grille to deliver powerful illumination while keeping the front end look intact. This kit outputs 1910 raw lumens in a Driving/Combo beam pattern reaching 318 meters for superior sightlines on roads and trails.
Key Features
- 1910 Raw Lumens Output: Driving/Combo pattern achieves 318 meters peak distance with 25,334 candela intensity to reveal distant obstacles and wide paths clearly.
- Behind-Grille Mounting: Patent-pending kit positions light bar behind OEM grille to maintain Raptor's stock appearance while channeling light through grille openings.
- Dual Control Harness: Included wiring supports high/low beam switching to adapt to changing light conditions during drives.
- Clear 5000K Lens: Emits daylight white light for precise color rendering and less eye strain on long night runs.
- IP69K Durability: Aluminum heatsink build resists high-pressure water and dust with over 50,000-hour LED life and 2.7 amp draw.
Product Notes

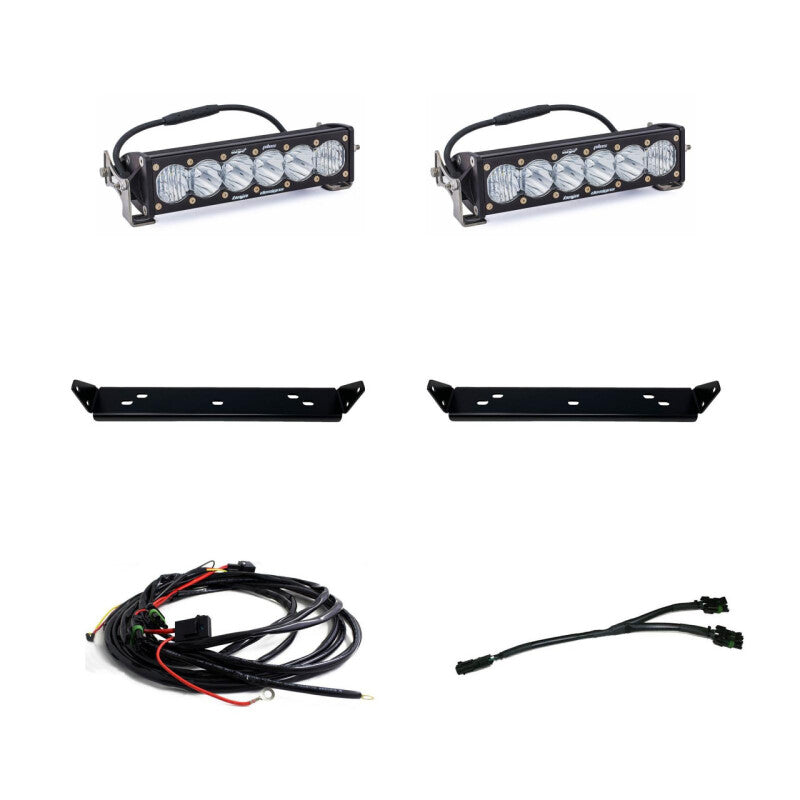

- Kit includes OnX6 10in light bar mounting brackets dual control harness and all hardware for full installation.
- Dimensions 10.12in W x 2.94in H x 2.67in D match grille space exactly.
- Product weight 4.2 lbs allows straightforward handling and transport.
Installation Notes
- Professional installation recommended.
- Bolt-on process requires no drilling or grille cutting and finishes in 1-2 hours.
- Uses provided stainless steel hardware compatible with factory grille structure.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021-2025 | Ford | F-150 | Raptor |
Why Choose Baja Designs?
- Established leader in off-road LED lighting since 1992 with motorsports-proven designs.
- uService components allow simple field servicing of lenses and LEDs.
- Engineered for exact vehicle fitment with rigorous testing for vibration and heat.
Frequently Asked Questions
-
Q: Does this kit fit 2024 Ford F-150 Raptor models?
A: Yes confirmed direct fit for all 2021-2025 Ford F-150 Raptor without modifications. -
Q: What beam pattern and lens type are included?
A: Driving/Combo beam in Clear 5000K lens combines spot and flood coverage for 1910 lumens output. -
Q: What warranty coverage applies?
A: Limited lifetime warranty on LEDs and 2-year warranty on housing against defects.
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Foam-lined protective box 14.5in x 10.5in x 5.5in
- Weight: 4.2 lbs product 5.8 lbs shipping
