Baja Designs 21-25 Ford Bronco Squadron 2.0 Pro (Spot) & S2 Pro D/C / S2 SAE Ambr FPK ST Bmpr w/UP

Road-Legal and Trail-Ready Fog Pocket Kit with Squadron 2.0 Pro, S2 Pro, and S2 SAE Amber for the 2021 and Newer Ford Bronco Steel Bumper

The Baja Designs 440084UP is the ultimate dual-purpose fog pocket kit for the 2021 through 2026 Ford Bronco and 2022 through 2024 Bronco Raptor equipped with the factory steel bumper.

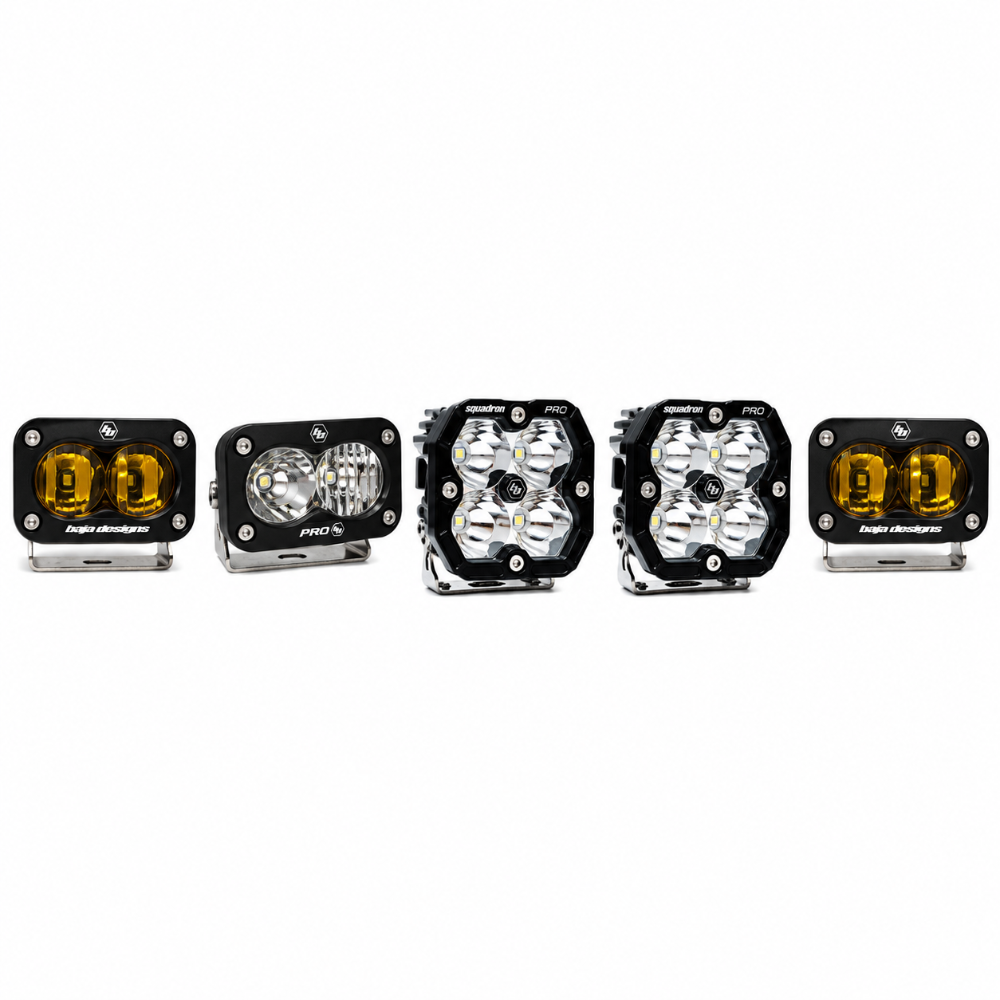

These combines three distinct light types: the Squadron 2.0 Pro in spot configuration delivering 5,981 lumens per light for maximum trail distance, the S2 Pro in driving combo delivering 2,245 lumens per light, and the next-generation S2 SAE in amber for 1,210 lumens per light with a sharp fog cutoff meeting SAE J583 road-legal fog lamp requirements, all controlled independently through factory fog and upfitter switches. Everything needed for a full installation is included with no additional parts required.

Key Features

• Three Light Types in One Kit: Squadron 2.0 Pro (spot), S2 Pro (driving combo), and S2 SAE Amber (fog) provide layered lighting for road legal use, fog conditions, and aggressive off-road driving
• SAE J583 Road-Legal Fog Lamps: The S2 SAE Amber meets federal SAE J583 fog lamp requirements with a precise cutoff line for safe road use and controlled forward illumination in dust, fog, and rain
• Squadron 2.0 Pro Performance: Next-generation 5,981 lumen output per light at 65W, a 21 percent improvement over the previous-generation Squadron, for maximum reach on the trail
• Factory Switch Integration: S2 SAE operates via the factory fog switch; Squadron 2.0 Pro and S2 Pro are wired to factory upfitter switches for a fully OEM-style dual-switch setup
• Steel Bumper Engineered: Designed specifically for the factory Ford Bronco steel bumper fog pocket locations with no modifications required
• Limited Lifetime Warranty: Backed by Baja Designs' Limited Lifetime Warranty and 30-Day Satisfaction Guarantee

Fitment

Note: Requires factory steel bumper. Not compatible with modular bumper or aftermarket front bumpers.

Specifications

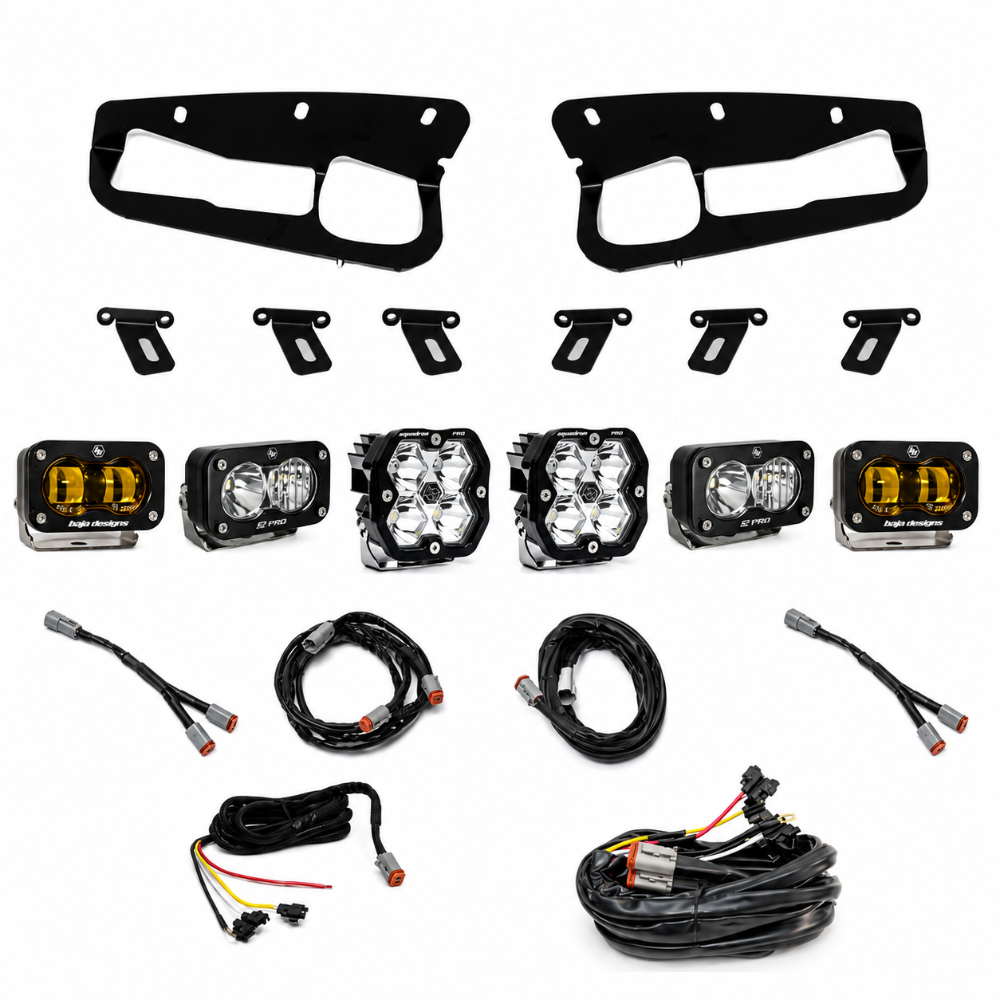

What's Included

• 1x Pair Squadron 2.0 Pro (Spot) lights
• 1x Pair S2 Pro (Driving Combo) lights
• 1x Pair S2 SAE Amber fog lights
• Steel bumper fog pocket mounting hardware and brackets
• Main wiring harness with factory fog switch connector
• Upfitter wiring harness for factory Bronco switch integration
• All necessary mounting hardware and installation instructions

Frequently Asked Questions

What Bronco models does the 440084UP fit?

This kit fits the 2021 through 2026 Ford Bronco and the 2022 through 2024 Bronco Raptor, but only with the factory steel bumper. It does not fit vehicles with the modular or aftermarket front bumpers.

What is the difference between the three light types in this kit?

The Squadron 2.0 Pro in spot produces 5,981 lumens at 65W for maximum trail distance. The S2 Pro in driving combo produces 2,245 lumens at 23.46W for wider illumination. The S2 SAE Amber produces 1,210 lumens with a sharp cutoff pattern designed for road-legal fog use in dust, rain, and snow conditions, and meets SAE J583 fog lamp requirements.

Are the S2 SAE Amber lights road legal?

Yes. The S2 SAE Amber lights are designed and certified to SAE J583 fog lamp standards, which means they meet federal requirements for road-legal auxiliary fog lighting. They operate with a sharp upper cutoff to avoid glare for oncoming drivers.

How do I control each set of lights?

The S2 SAE Amber fog lights are wired to the factory fog light switch on your Bronco's dash. The Squadron 2.0 Pro and S2 Pro are wired to the Bronco's factory upfitter switches, giving you independent control over road and trail lighting from the factory switch cluster without any additional toggles.

Does this kit include all the wiring and hardware I need?

Yes. The 440084UP kit includes everything required for installation on a factory steel bumper Bronco. No additional brackets, wiring, or adapters are needed beyond what is in the box.

What does the UP suffix mean on part number 440084UP?

The UP designation in 440084UP indicates this kit includes an upfitter harness for factory Bronco upfitter switch integration, in addition to the standard fog switch harness for the S2 SAE lights.

Are these lights waterproof enough for river crossings?

Yes. All lights in this kit carry an IP69K rating, which is protection against high-pressure, high-temperature water jets and submersion. They are rated for water crossings and all-weather trail conditions.

What warranty is included?

Baja Designs covers the 440084UP with a Limited Lifetime Warranty against defects in materials and workmanship. A 30-Day Satisfaction Guarantee is also included for returns if the product does not meet expectations. Note that uService is not a feature of the SAE lights; tampering with the SAE optics will void the warranty on those units.

Is this compatible with the Bronco Raptor's front bumper?

The 440084UP fits the 2022 through 2024 Bronco Raptor specifically with the steel bumper variant. Verify your Bronco Raptor's bumper configuration before ordering as some configurations use a different front end.

Installation Notes

1. Disconnect the vehicle's negative battery terminal before beginning any electrical work.
2. Remove the fog pocket covers from the factory steel bumper fog pocket openings on both sides of the front bumper.
3. Mount the S2 SAE Amber lights into the inner fog pocket positions using the supplied brackets and hardware per the Baja Designs installation instructions.
4. Mount the S2 Pro lights and Squadron 2.0 Pro lights into the outer and upper fog pocket positions as specified in the Baja Designs guide for the 440084UP.
5. Route the fog switch wiring harness from the S2 SAE lights to the factory fog switch connector in the engine bay or dash harness as described in the installation guide.
6. Route the upfitter harness from the Squadron 2.0 Pro and S2 Pro lights to the factory Bronco upfitter switch wiring, keeping all wiring clear of heat sources, steering components, and moving parts.
7. Reconnect the negative battery terminal, test all three light types individually through their respective switches, and verify correct beam aim before driving.
