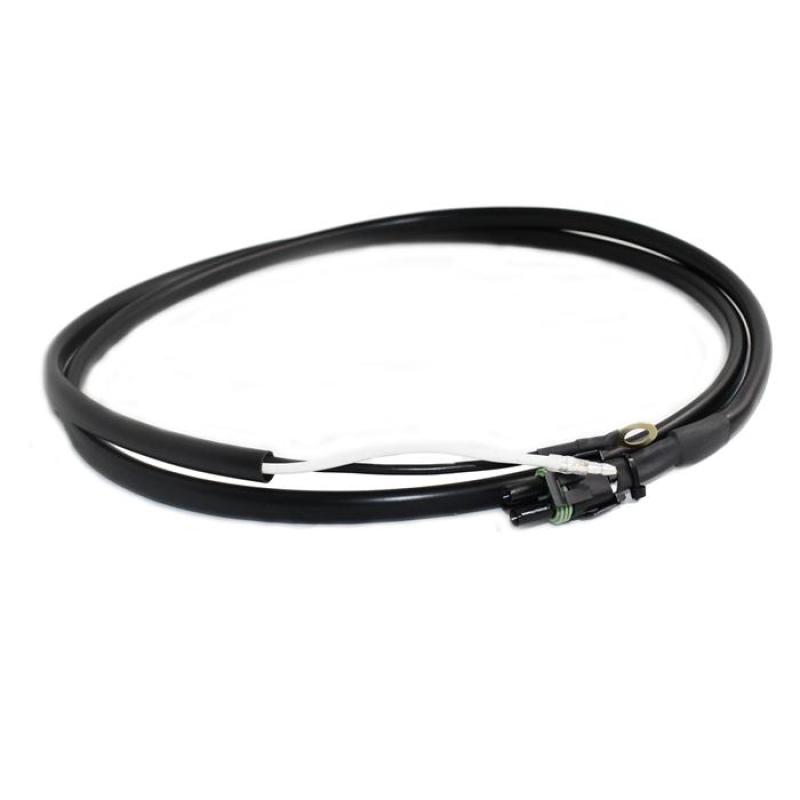

Baja Designs Ford Raptor Upfitter Wiring Harness Squadron Pro and Sport S2

Baja Designs
BAJ640093
819314025902
Light Accessories and Wiring
20+ Units In Stock - Ships Next Business Day
$ 15.95
$ 15.95

SKU: 640093 | UPC: 819314025902

Baja Designs Ford Raptor (2017-2024) Upfitter Wiring Harness Squadron Pro and Sport S2

The Baja Designs 640093 Upfitter Wiring Harness connects directly to factory upfitter switches on Ford Raptor models for straightforward installation of Squadron Pro Sport S2 lights. This harness delivers clean power to single lights or integrates with switch panels like Switch Pros or sPOD units. It ensures dependable operation during off-road use on 2017-2024 Ford F-150 Raptor Bronco Raptor and Super Duty trucks with factory switches.

Key Features

  • Factory Upfitter Switch Compatible: Plugs into OEM switches on Ford Raptor Super Duty Ram HD and select GM Jeep models for plug-and-play setup without cutting wires.
  • Squadron S2 S1 Support: Powers one Baja Designs Squadron-series light per harness with two-pin DT connector for secure reliable connection.
  • Switch Panel Integration: Works with aftermarket panels like Switch Pros SP-9100 or sPOD BantamX for expanded control options.
  • Splice Connectors Included: Allows custom wiring extensions while maintaining weatherproof seals for long-term durability.
  • Universal Design: Fits any vehicle with matching factory upfitter switches simplifying installs across Ford Dodge Jeep and GM trucks.

Product Notes

  • For two Squadron S2 or S1 lights on one harness order Baja Designs DT 2-Pin Splitter (part 640120) separately.
  • Harness measures approximately 10 feet long for flexible routing to light mounts.
  • Standard ground shipping applies weight 0.31 lbs package dimensions 8.5 x 6 x 1 inches.

Installation Notes

  • Professional installation recommended.
  • Locate factory upfitter switch harness under dash and match wire colors for direct plug-in.
  • No mounting hardware included use zip ties or clips for secure routing.

This Part Fits

Year Make Model Submodel
2017-2020 Ford F-150 Raptor
2021-2024 Ford F-150 Raptor
2022-2024 Ford Bronco Raptor
2017-2024 Ford F-250 Super Duty All
2017-2024 Ford F-350 Super Duty All
2019-2024 Ram 2500 All
2019-2024 Ram 3500 All

Why Choose Baja Designs?

  • Leads off-road lighting with products built in the USA.
  • Uses marine-grade corrosion-resistant materials for harsh environments.
  • Engineers every component for precise fit and maximum reliability.

Frequently Asked Questions

  • Q: Will this harness fit my 2022 Ford Bronco Raptor?
    A: Yes it plugs directly into the factory upfitter switches on 2022+ Bronco Raptor F-150 Raptor and Super Duty models.
  • Q: What lights does it power?
    A: Designed for one Baja Designs Squadron Pro Sport S2 or S1 light add the 640120 splitter for two lights.
  • Q: What is the warranty?
    A: Backed by Baja Designs 5-year limited warranty covers defects in materials and workmanship.

Shipping & Handling

  • Method: Standard ground
  • Availability: In stock - ships same or next business day
  • Packaging: Compact box 8.5 x 6 x 1 inches
  • Weight: 0.31 lbs
