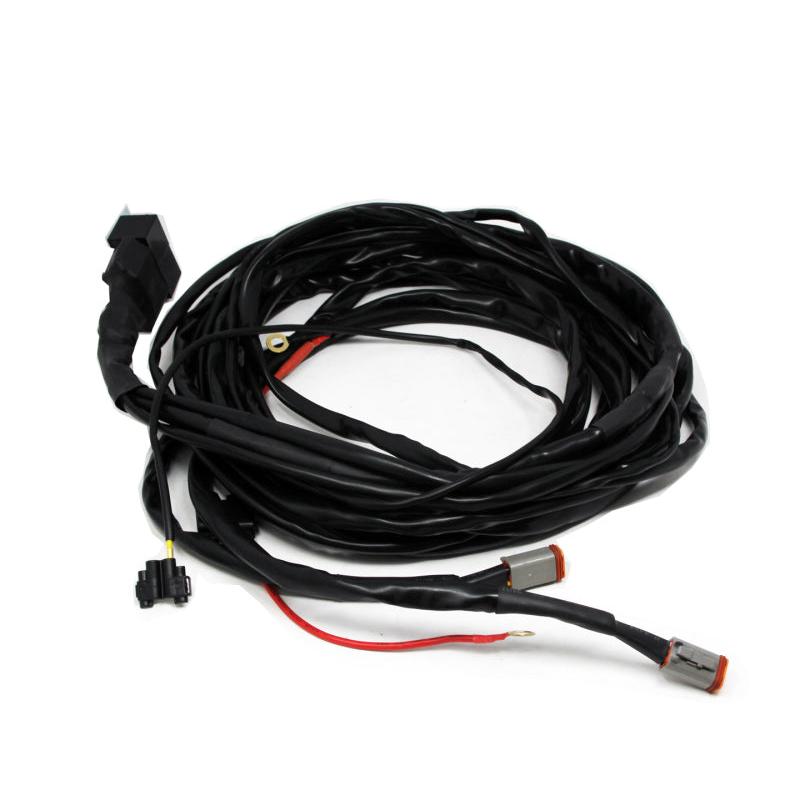

Engineered for Baja Designs LP6 and LP9 off-road lights this wiring harness integrates with power modules like sPOD Switch-Pros and factory upfitter switches. It blocks power to both high and low circuits simultaneously for safe reliable operation. Universal design fits trucks SUVs UTVs Jeeps and any vehicle running LP series lights.
Key Features
- Plug and Play Design: Direct fit for LP6 LP9 series lights eliminates custom wiring guesswork.
- Weight: 0.2 lbs (3.2 oz).
- Lock-Out Protection: Prevents accidental activation of high and low beams together avoiding damage and ensuring focused light output.
- Power Module Compatibility: Works directly with sPOD Switch-Pros SP-9100 and OEM upfitter systems for seamless control.
- USA-made components built for extreme durability and reliability.
- Precision engineering matches LP light specs for flawless performance.
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| 2015-2024 | Ford | F-150 | Raptor |
| 2005-2024 | Ford | Super Duty F-250 F-350 | Tremor Lariat |
| 2007-2024 | Jeep | Wrangler | Unlimited Rubicon |
| 2007-2024 | Jeep | Wrangler | Unlimited Sport |
| 2016-2024 | Toyota | Tacoma TRD | Off-Road Pro |
Specifications
| Brand | Baja Designs |
|---|---|
| Manufacturer Part Number | 640167 |
| Product Type | Light Bars & Cubes |
| Condition | New |
| Product Note 1 | Pair with Baja Designs LP6 or LP9 lights for complete high low beam control |
| Product Note 2 | No switch or relay included use existing vehicle or module switches |
| Product Note 3 | Standard ground shipping handles lightweight compact design |
What's Included
- One new Baja Designs wiring component in the exact configuration and quantity stated in this listing
- Lights, lenses, brackets, harnesses, switches, relays, covers, and mounting hardware are included only when expressly identified for this exact part
About Baja Designs
Baja Designs develops performance lighting for street, off-road, racing, commercial, and powersports applications. Each light, lens, optic, bracket, and harness remains exact-part specific, so verify the complete configuration before installation.
Related Baja Designs Products
- Shop all Baja Designs products
- Baja Designs Squadron 2.0 Pro (Pair) LED Driving/Combo / No Harness
- Baja Designs Squadron 2.0 Sport (Pair) LED Spot / No Harness
- Baja Designs Squadron 2.0 Sport (Pair) LED Wide Cornering / No Harness - Baja Amber
Frequently Asked Questions
Does this harness fit all LP6 and LP9 lights?
Yes it connects directly to standard DT ports on all LP6 LP9 driving work scene pod variants
What connectors are used?
Overmolded Deutsch DT connectors provide IP67 sealing against water dirt and corrosion
What is the warranty?
Backed by Baja Designs 2-year limited warranty covers manufacturing defects under normal use
Which lights and electrical system will this wiring component support?
Match the connector family, voltage, current draw, number of lights, switch or upfitter configuration, fuse, relay, and every exact-part compatibility note.
Installation Instructions
- Professional installation recommended.
- Connect harness between light DT ports and power module inputs
- No mounting hardware included route harness securely with zip ties
