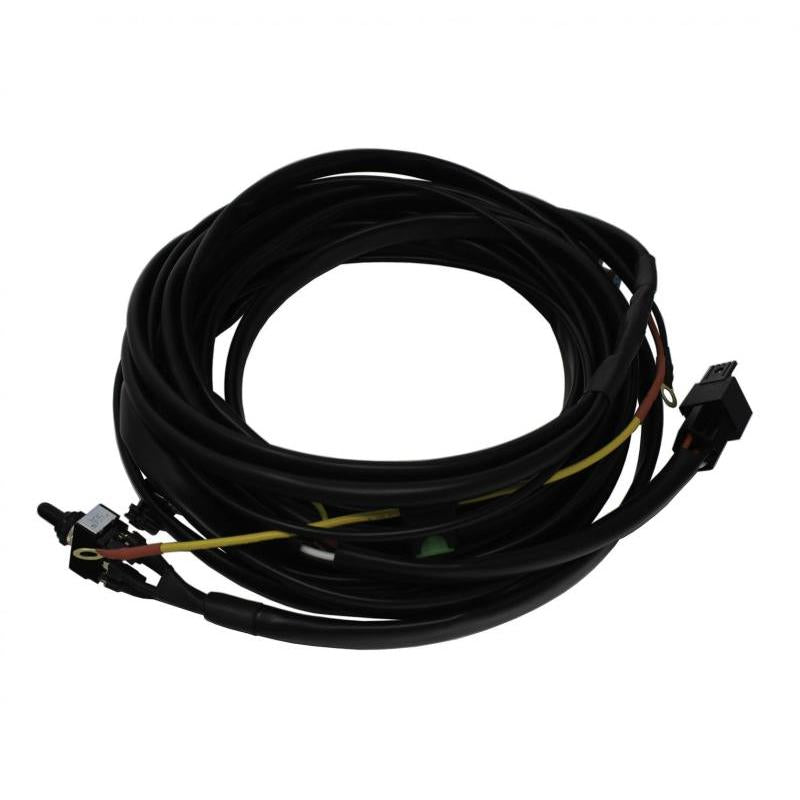

Equip your LP6 Pro or LP9 Pro lights with this complete wiring harness from Baja Designs for reliable power delivery and control in any 12V vehicle. Designed for off-road trucks, Jeeps, UTVs and more, it supports up to two lights with versatile switching. Plug-and-play Deutsch connectors ensure waterproof connections and straightforward setup for enhanced night visibility.
Key Features
- 144-Inch Wiring Length: 12 feet of 12-gauge wire provides ample reach from battery to lights without strain.
- Universal 12V Compatibility: Works with any vehicle setup using LP6 Pro or LP9 Pro lights, no modifications needed.
- Switch mounting hardware not included. use dash hole up to 1 inch diameter.
- On/Off/On Switch Included: Mounts on dash to control one light or both simultaneously for flexible operation during trails or highways.
- Integrated Relay: Handles high-amperage draw from Pro lights to protect vehicle electrical system.
- Compatible only with LP6 Pro and LP9 Pro light models for full functionality.
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| Universal or specification-matched application. Verify dimensions, mounting, wiring, voltage, beam, quantity, and every exact-part requirement. | |||
Specifications
| Brand | Baja Designs |
|---|---|
| Manufacturer Part Number | 640172 |
| Product Type | Light Accessories and Wiring |
| Condition | New |
| Product Note 1 | Compatible only with LP6 Pro and LP9 Pro light models for full functionality |
| Product Note 2 | Heavy-duty construction withstands extreme off-road conditions and moisture |
| Product Note 3 | Ships in protective packaging to prevent damage during transit |
What's Included
- One new Baja Designs wiring component in the exact configuration and quantity stated in this listing
- Lights, lenses, brackets, harnesses, switches, relays, covers, and mounting hardware are included only when expressly identified for this exact part
About Baja Designs
Baja Designs develops performance lighting for street, off-road, racing, commercial, and powersports applications. Each light, lens, optic, bracket, and harness remains exact-part specific, so verify the complete configuration before installation.
Related Baja Designs Products
- Shop all Baja Designs products
- Baja Designs 2024+ Toyota Tacoma Upfitter Harness
- Baja Designs 325 WattsSquadron/S2 Wire Harness (3 Lights Max)
- Baja Designs Ford OnX6/S8 Upfitter Wiring Harness
Frequently Asked Questions
Will this harness work with non-Pro LP6 or LP9 lights?
No, engineered specifically for LP6 Pro and LP9 Pro series connectors and power requirements
What do the switch positions control?
Three positions allow Off, single light activation, or both lights powered together
What warranty coverage applies?
Lifetime limited warranty against defects in materials and workmanship
Which lights and electrical system will this wiring component support?
Match the connector family, voltage, current draw, number of lights, switch or upfitter configuration, fuse, relay, and every exact-part compatibility note.
Installation Instructions
- Professional installation recommended.
- Route harness from battery positive, ground and accessory circuit before connecting lights
- Switch mounting hardware not included. use dash hole up to 1 inch diameter
