SKU: 447557 | UPC: 819314024318

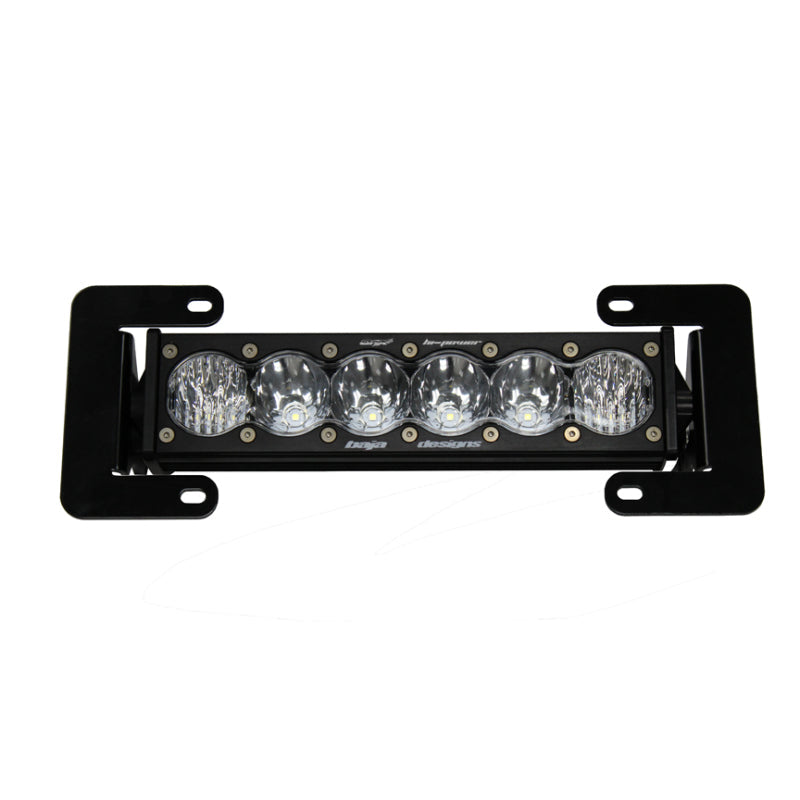

Baja Designs OnX6+ 10 Inch Grille Lower Light Bar Kit 2017-2020 Ford F-150 Raptor (Driving/Combo Clear)
Equip your 2017-2020 Ford F-150 Raptor with the Baja Designs OnX6+ 10 inch lower grille LED light bar kit for unmatched trail visibility. This complete kit includes the high-output OnX6+ light bar in driving/combo beam pattern with clear lens plus custom brackets and harness for seamless integration. Tap directly into factory upfitter switches for plug-and-play control and instant illumination on demand.
Key Features
- High-Output LED: 4921 raw lumens from Cree LEDs provide extensive forward reach up to 1108 meters intrusion distance and 489 meters overhang for confident night driving.
- Driving/Combo Beam: Spot and flood combination pierces deep into darkness while flooding wide areas with clear precise light distribution.
- Custom Brackets: Vehicle-specific mounting hardware ensures perfect lower grille fitment with no vibration and minimal modifications.
- Factory Harness: Pre-wired plug connects to upfitter switches for simple on/off control without cutting factory wiring.
- Rugged Construction: Hard-anodized aluminum housing with IP67 waterproof rating withstands dust water and impacts on rough terrain.
Product Notes
- Brackets designed exclusively for 10 inch OnX6+ light bar, other sizes will not fit.
- Kit includes part 451003 OnX6+ 10 Inch Driving/Combo Clear light bar.
- Ships in protective packaging to prevent damage during transit.
Installation Notes
- Professional installation recommended.
- Quick install requires basic tools and takes under one hour with no major grille alterations.
- Harness plugs into factory upfitter wiring for full switch functionality.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2017 | Ford | F-150 | Raptor |
| 2018 | Ford | F-150 | Raptor |
| 2019 | Ford | F-150 | Raptor |
| 2020 | Ford | F-150 | Raptor |
Why Choose Baja Designs?
- 30+ years leading off-road lighting innovation with race-proven technology.
- uService design allows easy lens replacement without full disassembly.
- Precision-engineered optics deliver focused light exactly where needed.
Frequently Asked Questions
-
Q: Does this kit fit 2021+ Raptors?
A: No, designed specifically for 2017-2020 Ford F-150 Raptor models only. -
Q: What material is the housing?
A: CNC-machined aluminum with hard-anodized finish for corrosion resistance and heat dissipation. -
Q: What is the warranty?
A: Five-year no-questions-asked warranty covers defects in materials and workmanship.
Shipping & Handling
- Method: Standard ground shipping
- Availability: In stock - ships same or next business day
- Packaging: Secure box measuring 14.5 x 8.5 x 6.5 inches
- Weight: 5.6 lbs
