SKU: 523003 | UPC: 852156007095

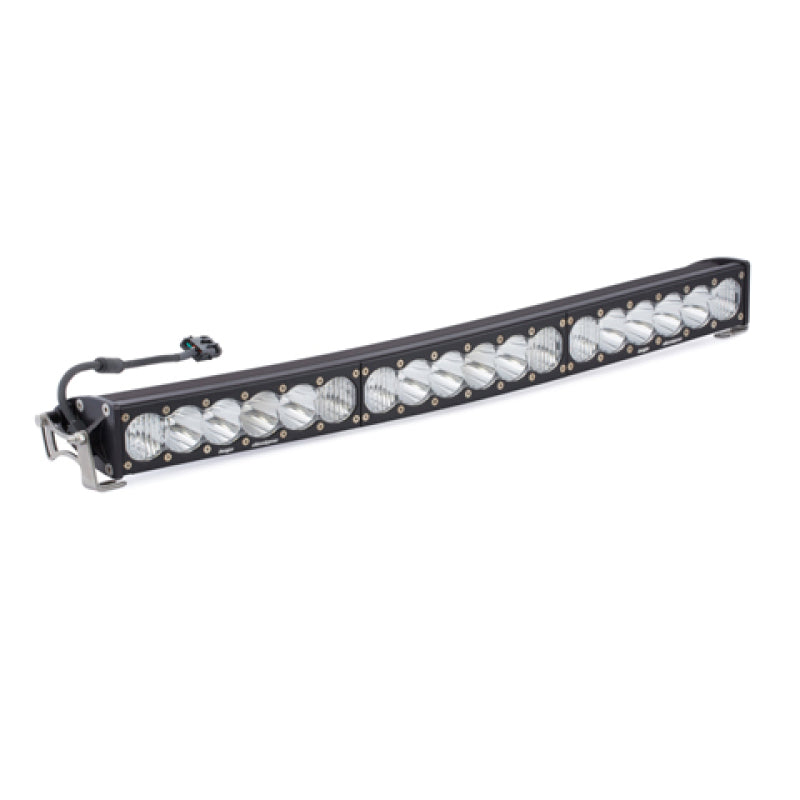

Baja Designs OnX6 Arc Series Driving Combo Pattern 30in LED Light Bar
The Baja Designs 523003 OnX6 Arc 30in LED Light Bar delivers 32,070 lumens of forward-projecting light in a Driving/Combo beam pattern with clear lens. This universal light bar mounts on trucks, Jeeps, SUVs, UTVs and off-road vehicles using included stainless steel brackets. Next-generation LEDs provide 5000K daylight color temperature for clear trail visibility and reduced eye fatigue during long night drives.
Key Features
- High Output LEDs: 32,070 lumens (high beam), 25,610 (low beam) with 49,930 hour average life and high-speed spot reflectors for extended distance
- Daylight Mimicry: 5000K color temperature matches natural light to improve object recognition and cut driver fatigue on rough terrain
- Durable Construction: Aircraft-grade aluminum housing with Mil-Spec hard anodize, hardcoated polycarbonate lens, exceeds MIL-STD810G, IK10 impact, IP69K waterproof up to 9ft
- Advanced Technology: ClearView optics direct all light where needed, CopperDrive runs LEDs at 100% without overheating, built-in overvoltage protection
- Versatile Operation: High/low beam modes, 278W high/222W low, 21.7A high/17.1A low draw, arched design fits bumper or windshield contours
Product Notes
- Wiring harness not included. requires PN 640119 Hi-Power harness with mode switch (2-light max)
- uService design allows replaceable lenses/optics. add-ons include light covers (PN 458410 clear, 458412 amber), rock guard (458411), lens kits (458113-458117)
- Compatible harnesses: 640115 On/Off, 640163 Hi-Beam, splitters 613608/613609, upfitter 640094. anti-theft kits 660302/660303
Installation Notes
- Professional installation recommended.
- Mounting brackets and hardware included. stainless steel construction for secure fit
- Hi-Low dongle included. connect to separate wiring harness for dual beam control
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Trucks, SUVs, UTVs, Jeeps | Off-Road |
Why Choose Baja Designs?
- Proven leader in off-road lighting with battle-tested designs
- Mil-Spec components ensure reliability in extreme conditions
- ClearView and CopperDrive innovations deliver precise beam control
Frequently Asked Questions
-
Q: Does this light bar fit my truck or Jeep?
A: Yes, universal design with included brackets mounts on most trucks, Jeeps, SUVs and UTVs. 30in length, 2.69in height, 4.29in depth -
Q: What materials are used in construction?
A: Billet machined aluminum bezel, aircraft-grade aluminum housing with Mil-Spec anodize, hardcoated polycarbonate lens for impact and water resistance -
Q: What warranty coverage applies?
A: Limited lifetime warranty plus 30-day money back guarantee. MoistureBlock waterproofing and uService for easy lens replacement
Shipping & Handling
- Method: Standard ground shipping
- Availability: In stock - ships same or next business day
- Packaging: Securely boxed for protection
- Weight: 11.45 lbs
