SKU: 640163 | UPC: 819314025988

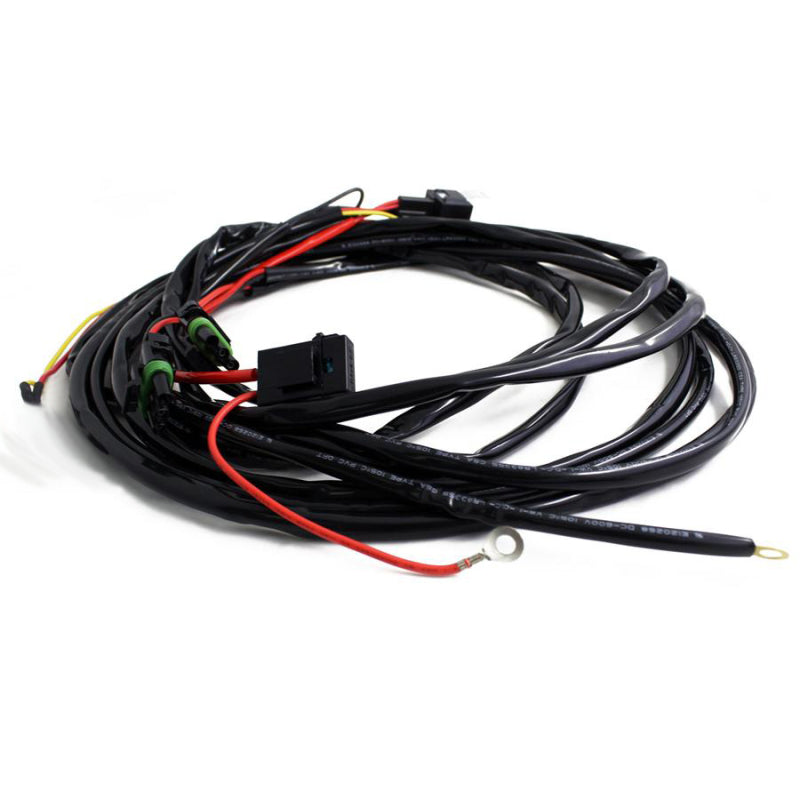

Baja Designs OnX6/S8/XL 3-Pin Hi-Beam 2-Light Max (150 Watts) Wiring Harness (Universal)
This 12V wiring harness powers up to two Baja Designs OnX6 S8 or XL series 3-pin LED lights with 300 watts maximum capacity (150 watts per plug). It taps into your vehicle's hi-beam circuit for automatic activation during high-beam use providing instant extra illumination on trails or roads. Designed for off-road trucks Jeeps UTVs and ATVs this harness delivers consistent power without relays or switches.
Key Features
- Hi-Beam Tap-In: Splices directly into factory hi-beam wires to turn on auxiliary lights automatically enhancing night driving safety and convenience
- 300W Total Capacity: Handles 150W per 3-pin connection supporting two high-output Baja Designs lights for bright reliable illumination
- 3-Pin Compatibility: Matches OnX6 S8 and XL series lights for plug-and-play connection without adapters
- Universal 12V Design: Fits any vehicle with standard hi-beam wiring ideal for off-road and automotive applications
- Splice Connectors Included: Provides secure terminals for clean professional wiring integration
Product Notes
- Verify your lights use 3-pin connectors before purchase
- Inspect wiring for damage during off-road use to maintain performance
- Ships in protective packaging to prevent bends or cuts
Installation Notes
- Professional installation recommended.
- Splice into hi-beam positive wire using included connectors. ground to chassis
- No mounting hardware or switch included. route harness away from heat sources
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All 12V Vehicles | Hi-Beam Equipped |
Why Choose Baja Designs?
- Trusted leader in off-road lighting for over 30 years
- Built with marine-grade wiring for extreme durability
- Engineered for precise current delivery and heat resistance
Frequently Asked Questions
-
Q: Which Baja Designs lights work with this harness?
A: Compatible with OnX6 S8 and XL series lights featuring 3-pin connectors up to 150W each -
Q: Does it require a separate switch or relay?
A: No it uses your vehicle's hi-beam signal for control with no additional components needed -
Q: What is the warranty on this harness?
A: Backed by Baja Designs 5-year warranty for manufacturing defects when installed correctly
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact box 12in x 9in x 2in
- Weight: 0.8 lbs
