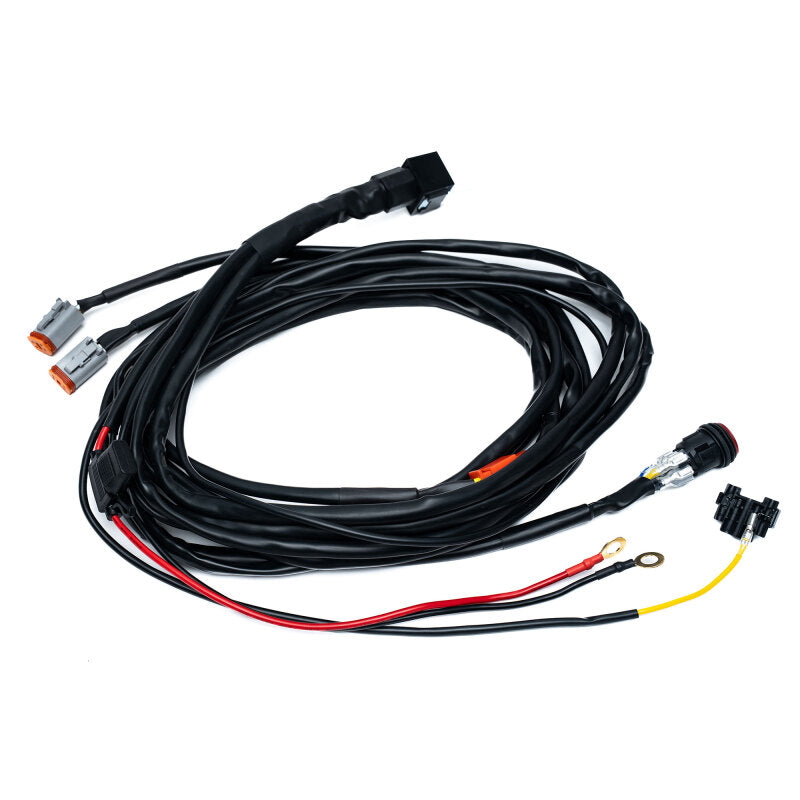

Baja Designs Squadron 2.0 Harness delivers complete wiring for two Squadron-R Sport or Pro lights using rugged 4-pin Deutsch DT connectors. This universal kit works on off-road trucks Jeeps UTVs ATVs and powersports vehicles for reliable illumination. It includes relay fuse and rocker switch for straightforward power management and circuit protection.
Key Features
- Pre-Wired Rocker Switch: Dash-mount switch with LED indicator offers quick on-off control without splicing into factory wiring.
- 16 AWG Tinned Copper Wiring: 12-foot main harness with 24-inch light leads resists corrosion and supports up to 10A per light.
- Requires standard 12V DC vehicle electrical system.
- Route harness away from exhaust heat and moving parts.
- Over 30 years engineering LED lights for Baja 1000 and Dakar Rally winners.
- Made in USA with aircraft-grade materials for daily abuse.
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| 2013-2024 | Can-Am | Maverick | X3 DS Turbo |
| 2019-2024 | Ford | Bronco | |
| 2007-2024 | Jeep | Wrangler | Rubicon |
| 2007-2024 | Jeep | Wrangler | Sport |
| 2014-2024 | Polaris | RZR | XP 1000 Turbo |
Specifications
| Brand | Baja Designs |
|---|---|
| Manufacturer Part Number | 640055 |
| Product Type | Light Accessories and Wiring |
| Condition | New |
| Product Note 1 | Compatible only with Squadron 2.0 series lights featuring 4-pin DT connectors |
| Product Note 2 | Requires standard 12V DC vehicle electrical system |
| Product Note 3 | Ships in protective cardboard sleeve to prevent damage |
What's Included
- One new Baja Designs wiring component in the exact configuration and quantity stated in this listing
- Lights, lenses, brackets, harnesses, switches, relays, covers, and mounting hardware are included only when expressly identified for this exact part
About Baja Designs
Baja Designs develops performance lighting for street, off-road, racing, commercial, and powersports applications. Each light, lens, optic, bracket, and harness remains exact-part specific, so verify the complete configuration before installation.
Related Baja Designs Products
- Shop all Baja Designs products
- Baja Designs S2 Pro Amber LED Driving/Combo
- Baja Designs S2 Pro Series LED Light Pods Spot Pattern - Pair
- Baja Designs S2 Pro Series LED Light Pods Wide Cornering Pattern - Pair
Frequently Asked Questions
Will this harness work with Squadron Sport lights?
Yes it connects directly to any Squadron 2.0 Sport Pro or R model with 4-pin DT connectors no adapters required
What wire length covers most installs?
12-foot battery lead reaches rear-mounted lights on full-size trucks with 24-inch pigtails between lights
Does it include all wiring components?
Complete kit has relay 30A fuse rocker switch connectors and color-coded wires ready for plug-and-play
Which lights and electrical system will this wiring component support?
Match the connector family, voltage, current draw, number of lights, switch or upfitter configuration, fuse, relay, and every exact-part compatibility note.
Installation Instructions
- Professional installation recommended.
- Route harness away from exhaust heat and moving parts
- Uses existing battery terminals no special hardware needed
