Baja Designs Squadron 2.0 Pro Black LED Light Pod Pair

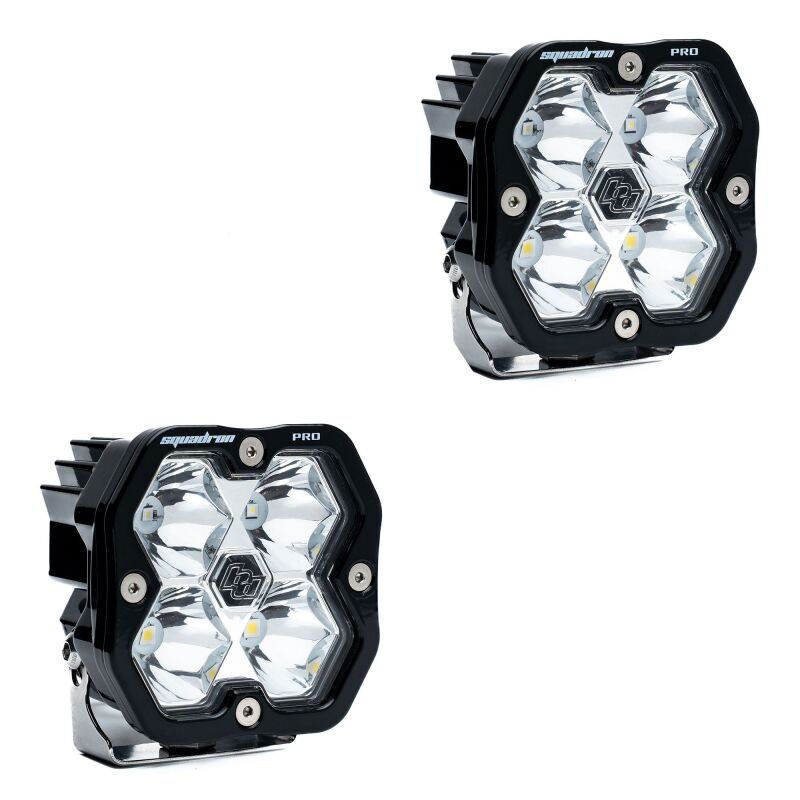

The Baja Designs Squadron 2.0 Pro Black LED Light Pod Pair (MPN: 49-7801-2NH) is a universal auxiliary off-road light system built around Baja Designs' latest-generation hexagonal quad LED array. Producing 5,921 raw lumens per light at 65W and reaching a verified 454 feet down the trail with a focused 9-degree spot beam, the Squadron 2.0 Pro delivers 41% more output and 73% more reach than the original Squadron Pro. The gloss black anodized and powder-coated cast aluminum housing carries an IP69K waterproof rating, exceeds MIL-STD-810G military-spec durability standards, and is IK10 impact-rated for the harshest off-road conditions. A 30-day money-back guarantee and a limited lifetime warranty covering up to 49,930 hours of recreational use back every set. This product is for off-road use only and is NOT street legal. The No Harness (NH) configuration is sold here; a wiring harness must be sourced separately.

What Makes the Squadron 2.0 Pro a Step Above

Baja Designs rebuilt the Squadron Pro from the ground up for the 2.0 generation. The new hexagonal quad LED array incorporates Racer Edition LEDs previously found only in the discontinued Squadron Racer, driven at full power by CopperDrive technology to ensure the LEDs run at 100% rated output rather than being thermally derated. The result: 5,921 lumens per light in a housing that measures just over three inches wide.

The Spot Clear beam pattern focuses light through a 9-degree field angle with an 86-degree beam spread and an ELS-rated reach of 454 feet, placing it firmly in Lighting Zones 4 and 5 for maximum distance on high-speed trails and desert runs. ClearView technology optimizes the beam shape for consistent intensity across the entire throw. The operating voltage range of 10 to 36V makes the Squadron 2.0 Pro compatible with standard 12V automotive systems, 24V diesel and commercial vehicles, and select UTV platforms.

The redesigned cast aluminum housing adds heat dissipation fins for improved thermal management, and the new adjustable stainless steel mounting bracket provides increased vertical adjustability for precise aim on any bumper or light bar. The 4-pin Deutsch-style weatherproof connector replaces the prior-generation Weather Pack design for a more secure, vibration-resistant connection.

9-Color RGB Backlight and uService Lens System

Each Squadron 2.0 Pro pod includes a 9-color selectable RGB backlight with color options of red, green, blue, magenta, cyan, amber, yellow, pink, and white. Color settings are retained after the light is powered off, so there is no need to reprogram at every use. Backlight operation requires 11 to 14V and is controlled by the three-position switch included with the compatible wiring harness (sold separately for the NH version).

The uService lens system allows the user to swap the hard-coated polycarbonate lens and reflector for a different beam pattern or lens color without sending the light back to Baja Designs. New secure clip-in reflectors and a redesigned gasket maintain the IP69K seal integrity after lens changes. Clear lens kits, Baja Amber lens kits, and Factory Amber lens kits are available separately, allowing the same housing to serve as a spot, driving combo, wide cornering, or work/scene light depending on the application.

IP69K, IK10, and MIL-STD-810G Rated

The Squadron 2.0 Pro Black is certified to the following durability standards:

• IP69K: Fully waterproof and pressure-wash resistant; rated submersible to 9 feet. The highest IP protection rating available for solid particle and liquid ingress.
• IK10: Highest mechanical impact rating under IEC 62262; protects against impacts up to 20 joules.
• MIL-STD-810G: Exceeds U.S. military environmental test standards covering low temperature, high temperature, humidity, thermal shock, dust, vibration, mechanical shock, low pressure, and drip/water exposure.
• Salt Spray Certified: Tested against salt corrosion for extended coastal and marine off-road use.

MoistureBlock technology provides full internal sealing. The stainless steel mounting hardware resists corrosion independently of the housing. These certifications mean the Squadron 2.0 Pro is built to outlast the vehicle it is mounted on, with the limited lifetime warranty backed by a rated LED life of 49,930 hours.

Common Applications

The 4978012NH is a universal auxiliary light pod pair and is not vehicle-specific. It is commonly installed on trucks, Jeeps, SUVs, UTVs, ATVs, overlanding rigs, sand rails, and off-road race vehicles using aftermarket bumpers, grille guards, roof racks, A-pillars, light bars, or roll cages. The compact 3.32-inch wide housing fits in tight mounting locations where larger pods cannot. For vehicle-specific bolt-on integration with dedicated brackets and pre-routed wiring, Baja Designs offers Squadron 2.0 Vehicle Specific Kits (VSK) as separate part numbers for platforms such as the Toyota Tacoma, Ford F-250/F-350, Ford Bronco, and others.

This product is for off-road use only. It is not SAE or DOT certified and may not be used on public roads.

What's Included

• (2) Baja Designs Squadron 2.0 Pro Black LED Light Pods, Spot Clear beam pattern
• All necessary stainless steel mounting hardware and adjustable brackets
• Wiring harness is NOT included. This is the No Harness (NH) version (49-7801-2NH / BAJ4978012NH). A compatible Baja Designs Squadron 2.0 Dual 4-pin Deutsch wiring harness with Hi/Low/Backlight switch must be purchased separately.

If you need a complete plug-and-play kit with the harness included, order the Squadron 2.0 Pro pair with harness (MPN 49-7801-2) instead.

Full Specifications

Other Squadron 2.0 Pro Configurations

The Squadron 2.0 Pro Black pair series (49-78xx-2 family) is available in four beam patterns and two lens colors, each offered with or without a wiring harness. The 49-7801-2NH covered here is the Spot Clear, No Harness variant. Other common configurations include:

• 49-7803-2NH: Driving Combo, Clear lens, No Harness (128-degree spread, 403 ft reach)
• 49-7805-2NH: Wide Cornering, Clear lens, No Harness (132-degree spread, 159 ft reach)
• 49-7806-2NH: Work/Scene, Clear lens, No Harness (148-degree spread, 64 ft reach)
• 49-7811-2NH: Spot, Baja Amber lens, No Harness (amber tint for dust and fog penetration)
• 49-7801-2: Spot, Clear lens, with harness included (same lights, adds dual 4-pin Deutsch harness and switch)

All variants share the same 5,921-lumen housing, IP69K rating, and limited lifetime warranty. The beam pattern is the primary differentiator. Because the uService lens system is user-swappable, a single set of lights can be converted between beam patterns by purchasing a separate lens kit rather than buying a new pair of lights.

Installation Overview

Installation of the 4978012NH requires a suitable mounting location and a separate wiring harness. The No Harness configuration is intended for builders using custom electrical systems, sPOD switch controllers, or vehicle-specific upfitter wiring. The compatible Baja Designs Squadron 2.0 Dual 4-pin Deutsch wiring harness (sold separately) includes a 12V/40A relay, a three-position Hi/Low/Backlight switch, and a yellow splicing wire that can be tapped into headlights or DRLs for automatic-on functionality.

• New 4-pin Deutsch-style connector is NOT backward-compatible with original Squadron Pro (gen 1) harnesses
• Adjustable stainless steel mounting bracket allows precise vertical aim after installation
• Confirm a minimum clearance from fuel lines, brake lines, and rubber components after mounting
• Installation sheets (PDF) are available at bajadesigns.com for all 49-78xx-2 part numbers


Buyer is responsible for ensuring the product is used in compliance with all applicable laws and regulations. This product is for off-road use only.

About Baja Designs

Baja Designs is headquartered in San Marcos, California and has been building off-road lighting used by professional race teams at events including the Baja 1000, King of the Hammers, and SCORE International desert races. The Squadron series is Baja Designs' flagship auxiliary light pod line, balancing compact size with race-proven output levels. The Squadron 2.0 Pro represents the second-generation redesign, incorporating CopperDrive LED drive technology, ClearView beam optimization, MoistureBlock internal sealing, and the uService user-serviceable lens system. Every Squadron 2.0 Pro is backed by the Baja Designs limited lifetime warranty for recreational off-road use.

Frequently Asked Questions

Is the 4978012NH street legal?
No. The Baja Designs Squadron 2.0 Pro is not SAE or DOT certified and is not approved for on-road use. At 5,921 lumens per light and 65W draw, it exceeds the output thresholds for street-legal auxiliary fog lamps. It is for off-road use only. If you need a street-legal option, look at Baja Designs' Squadron SAE series, which carries SAE J583 fog lamp certification.

Does the 4978012NH come with a wiring harness?
No. The "NH" designation in the SKU and part number stands for No Harness. The box contains two light pods and mounting hardware only. To complete the installation you will need the Baja Designs Squadron 2.0 Dual 4-pin Deutsch wiring harness with Hi/Low/Backlight switch, sold separately for approximately. If you want the lights and harness together, order part number 49-7801-2 instead.

What beam pattern does the BAJ4978012NH use?
The 49-7801-2NH uses a Spot beam pattern with a clear lens. The spot beam has a 9-degree field angle, 86-degree spread, and a verified reach of 454 feet, placing it in Baja Designs Lighting Zones 4 and 5 for maximum trail distance. It is best used alongside a wider driving combo or wide cornering light for full coverage. The uService lens system allows swapping to a different beam pattern without replacing the light.

How many lumens does the Squadron 2.0 Pro produce?
Each light in the pair produces 5,921 raw lumens. The ELS (Effective Lumen Score) for the Spot Clear pattern is 4,930 lumens per light. The 2.0 generation produces 41% more output than the original Squadron Pro and reaches 73% farther down the trail.

What is the IP rating of the 4978012NH?
The Squadron 2.0 Pro Black carries an IP69K rating, which is the highest waterproofing rating available and covers full submersion to 9 feet as well as high-pressure, high-temperature wash-down. It is also IK10 impact rated and exceeds MIL-STD-810G military environmental durability standards including vibration, thermal shock, humidity, and mechanical shock testing.

What is the warranty on the 4978012NH?
Baja Designs covers the Squadron 2.0 Pro with a 30-day money-back satisfaction guarantee plus a limited lifetime warranty for recreational off-road use, covering defects up to 49,930 hours of operation or the lifetime of the original purchaser with proof of purchase. Commercial use applications (agriculture, mining, public safety) carry a 5-year or 49,930-hour warranty. The warranty does not cover installation errors, physical damage from abuse or collision, or product modifications not performed by Baja Designs.

Is the connector on the Squadron 2.0 Pro compatible with original Squadron Pro harnesses?
No. The Squadron 2.0 Pro uses a new 4-pin Deutsch-style connector, replacing the Weather Pack connectors used on the original Squadron Pro (gen 1). Existing gen 1 harnesses are not backward-compatible. You will need a Squadron 2.0 series harness.

Can I change the beam pattern after purchasing the 4978012NH?
Yes. The uService lens system allows you to swap the hard-coated polycarbonate lens and clip-in reflector for a different beam pattern or lens color. Clear Spot, Driving Combo, Wide Cornering, and Work/Scene lens kits are available separately in clear and Baja Amber options. The redesigned gasket and secure clip-in reflector system maintain the IP69K seal after lens changes.

What is the RGB backlight and how does it work?
Each Squadron 2.0 Pro pod has a built-in backlight with 9 selectable colors: red, green, blue, magenta, cyan, amber, yellow, pink, and white. Color settings are stored onboard and are remembered after the light is powered off. The backlight requires 11 to 14V and is controlled by the third position on the three-position switch included with the Baja Designs wiring harness (sold separately for the NH version). The backlight operates independently from the main beam.

What vehicles does the 4978012NH fit?
The Squadron 2.0 Pro pair is a universal auxiliary light, not a vehicle-specific kit. It is commonly mounted on trucks, Jeeps, SUVs, UTVs, ATVs, and off-road race vehicles using aftermarket bumpers, grille guards, A-pillars, roof racks, or roll cage tubing. The compact 3.32-inch wide housing fits most standard auxiliary light mounting locations. For a vehicle-specific bolt-on kit with dedicated brackets, see the Baja Designs Squadron 2.0 Vehicle Specific Kit (VSK) series.

Does the operating voltage work with 24V diesel trucks or UTVs?
Yes. The main beam operates on 10 to 36V, making it compatible with standard 12V automotive systems, 24V diesel and commercial vehicles, and select UTV platforms. The backlight requires 11 to 14V for operation.
