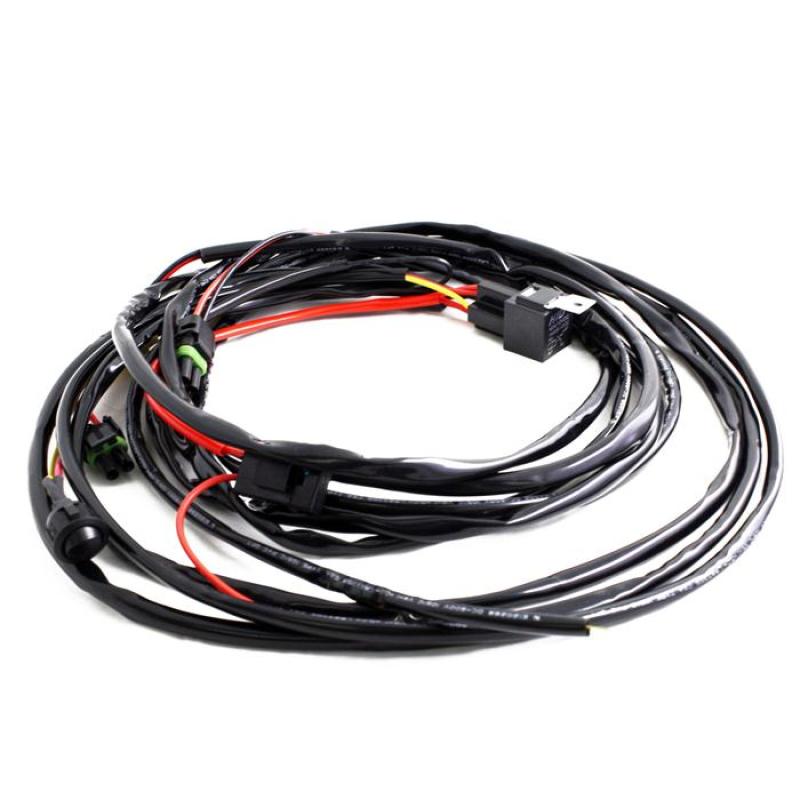

Baja Designs Wiring Harness LP9/LP6/LP4 Backlit Add-On

Baja Designs
BAJ640177
810031740680
Light Accessories and Wiring
20+ Units In Stock - Ships Next Business Day
$ 26.95
$ 26.95

SKU: 640177 | UPC: 810031740680

Baja Designs 640177 S8 Series Backlight Add-On Wiring Harness Kit - Universal

Enhance your Baja Designs S8 Series lights with backlit functionality using this dedicated wiring harness kit. Designed for universal fit on off-road vehicles, trucks, and Jeeps equipped with S8 pod lights, it provides a plug-and-play solution to activate the backlight feature. Save time on custom wiring with pre-configured components for quick connection to your fuse panel or keyed power source.

Key Features

  • S8 Series Compatibility: Engineered exclusively for Baja Designs S8 pod lights to enable backlit operation without replacing your existing harness
  • Extended Wire Length: Over 20 feet of durable wiring reaches any fuse panel or splice point easily
  • Fuse Tap Kit: Includes 4 common fuse taps for simple, tool-free integration into vehicle electrical systems
  • Versatile Connectors: Bullet connectors and alternate splice option ensure secure, reliable connections
  • Complete Kit Contents: Detailed instructions, zip ties, and all necessary components for professional results

Product Notes

  • Switch not included. backlighting activates with main light power
  • Mounting hardware not provided. uses existing light pod setup
  • Standard ground shipping applies to all orders

Installation Notes

  • Professional installation recommended.
  • Route harness to fuse box or splice into 12V switched power source
  • Compatible with bullet-style connectors on S8 lights. no drilling required

This Part Fits

Year Make Model Submodel
Universal All All Vehicles with Baja Designs S8 Series Lights
2007-2024 Jeep Wrangler JK, JL, TJ
2010-2024 Ford F-150 Raptor All
2015-2024 Toyota Tacoma, 4Runner TRD Off-Road/Pro
1997-2024 Chevrolet/GMC Silverado/Sierra 1500-3500HD

Why Choose Baja Designs?

  • Over 30 years as off-road lighting innovator trusted by racers worldwide
  • Components built with marine-grade materials for extreme durability
  • Precision wiring tested for vibration, water, and heat resistance

Frequently Asked Questions

  • Q: Will this harness fit LP6, LP9, or LP4 lights?
    A: No, this 640177 kit is designed only for S8 Series pod lights. Check Baja Designs for LP series specific harnesses.
  • Q: What materials are used in the wiring?
    A: High-strand copper wire with protective insulation rated for automotive and off-road environments.
  • Q: Is a separate switch or relay required?
    A: No switch or relay needed. connects directly to existing S8 light power via fuse tap or splice for backlight activation.

Shipping & Handling

  • Method: Standard Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Compact box measuring 9 x 6 x 1 inches
  • Weight: 0.4 lbs
