SKU: 640119 | UPC: 852156007651

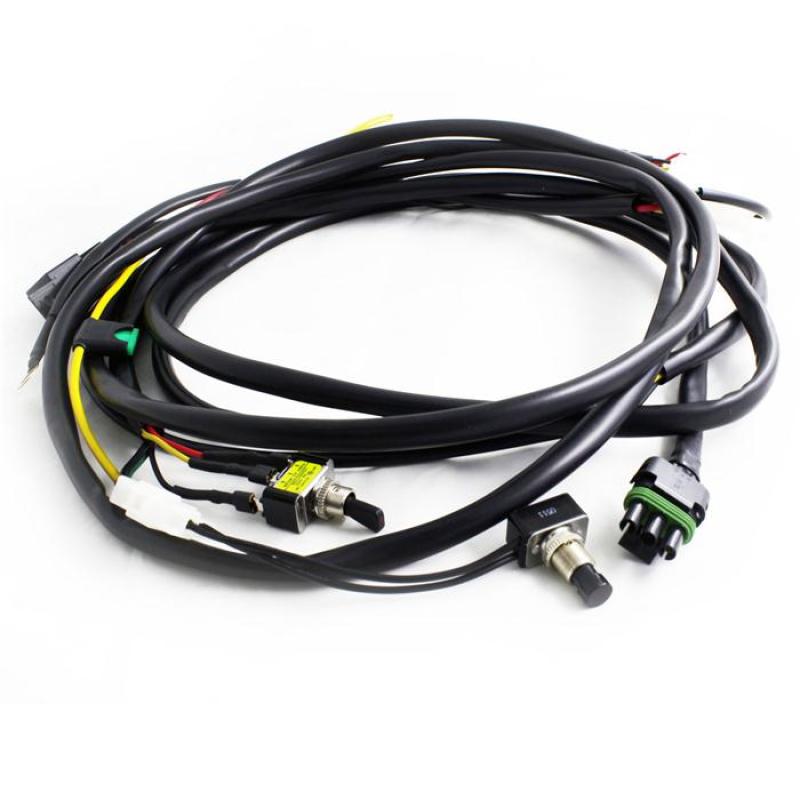

Baja Designs OnX6/XL Hi-Power Wiring Harness w/ Mode Switch (2-Light Max, 355 Watts)
Complete plug-and-play wiring harness designed for Baja Designs XL Pro, XL Sport, and OnX6+ LED lights on trucks, UTVs, Jeeps, and off-road vehicles. Eliminates installation guesswork with heavy-duty construction built for racing conditions and 355-watt capacity across two lights. Control lights via high beam signal or included toggle switch with dim mode for versatile operation day or night.
Key Features
- 100-Inch Wire Length: Extends from battery ring terminals to weatherpack connectors ideal for bumper, roof, or A-pillar mounting on any vehicle
- Full Component Kit: Includes battery ring terminals, 40-amp relay, braided sheathing, inline fuse, and all connectors for reliable power delivery
- Heavy-Duty Wire Gauge: 12-gauge wiring handles high current draw without voltage drop ensuring consistent brightness in demanding off-road environments
- Mode Switch Included: Toggle for On/Off plus dedicated dim button allows high/low output adjustment without external controllers
- Weatherproof Connectors: Three-pin DT connectors and splice terminals provide secure, sealed connections resistant to water, dirt, and vibration
Product Notes
- Suited for racing with race-proven durability and universal fit for Baja Designs OnX6 and XL series lights
- Supports up to 355 watts total across two lights. exceeds previous 325-watt rating for added capacity
- Standard ground shipping. securely packaged to prevent damage
Installation Notes
- Professional installation recommended.
- Route harness along frame rails to battery. optional high beam input wire for automatic activation
- Mounting hardware not included. use zip ties or brackets for relay and switch placement
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | Any | Trucks/UTVs/Jeeps | OnX6/XL Lights |
| 2015-2024 | Polaris | RZR | All |
| 2010-2024 | Can-Am | Maverick | All |
| 2007-2024 | Jeep | Wrangler JK/JL | All |
| 2015-2024 | Ford | F-150/Raptor | All |
| 2016-2024 | Toyota | Tacoma/4Runner | All |
Why Choose Baja Designs?
- Trusted by racers in Baja 1000, King of the Hammers, and Dakar Rally for unbreakable lighting systems
- Engineered in USA with military-grade materials for extreme heat, cold, and impacts
- Plug-and-play design backed by decades of off-road innovation
Frequently Asked Questions
-
Q: Which Baja Designs lights are compatible?
A: Fits XL Pro, XL Sport, and OnX6+ series lights with three-pin connectors. supports up to two lights at 355 watts max -
Q: Does it connect to vehicle high beams?
A: Yes, dedicated high beam trigger wire allows automatic activation. fallback to manual toggle switch included -
Q: What is the warranty?
A: Five-year limited warranty covers defects in materials and workmanship. register product for full coverage
Shipping & Handling
- Method: Standard Ground
- Availability: In stock - ships same or next business day
- Packaging: Compact protective box, 12 x 10 x 3 inches
- Weight: 2.0 lbs
