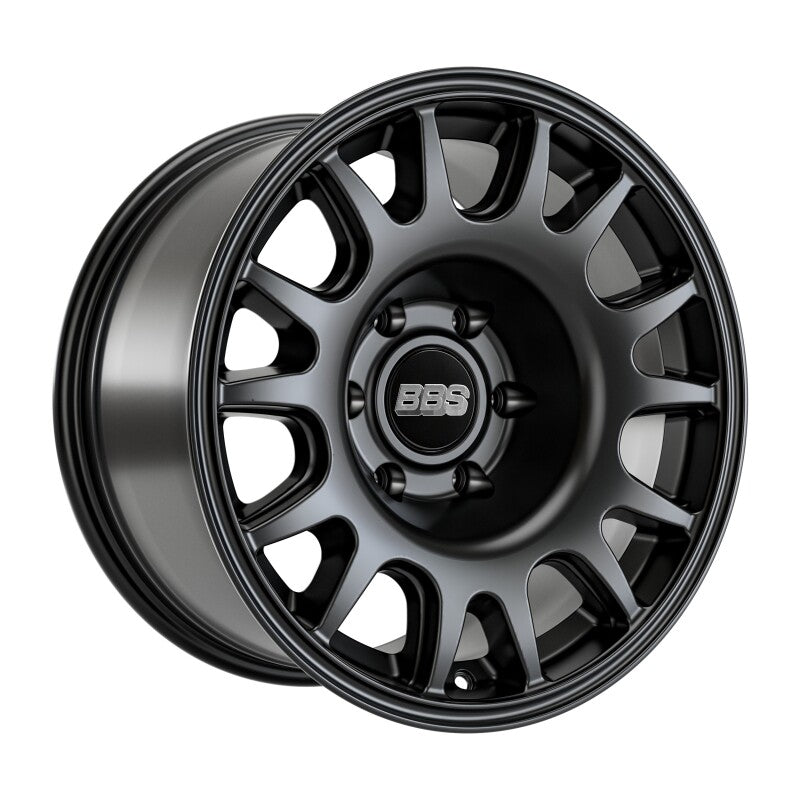

A Six-Lug Flow-Formed Wheel Built For Aggressive Fitment Without The Forged Price Tag
The BBSTS-R179089N1201 delivers a flow-formed one-piece construction, giving six-lug truck and SUV owners a lighter, stronger wheel than a standard cast alternative at a fraction of the cost of a forged set. Built to a 17x9 size with a 6x135 bolt pattern, 87.1mm center bore, and -12mm offset, this wheel is finished in Satin Black and ready to bolt on for owners running a six-lug truck or SUV platform.
Key Features
- Flow-formed one-piece construction stretches and compresses the rim barrel for added strength over standard cast wheels
- 17x9 size with 6x135 bolt pattern for six-lug truck and SUV applications
- 87.1mm center bore and -12mm offset
- Satin Black finish resists brake dust buildup and complements a wide range of paint colors
- Lighter than comparable cast wheels, reducing unsprung and rotational mass
- TUV-style structural testing standards applied during production
Specifications
| Detail | Value |
|---|---|
| MPN | BBSTS-R179089N1201 |
| UPC | Not published by manufacturer |
| Brand | BBS |
| Wheel Line | TS-R |
| Size | 17x9 |
| Bolt Pattern | 6x135 |
| Center Bore | 87.1mm |
| Offset | -12mm |
| Finish | Satin Black |
| Construction | Flow-formed, one-piece |
| Quantity | Sold individually |
| Warranty | 10-year structural, 2-year finish (BBS of America) |
What's Included
- 1 BBS TS-R wheel, 17x9, Satin Black finish
- Wheel is sold individually, order the quantity needed for your build
About BBS
BBS has built wheels for motorsport and street applications since 1970, pioneering the flow-forming process used across its Performance Line to deliver strength and weight savings between standard cast wheels and full forged construction. Every wheel is designed and tested to meet BBS structural and fatigue standards before leaving the factory.
Related Parts on Our Site
FAQ
What is the BBSTS-R179089N1201?The BBSTS-R179089N1201 is a BBS TS-R flow-formed wheel measuring 17x9 with a 6x135 bolt pattern, 87.1mm center bore, and -12mm offset, finished in Satin Black.
What bolt pattern does this wheel use?This wheel uses a 6x135 six-lug bolt pattern, common on many trucks and SUVs. Confirm your vehicle's factory bolt pattern before ordering.
What is the center bore on this wheel?The center bore is 87.1mm. If your vehicle's hub bore is smaller than this measurement, a hub-centric ring is recommended to prevent vibration.
Is this wheel sold as a single wheel or a set?This listing is for a single wheel. Order four for a full set, or five if your vehicle carries a matching spare.
What offset does this wheel have?This wheel has a -12mm offset, which affects how far the wheel face sits relative to the hub mounting surface and impacts fender and suspension clearance.
Is this wheel forged or cast?This wheel uses BBS flow-formed construction, a process that spins and compresses a cast blank under pressure to increase strength and reduce weight compared to a standard cast wheel.
Will I need new lug nuts for this wheel?In most cases yes, since aftermarket wheels typically require different seat types or thread pitches than factory lug hardware. Check your specific application before installation.
What is the warranty on this wheel?BBS of America backs this wheel with a 10-year structural warranty against manufacturing defects and a 2-year warranty on the finish, provided the wheel is used within its approved application and shows no impact damage.
Install Instructions
- Confirm your vehicle's bolt pattern, center bore, and recommended offset range before installation
- Raise and safely support the vehicle, then remove the factory wheel
- Install a hub-centric ring if the wheel's hub bore is smaller than the wheel's center bore
- Mount the wheel and hand-thread the correct lug nuts for your application
- Torque lug nuts to the vehicle manufacturer's specification in a star pattern
- Have the wheel and tire assembly dynamically balanced before extended driving
