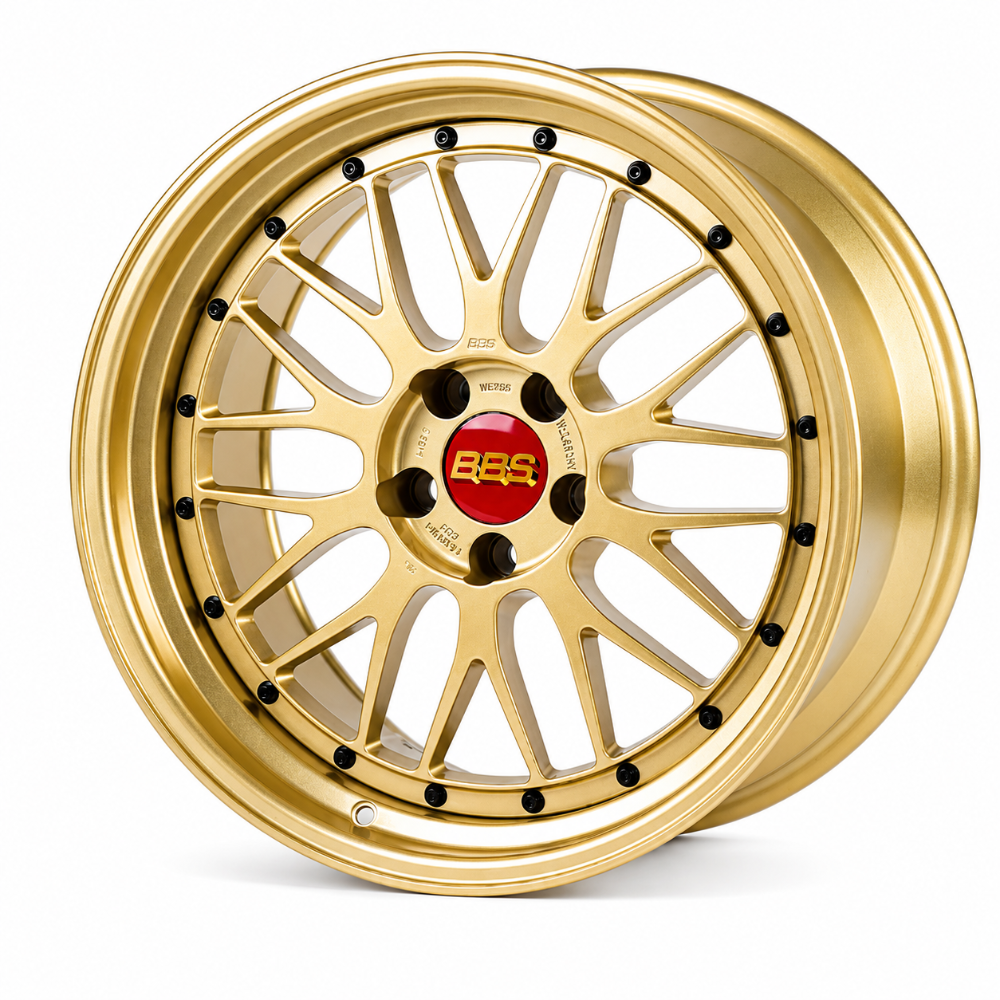

BBS LM271GL-GL 19x10 5x114.3 ET22 F1 Championship Edition Gold Wheel
The BBS LM271GL-GL is part of the legendary BBS LM series, a 2-piece die forged flow formed wheel that brings motorsport-grade construction to enthusiast street applications. This F1 Championship Edition variant of the LM271GL-GL is finished in full gold (GL-GL), measuring 19x10 with a 5x114.3 bolt pattern and an ET+22 offset. Manufactured in Japan by BBS Japan Co., Ltd., the LM271GL-GL carries the quality control standards and heritage that have made BBS a benchmark name in performance wheels for over five decades.
Construction and Engineering
The BBS LM271GL-GL uses a 2-piece die forged aluminum construction, combining a flow formed barrel with a forged aluminum face. This process results in a wheel that achieves a refined balance between structural integrity and reduced rotating mass. At approximately 11.6 kg (25.6 lbs), the LM271GL-GL delivers performance-oriented weight savings for a 19-inch application.
The 10-spoke split design of the LM271GL-GL is a direct visual reference to BBS racing wheels, echoing the aesthetic heritage of BBS motorsport applications including Formula 1 programs. The full gold GL-GL finish is applied to both the face and barrel, creating a uniform, striking appearance. BBS incorporates its PFS (Press Fit System) 82mm OD hub ring with this wheel, ensuring proper hub-centric seating during installation.
Fitment and Compatibility
The LM271GL-GL is designed for vehicles with a 5x114.3 bolt pattern. Compatible platforms include:
- Nissan 350Z, 370Z, GT-R
- Lexus IS, GS, RC
- Toyota GR86, Supra
- Subaru WRX, BRZ
- Mitsubishi Lancer Evolution
- Honda Accord, Civic Type R
- Mazda (select models)
- Infiniti (select models)
- Ford Mustang GT350, GT500
Always verify your vehicle's center bore, offset clearance, and brake caliper clearance before installation. The included 82mm OD PFS hub ring adapts the wheel to common hub diameters within this bolt pattern family. Lug nuts are not included and must be sourced separately to match your vehicle's lug seat type and thread pitch.
What's Included
- 1 x BBS LM271GL-GL wheel
- 1 x Center cap / BBS emblem
- 1 x Air valve
- 1 x 82mm OD PFS (Press Fit System) hub ring
This product is sold individually. Tires are not included. A complete set of four requires the purchase of 4 units. Lug nuts are not included.
Full Specifications
| Specification | Detail |
|---|---|
| Part Number | LM271GL-GL |
| Size | 19x10 |
| Bolt Pattern | 5x114.3 |
| Offset | ET+22 |
| Weight | Approximately 11.6 kg (25.6 lbs) |
| Construction | 2-piece die forged aluminum (flow formed barrel, forged face) |
| Spokes | 10-spoke split design |
| Finish | Full Gold (GL-GL) |
| Edition | F1 Championship Edition |
| Hub Ring Included | Yes, 82mm OD PFS hub ring |
| Country of Origin | Japan (BBS Japan Co., Ltd.) |
| Warranty | BBS limited manufacturer warranty; finish warranty 2 years |
About BBS
BBS was founded in 1970 in Schiltach, Germany, and has grown into one of the most respected wheel manufacturers in the world. BBS Japan Co., Ltd. oversees manufacturing of the LM and other forged series, producing wheels to exacting tolerances using equipment and processes developed through decades of motorsport involvement. BBS wheels have appeared on Formula 1 cars, Le Mans prototype vehicles, and in the touring car and GT racing circuits worldwide. The LM series in particular has become an icon in the performance wheel segment, recognized by its multi-spoke face design and consistent quality across generations of production.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Is the LM271GL-GL sold as a set or individually?
The LM271GL-GL is sold individually, one wheel per purchase. To equip all four corners of a vehicle, add 4 units to your cart.
What is the PFS hub ring and is it included?
PFS stands for Press Fit System, BBS's hub-centric ring solution. The included 82mm OD PFS ring fits between the wheel's center bore and your vehicle's hub flange, ensuring the wheel seats concentrically on the hub. This reduces vibration and stress on the wheel studs during driving. One PFS ring is included with the LM271GL-GL.
What vehicles are compatible with the LM271GL-GL?
This wheel fits vehicles with a 5x114.3 bolt pattern, including the Nissan 350Z, 370Z, GT-R, Lexus IS/GS/RC, Toyota GR86/Supra, Subaru WRX/BRZ, Mitsubishi Lancer Evolution, Honda Accord/Civic Type R, select Mazda and Infiniti models, and the Ford Mustang GT350/GT500. Always verify offset, center bore, and brake clearance with your specific vehicle trim and suspension setup before ordering.
Are tires included with the LM271GL-GL?
No. Tires are not included. The LM271GL-GL is a bare wheel. Tires must be purchased and mounted separately by a qualified tire installer.
Are lug nuts included?
Lug nuts are not included with the LM271GL-GL. You will need lug nuts appropriate for your vehicle's thread pitch and seat type (typically conical/tapered for most Japanese domestic market fitment vehicles). Consult your vehicle owner's manual or a qualified installer for the correct lug hardware.
What is the center bore of the LM271GL-GL?
The wheel ships with an 82mm OD PFS hub ring. The wheel's native bore accommodates this ring to adapt to common hub sizes within the 5x114.3 family. Confirm your vehicle's hub diameter and verify ring sizing with a BBS dealer or your installer if you are unsure.
What finish is the LM271GL-GL and how should it be maintained?
The LM271GL-GL features a full gold (GL-GL) finish on both the face and barrel. Clean with a pH-neutral wheel cleaner and a soft brush or cloth. Avoid aggressive acid-based brake dust removers, as these can damage the finish. BBS provides a 2-year finish warranty against manufacturing defects under normal use and proper maintenance.
What is the warranty on the LM271GL-GL?
BBS provides a limited manufacturer warranty covering structural defects, along with a 2-year finish warranty. Warranty coverage does not extend to damage caused by road hazards, improper installation, curb rash, chemical exposure, or neglect. Contact your authorized BBS retailer for warranty claim procedures.
What is the weight of the LM271GL-GL?
The LM271GL-GL weighs approximately 11.6 kg (25.6 lbs) per wheel. Actual weight may vary slightly due to manufacturing tolerances.
Does the LM271GL-GL require any special installation hardware?
Beyond vehicle-specific lug nuts (sold separately), no special hardware is required. The included 82mm OD PFS hub ring should be pressed into the wheel center bore before mounting. A qualified tire and wheel installer will handle this step during mounting and balancing.
