SKU: 1064263BM | UPC: 990011412018
BD Diesel Trackmaster 68RFE Transmission & Billet ProForce Converter Package - 2007-2018 RAM 2500/3500 6.7L Cummins 2WD
The BD Diesel Trackmaster 68RFE transmission and converter package strengthens the factory 68RFE to reliably handle the higher torque output of tuned or modified 2007-2018 6.7L Cummins engines. Equipped with a billet input shaft, extra clutches in all packs, billet overdrive drum, upgraded valve body with bonded separator plate, and the Protect68 pressure control system, this complete 2WD unit delivers increased holding power, cooler operation, and shift consistency that stock and basic rebuilds cannot match in heavy towing or performance use.
Key Features

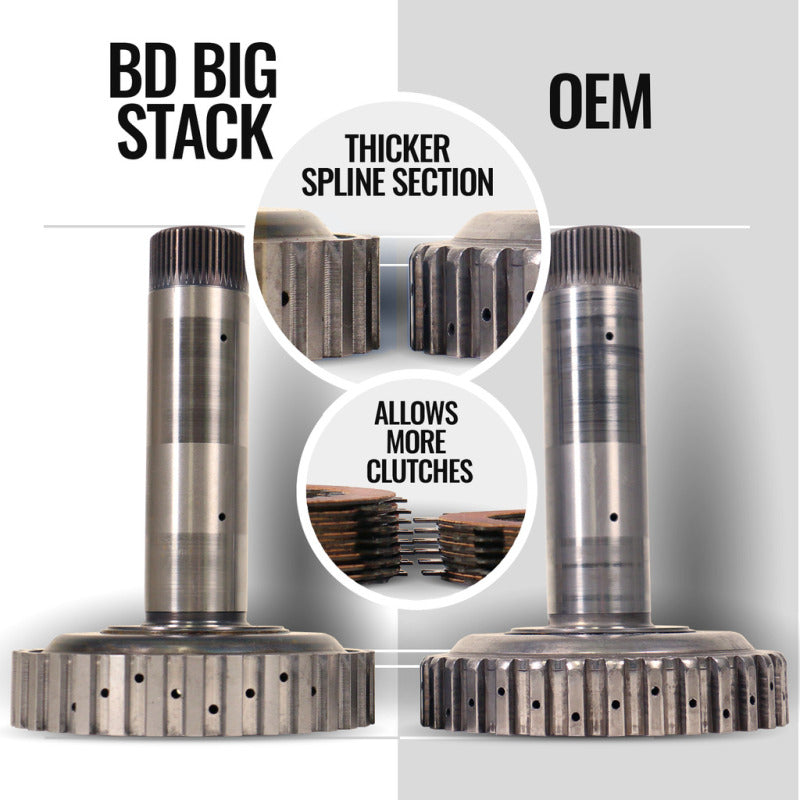

- Billet Input Shaft: Eliminates shaft twist and breakage common with increased power.
- Increased Clutch Counts: Up to 33% more frictions in Underdrive and 50% more in Overdrive packs.

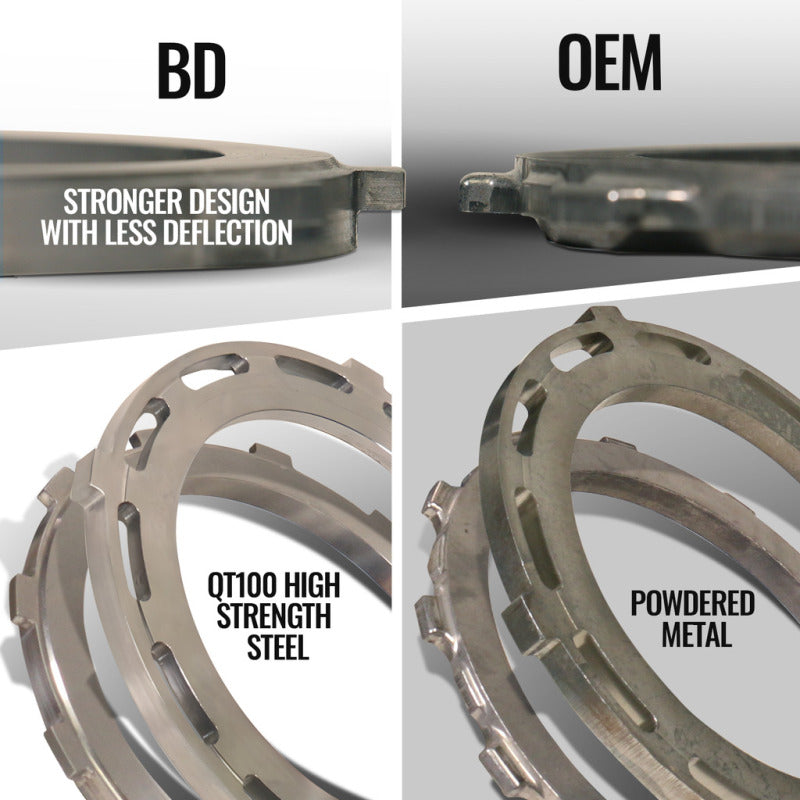

- BD Billet Overdrive Drum & QT100 Pressure Plates: Supports the added clutch capacity without flex.
- Modified Valve Body with Bonded Gasket Separator Plate: Prevents cross-leaks and allows higher line pressure.

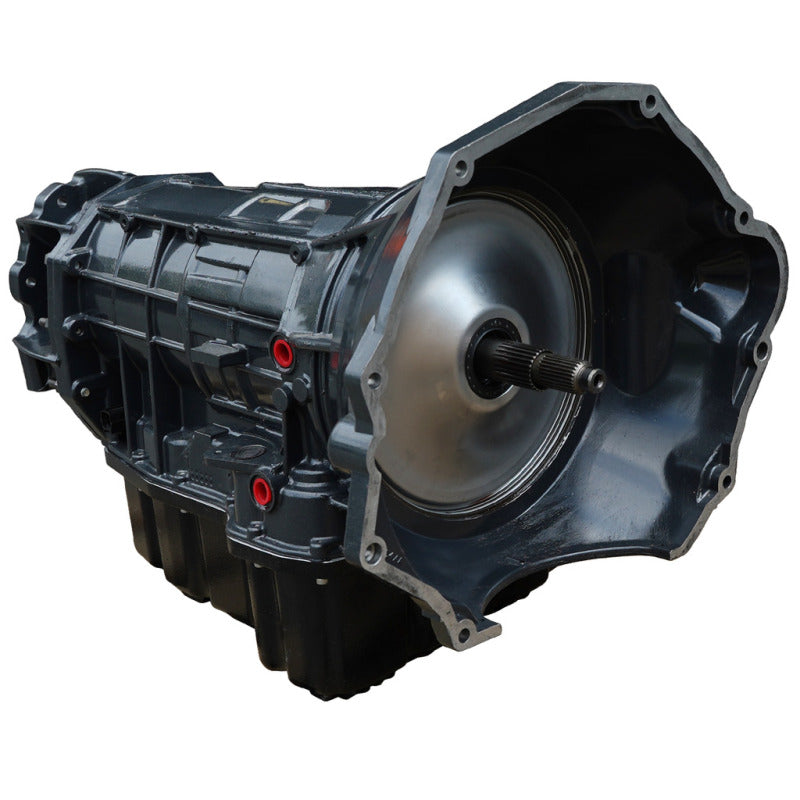

- Protect68 Pressure Control Kit: Raises line pressure on demand to protect clutches under load.
- Billet ProForce Torque Converter: Furnace-brazed fins, billet front cover, and improved stator design.
- Deep Sump Aluminum Pan: Adds fluid volume and cooling area.
- Fully Dyno Tested: Transmission and converter tested together before shipping.
Product Notes

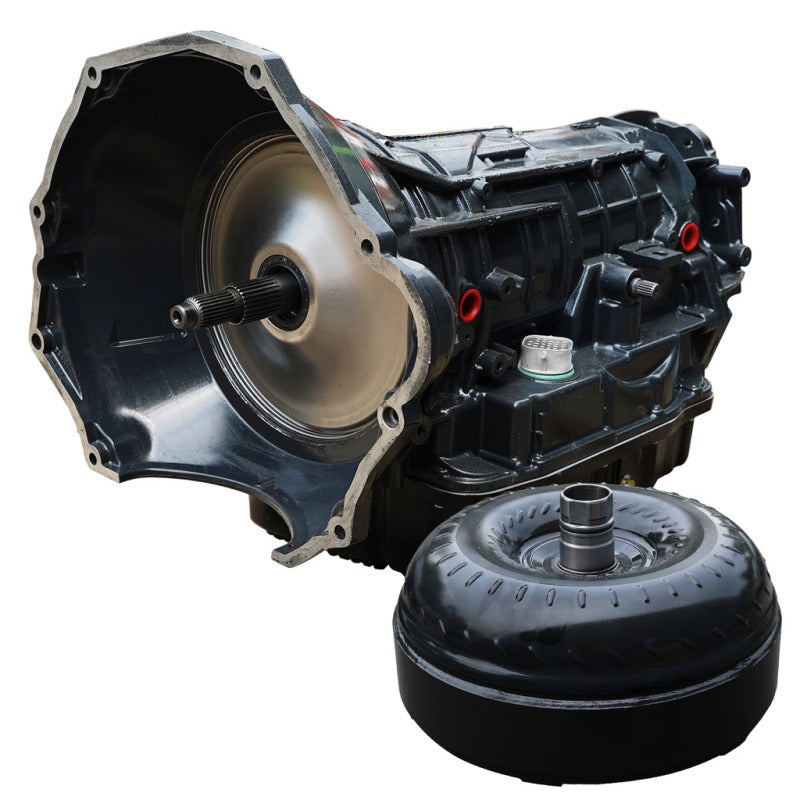

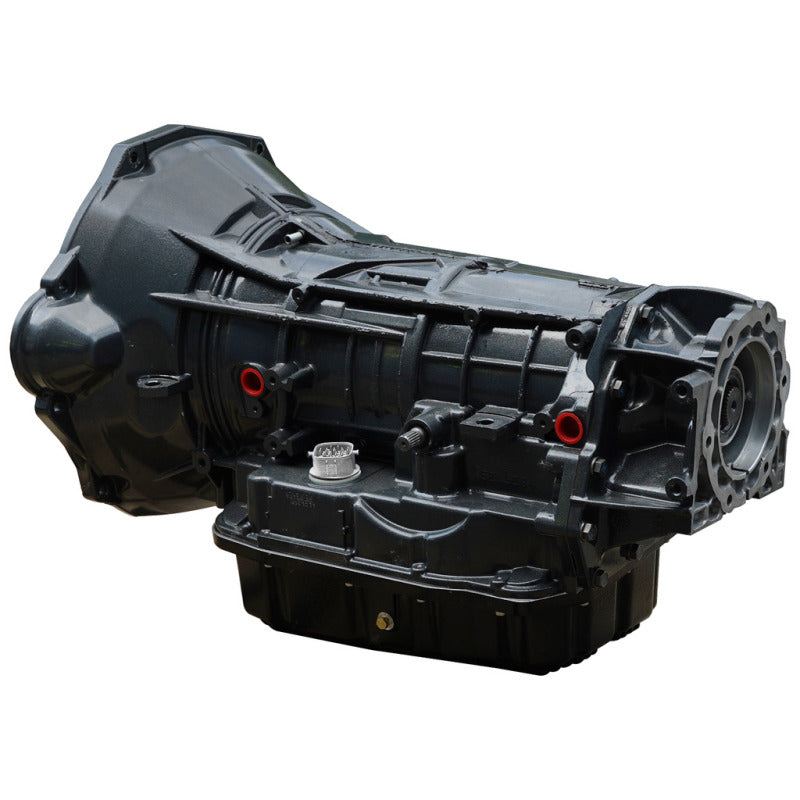

- Complete drop-in 68RFE transmission with matched billet torque converter.
- Includes hard-anodized valve body, new solenoid pack, and machined critical bores.
- Designed for 2007-2018 trucks with tuning, injectors, turbo upgrades, or heavy towing.
- 36-month / 150,000-mile limited warranty (parts only when professionally installed).
Installation Notes
- Direct replacement for factory 2WD 68RF no driveline changes required.
- Professional installation required; fill with licensed ATF+4 fluid (~16-18 quarts total).
- TCM quick-learn relearn procedure required after install.
- Transmission tuning recommended (especially on 2011+ models) to take full advantage of increased pressure.
- Refundable core charge applies return rebuildable stock core for credit.
This Part Fits
| Year | Make | Model | Drivetrain | Engine |
|---|---|---|---|---|
| 2007-2018 | RAM | 2500 | 2WD | 6.7L Cummins |
| 2007-2018 | RAM | 3500 | 2WD | 6.7L Cummins |
Why Choose BD Diesel?
- Long-standing leader in 68RFE upgrades with proven fixes for every factory weak point.
- In-house North American manufacturing and dyno testing on every unit.
- Trusted by owners running 500-800+ RWHP Cummins builds and heavy-haul fleets.
Frequently Asked Questions
- Q: Will this work without transmission tuning?
- A: Yes, Protect68 functions standalone, but tuning unlocks maximum line pressure and best shift quality on 2011+ trucks.
- Q: How much fluid is required?
- A: Approximately 16-18 quarts dry fill (including converter) deep sump pan adds extra capacity.
- Q: Is a core return needed?
- A: Yes, a refundable core charge is added return your rebuildable factory 68RFE for full credit.
Shipping & Handling
- Method: Freight truck (curbside or liftgate service recommended).
- Package Weight: Approximately 350-400 lbs (transmission ~285 lbs + converter ~75 lbs + crate).
- Crate Dimensions (approx): 48" x 48" x 45" reinforced wood crate.
- Availability: Ships same day or next if in stock otherwise Built-to-order typical lead time 4-8 weeks, contact for current status.
