SKU: 1064274SS / UPC: 990011412407

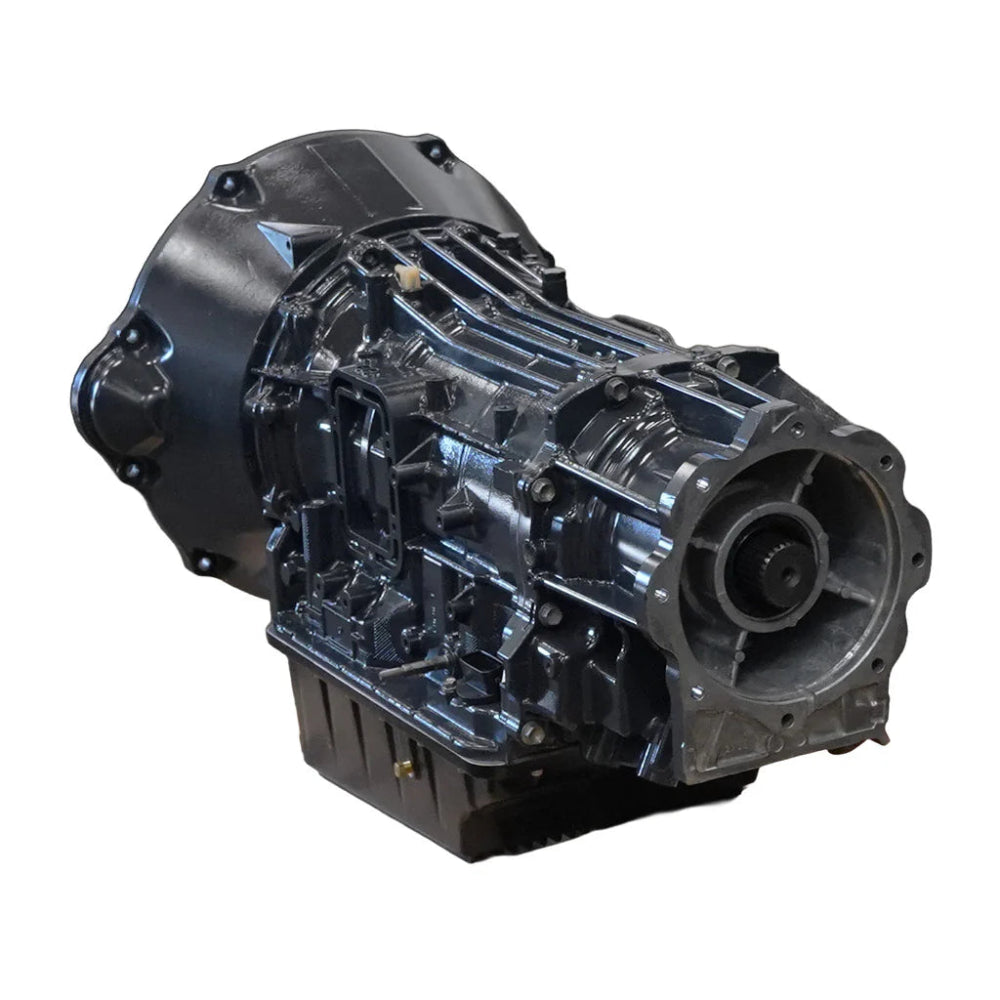

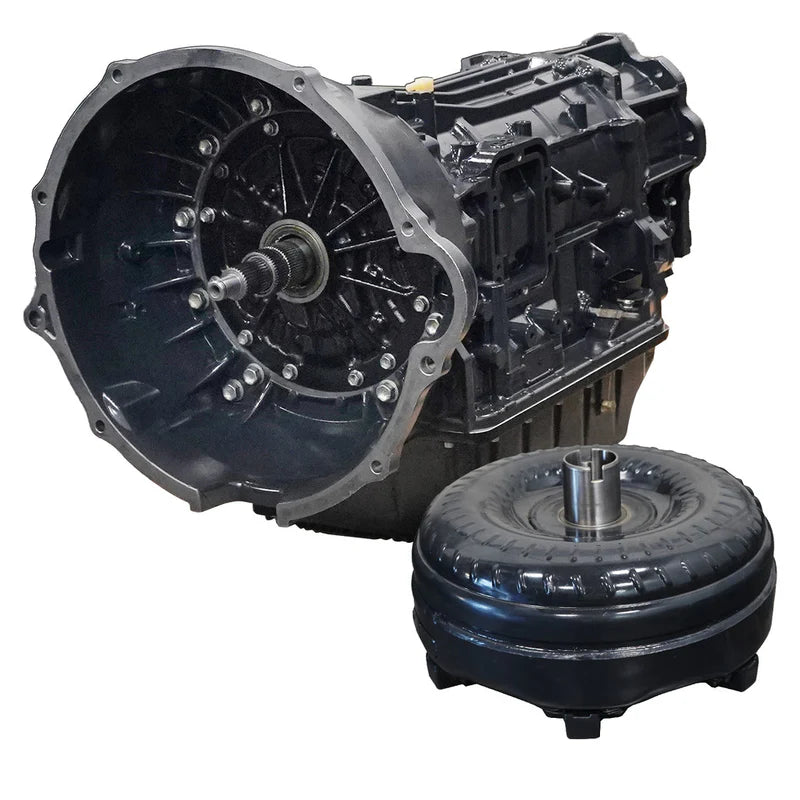

BD Diesel Towmaster Transmission & Converter Package – Aisin AS69RC (2013-2018 Ram 3500/4500/5500 6.7L)
The BD Diesel Towmaster Transmission & Converter Package is a heavy-duty upgrade designed to handle the increased power and torque of modified 2013-2018 Ram 3500, 4500, and 5500 Cummins 6.7L trucks equipped with the Aisin AS69RC transmission.
This complete package addresses the most common failure points of the stock AS69RC by incorporating a proprietary hardened billet K2 hub and billet K3 drum, significantly increasing clutch capacity in the K2, K3, and B1 clutch packs. An upgraded valve body with a stiffer pressure regulator spring raises maximum line pressure for improved clutch apply and durability.
Additional enhancements include a deep sump pan for better fluid cooling (+3.5 quarts) and custom nitrile gaskets that provide a superior, leak-free seal compared to OEM cork gaskets. The package also includes BD’s OE-style ProForce torque converter. Ideal for modified trucks that need a reliable, heavy-duty transmission solution with the peace of mind that common factory weak points have been eliminated.
Key Features
- Billet K2 Hub & K3 Drum – Eliminates the primary failure points of the stock AS69RC (clutch tooth wear and drum failure)
- Increased Clutch Capacity – K2: 8 clutches (33% increase), K3: 7 clutches (40% increase), B1: 6 clutches (20% increase)
- Upgraded Valve Body – Stiffer pressure regulator spring for higher line pressure and better clutch holding
- Deep Sump Pan – Increases fluid capacity by 3.5 quarts for improved cooling and longevity
- Custom Nitrile Gaskets – Superior leak-free performance over OEM cork gaskets
- ProForce Torque Converter – OE-style converter with new clutches and sprag included
- Designed for Modified Engines – Built to handle significantly increased torque output
Specifications
| Detail | Value |
|---|---|
| Brand | BD Diesel |
| Type | Towmaster Transmission & Converter Package |
| Transmission | Aisin AS69RC |
| Compatibility | 2013-2018 Ram 3500/4500/5500 6.7L (2WD & 4WD) |
| Key Upgrades | Billet K2 Hub, Billet K3 Drum, Upgraded Valve Body, Deep Sump Pan (+3.5 qts) |
| Includes | ProForce Torque Converter |
| Install Time | 8 Hours |
| Warranty | 36 Months Parts / 12 Months Labor |
| Country of Origin | Canada |
Whats Included
- BD Diesel Towmaster Aisin AS69RC Transmission
- ProForce Torque Converter
- Deep Sump Pan
- Custom Nitrile Pan & PTO Gaskets
- All Necessary Hardware
- No Core return Contact us if you want to return your core for 2500.00 Credit.
Product Notes
- Designed for modified 2013-2018 Ram Cummins 6.7L trucks with the Aisin AS69RC
- Corrects common factory failure points for increased reliability
- 2WD models come standard with PTO provision on the Right Hand side (Left Hand is special order)
- Professional installation strongly recommended
This Part Fits
| Year Range | Make | Model | Notes |
|---|---|---|---|
| 2013-2018 | Ram | 3500/4500/5500 6.7L (2WD & 4WD with Aisin AS69RC) | Towmaster Transmission & Converter Package |
Why Choose BD Diesel Towmaster Transmissions?
- Industry leader in heavy-duty diesel transmission upgrades
- Proven solutions that eliminate common AS69RC failure points
- Built for modified trucks that demand more durability and torque capacity
- Complete package with upgraded torque converter for peace of mind
Frequently Asked Questions
- Q: Will this fit my 2016 Ram 3500 6.7L with the Aisin transmission?
- A: Yes, it is designed for all 2013-2018 Ram 3500/4500/5500 6.7L models equipped with the Aisin AS69RC (both 2WD and 4WD).
- Q: What are the main upgrades over the stock transmission?
- A: Billet K2 hub, billet K3 drum, increased clutch capacity, upgraded valve body, deep sump pan (+3.5 qts), and nitrile gaskets.
- Q: Is this suitable for heavily modified trucks?
- A: Yes, the Towmaster is specifically designed to handle the increased output of modified engines.
- Q: Does it include a torque converter?
- A: Yes, it comes with a ProForce OE-style torque converter.
Shipping & Handling
- Method: Ground UPS or FedEx (oversize freight may apply)
- Availability: In stock – ships same or next business day
- Packaging: Secure heavy-duty shipping crate
