SKU: 1064293BM | UPC: 990011412056

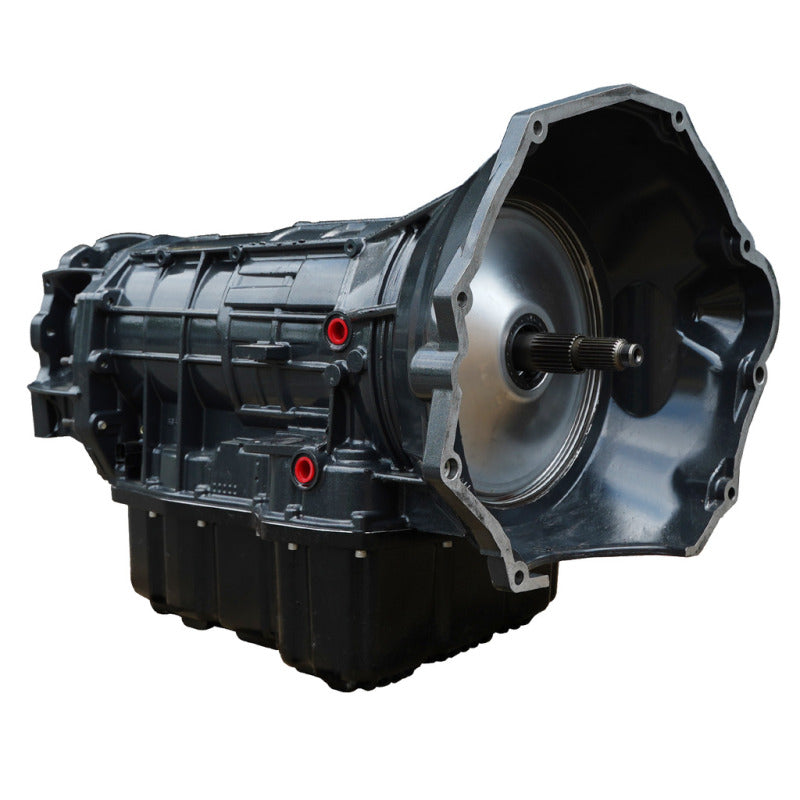

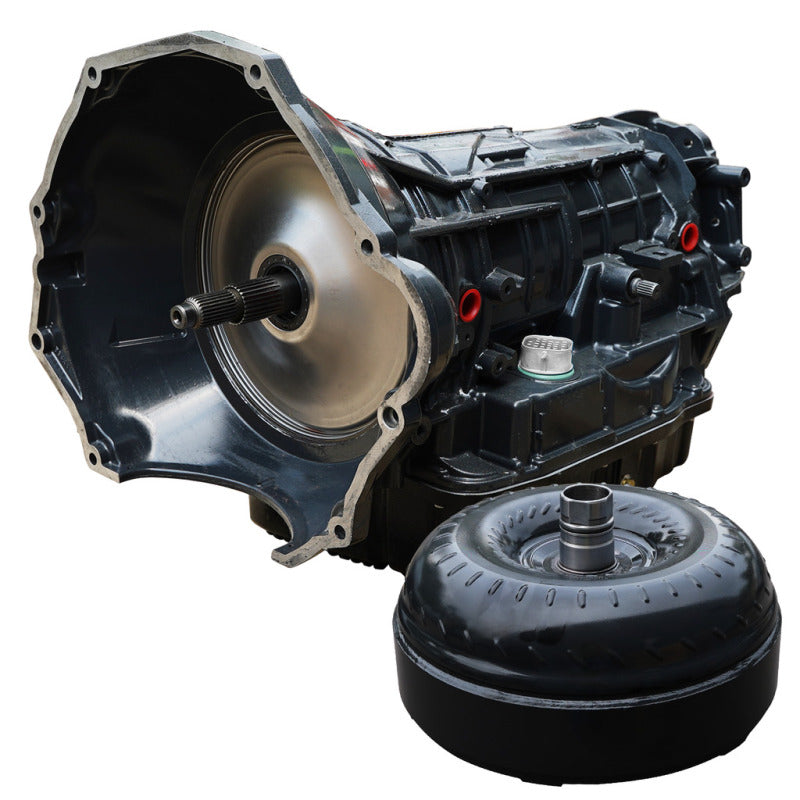

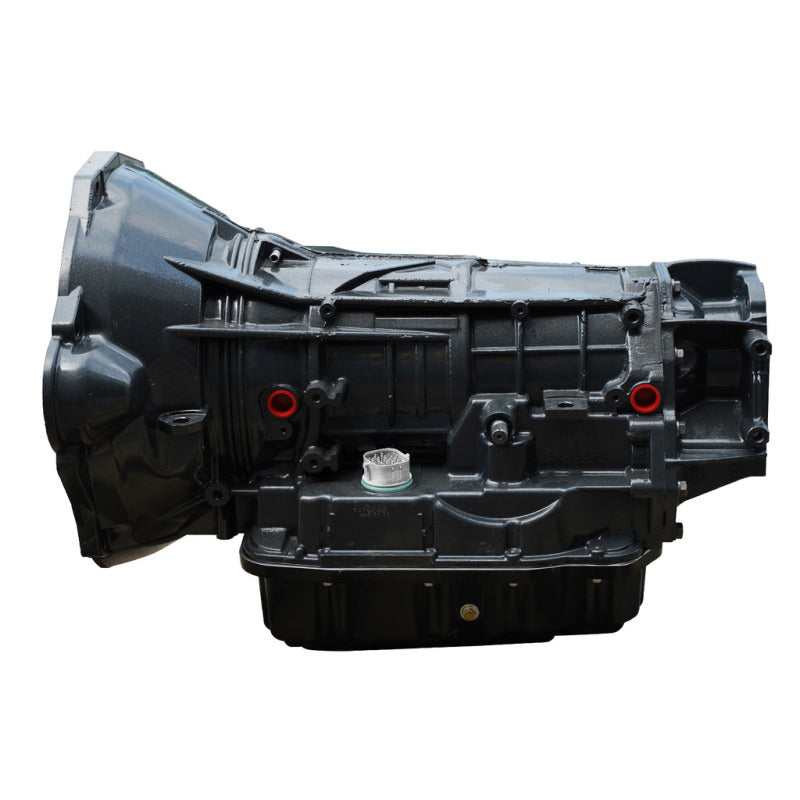

BD Diesel Trackmaster 68RFE Transmission & Billet ProForce Converter Package - 2019-2024 RAM 2500/3500 6.7L Cummins 2WD
The BD Diesel Trackmaster 68RFE transmission and converter package delivers reinforced internals that handle the increased torque of tuned or modified 6.7L Cummins engines far past the limits of a factory 68RFE. Featuring a billet input shaft, heavy-duty billet overdrive drum with QT100 pressure plates, increased clutch counts throughout, modified valve body with bonded separator plate, and the Protect68 pressure control system, this complete 2WD unit provides higher holding capacity, reduced heat, and reliable shifts in demanding towing and performance applications.
Key Features
- Billet Input Shaft: Prevents twisting and failure under high torque loads.

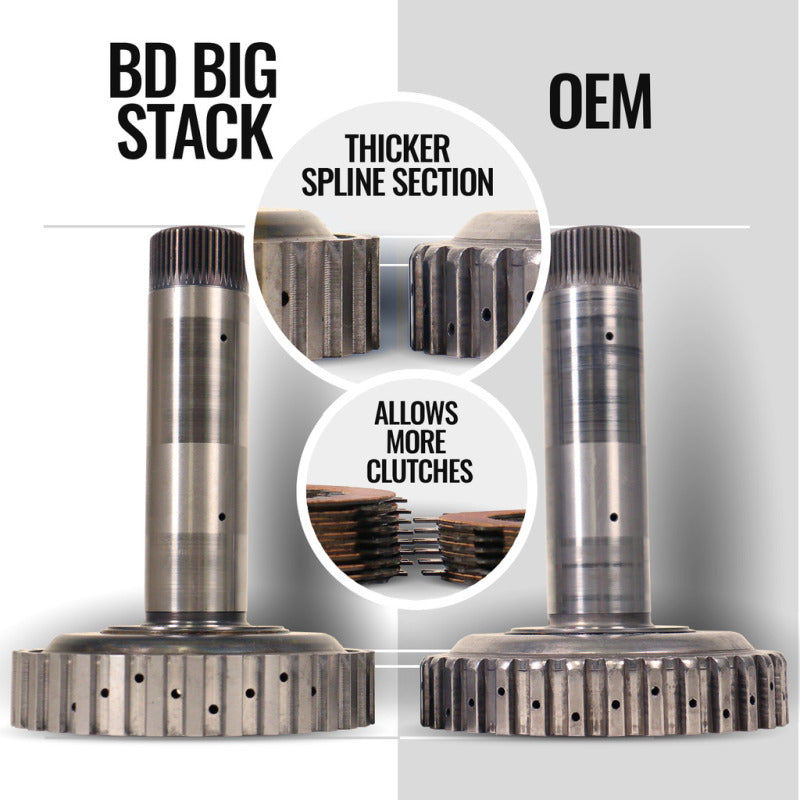

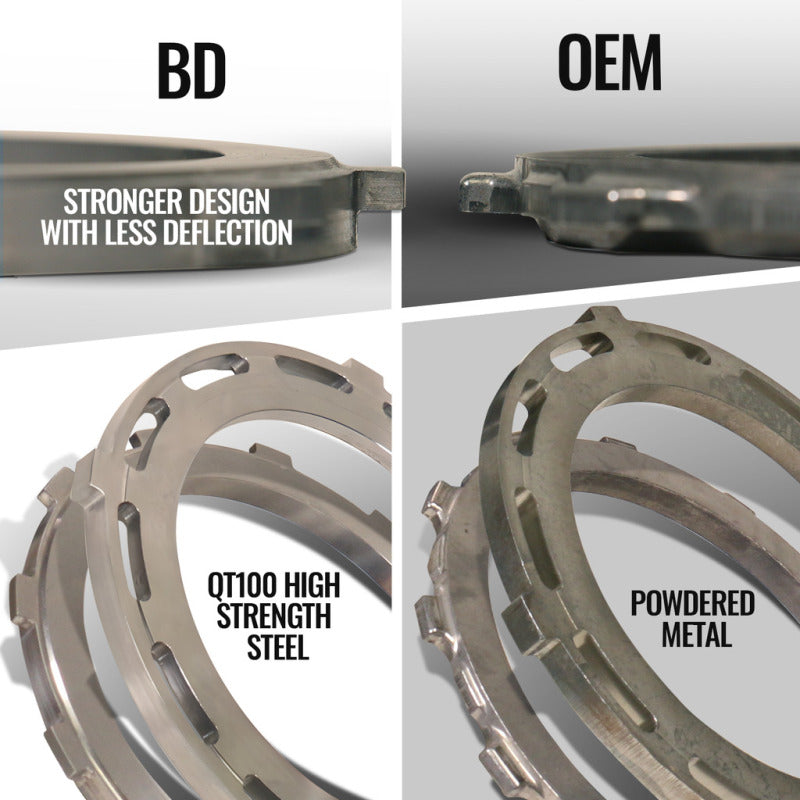

- HD Billet Overdrive Drum with QT100 Billet Steel Pressure Plates: Accommodates extra clutch frictions for 50% more overdrive capacity.
- Increased Clutch Counts: Up to 50% more frictions in critical packs (Underdrive, Overdrive, etc.) minimize slip and heat.
- Modified Valve Body & Bonded Gasket Separator Plate: Stops cross-leaks and supports elevated line pressure.

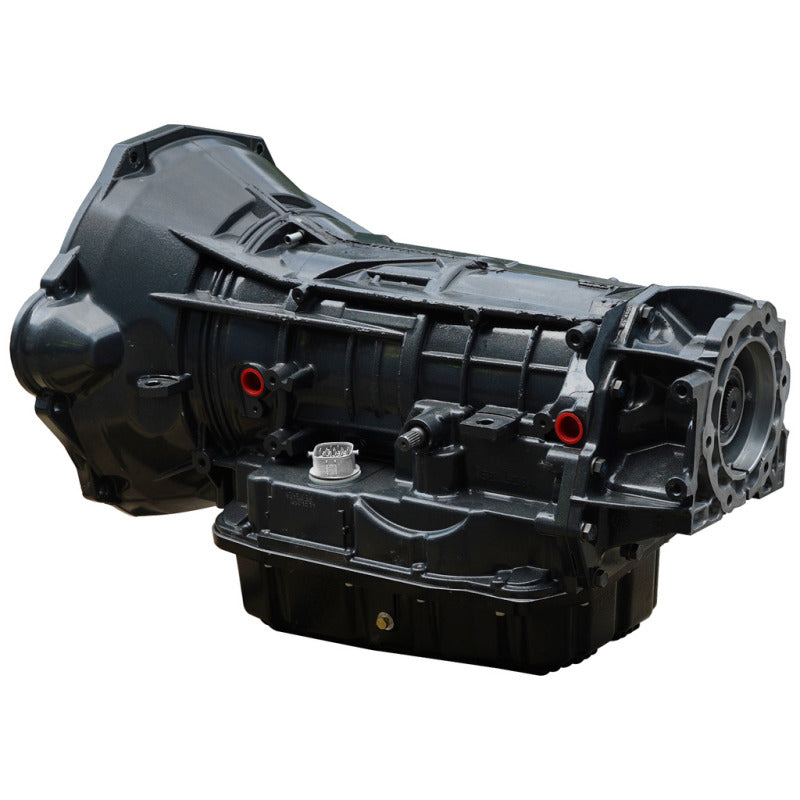

- Protect68 Pressure Control System: Dynamically boosts line pressure under load for solid clutch apply.

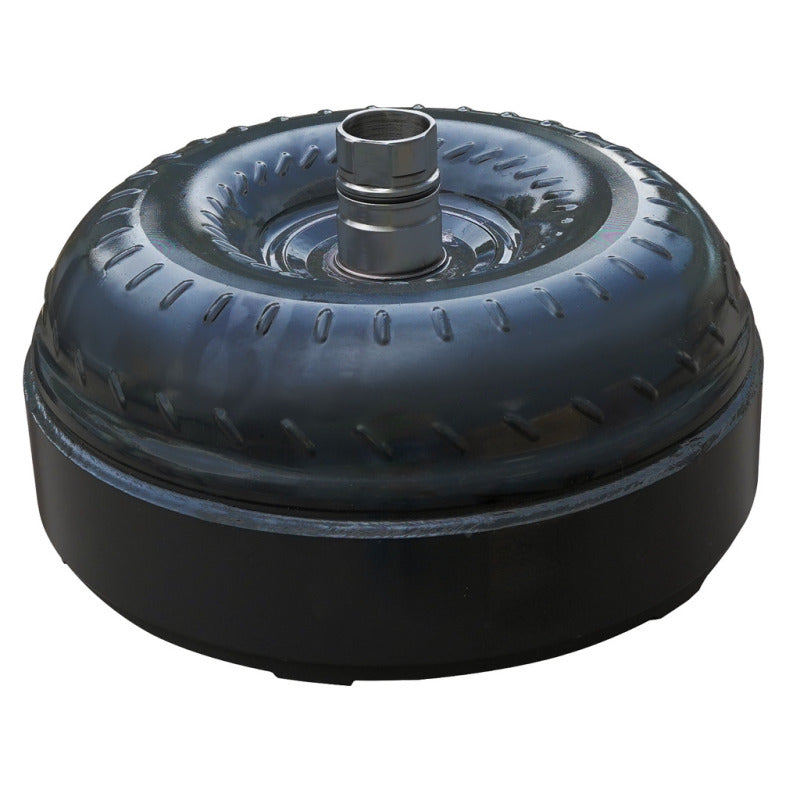

- Billet ProForce 3D Torque Converter: Furnace-brazed, billet cover, improved stator for stronger lockup and multiplication.
- Deep Sump Aluminum Pan: Adds fluid volume and cooling surface area.
- Dyno Tested: Transmission and converter matched and tested as a pair at BD.
Product Notes
- Complete ready-to-install 68RFE transmission with matched billet torque converter.
- Hard anodized valve body, new solenoids, and machined/sleeved critical bores included.
- BD rigid accumulator pistons reduce leakage risk.
- Built for modified trucks running tuning, injectors, or turbo upgrades.
- 36-month / 150,000-mile limited warranty (parts only when professionally installed).
Installation Notes
- Direct replacement for factory 2WD 68RFE no driveline modifications needed.
- Professional installation required; fill with licensed ATF+4 fluid (~16-18 quarts total).
- TCM quick-learn procedure required after install.
- Transmission tuning strongly recommended on 2019+ models for maximum pressure and shift performance.
- Refundable core charge applies (return rebuildable stock 68RFE core).
This Part Fits
| Year | Make | Model | Drivetrain | Engine |
|---|---|---|---|---|
| 2019-2024 | RAM | 2500 | 2WD | 6.7L Cummins |
| 2019-2024 | RAM | 3500 | 2WD | 6.7L Cummins |
Why Choose BD Diesel?
- North American built and dyno-tested 68RFE specialist.
- Engineered fixes for every major factory failure point using billet components.
- Proven performance in high-horsepower and heavy towing Cummins trucks.
Frequently Asked Questions
- Q: Does this work without transmission tuning?
- A: Yes, the Protect68 kit functions standalone, but 2019+ trucks gain full pressure and best shift quality with tuning.
- Q: How much fluid does it hold?
- A: Approximately 16-18 quarts dry fill including converter, deep sump pan adds extra capacity.
- Q: Is a core charge required?
- A: Yes, a refundable core deposit is added, return your rebuildable factory transmission for credit.
Shipping & Handling
- Method: Freight truck (curbside or liftgate service recommended).
- Package Weight: Approximately 350-400 lbs (transmission ~285 lbs + converter ~75 lbs + crate).
- Crate Dimensions (approx): 48" x 48" x 45" reinforced wood crate.
- Availability: Ships same day or next if in stock or Built-to-order – typical lead time 4-8 weeks, contact us for current ETA.
