BD Diesel 19-24 Ram 2500/3500 6.7L Cummins Exhaust Manifold Kit

Complete Manifold Install Kit With Hardware and Gaskets

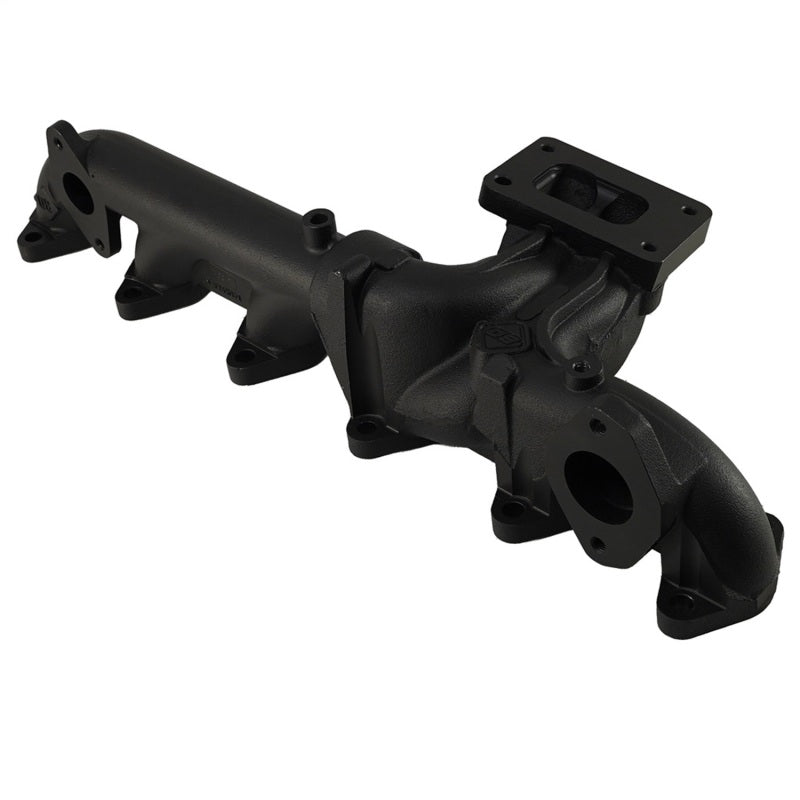

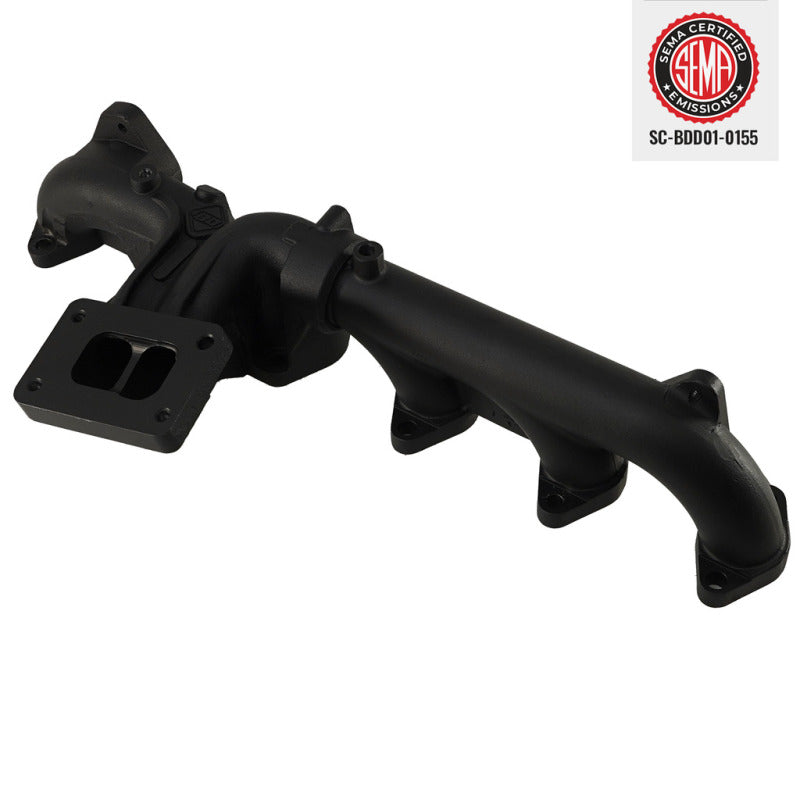

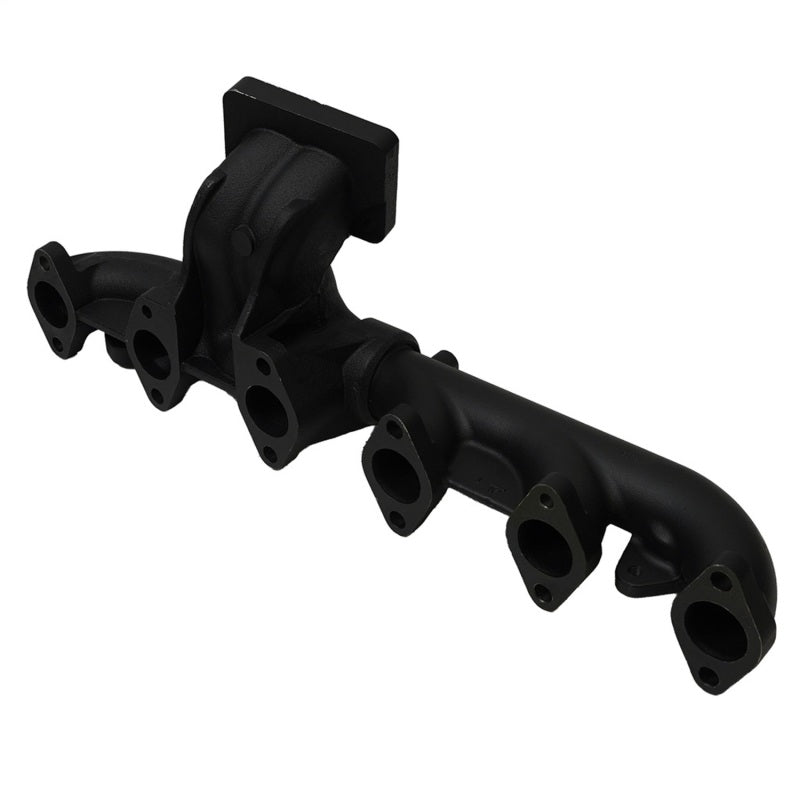

BD Diesel's complete exhaust manifold kit pairs the same thick-wall, high-silicon ductile iron pulse-divided manifold used in the standalone version with all new Grade 10.9 bolts, spacers, and gaskets for a full installation on the 2019-2024 Ram 2500/3500 6.7L Cummins in one box.

Key Features

• High-silicon ductile iron thick-wall casting resists high-heat cracking

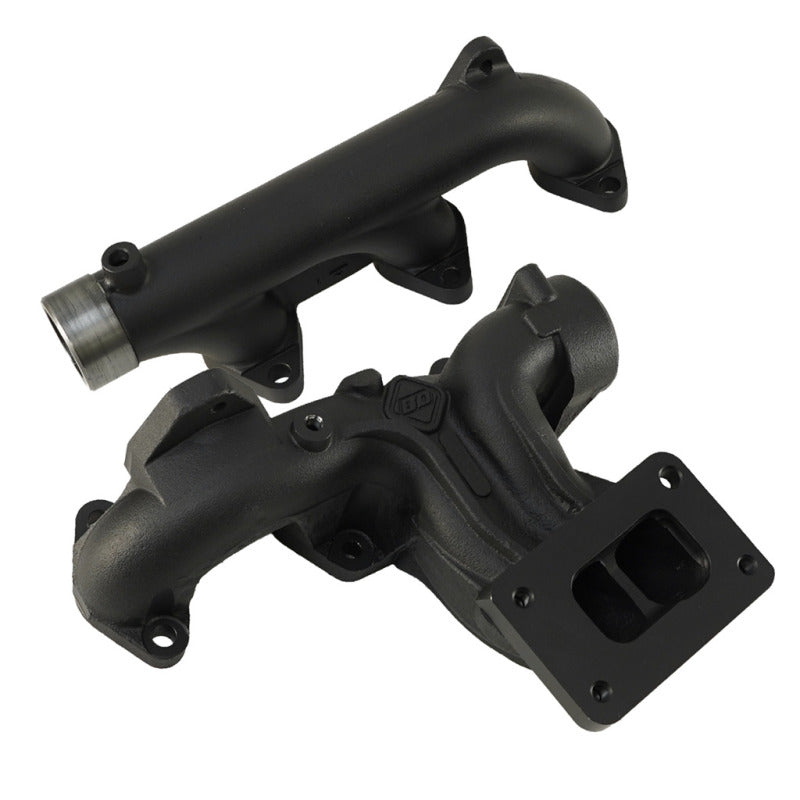

• Precision slip joint reduces cyclic thermal stress versus the factory manifold
• Divided pulse manifold design improves exhaust flow and turbo spool
• Includes new Grade 10.9 black oxide bolts and spacers
• Includes EGR port, exhaust port, and turbo mount gaskets
• Pre-drilled EGT probe port for easy pyrometer installation
• Fully EGR-compatible, direct stock replacement location

Fitment

Specifications

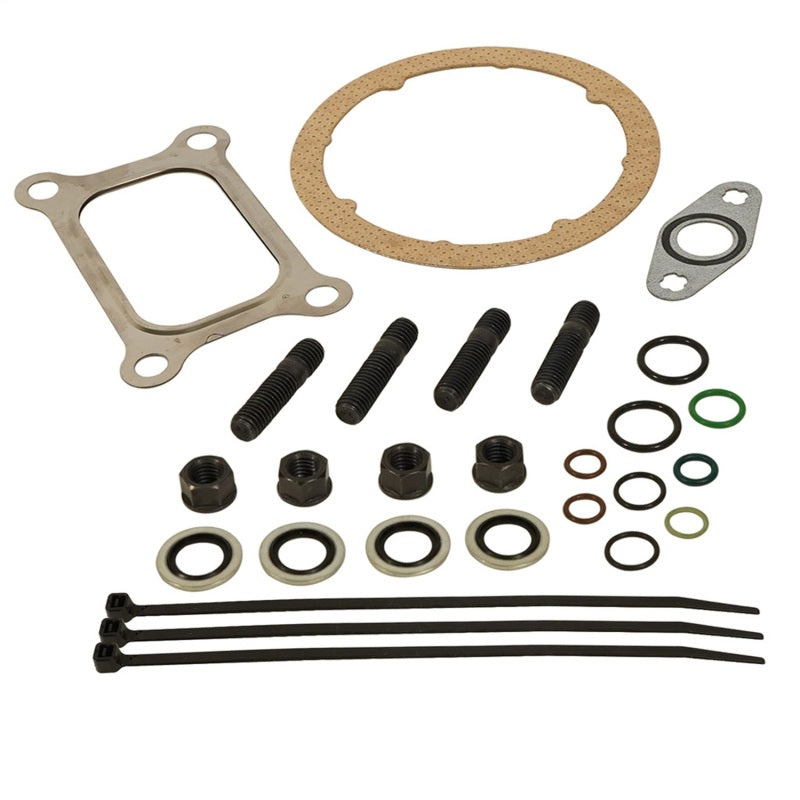

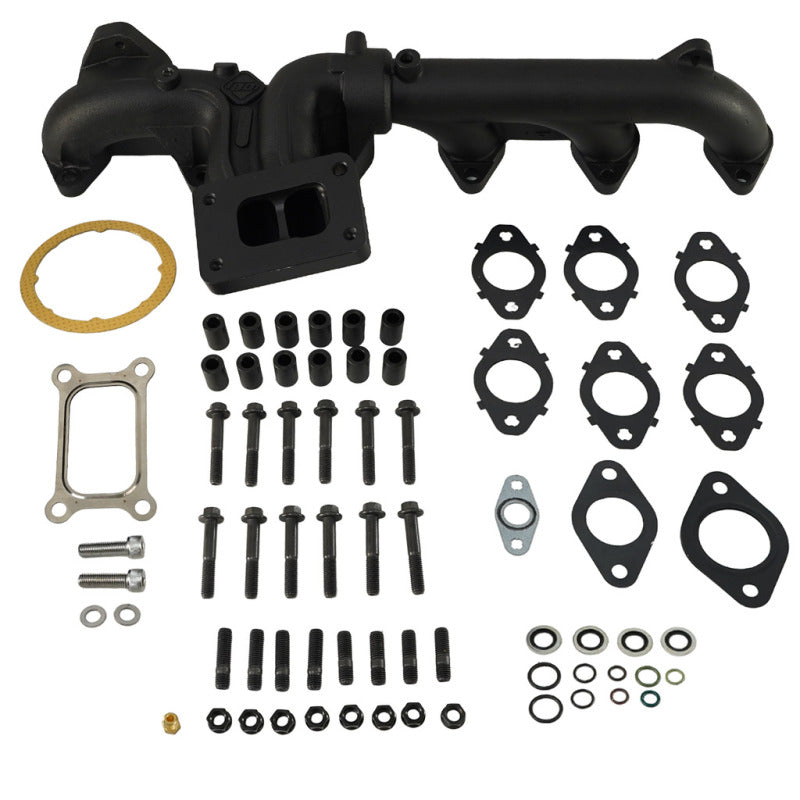

What's Included

• 1 exhaust manifold
• Grade 10.9 black oxide bolts and spacers
• EGR port, exhaust port, and turbo mount gaskets
• Turbo and EGR mounting studs

About BD Diesel

BD Diesel Performance has engineered diesel turbochargers, exhaust manifolds, and drivetrain upgrades in Abbotsford, British Columbia since 1978, focused on emissions-compliant, drop-in-fit heavy-duty diesel performance parts backed by SEMA-certified testing.

FAQ

This kit adds new Grade 10.9 bolts, spacers, and a full gasket set for EGR, exhaust, and turbo mount connections.

Repeated heat cycling from DPF regeneration events puts thermal stress on the factory manifold's rigid casting, leading to cracks over time.

Yes, it is fully EGR-compatible and requires no EGR system modifications.

Yes, an EGT probe port is pre-drilled for easy aftermarket pyrometer installation.

Yes, it is a direct stock replacement and installs in the factory manifold location.

Tighten manifold bolts to 43 N路m (32 ft-lb) in a center-out crisscross pattern, and re-torque after the first heat cycle.

This kit is marked Non-CARB compliant, confirm current emissions compliance for your state before ordering if required.

Contact BD Diesel or refer to the included documentation for the specific parts warranty terms on this complete manifold kit.

Installation Instructions

1. Allow the engine to fully cool, then disconnect the negative battery terminal.
2. Remove the turbocharger, EGR cooler connections, and heat shields to access the factory exhaust manifold per the vehicle service manual.
3. Remove the factory exhaust manifold and clean all cylinder head gasket surfaces to bright metal.
4. Install new gaskets and the BD Diesel manifold using the supplied Grade 10.9 bolts and spacers, torquing in a center-out crisscross pattern to 43 N路m (32 ft-lb).
5. Reinstall the turbocharger, torquing turbo flange nuts in a crisscross pattern to 43 N路m (32 ft-lb).
6. Reconnect the EGR cooler, heat shields, and delta-P line per factory routing.
7. Reconnect the battery, start the engine, and check for exhaust leaks.
8. Re-torque all manifold and turbo fasteners after the first full heat cycle.
