Stronger Shifts and Longer Life for Your 7.3L Powerstroke 4R100

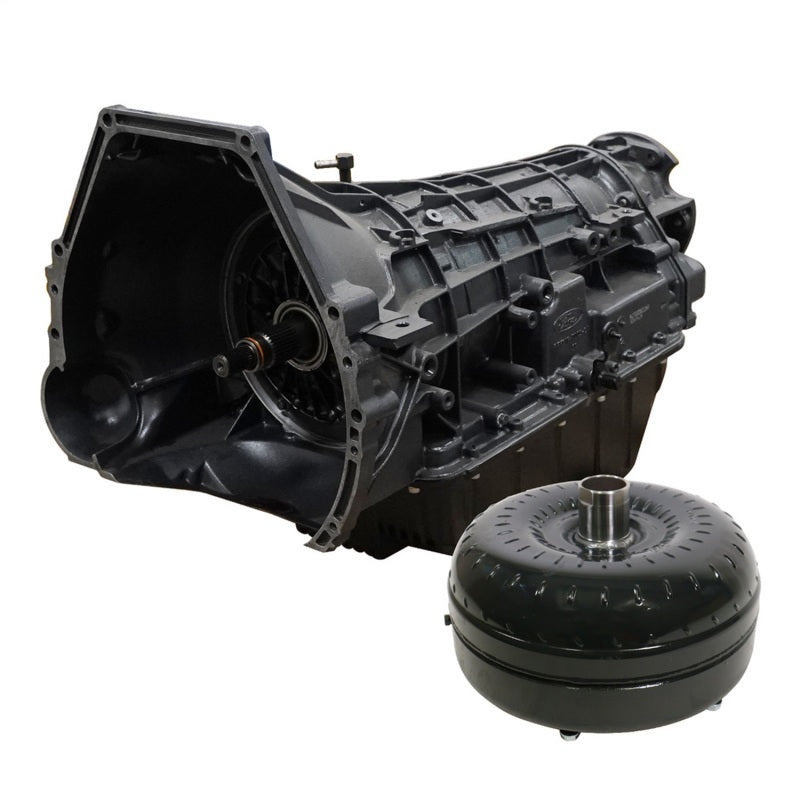

The BD Diesel RoadMaster 4R100 Transmission & Pro Force Torque Converter package (MPN 1064434SM) is a remanufactured 4WD transmission built for 1999 to 2003 Ford 7.3L Powerstroke trucks that need factory reliability without a full performance rebuild. BD Diesel matches the transmission and torque converter as a dyno tested set, so the two components work together instead of forcing a stock converter onto an upgraded transmission. The package keeps OEM clutch counts while adding a remanufactured valve body, a deep aluminum pan, and a fully remanufactured Pro Force torque converter to correct the weak points that cause 4R100 failures in this Powerstroke platform.
Key Features
- Stock OEM transmission clutch counts for factory-level durability
- Remanufactured valve body with a repair shift kit for quicker, firmer shifts
- Upgraded pressure regulator valve raises line pressure from a stock range of 75 to 150 psi to an upgraded range of 100 to 200 psi
- Line pressure modulator valve kit increases pressure for stronger clutch apply
- On/Off lockup kit converts the factory PWM converter lockup strategy to On/Off lockup for cooler operating temperatures
- BD deep sump aluminum transmission pan adds 6 quarts of fluid capacity to lower operating temperature
- Machined center support, upgraded overdrive snap ring, and upgraded coast clutch retaining ring

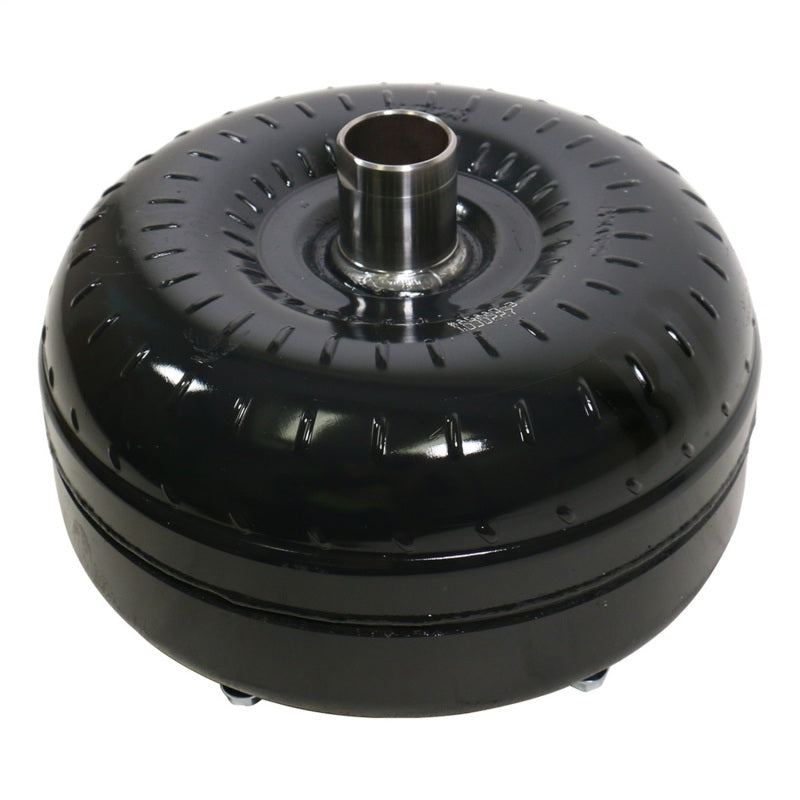

- Includes a BD Pro Force torque converter fully remanufactured with a new cover, new bearings, and new clutch frictions and steels
- Every RoadMaster 4R100 transmission and converter package, including 1064434SM, is dyno tested before shipment
Fitment
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1999-2003 | Ford | F-250 Super Duty | XL |
| 1999-2003 | Ford | F-250 Super Duty | XLT |
| 1999-2003 | Ford | F-250 Super Duty | Lariat |
| 1999-2003 | Ford | F-350 Super Duty | XL |
| 1999-2003 | Ford | F-350 Super Duty | XLT |
| 1999-2003 | Ford | F-350 Super Duty | Lariat |
| 2003 | Ford | F-350 Super Duty | King Ranch |
Fits 1999 to 2003 Ford F-250 and F-350 Super Duty trucks with the 7.3L Powerstroke diesel engine, 4R100 automatic transmission, and 4WD drivetrain only. Confirm your original transmission is a 4R100 before ordering 1064434SM.

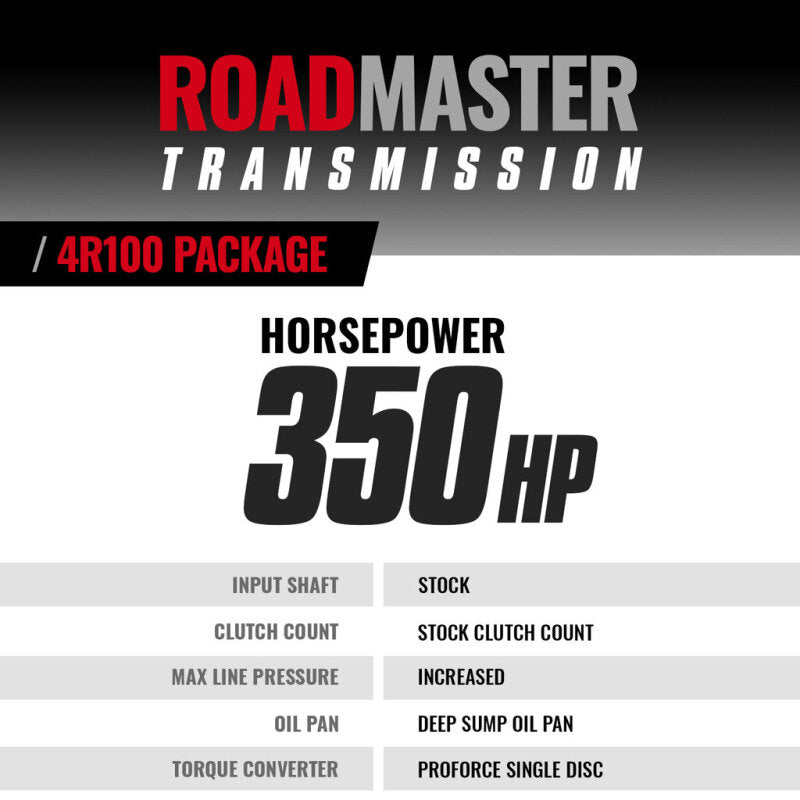

Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 1064434SM |
| UPC | 990011410861 |
| Transmission Base | Ford 4R100 automatic, 4 speed |
| Drivetrain | 4WD |
| Torque Converter | BD Pro Force, remanufactured, included |
| Clutch Counts | Stock OEM clutch counts |
| Pan | BD deep sump aluminum pan, adds 6 quarts of fluid capacity |
| Line Pressure | Upgraded to 100 to 200 psi from a stock range of 75 to 150 psi |
| Lockup Strategy | On/Off lockup, converted from factory PWM lockup |
| Testing | Dyno tested before shipment |
| Core Charge | Refundable core deposit required, core deposit SKU CD1064434SM |
| Estimated Install Time | 7 hours |
| Parts Warranty | 24 months or 100,000 miles, whichever occurs first |
| Labor Warranty | 12 months or 24,000 miles, whichever occurs first |
| California Proposition 65 | This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm |
What's Included
- 1 BD Diesel RoadMaster 4R100 remanufactured transmission, part number 1064434SM
- 1 BD Pro Force remanufactured torque converter
About BD Diesel
BD Diesel Performance designs, manufactures, and distributes products engineered specifically for performance diesel applications. Based in Abbotsford, British Columbia, BD operates a 65,000 square foot facility with more than 60 employees across divisions covering fuel injection calibration, exhaust brake manufacturing, electronic circuit design, and transmission and torque converter design and remanufacturing. BD introduced the first exhaust brake for diesel pickups in 1989, building on roots that trace back to Valley Fuel Injection in 1972.
Related Parts
- BD Diesel 99-03 Ford 4R100 4WD TowMaster Transmission & Converter Package c/w Billet Input
- BD Diesel Inline Trans Filter Kit - 1999-2003 Ford 4R100
- BD Diesel Bypass Tube Eliminator Kit - Ford 1999-2003 4R100
FAQ
What is the 1064434SM?It is a BD Diesel RoadMaster 4R100 remanufactured transmission and Pro Force torque converter package for 1999 to 2003 Ford F-250 and F-350 Super Duty trucks with the 7.3L Powerstroke engine and 4WD.
Does this package include the torque converter?Yes, the BD Pro Force torque converter is included with every RoadMaster 4R100 transmission package and is fully remanufactured with a new cover, new bearings, and new clutch frictions and steels.
Is a core charge required?Yes, this transmission and converter package requires a refundable core deposit. Your original transmission and converter are returned as the core, and the deposit is refunded once BD receives the core in acceptable condition.
Will this transmission fit a 2WD truck?No, this listing is the 4WD version. BD Diesel sells a separate 2WD RoadMaster 4R100 package for 2WD applications.
Does this transmission increase clutch capacity over stock?No, the RoadMaster keeps stock OEM clutch counts. Buyers who need increased clutch capacity for higher horsepower or heavier towing should look at BD's TowMaster 4R100 package instead.
What is the difference between line pressure on this transmission and the stock 4R100?The stock 4R100 runs line pressure of approximately 75 to 150 psi. This RoadMaster package raises line pressure to approximately 100 to 200 psi using an upgraded pressure regulator valve and a line pressure modulator valve kit.
Where can I find the part number for this transmission package?The manufacturer part number is printed on the BD Diesel identification tag attached to the transmission case, and it also appears on your BD Diesel invoice and packing slip.
How long does installation take?BD lists an estimated install time of approximately 7 hours for this transmission and converter package.
What is the warranty on this transmission and converter package?BD Diesel covers parts for 24 months or 100,000 miles and labor for 12 months or 24,000 miles, whichever occurs first.
Is this transmission legal for use in California?This product does not require a CARB Executive Order and is legal for sale and use in all 50 states. It carries a California Proposition 65 warning because it can expose users to chemicals known to the state to cause cancer and reproductive harm.
Installation Instructions
- Raise and support the vehicle, then drain the factory transmission fluid before removing the old transmission and torque converter.
- Disconnect the driveshaft, transfer case linkage, cooler lines, wiring harness connectors, and shift linkage from the factory transmission.
- Support the transmission on a jack, remove the transmission crossmember and mounting bolts, and carefully lower and remove the factory 4R100 transmission and converter.
- Drain all fluid from the removed transmission and converter before preparing them for return as the core.
- Prefill the new BD Pro Force torque converter with the specified automatic transmission fluid, then align and seat the converter into the new RoadMaster transmission.
- Raise the RoadMaster transmission into position, align the torque converter with the engine flexplate and dowel pins, and secure the transmission to the engine block.
- Reinstall the crossmember, transmission mount, and transfer case, then reconnect the driveshaft, cooler lines, wiring harness, and shift linkage.
- Flush both transmission coolers with a backflow heated flushing machine before connecting the cooler lines to the new transmission.
- Fill the transmission with the manufacturer specified fluid, start the engine without driving, and allow fluid to circulate through the converter and coolers before rechecking the fluid level.
- Road test the truck to confirm smooth shifts and correct operation before returning the drained factory core to BD Diesel for the core deposit refund.
California Proposition 65 Warning
This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
