Bilstein B16 (PSS10) Coilover Suspension Kit - 2006-2013 Porsche 911 (Sport Spring Version) Front & Rear
The Bilstein 48-349949 B16 (PSS10) Suspension Kit delivers motorsport-proven performance for the 2006-2013 Porsche 911 equipped with the Sport Spring Version (without PASM electronic suspension). This complete front and rear coilover system features 10-stage manually adjustable monotube dampers that control both rebound and compression for precise handling in any condition. Ride height is fully adjustable from 15-35 mm lower than stock via the threaded body design, while matched linear-rate springs are tuned specifically for the 911 platform. Zinc-plated and clear-anodized components provide unmatched corrosion resistance, and the kit is engineered and tested on the Nürburgring for ultimate reliability and performance.
Key Features
- 10-Stage Damping Adjustment: Rebound and compression adjustable with every click
- Monotube Gas Pressure Technology: Superior heat dissipation and consistent performance
- Threaded Body Ride Height Adjustment: 15-35 mm lowering range (Sport Spring Version)
- Matched Linear-Rate Springs: Front 342 lbs/in + Rear 565 lbs/in with 79 lbs/in tenders
- Zinc-Plated & Anodized Finish: Maximum corrosion protection
- Direct-Fit OE-Quality Package: No modifications required
- Nürburgring Tested: Proven under extreme motorsport conditions
Specifications
| Specification | Detail |
|---|---|
| Part Number | 48-349949 |
| Series | B16 (PSS10) |
| Position | Front & Rear |
| Internal Design | Monotube |
| Adjustment | 10-Stage (Rebound & Compression) |
| Lowering Range | 15-35 mm (Sport Spring Version) |
| Front Main Spring Rate | 342 lbs/in (Linear) |
| Front Tender Spring Rate | 79 lbs/in |
| Rear Main Spring Rate | 565 lbs/in (Linear) |
| Rear Tender Spring Rate | 79 lbs/in |
| Finish | Dampers: Zinc Plated / Front Clear Anodized Rear, Springs: Blue |
| Grade Type | Performance |
| Country of Origin | Germany |
| Prop 65 Warning | Yes – Cancer & Reproductive Harm |
| Warranty | 2 Years (Bilstein) |
| Shipping Weight | Approx. 65 to 75 lbs |
Whats Included

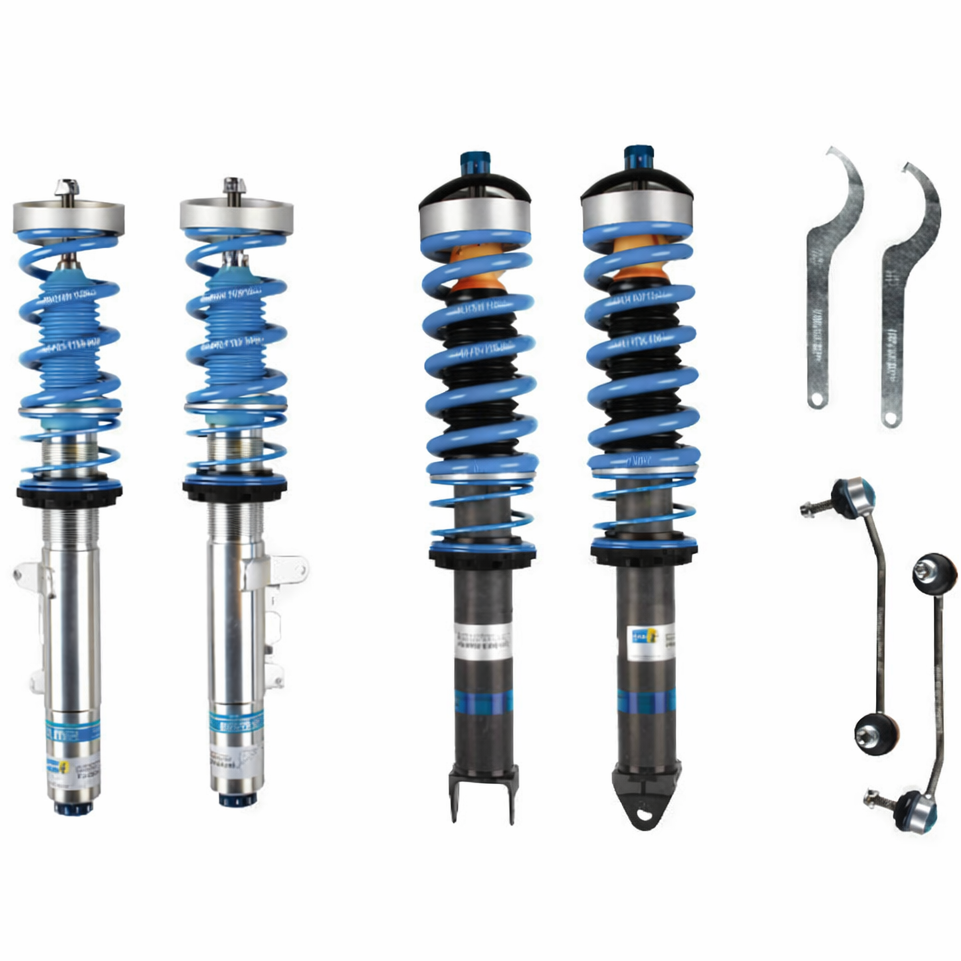

- 2x Front B16 Coilover Struts with Springs
- 2x Rear B16 Coilover Shocks with Springs
- All Necessary Mounting Hardware & Bump Stops
- Installation Instructions
Product Notes
- Designed exclusively for Sport Spring Version models WITHOUT PASM (Electronic Suspension)
- Threaded body allows precise ride height adjustment from 15-35 mm lower
- 10-stage damping provides the perfect setup for street, canyon, or track use
- Direct replacement no cutting or welding required
Installation Notes
- Estimated time: 4 to 6 hours (professional installation recommended)
- Utilizes factory mounting points for simple bolt-on installation
- Professional alignment required after installation
- Corner balancing highly recommended for optimal performance
This Part Fits
| Year | Make | Model | Engine | Notes |
|---|---|---|---|---|
| 2006-2008 | Porsche | 911 Carrera 4 / Carrera 4S / Targa 4 / Targa 4S / Turbo | H6 3.6L / 3.8L | Sport Spring Version without PASM |
| 2009-2012 | Porsche | 911 Carrera 4 / Carrera 4S / Targa 4 / Targa 4S | H6 3.6L / 3.8L | Sport Spring Version without PASM |
| 2007-2009 / 2010-2013 | Porsche | 911 Turbo / Turbo S | H6 3.6L / 3.8L | Sport Spring Version without PASM |
| 2012 | Porsche | 911 Carrera 4 GTS | H6 3.8L | Sport Spring Version without PASM |
Why Choose Bilstein B16 (PSS10) Suspension Kit?
- 10-stage damping + threaded height adjustment for ultimate tunability
- Monotube design and Nürburgring-proven engineering
- Matched springs and dampers for perfect Porsche 911 balance
- German-made quality with Bilstein’s legendary 2-year warranty
Frequently Asked Questions
-
Q: Will this fit my Porsche 911?
A: Yes, but only on Sport Spring Version models WITHOUT PASM electronic suspension. Verify your vehicle before ordering. -
Q: How much can I lower the car?
A: The kit allows 15-35 mm of lowering front and rear while maintaining excellent ride quality. -
Q: What is the warranty?
A: Covered by Bilstein’s 2-year warranty.
Shipping and Handling
- Method: UPS / FedEx Freight
- Availability: In stock ships same or next business day
- Packaging: Secure protective packaging
- Weight: Approx. 65 to 75 lbs
