Control Heat and Rough-Terrain Loads With a 60mm Reservoir Shock

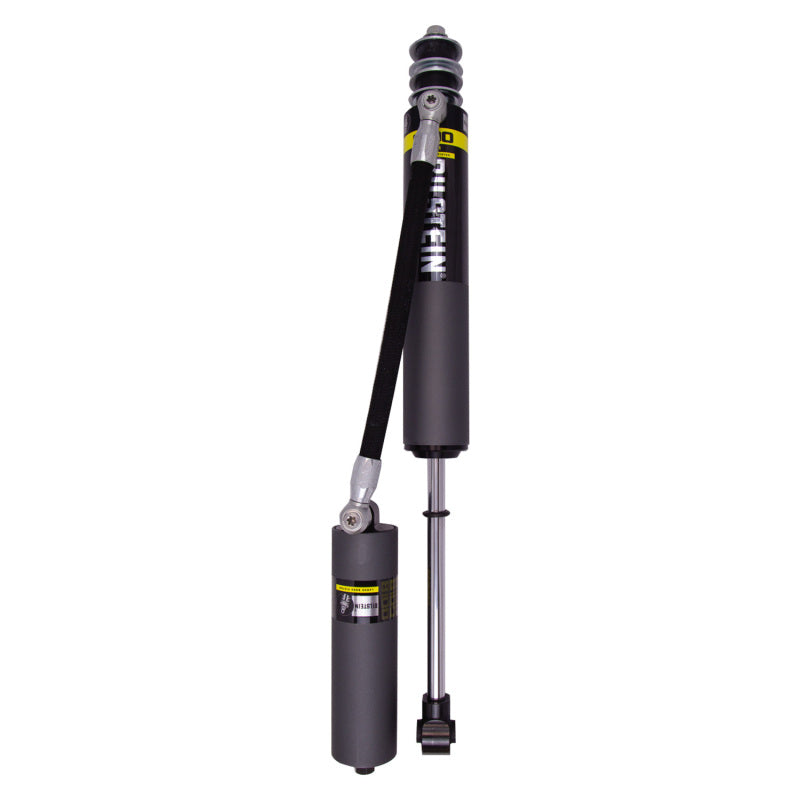

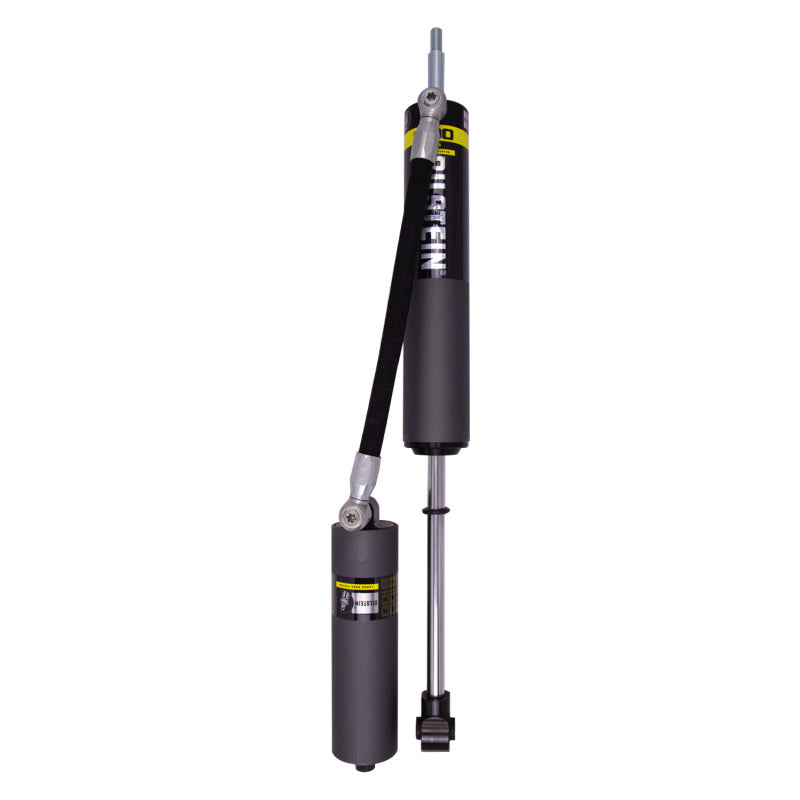

Bilstein 25-294118 is a B8 8100 rear-left reservoir shock for compatible 2007-2021 Toyota Tundra applications with approximately 0 to 1.5 inches of rear lift. The large 60mm piston and 2.65-inch body increase oil capacity for sustained control over rough roads and trails.
Key Features
- Large-bore B8 8100 design with 60mm piston
- Remote reservoir increases cooling and oil volume
- Vehicle-specific velocity-sensitive digressive valving
- Rear-left direct-fit configuration
- EVO Grey finish with aerospace-quality billet components
- Bilstein 25-294118 is non-adjustable and sold individually
- Use the exact 25-294118 configuration; related Bilstein part numbers can have different dimensions, sides, or fitment
Fitment
| Year | Make | Model | Application Notes |
|---|---|---|---|
| 2007-2021 | Toyota | Tundra | Rear left; approximately 0-1.5 in. lift; verify suspension configuration |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | 25-294118 |
| Series | B8 8100 |
| Position | Rear left |
| Collapsed length | 15.63 in. / 397.0 mm |
| Extended length | 25.12 in. / 638.0 mm |
| Upper mount | Stem |
| Lower mount | 12.4 mm eye |
| Body diameter | 2.65 in. |
| Piston diameter | 60 mm |
| Reservoir | Yes |
| Finish | EVO Grey |
| Damping | Non-adjustable |
| UPC | 651860888569 |
| Warranty | Bilstein limited 2-year warranty |

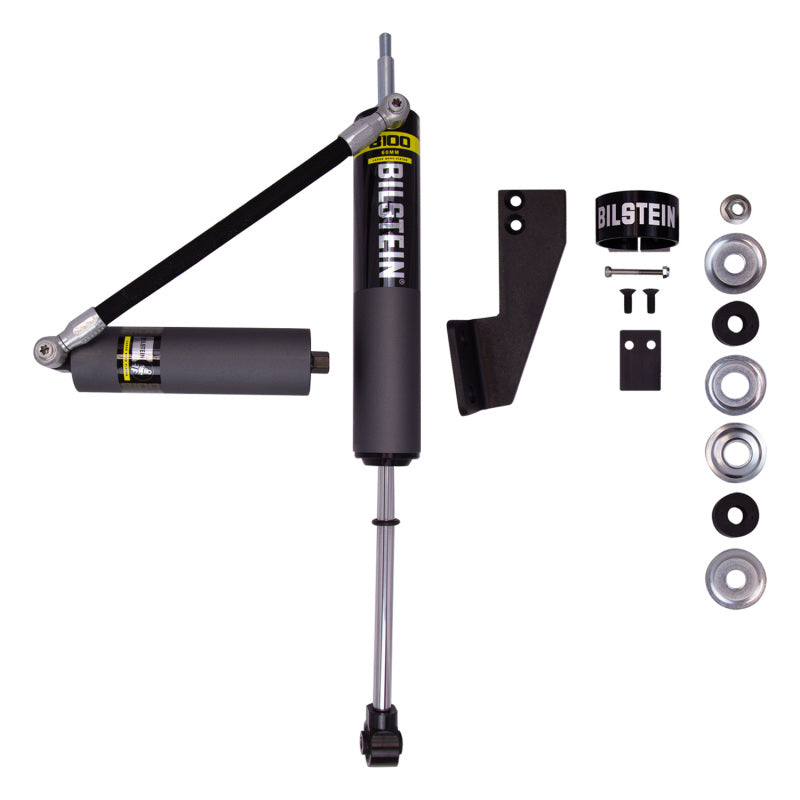

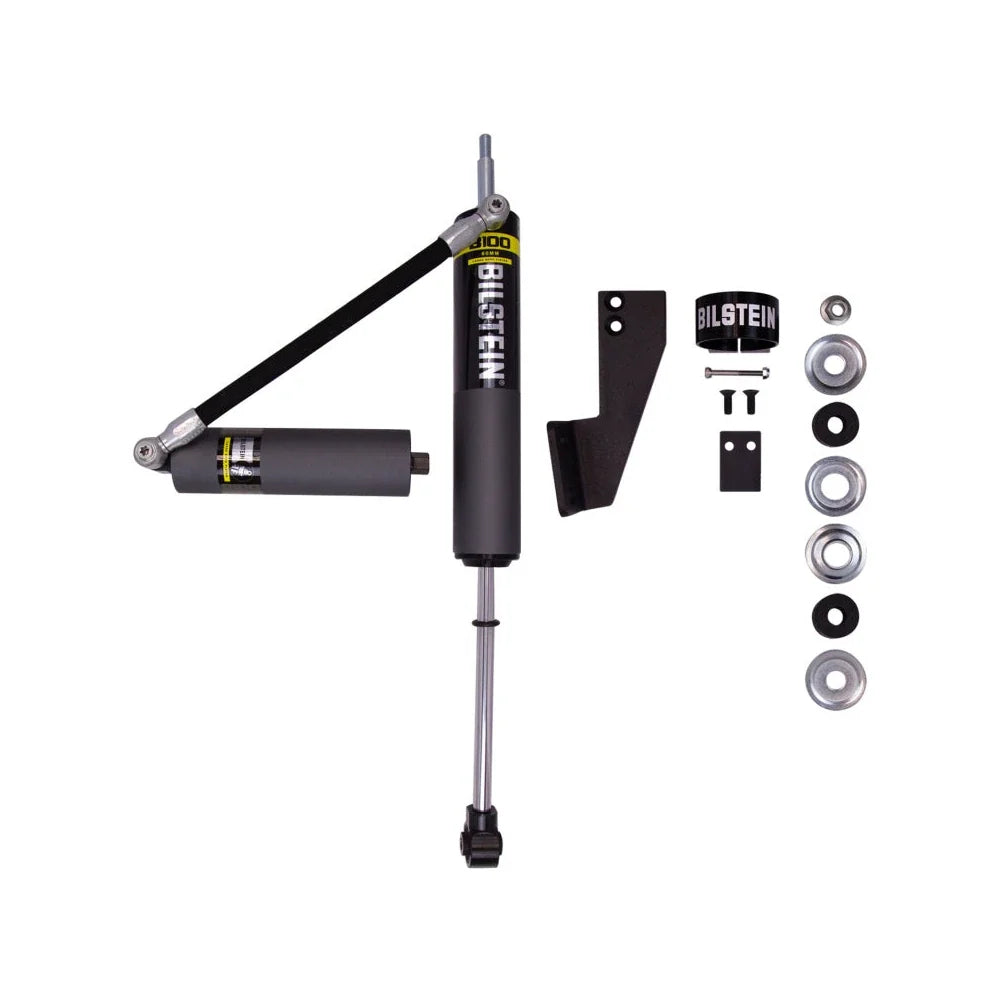

What's Included
- One rear-left B8 8100 shock absorber

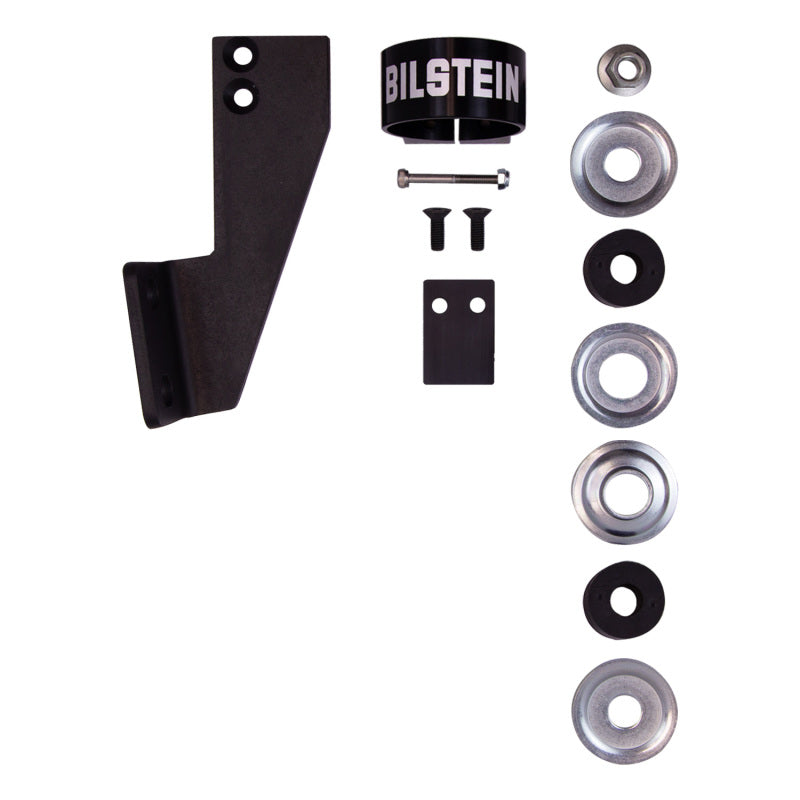

- Reservoir assembly and application-specific mounting components supplied by Bilstein
About Bilstein
Bilstein develops OE and aftermarket monotube suspension systems using application-specific testing, gas-pressure technology, and controlled manufacturing standards. 25-294118 is engineered around the application and dimensions listed above.
Related Parts
- No internal recommendation is linked because a compatible companion part must be verified for the exact vehicle, suspension option, side, and ride height before purchase.
FAQ
What is the 25-294118?It is the Bilstein B8 8100 shock absorbers described on this page, supplied in the verified configuration and quantity shown above.
Is this sold as a pair or individually?One rear-left B8 8100 shock absorber; Reservoir assembly and application-specific mounting components supplied by Bilstein. The included-components section controls the package quantity.
Is the damping adjustable?Non-adjustable
Will this fit every trim of the listed vehicle?No. Confirm the year, model, suspension option, drivetrain, engine, ride height, and position notes before ordering.
Does installation require an alignment?An alignment is recommended whenever suspension geometry or ride height is changed, and after strut or spring service when specified by the vehicle manufacturer.
Can factory hardware be reused?Reuse hardware only when the Bilstein and vehicle service instructions allow it and the hardware passes inspection. Replace one-time-use or damaged fasteners.
What warranty applies?Bilstein limited 2-year warranty
What should be checked before installation?Compare the part number, side, mount style, suspension option, ride height, and included components with the vehicle and current Bilstein application data.
Installation Instructions
- Confirm the vehicle, suspension option, ride height, side, and mount configuration before installing Bilstein 25-294118.
- Support the vehicle safely and follow the factory service procedure for spring or damper removal.
- Inspect mounts, bushings, fasteners, and adjacent suspension components; replace worn or one-time-use hardware as required.
- Install the component in the specified orientation and route any reservoir hose away from heat, abrasion, and moving parts.
- Torque all fasteners at the suspension position specified by the vehicle and Bilstein instructions.
- Set the vehicle on the ground, verify clearance and ride height, road-test carefully, and perform an alignment when required.
