Rear Suspension Control for the 2013–2018 Toyota RAV4

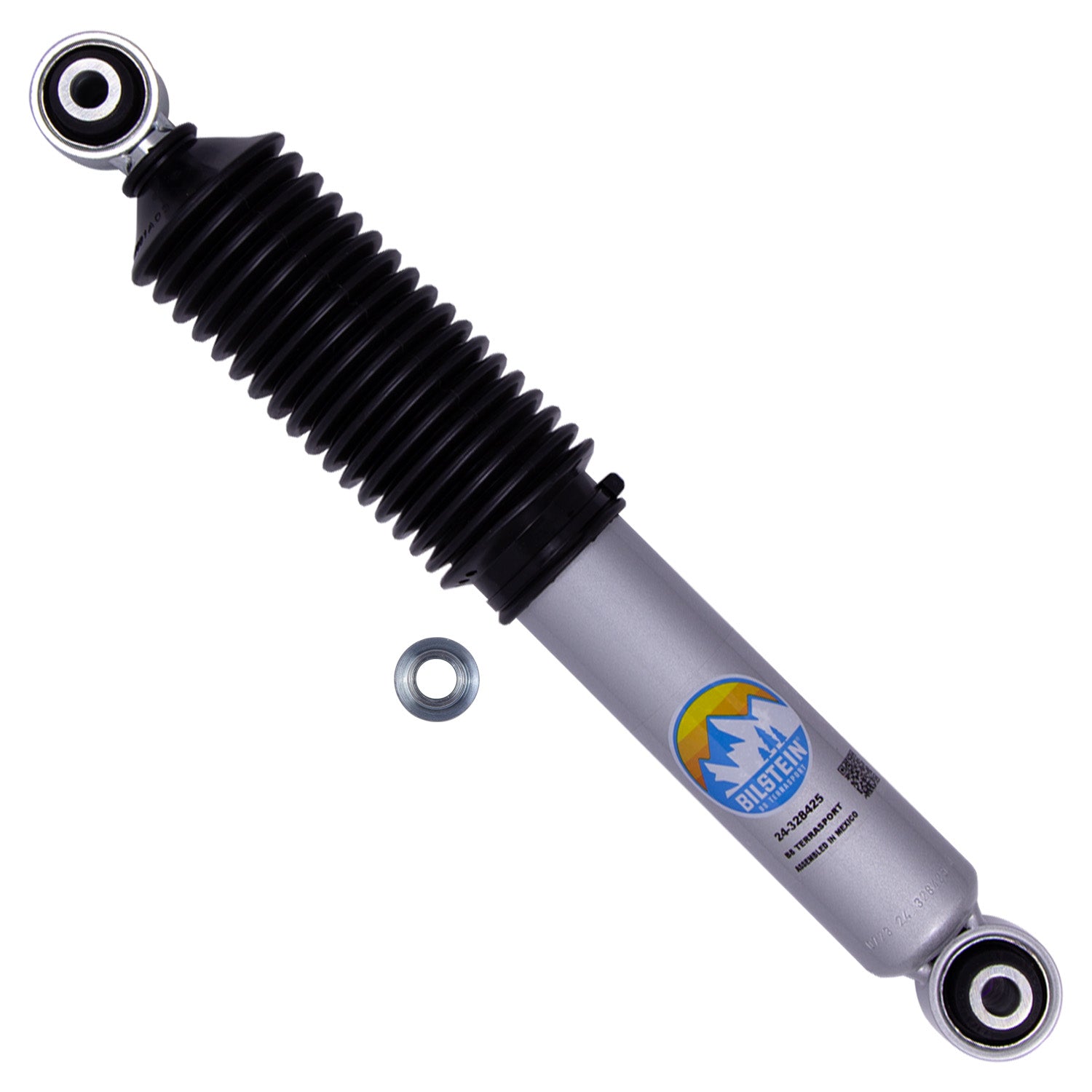

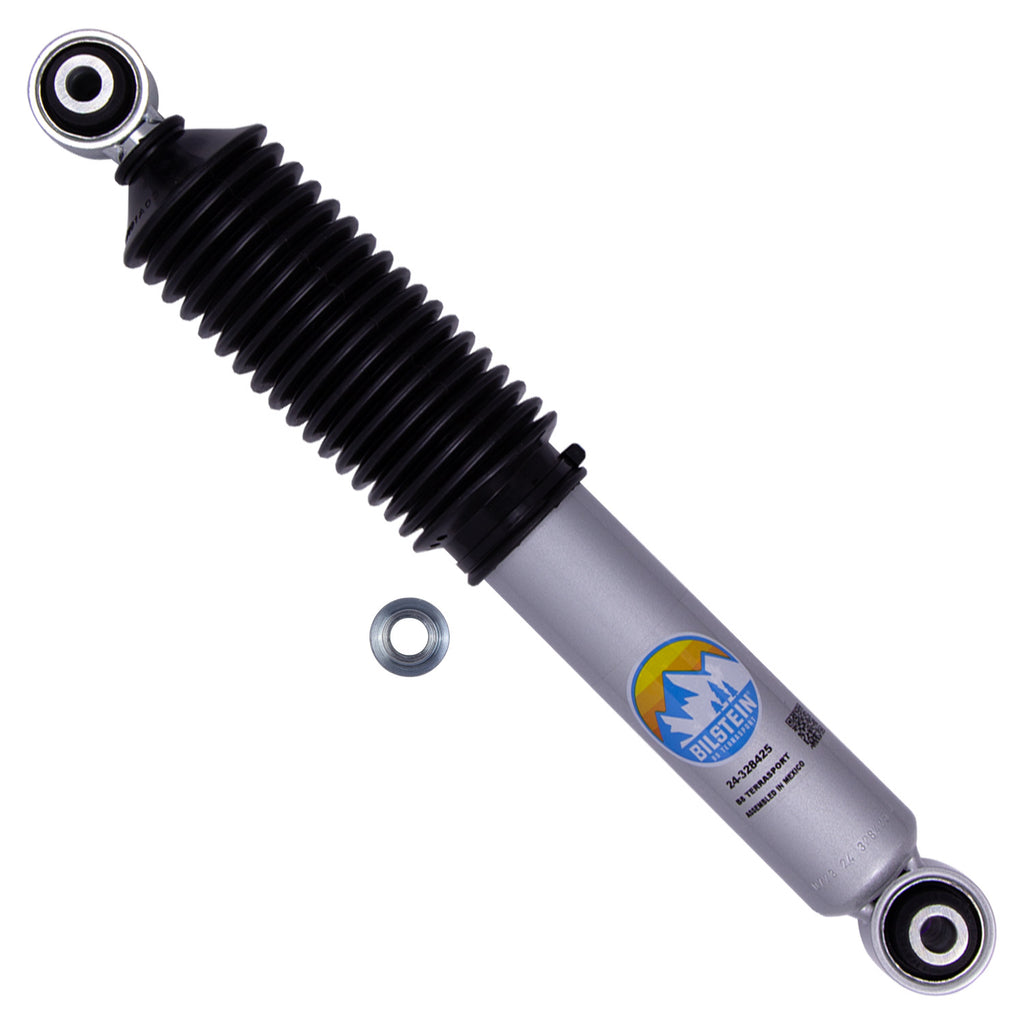

Bilstein 24-328425 is a B8 TerraSport rear shock for the verified RAV4 applications below. Its monotube design is tuned for this application and supplied with a spring-seat spacer that permits approximately 1 inch of rear lift when installed as directed.
Key Features
- Application-specific B8 TerraSport monotube damping.
- Non-adjustable damping with silver-painted body and protective boot.
- Eye-style upper and lower mounts.
- Optional spring-seat spacer for approximately 1 inch of rear lift with the factory springs.
- 24-328425 is sold individually; two rear shocks are required per vehicle.
Fitment
| Years | Make | Model | Submodel |
|---|---|---|---|
| 2018 | Toyota | RAV4 | Adventure |
| 2013–2014 | Toyota | RAV4 | EV |
| 2016–2018 | Toyota | RAV4 | Hybrid Limited |
| 2017–2018 | Toyota | RAV4 | Hybrid SE |
| 2016–2018 | Toyota | RAV4 | Hybrid XLE |
| 2013–2018 | Toyota | RAV4 | LE |
| 2013–2018 | Toyota | RAV4 | Limited |
| 2017–2018 | Toyota | RAV4 | Platinum |
| 2017–2018 | Toyota | RAV4 | SE |
| 2013–2018 | Toyota | RAV4 | XLE |
Confirm the exact vehicle and suspension configuration before ordering 24-328425. Front suspension components are separate. Follow Bilstein's instructions when retaining stock height or installing the supplied lift spacer; do not assume compatibility with other lift kits.
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | 24-328425 |
| Series / position | B8 TerraSport / rear |
| Internal design | Monotube; non-adjustable damping |
| Extended length | 428.7 mm / 16.88 in |
| Collapsed length | 293.5 mm / 11.56 in |
| Upper / lower mount | Eye / eye |
| Finish | Silver paint |
| Protective boot | Included |
| Supporting components | One 10 mm spring-seat spacer, related hardware and instructions |
| Quantity per vehicle | Two shocks; this listing is for one |
What's Included
- One Bilstein 24-328425 rear shock with protective boot.

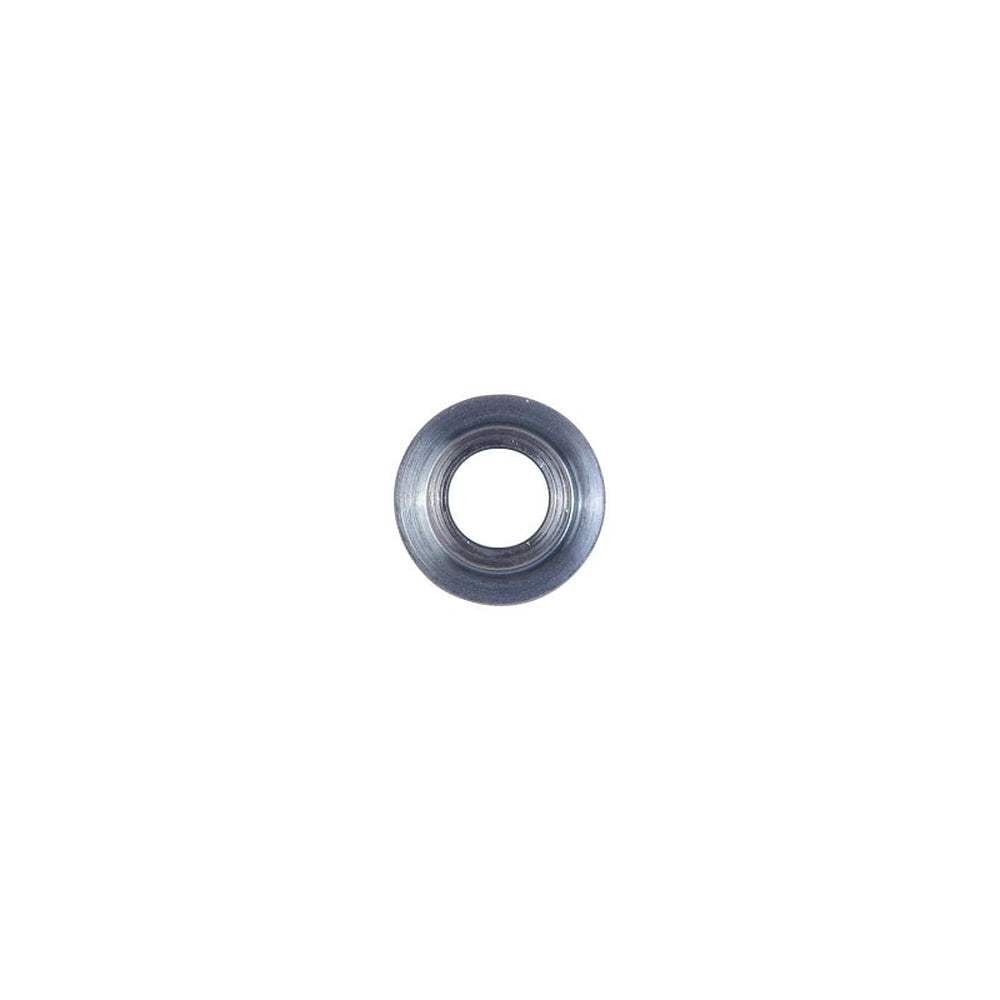

- One spring-seat spacer, related hardware and installation instructions.
Factory coil springs, front struts and a second rear shock are not included.
About Bilstein
Bilstein develops application-specific suspension dampers for road and off-road use. B8 TerraSport products are designed to support CUV suspension upgrades. This shock carries Bilstein's limited lifetime warranty, subject to the manufacturer's terms.
Related Parts
- Air Lift 1000 air spring kit for Toyota RAV4 — a separate load-support product, not an included component or a verified combination with this suspension upgrade. Confirm spring and spacer compatibility before combining products.
FAQ
What is the 24-328425?It is an individual Bilstein B8 TerraSport rear shock with supporting spacer and hardware for the listed Toyota RAV4 applications.
Is this a pair of shocks?No. One shock is supplied; a vehicle requires two for the rear axle.
Does the shock alone raise the vehicle?The included spring-seat spacer produces the specified approximate 1-inch rear lift when installed according to Bilstein's instructions.
Can I retain stock rear ride height?The instructions provide a path that omits the optional lift spacer when retaining stock height. A professional must verify the full suspension configuration.
Are replacement coil springs included?No. The application uses compatible factory springs; new coil springs are not included.
Can I adjust the damping?No. The shock has non-adjustable, application-specific damping.
Does this include the front suspension?No. Front struts and other front suspension parts are separate.
Who should install it?Bilstein requires installation by a professional automotive suspension technician with the necessary tools and knowledge.
Installation Instructions
- Verify fitment and review the official Bilstein mounting instructions.
- Have a professional technician support the vehicle and remove the original rear shocks using the vehicle service procedure.
- If the optional lift is required, install the spring-seat spacer and refit the factory spring in its original orientation as instructed.
- Install the shocks, tighten fasteners using the specified service procedure, then check alignment and suspension operation.
