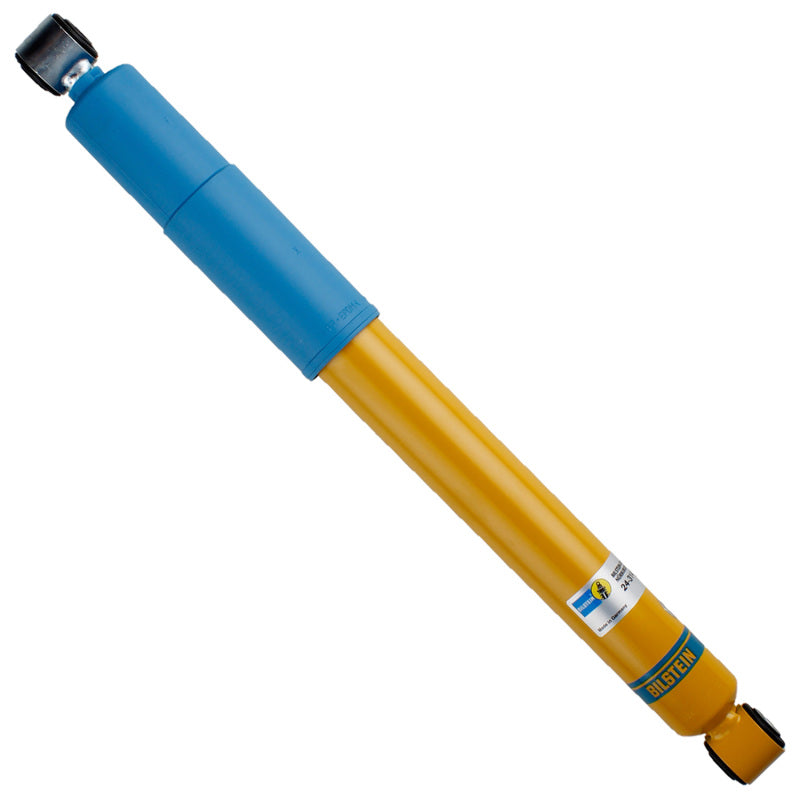

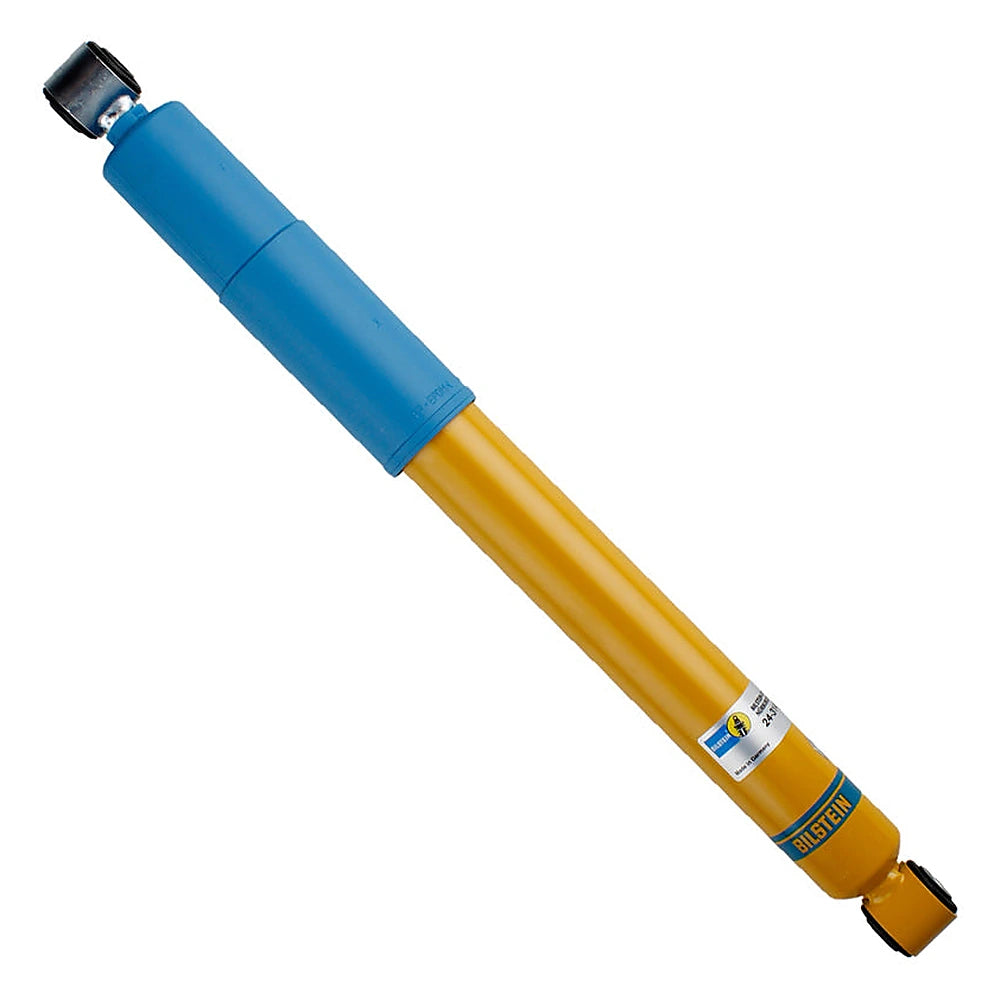

Bilstein B6 Camper Rear Shock for Mercedes-Benz Sprinter 2500/3500
This is the Bilstein 24-314350, a B6 Camper series rear shock absorber for 4WD Mercedes-Benz Sprinter 2500, 3500, and 3500XD vans. It uses a velocity-sensitive monotube design tuned for the added weight of camper conversions and cargo loads, improving rear damping control and ride stability over stock rear dampers.
Key Features
- Bilstein 24-314350 uses the B6 Camper series monotube gas-pressure design tuned for the increased weight of camper and cargo van builds.
- Velocity-sensitive digressive piston for consistent, fade-free damping across changing road conditions.
- Yellow-painted finish with a 14mm eye upper mount and a 12.1mm eye lower mount.
- Non-adjustable damping; no reservoir and no integrated spring seat.
- Backed by Bilstein's limited lifetime warranty.
Fitment
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2019-2024 | Mercedes-Benz | Sprinter 2500 | 4WD/AWD |
| 2019-2024 | Mercedes-Benz | Sprinter 3500 | 4WD/AWD |
| 2019-2024 | Mercedes-Benz | Sprinter 3500XD | 4WD/AWD |
The 24-314350 is built specifically for 4WD and AWD Sprinter 2500/3500/3500XD vans. A rear-wheel-drive-only Sprinter uses a different Bilstein part number, so confirm the van's drivetrain before ordering. Rear position only; a separate front shock or strut is required for the front axle.
Specifications
| Detail | Value |
|---|---|
| Brand | Bilstein |
| MPN | 24-314350 |
| Series | B6 Camper |
| Internal design | Monotube, gas pressure |
| Finish | Yellow paint |
| Upper mount type | Eye, 14mm |
| Lower mount type | Eye, 12.1mm |
| Reservoir | No |
| Spring seat included | No |
| Adjustable damping | Non-adjustable |
| Position | Rear |
| UPC | 651860894386 |
| Warranty | Bilstein limited lifetime warranty |
What's Included
- 1 Bilstein 24-314350 rear shock absorber
About Bilstein
Bilstein tunes its B6 Camper series shocks for the added weight of camper conversions and cargo loads on vans like the Sprinter, using a velocity-sensitive monotube design to keep ride quality consistent under load.
Related Parts
FAQ
What is the 24-314350?It is a Bilstein B6 Camper series rear shock absorber built for 4WD Mercedes-Benz Sprinter 2500, 3500, and 3500XD vans.
Does this fit 2WD Sprinter vans?No. This shock is specified for 4WD and AWD Sprinter 2500/3500/3500XD applications; a 2WD-only Sprinter uses a different part number.
Is this shock adjustable?No, damping is non-adjustable.
Does it include a reservoir?No, this is a standard monotube shock without a reservoir.
What are the mount types?A 14mm eye upper mount and a 12.1mm eye lower mount.
Is this good for camper van conversions?Yes, the B6 Camper series is tuned for the added weight of camper builds on Sprinter vans for improved load-carrying ride control.
Is a spring seat included?No, this shock does not include an integrated spring seat.
What position is this shock for?Rear position only.
Installation Instructions
- Raise and support the rear of the van on jack stands and remove the rear wheel.
- Remove the upper and lower shock mounting hardware per the applicable factory service procedure.
- Remove the factory rear shock absorber.
- Install the new Bilstein B6 shock and torque the upper (14mm eye) and lower (12.1mm eye) mounting hardware to factory specification.
- Reinstall the wheel and lower the van.
