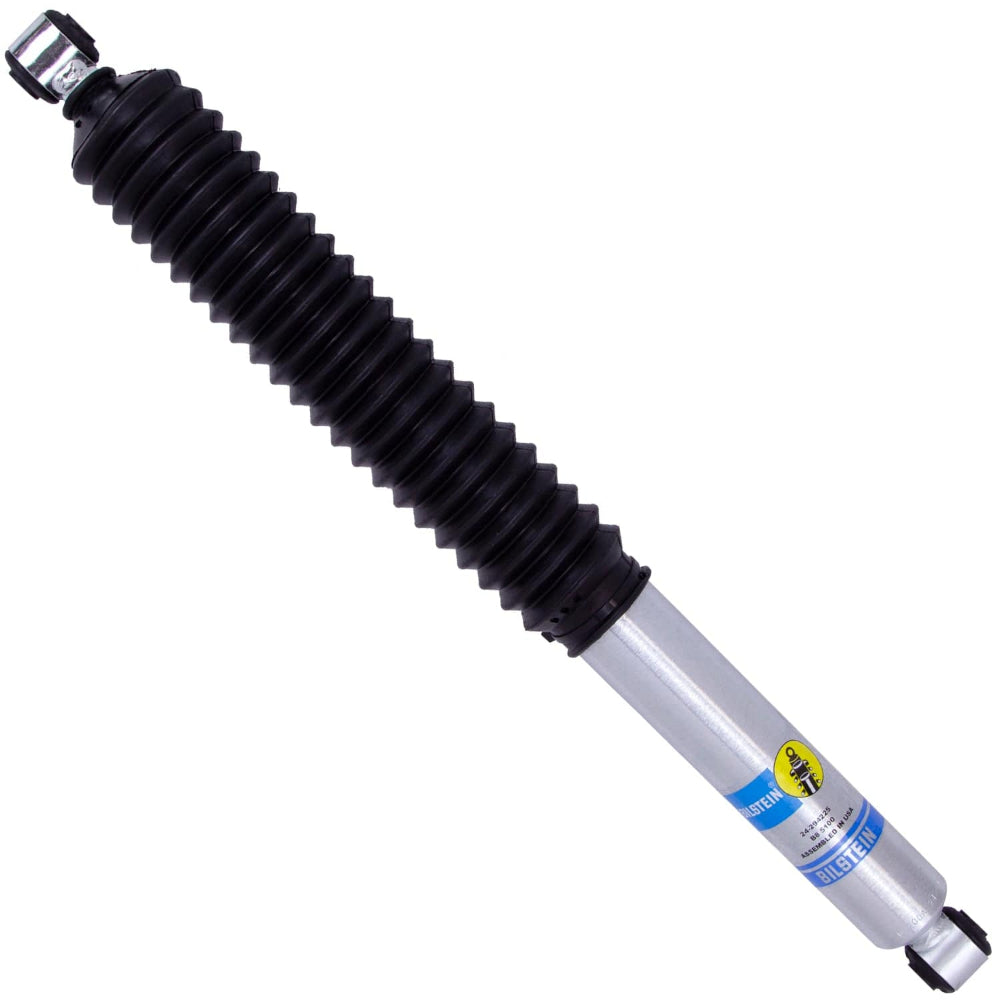

Bilstein B8 5100 Rear Shock Absorber for Ford Ranger
This is the Bilstein 24-336222, a direct-fit rear shock absorber built on Bilstein's B8 5100 monotube platform for 2024-2026 Ford Ranger trucks running stock ride height or a 0-1 inch rear lift. It uses a velocity-sensitive, digressive piston that reacts to changing road conditions for consistent, fade-free damping.
Key Features
- 46mm monotube design with a zinc-plated finish and a black bellows boot included.
- Velocity-sensitive digressive piston for consistent, fade-free damping across changing road and load conditions.
- Both upper and lower mounts are 12.1mm eyes, with a 14mm shaft diameter and 8.78 inches of stroke/travel.
- Direct-fit for stock ride height or a 0-1 inch rear lift; damping is non-adjustable.
- Backed by Bilstein's limited lifetime warranty.
Fitment
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2024-2026 | Ford | Ranger | Lariat |
| 2024-2026 | Ford | Ranger | XL |
| 2024-2026 | Ford | Ranger | XLT |
The 24-336222 does not fit the Ford Ranger Raptor. It is designed for 0-1 inch of rear lift only; larger lift heights require a longer-travel shock from Bilstein's lift-specific lineup.
Specifications
| Detail | Value |
|---|---|
| Brand | Bilstein |
| MPN | 24-336222 |
| Series | B8 5100 |
| Internal design | 46mm monotube |
| Finish | Zinc plated |
| Mount types | 12.1mm eye, upper and lower |
| Shaft diameter | 14mm |
| Stroke/travel | 8.78 inches (223mm) |
| Boot included | Yes, black bellows |
| Adjustable damping | Non-adjustable |
| Lift range | 0-1 inch rear lift |
| UPC | 651860963525 |
| Warranty | Bilstein limited lifetime warranty |
What's Included
- 1 Bilstein 24-336222 rear shock absorber
- Protective boot
About Bilstein
Bilstein's B8 5100 series, including the 24-336222, is built as a direct-fit solution for lifted trucks and SUVs, using a velocity-sensitive digressive piston to keep damping consistent whether the truck is running stock ride height or a light rear lift.
Related Parts
FAQ
What is the 24-336222?It is a Bilstein B8 5100 series direct-fit rear shock absorber for 2024-2026 Ford Ranger Lariat, XL, and XLT trims.
Does this fit the Ford Ranger Raptor?No, this shock is specified for Ranger Lariat, XL, and XLT trims.
What lift height is this shock designed for?0-1 inch of rear lift.
Is a boot included?Yes, a black bellows boot is included.
Is this shock adjustable?No, damping is non-adjustable.
What is the stroke/travel length?8.78 inches (223mm) of travel.
What are the mount types?Both the upper and lower mounts are 12.1mm eyes.
Can I use this shock at stock ride height?Yes, this configuration is direct-fit for stock ride height up to 0-1 inch of rear lift.
Installation Instructions
- Raise and support the rear of the truck on jack stands and remove the rear wheel.
- Remove the upper and lower shock mounting hardware per the applicable factory service procedure.
- Remove the factory rear shock absorber.
- Install the new Bilstein B8 5100 shock and torque the upper and lower 12.1mm eye mounting hardware to factory specification.
- Reinstall the wheel and lower the truck.
