Level the Front of a Tundra or Sequoia With OE Springs

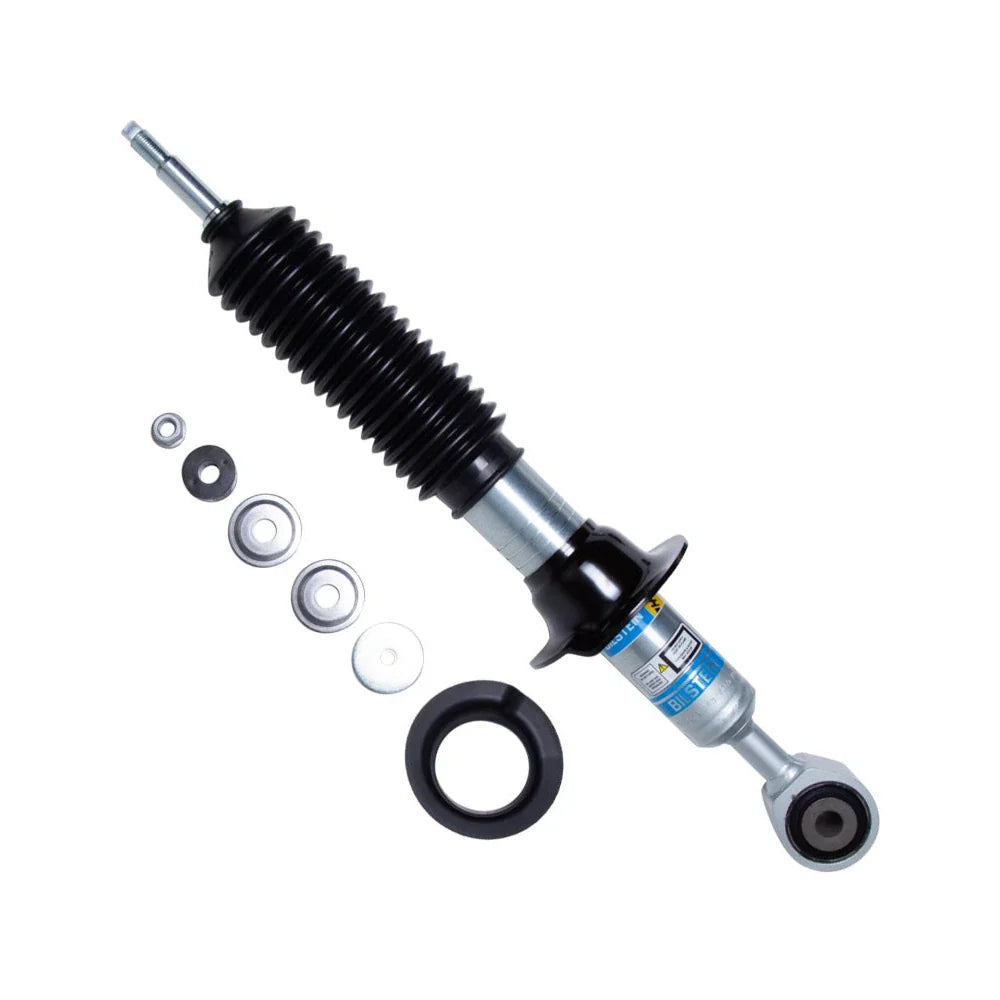

Bilstein 24-329200 is a B8 5100 ride-height-adjustable front shock for compatible 2022-2026 Toyota Tundra and 2023-2026 Toyota Sequoia applications. Snap-ring spring-seat positions provide application-dependent front lift while reusing the OE coil spring.
Key Features
- Ride-height-adjustable front shock with multiple snap-ring grooves
- Application-dependent 0 to 3 inches of front lift
- 46mm gas-pressure monotube piston with digressive valving
- Designed for OE coil springs and factory mounting locations
- Zinc-plated coilover-style body with black bellows boot
- Bilstein 24-329200 is sold individually; front shocks should be installed as a matched pair
- Use the exact 24-329200 configuration; related Bilstein part numbers can have different dimensions, sides, or fitment
Fitment
| Year | Make | Model | Application Notes |
|---|---|---|---|
| 2022-2026 | Toyota | Tundra | Front; verify lift setting, suspension package, and AVS compatibility |
| 2023-2026 | Toyota | Sequoia | Front; verify lift setting, suspension package, and AVS compatibility |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | 24-329200 |
| Series | B8 5100 Ride Height Adjustable |
| Position | Front |
| Collapsed length | 15.91 in. / 404.0 mm |
| Extended length | 20.22 in. / 513.5 mm |
| Travel | 4.31 in. |
| Upper mount | Stem |
| Lower mount | 16.2 mm eye |
| Body design | Snap-ring grooved coilover body |
| Piston diameter | 46 mm |
| Spring seat | Included |
| UPC | 651860910031 |
| Warranty | Bilstein limited lifetime warranty |
What's Included
- One front B8 5100 ride-height-adjustable shock
- Spring seat and snap-ring hardware
- Black bellows boot
- Application-specific mounting hardware as supplied by Bilstein
About Bilstein
Bilstein develops OE and aftermarket monotube suspension systems using application-specific testing, gas-pressure technology, and controlled manufacturing standards. 24-329200 is engineered around the application and dimensions listed above.
Related Parts
- No internal recommendation is linked because a compatible companion part must be verified for the exact vehicle, suspension option, side, and ride height before purchase.
FAQ
What is the 24-329200?It is the Bilstein B8 5100 Ride Height Adjustable shock absorbers described on this page, supplied in the verified configuration and quantity shown above.
Is this sold as a pair or individually?One front B8 5100 ride-height-adjustable shock; Spring seat and snap-ring hardware; Black bellows boot; Application-specific mounting hardware as supplied by Bilstein. The included-components section controls the package quantity.
Is the damping adjustable?Use only the adjustment capability explicitly listed in the specifications.
Will this fit every trim of the listed vehicle?No. Confirm the year, model, suspension option, drivetrain, engine, ride height, and position notes before ordering.
Does installation require an alignment?An alignment is recommended whenever suspension geometry or ride height is changed, and after strut or spring service when specified by the vehicle manufacturer.
Can factory hardware be reused?Reuse hardware only when the Bilstein and vehicle service instructions allow it and the hardware passes inspection. Replace one-time-use or damaged fasteners.
What warranty applies?Bilstein limited lifetime warranty
What should be checked before installation?Compare the part number, side, mount style, suspension option, ride height, and included components with the vehicle and current Bilstein application data.
Installation Instructions
- Confirm the vehicle, suspension option, ride height, side, and mount configuration before installing Bilstein 24-329200.
- Support the vehicle safely and follow the factory service procedure for spring or damper removal.
- Inspect mounts, bushings, fasteners, and adjacent suspension components; replace worn or one-time-use hardware as required.
- Install the component in the specified orientation and route any reservoir hose away from heat, abrasion, and moving parts.
- Torque all fasteners at the suspension position specified by the vehicle and Bilstein instructions.
- Set the vehicle on the ground, verify clearance and ride height, road-test carefully, and perform an alignment when required.
