Increase rear oil capacity for repeated rough-road use

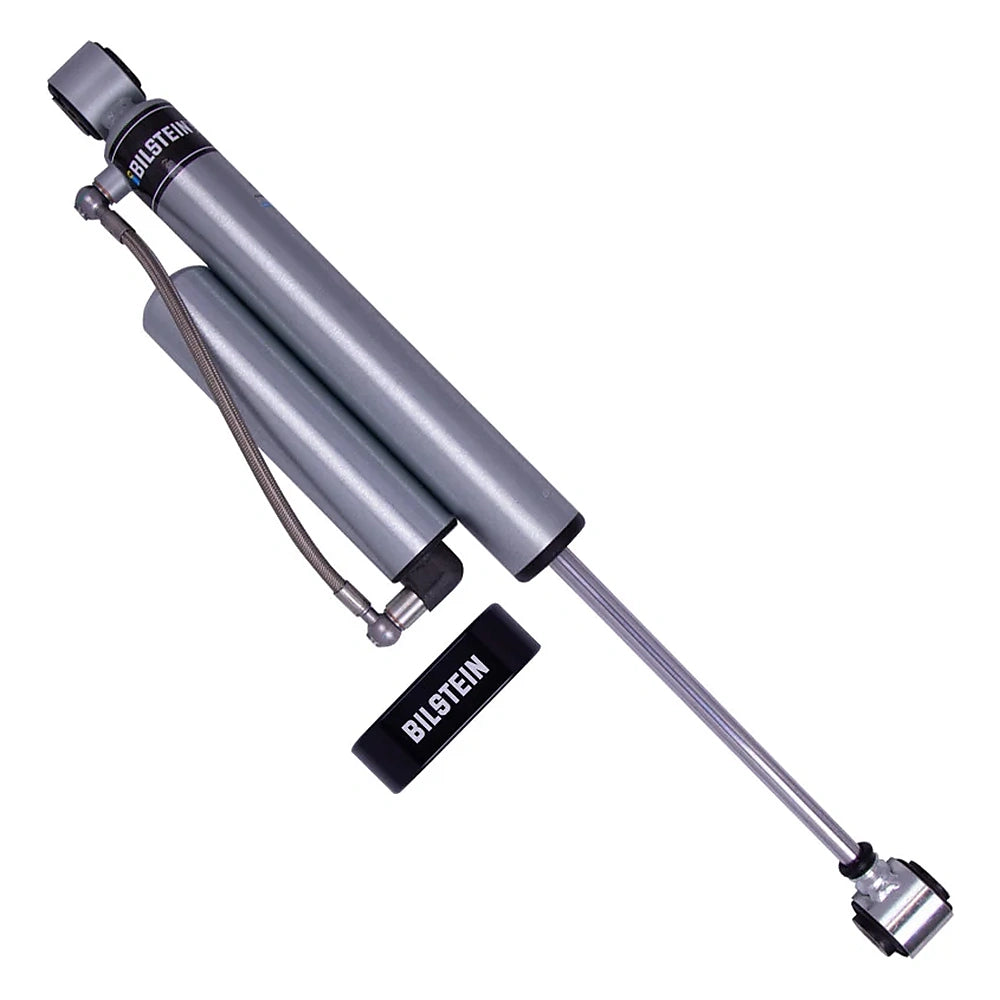

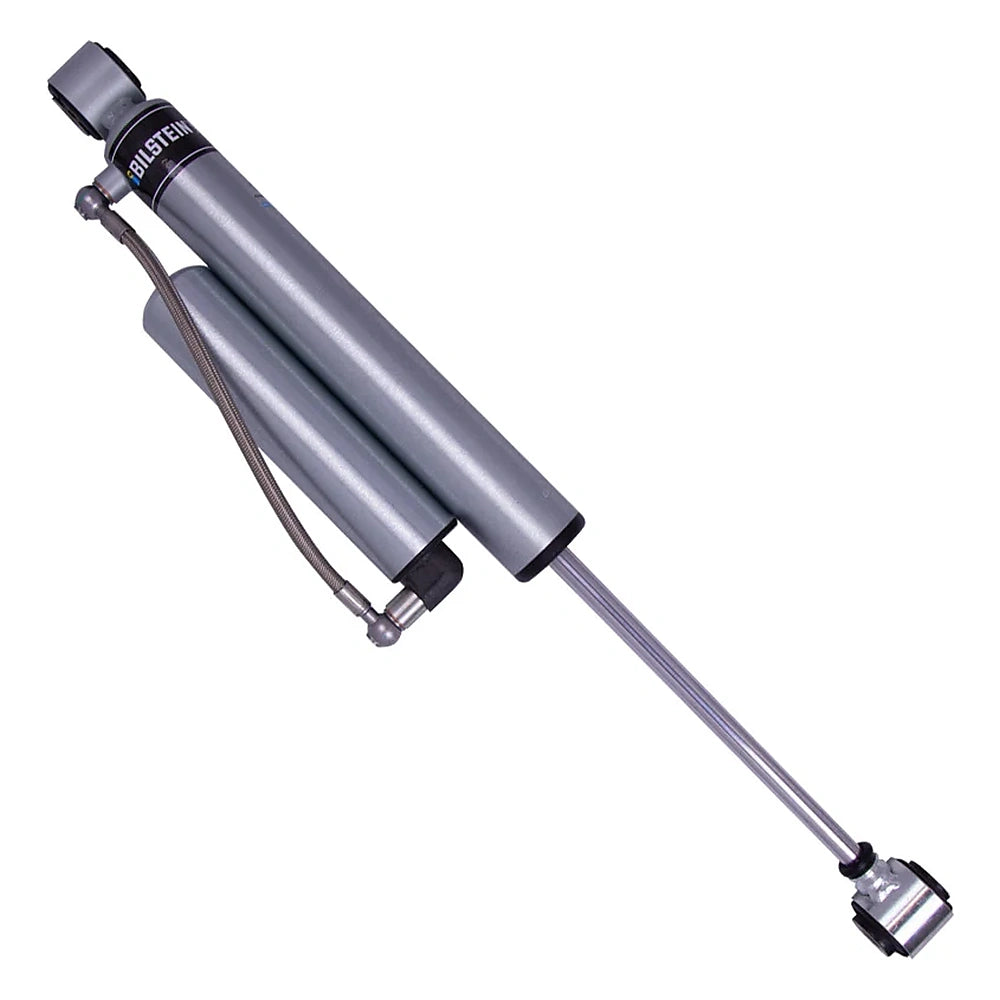

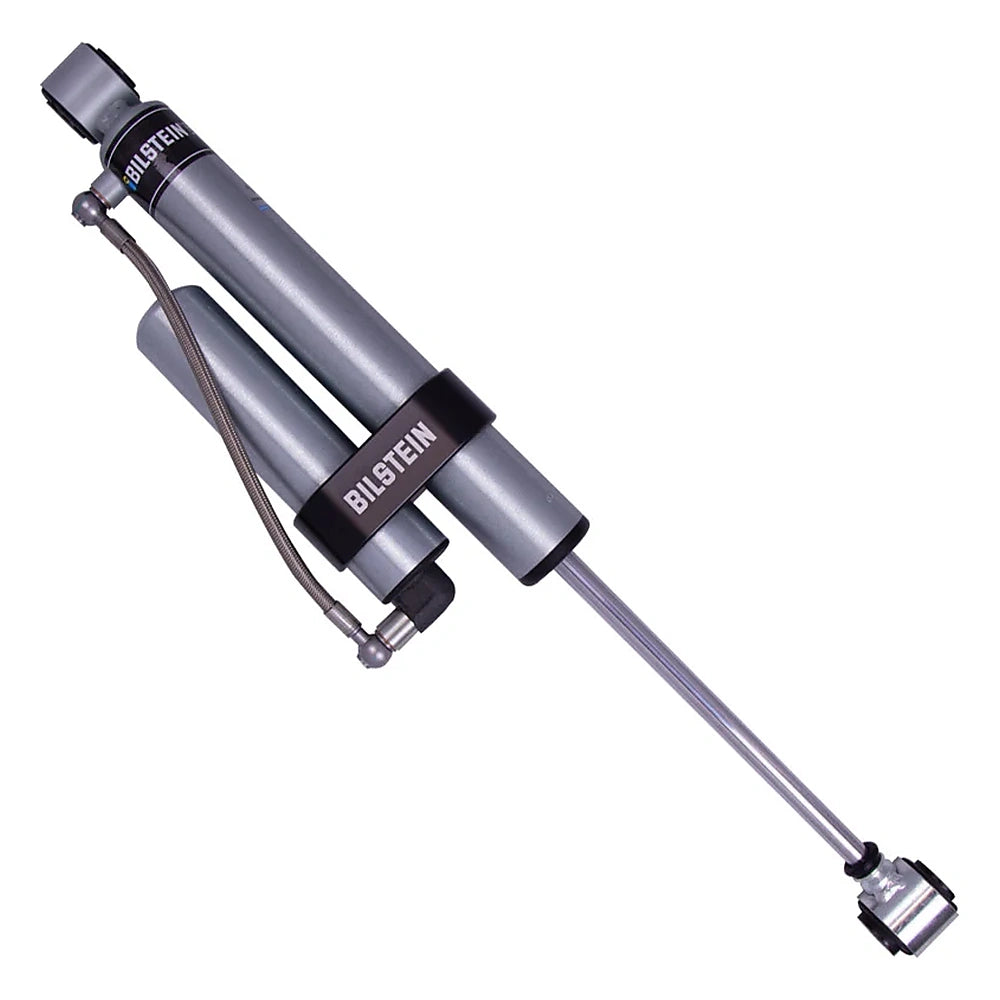

Bilstein 25-311396 is a rear B8 5160 remote-reservoir shock for supported 2004-2015 Nissan Titan applications.
Key Features
- Bilstein 25-311396: B8 5160 tuning is matched to the verified vehicle application
- Monotube construction separates oil and gas for consistent damping
- Digressive valving responds quickly to changing road inputs
- Vehicle-specific mounts support direct installation
- Durable exterior finish protects the damper body
- Non-adjustable damping is preset by Bilstein for the intended application
Fitment
Use Bilstein 25-311396 only for the applications below. Confirm every listed qualifier and exclusion.
| Years | Make | Model | Details |
|---|---|---|---|
| 2004-2015 | Nissan | Titan | Rear |
Specifications
| Detail | Value |
|---|---|
| Brand | Bilstein |
| Manufacturer Part Number | 25-311396 |
| Product Type | Shock Absorbers |
| Series | B8 5160 |
| Position | Rear |
| Collapsed Length | 15.78 inches |
| Extended Length | 25.41 inches |
| Travel | 9.63 inches |
| Mounts | 14 mm eye at both ends |
| Design | 46 mm monotube with remote reservoir |
| Body Diameter | 2.0 inches |
| Finish | Zinc plated |
| UPC | 651860891781 |
What's Included
- One Bilstein shock absorber or strut in the listed position for Bilstein 25-311396
- Not included: Opposite-side damper, springs, mounts, tools, alignment, and installation labor
About Bilstein
Bilstein develops gas-pressure monotube dampers around vehicle-specific valving, durable construction, and repeatable suspension control for street, towing, and off-road applications.
Related Parts
- Replace dampers in axle pairs when required by the vehicle condition and use only mounts, springs, and hardware confirmed for the same application.
FAQ
What is the 25-311396?It is a Bilstein shock absorbers for the applications and configuration shown above.
How do I confirm compatibility?2004-2015 Nissan Titan (Rear)
Is this sold individually?The package contents section identifies the verified quantity supplied for this listing.
Is professional installation recommended?Professional installation is recommended when specialized tools, lifting equipment, alignment, welding, or exhaust work is required.
What should be inspected before installation?Inspect the mounting points, mating components, clearances, and supplied hardware before beginning.
Does installation change the vehicle's factory systems?Follow the current manufacturer instructions and retain every factory component the instructions identify for reuse.
How should this product be maintained?Inspect the product and mounting hardware periodically and correct looseness, corrosion, leakage, or damage before further use.
What warranty applies?Bilstein two-year warranty for eligible North American aftermarket purchases
Installation Instructions
- Confirm the exact vehicle, suspension configuration, ride height, and axle position.
- Support the vehicle safely and unload the suspension according to the service manual.
- Remove the original damper while retaining only the mounts and hardware identified for reuse.
- Install the Bilstein unit in the correct orientation and torque all fasteners at the specified ride position.
- Check hose, tire, brake-line, and suspension clearance through the full range of motion, then obtain an alignment when the application requires it.
