Bilstein 2024+ Jeep Wrangler B8 5100 Lift Kit - 2.5in Lift

Complete B8 5100 Monotube Lift Kit with Cold Wound Springs and Full Hardware for the 2024 Jeep Wrangler JL

The Bilstein 53-350510 B8 5100 Lift Kit delivers a complete 2.5-inch suspension lift for the 2024 Jeep Wrangler JL four-door. The 53-350510 pairs four B8 5100 monotube shock absorbers with four custom-matched, longer-travel cold wound coil springs and all supporting hardware needed for a clean bolt-in installation. Unlike spacer lifts that raise the body without improving suspension travel, the 53-350510 lifts the entire suspension system, increasing wheel travel and articulation on all four corners of the solid axle Wrangler. Rubicon models gain enough clearance for 35-inch tires on stock wheels, while non-Rubicon models with stock fenders can run 33-inch tires. Suspension geometry is maintained without additional aftermarket components.

Key Features

• 2.5-inch suspension lift for the 2024 Jeep Wrangler JL four-door
• Four Bilstein B8 5100 monotube shock absorbers with digressive valving for on and off-road performance
• Four custom-matched longer-travel cold wound coil springs increase wheel travel and articulation

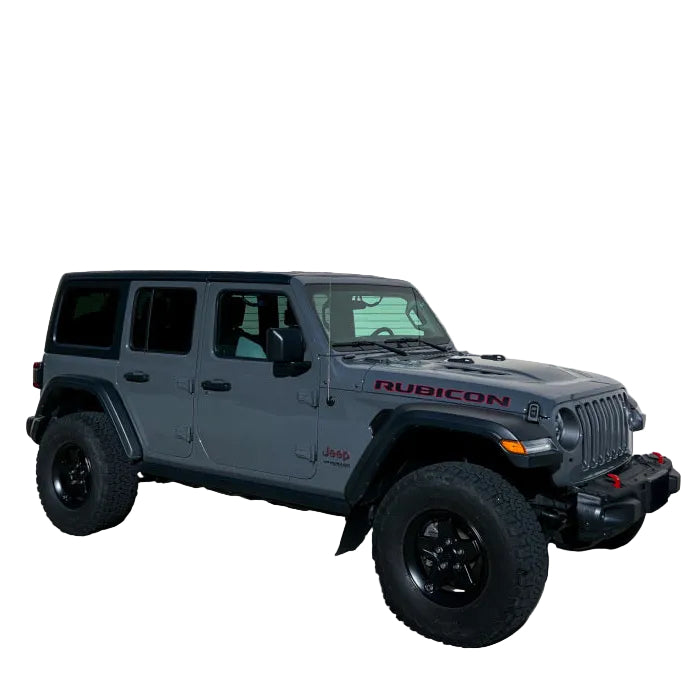

• Rubicon models: supports 35-inch tires on stock wheels
• Non-Rubicon models with stock fenders: supports 33-inch tires on aftermarket wheels with max 4.75-inch backspacing
• Extended sway bar links, bump stop spacers, rear sway bar relocation brackets, and front coil spring isolators included
• Bolt-in installation with no additional geometry correction components required
• Detailed instructions included
• Bilstein limited lifetime warranty

Fitment

Note: Fits 4-door JL models with 2.0L or 3.6L engine. Not compatible with 4Xe hybrid or Extreme Recon Package models.

Specifications

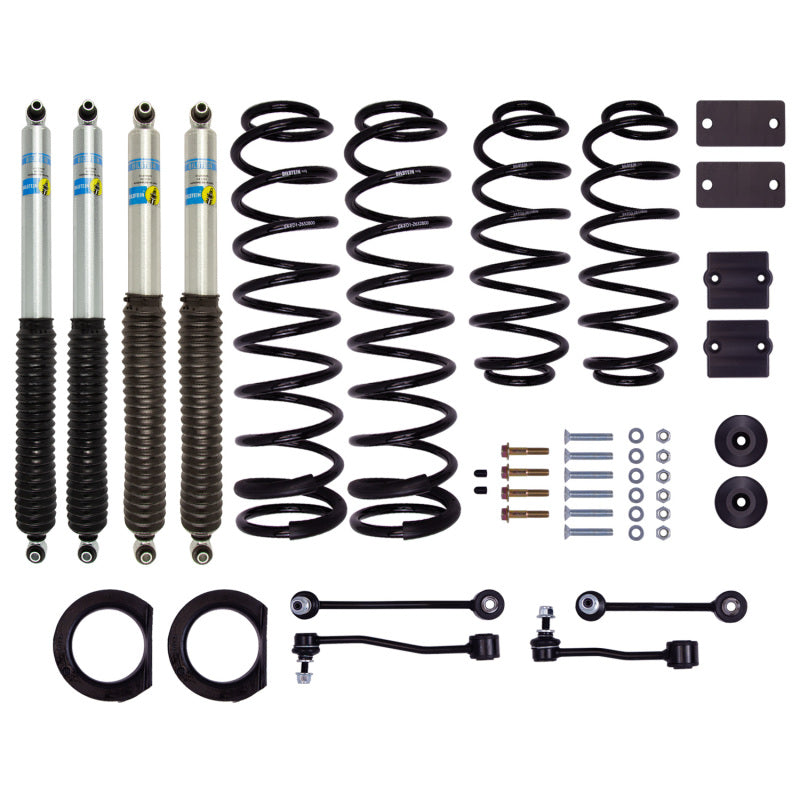

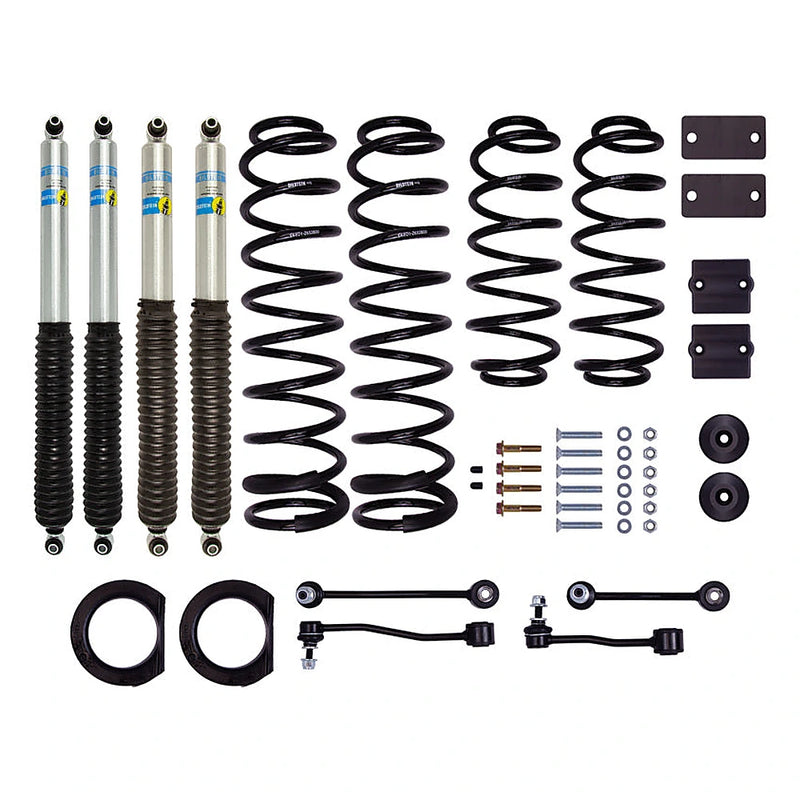

What's Included

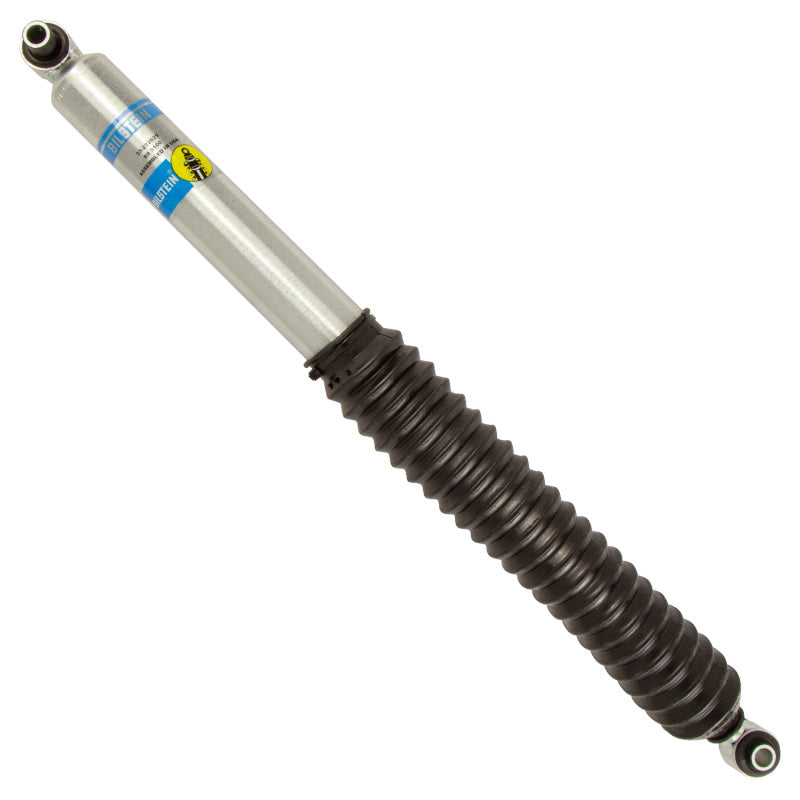

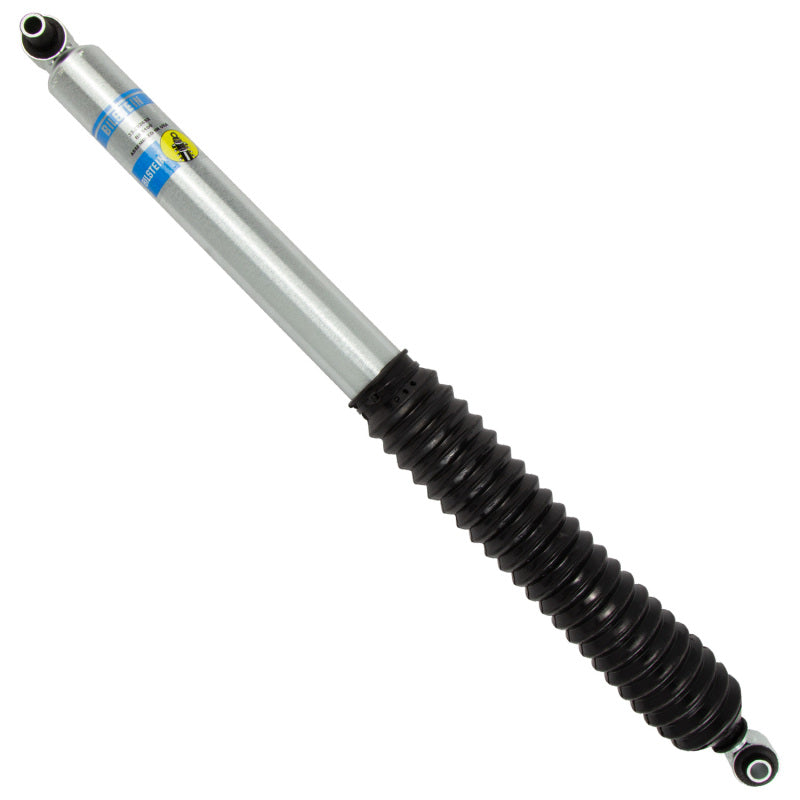

• 4x Bilstein B8 5100 monotube shock absorbers

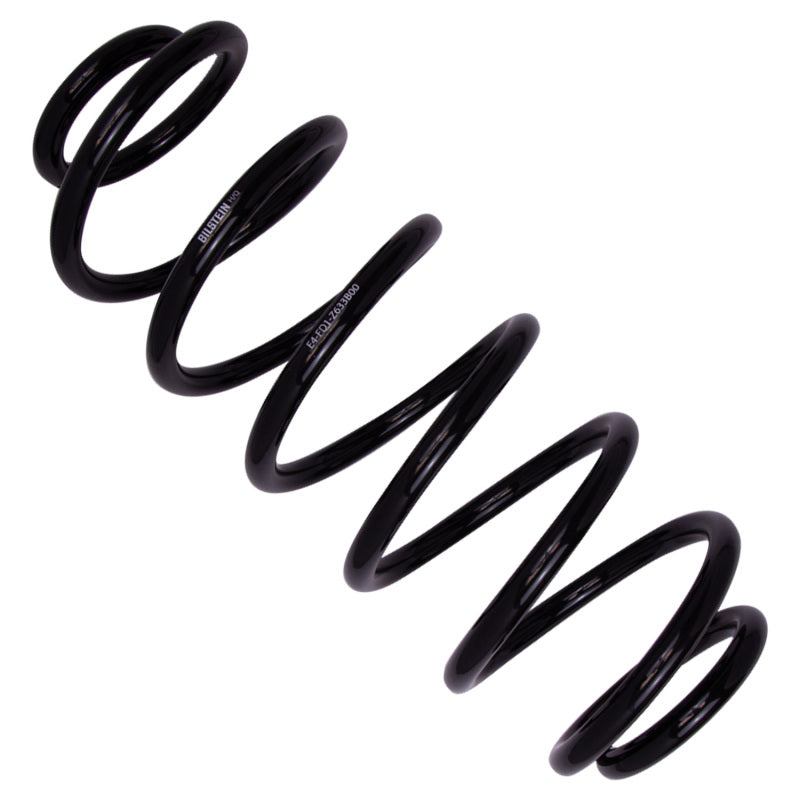

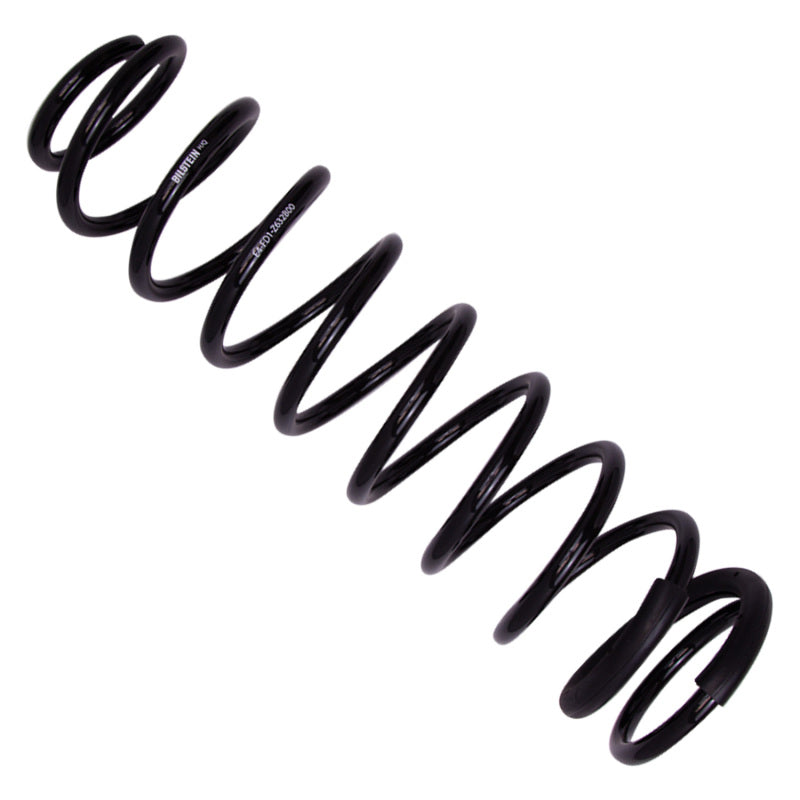

• 4x Long-travel cold wound coil springs

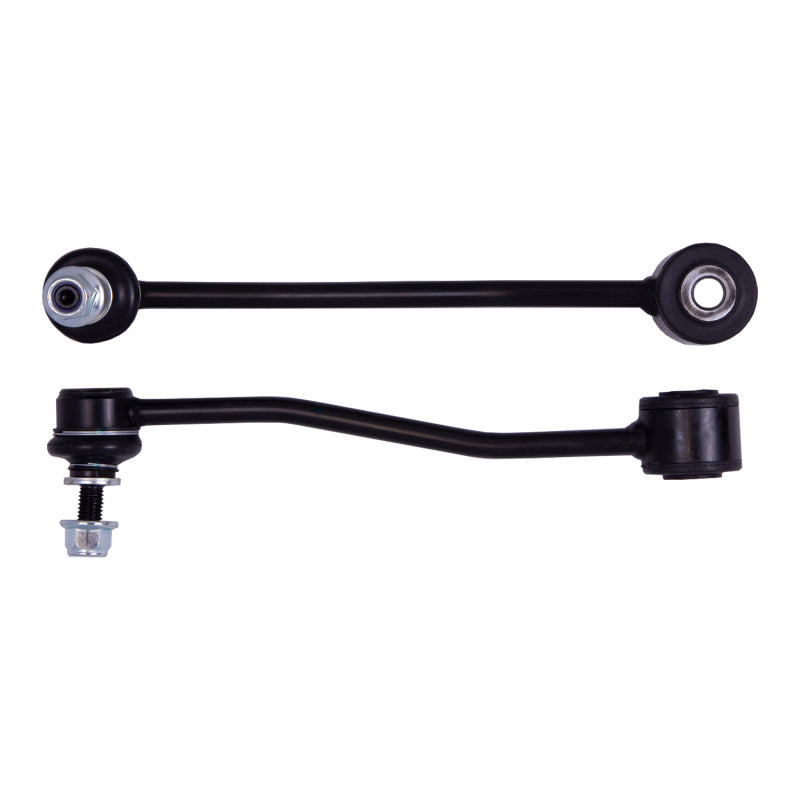

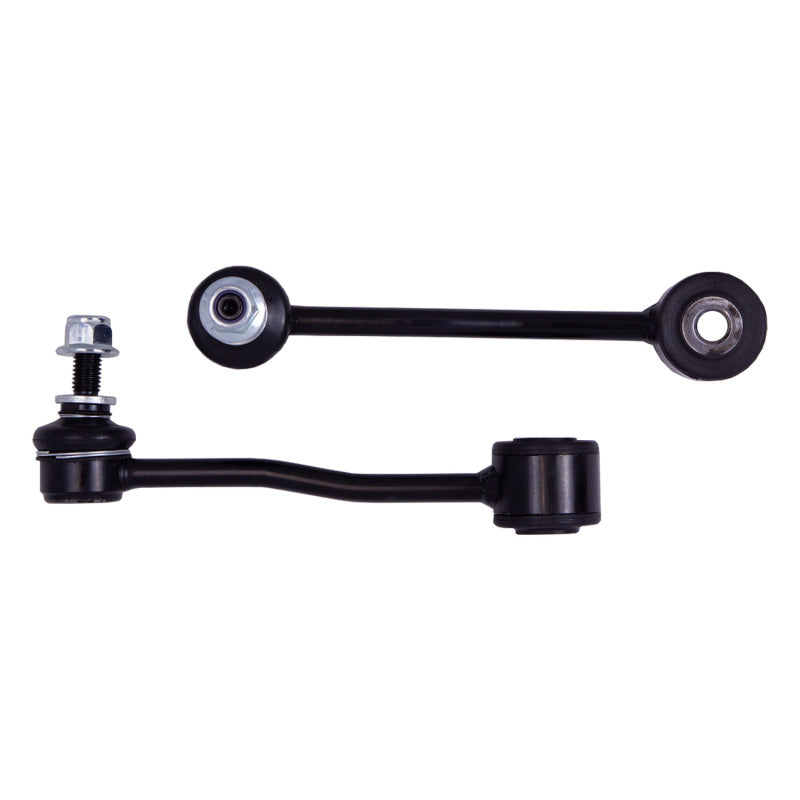

• Extended sway bar links (front and rear)

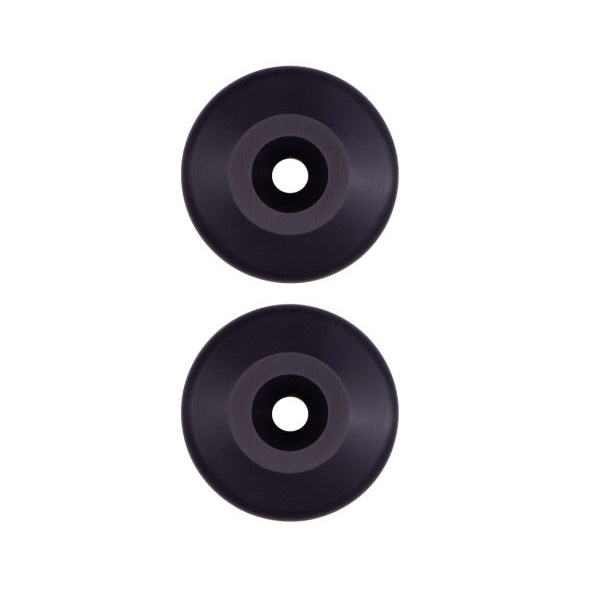

• Bump stop spacers

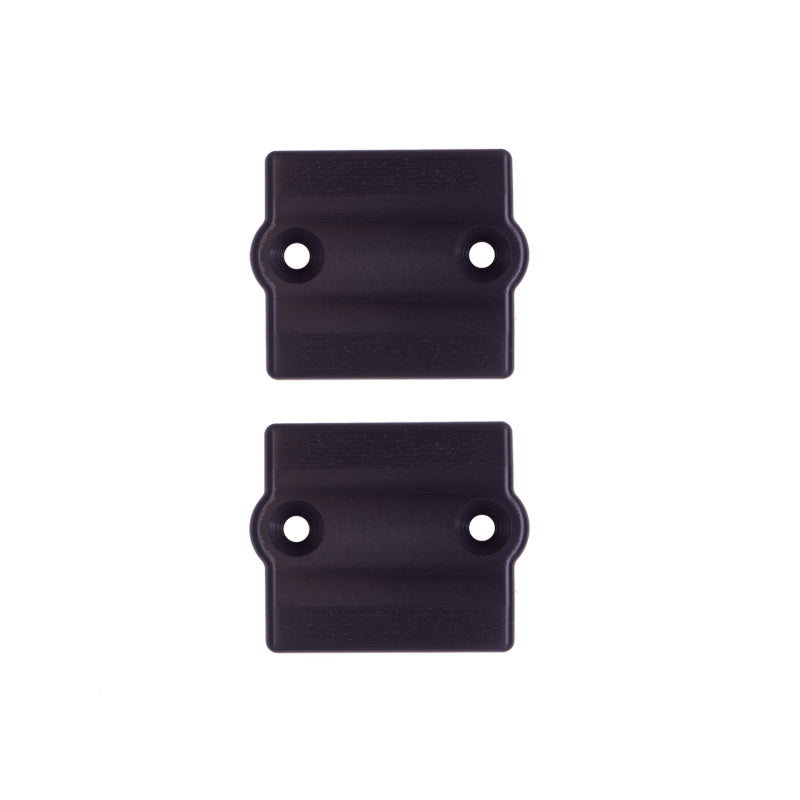

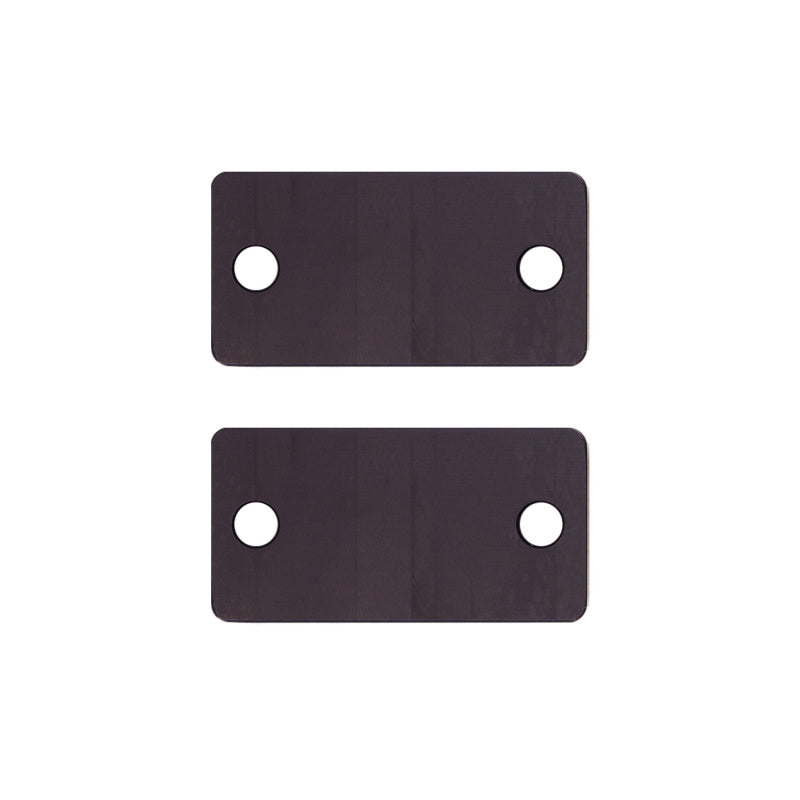

• Rear sway bar relocation brackets (Rubicon)

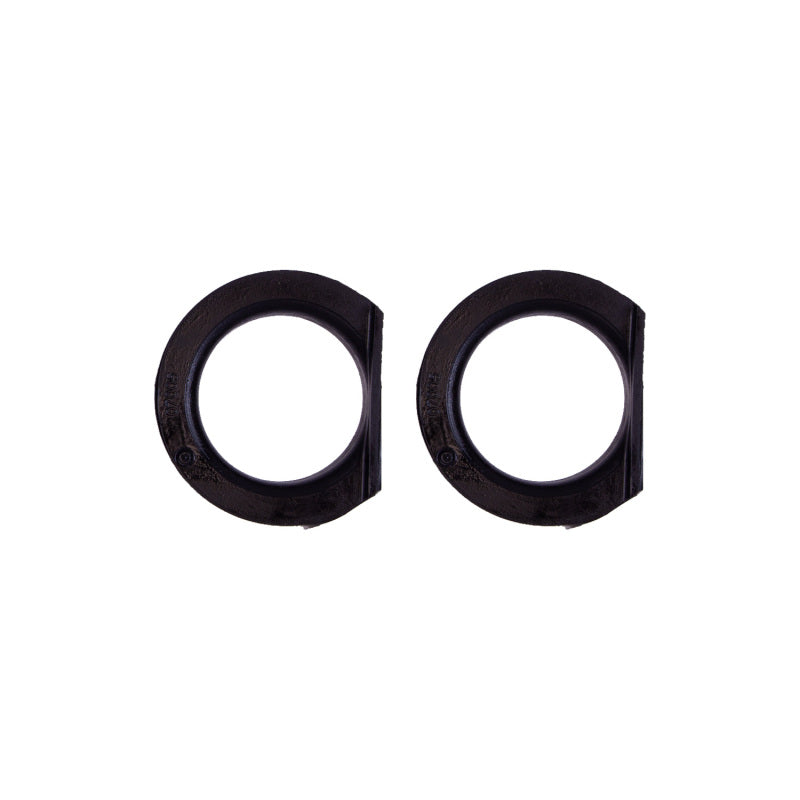

• Front coil spring isolators

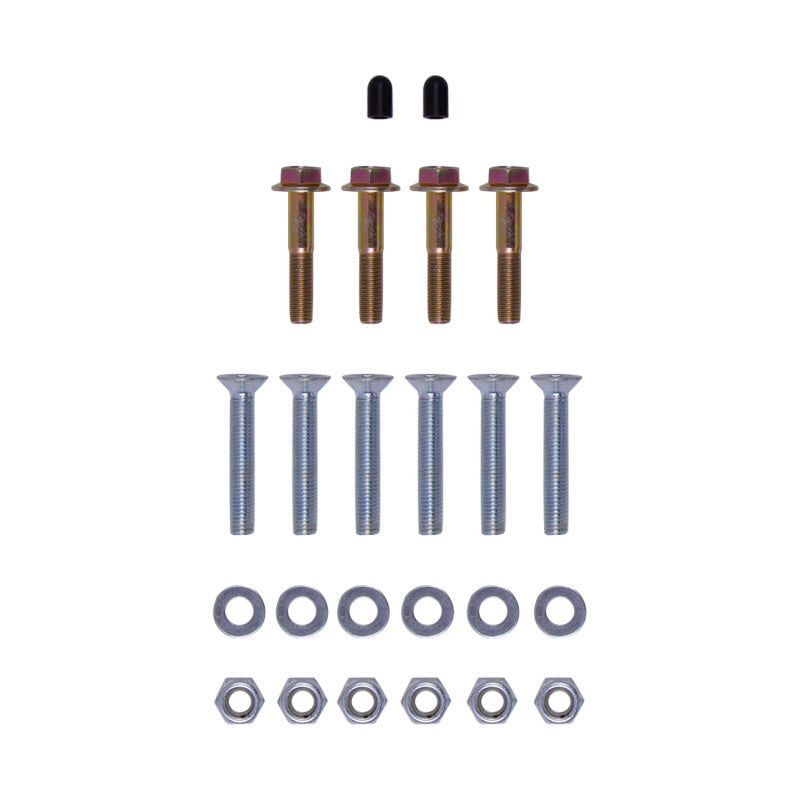

• All mounting hardware and fasteners
• Detailed installation instructions

Frequently Asked Questions

The 53-350510 includes four B8 5100 monotube shocks, four long-travel cold wound coil springs, extended sway bar links, bump stop spacers, rear sway bar relocation brackets, front coil spring isolators, all mounting hardware, and detailed installation instructions. It is a complete system requiring no additional geometry correction components.

No. The 53-350510 is not compatible with the Jeep Wrangler JL 4Xe hybrid powertrain variant. The 4Xe has a different suspension architecture due to the battery pack and hybrid drivetrain components. Bilstein offers separate lift kit configurations for 4Xe models. Verify compatibility for your specific build before ordering.

The 53-350510 provides 2.5 inches of lift on the 2024 Jeep Wrangler JL. This is achieved through longer-travel cold wound coil springs paired with the B8 5100 shocks, not through spacers or leveling blocks. The result is added ground clearance with improved suspension travel rather than a static height increase only.

Rubicon models with the 53-350510 installed can run 35-inch tires on stock Rubicon wheels. Non-Rubicon models with stock fenders are limited to 33-inch tires on aftermarket wheels with a maximum of 4.75 inches of backspacing. Fender modifications may allow larger tires on non-Rubicon models.

Yes. Any suspension lift on the Jeep Wrangler JL should be followed by a full front and rear alignment. While the 53-350510 does not require additional aftermarket geometry correction components, changing ride height affects caster and alignment angles. A proper alignment ensures even tire wear, correct handling, and preserves the life of the new components.

The 53-350510 is listed as compatible with front winch configurations. The kit's front spring rates and shock valving account for the added weight of a winch bumper setup. Always verify the total front end weight including winch, bumper, and any skid plates against Bilstein's load specifications if you are running an exceptionally heavy bumper system.

The B8 5100 is a monotube design, which uses a single tube with a gas-pressurized dividing piston to separate oil from nitrogen gas. This design resists fade during extended off-road use, responds more immediately to terrain changes, and dissipates heat more effectively than twin-tube shocks. For a Wrangler that sees regular trail use, the monotube design is the preferred choice for consistent performance over repeated cycles.

The 53-350510 is a bolt-in kit with detailed instructions and does not require cutting, welding, or custom fabrication. It can be installed with standard hand tools and a spring compressor. However, the job requires lifting the vehicle safely, compressing coil springs, and torquing components to specification. Most owners with intermediate mechanical experience and proper jack stands or a lift can complete the installation. A post-install alignment requires an alignment shop.

Installation Notes

1. Lift the vehicle safely on a two-post or four-post lift, or use heavy-duty jack stands on a level surface.
2. Remove the front and rear wheels and support the axles independently before removing factory shocks and springs.
3. Use a coil spring compressor to safely remove factory springs and install the new long-travel cold wound springs.
4. Install the four B8 5100 shock absorbers in place of the factory units and torque to factory specifications.
5. Install extended sway bar links, bump stop spacers, and front coil spring isolators per the included instructions.
6. Install rear sway bar relocation brackets on Rubicon models if applicable.
7. Torque all fasteners to the specifications listed in the included instructions.
8. Reinstall wheels and perform a full front and rear alignment before driving at speed or off-road.
