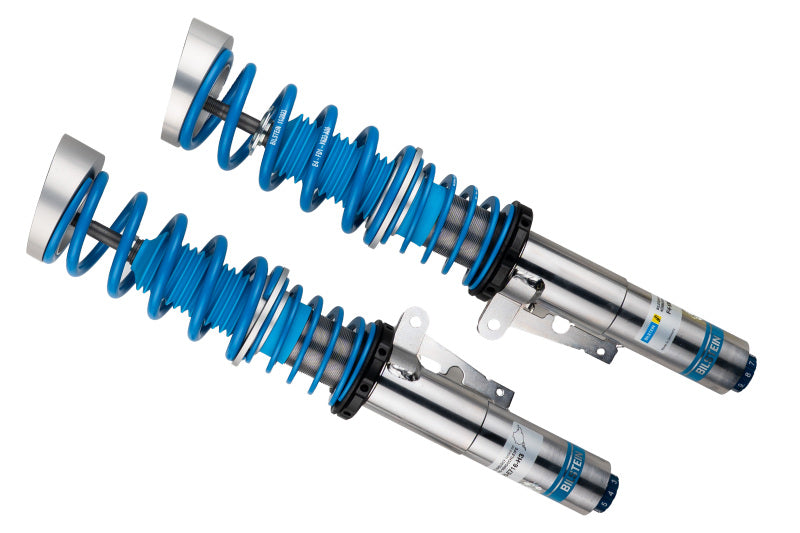

Bilstein BIL48-347747 coilover suspension kit, primary product view

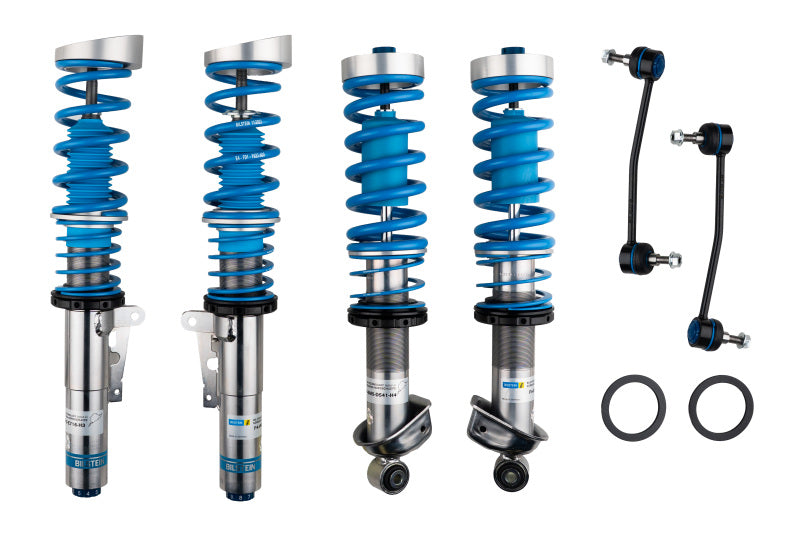

Bilstein BIL48-347747 coilover suspension kit, close-up product view

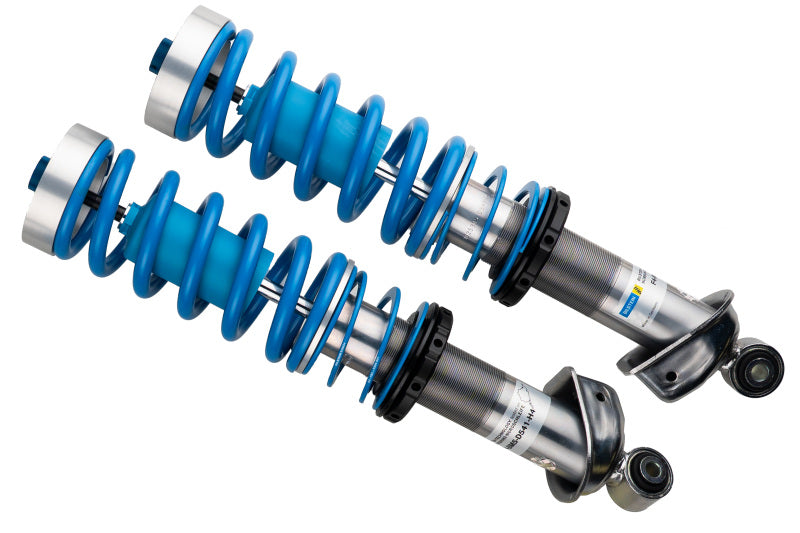

Bilstein BIL48-347747 coilover suspension kit, product view 3
Click to zoom in

Bilstein B16 PSS10 Coilover Kit for 2001-2005 Porsche 911 Turbo 996

Bilstein
BIL48-347747
651860946627
Coilovers
1 Units In Stock - Ships Next Business Day
$ 4,767.00 $ 3,120.00
$ 3,120.00

Adjustable B16 Control for the 996 Turbo

This Bilstein B16 PSS10 coilover suspension kit fits 2001-2005 Porsche 911 Turbo 996 Carrera 4 models. The 48-347747 combines monotube performance dampers with matched springs, ten-stage manual damping adjustment, and threaded ride-height adjustment.

Key Features

  • 48-347747 is a front and rear B16 PSS10 coilover suspension kit for the verified 996 Turbo Carrera 4 application
  • Monotube performance dampers use matched springs tuned for the application
  • Ten-stage manual adjustment changes rebound and compression with each click
  • Threaded bodies provide front and rear ride-height adjustment
  • Zinc-plated dampers and blue springs provide the documented finish combination
  • Front ride-height range is 25-35 mm and rear ride-height range is 15-20 mm

Fitment

Years Make Model Position Trim or Restriction
2001-2005 Porsche 911 Front and rear Turbo 996 Carrera 4

Specifications

Detail Value
Manufacturer Part Number 48-347747
Product Type B16 PSS10 coilover suspension kit
Position Front and rear
Internal Design Monotube
Damping Adjustment Ten-stage manual adjustment for rebound and compression
Front Ride Height 25-35 mm lowering range
Rear Ride Height 15-20 mm lowering range
Front Main Spring Rate 257 lb/in, linear
Rear Main Spring Rate 514 lb/in, linear
Front Tender Spring Rate 114 lb/in
Rear Tender Spring Rate 79 lb/in
Damper Finish Zinc plated
Spring Finish Blue
Country of Origin Germany

What's Included

  • Front and rear monotube performance dampers with matched springs, identified by 48-347747

About Bilstein

Bilstein develops suspension systems for OE replacement, performance, and motorsport use. The B16 line combines application-specific matched springs with adjustable dampers for drivers who need ride-height and damping control.

FAQ

What is the 48-347747?

It is a Bilstein B16 PSS10 front and rear coilover suspension kit for the listed Porsche 911 Turbo 996 Carrera 4 application.

Which Porsche model does this kit fit?

It fits 2001-2005 Porsche 911 Turbo 996 Carrera 4 models.

Does the kit include front and rear components?

Yes. The verified package scope includes front and rear monotube performance dampers with matched springs.

How many damping settings are available?

The dampers have ten manual adjustment stages for rebound and compression.

How much ride-height adjustment is documented?

The documented range is 25-35 mm at the front and 15-20 mm at the rear.

What is the damper construction?

The documented internal design is monotube.

What are the spring rates?

The documented main spring rates are 257 lb/in front and 514 lb/in rear. Tender spring rates are 114 lb/in front and 79 lb/in rear.

What should be checked before ordering?

Confirm the vehicle is a 996 Turbo Carrera 4 from the listed years and verify wheel, tire, clearance, and installation requirements for the chosen ride height.

Installation Instructions

  1. Confirm the vehicle matches the fitment table and the 48-347747 part identification before disassembly.
  2. Measure the current ride height and record wheel and alignment settings if they will be used as setup references.
  3. Secure the vehicle on approved stands and follow the Porsche service procedure to remove the original front and rear suspension components.
  4. Compare the kit components with the vehicle positions and inspect mounting points before installation.
  5. Install the front and rear coilover assemblies with matched springs in their specified locations.
  6. Set the threaded bodies evenly and make initial height adjustments within the documented ranges.
  7. Set the dampers to a known starting position using the ten-stage adjustment procedure.
  8. Torque all fasteners to Porsche's specified values, then perform an alignment and clearance inspection before driving.
