Restore Precise Front-End Control on the Ford Focus

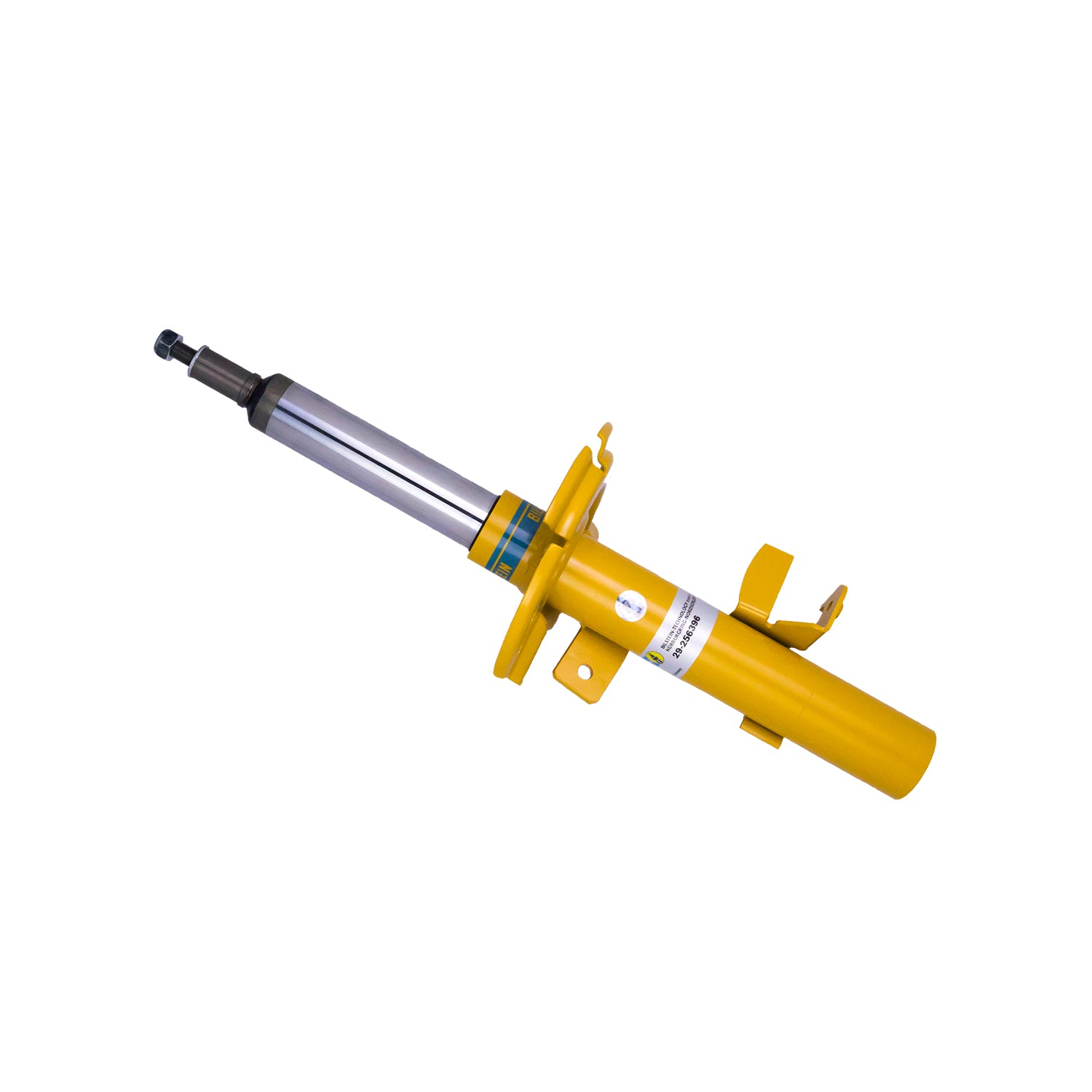

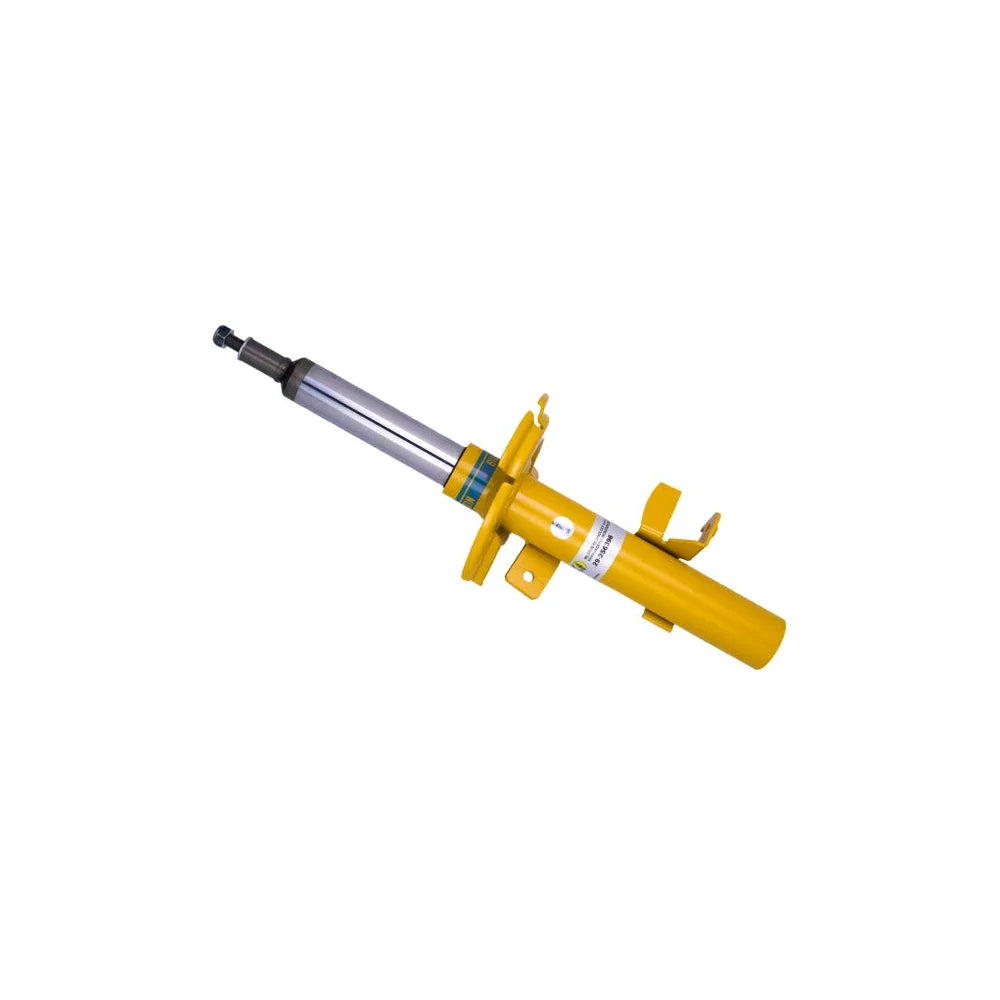

Bilstein 29-256396 is a B6 Performance front-right suspension strut for compatible 2014-2018 Ford Focus applications using the standard chassis configuration. Its gas-pressure monotube design is tuned for use with the original-equipment spring and pairs with the corresponding left-side strut.
Key Features
- Vehicle-specific B6 Performance valving for the Ford Focus
- Front-right suspension strut configuration
- High-pressure monotube design resists fade under repeated use
- Designed for use with the OE factory spring
- Top-pin upper mount and application-specific lower strut mount
- Bilstein 29-256396 pairs with left-side part 29-256389
- Use the exact 29-256396 configuration; related Bilstein part numbers can have different dimensions, sides, or fitment
Fitment
| Year | Make | Model | Application Notes |
|---|---|---|---|
| 2014-2018 | Ford | Focus | Front right; standard chassis; verify engine, body style, and production date |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | 29-256396 |
| Series | B6 Performance |
| Position | Front right |
| Design | Gas-pressure monotube suspension strut |
| Upper mount | Top pin |
| Lower mount | Application-specific strut mount |
| Paired part | 29-256389, front left |
| UPC | 651860786711 |
| Warranty | Bilstein limited lifetime warranty |
What's Included
- One front-right B6 Performance suspension strut
About Bilstein
Bilstein develops OE and aftermarket monotube suspension systems using application-specific testing, gas-pressure technology, and controlled manufacturing standards. 29-256396 is engineered around the application and dimensions listed above.
Related Parts
- No internal recommendation is linked because a compatible companion part must be verified for the exact vehicle, suspension option, side, and ride height before purchase.
FAQ
What is the 29-256396?It is the Bilstein B6 Performance shock absorbers described on this page, supplied in the verified configuration and quantity shown above.
Is this sold as a pair or individually?One front-right B6 Performance suspension strut. The included-components section controls the package quantity.
Is the damping adjustable?Use only the adjustment capability explicitly listed in the specifications.
Will this fit every trim of the listed vehicle?No. Confirm the year, model, suspension option, drivetrain, engine, ride height, and position notes before ordering.
Does installation require an alignment?An alignment is recommended whenever suspension geometry or ride height is changed, and after strut or spring service when specified by the vehicle manufacturer.
Can factory hardware be reused?Reuse hardware only when the Bilstein and vehicle service instructions allow it and the hardware passes inspection. Replace one-time-use or damaged fasteners.
What warranty applies?Bilstein limited lifetime warranty
What should be checked before installation?Compare the part number, side, mount style, suspension option, ride height, and included components with the vehicle and current Bilstein application data.
Installation Instructions
- Confirm the vehicle, suspension option, ride height, side, and mount configuration before installing Bilstein 29-256396.
- Support the vehicle safely and follow the factory service procedure for spring or damper removal.
- Inspect mounts, bushings, fasteners, and adjacent suspension components; replace worn or one-time-use hardware as required.
- Install the component in the specified orientation and route any reservoir hose away from heat, abrasion, and moving parts.
- Torque all fasteners at the suspension position specified by the vehicle and Bilstein instructions.
- Set the vehicle on the ground, verify clearance and ride height, road-test carefully, and perform an alignment when required.
