Restore Mazda CX-5 Front-Left Suspension Control

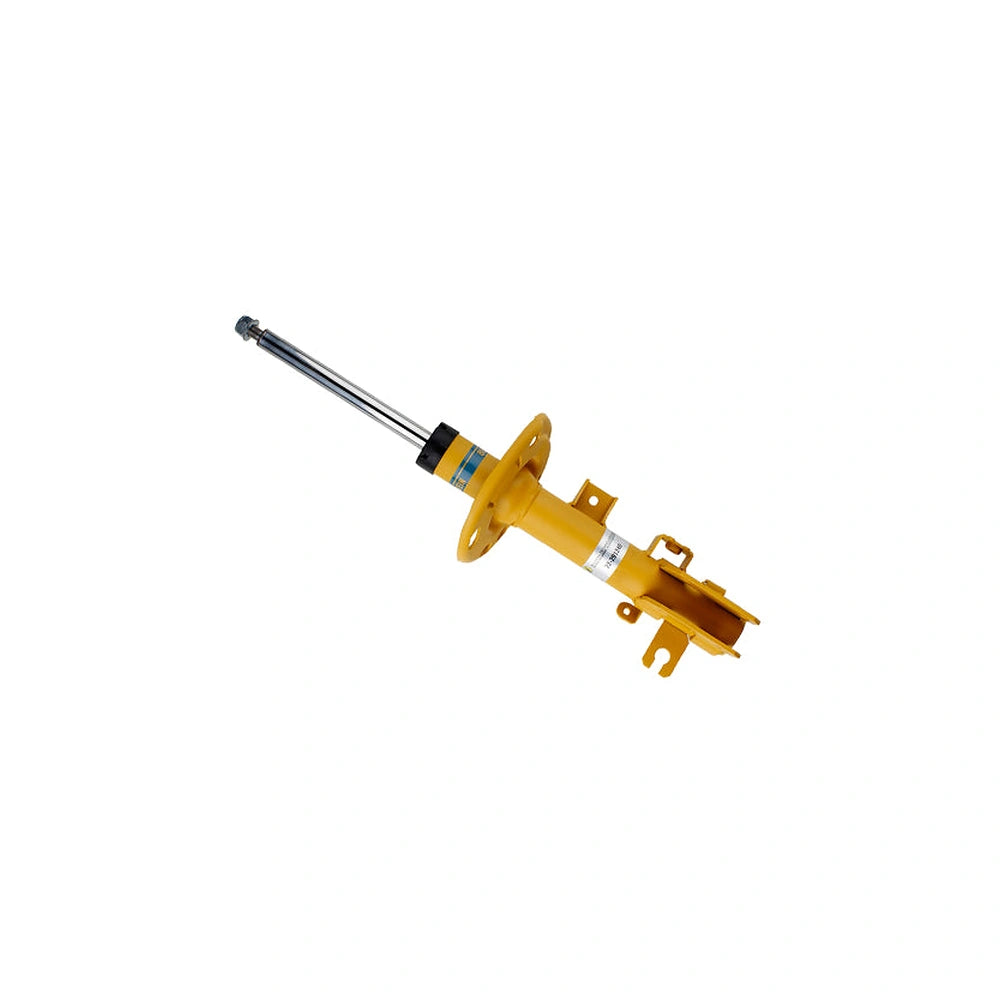

Bilstein 22-291240. A front left twintube damper from the B6 series for the exact applications and suspension configurations below.
Key Features
- B6 application-specific damping
- Twintube internal design
- Finish: Yellow Paint
- Reservoir: No
- Spring Seat Included: Yes - Fixed
- Boot Included: No
Fitment
| Years | Make | Model | Requirements |
|---|---|---|---|
| 2017 | Mazda | CX-5 | SubModel:Grand Select; Position:Front Left |
| 2017-2021 | Mazda | CX-5 | SubModel:Grand Touring; Position:Front Left |
| 2017-2021 | Mazda | CX-5 | SubModel:Sport; Position:Front Left |
| 2017-2021 | Mazda | CX-5 | SubModel:Touring; Position:Front Left |
| 2019-2021 | Mazda | CX-5 | SubModel:Grand Touring Reserve; Position:Front Left |
| 2019-2021 | Mazda | CX-5 | SubModel:Signature; Position:Front Left |
| 2021 | Mazda | CX-5 | SubModel:Carbon Edition; Position:Front Left |
| 2021 | Mazda | CX-5 | SubModel:Carbon Edition Turbo; Position:Front Left |
| 2022-2024 | Mazda | CX-5 | SubModel:2.5 S; Position:Front Left |
| 2022-2024 | Mazda | CX-5 | SubModel:2.5 S Carbon Edition; Position:Front Left |
| 2022-2024 | Mazda | CX-5 | SubModel:2.5 Turbo; Position:Front Left |
| 2022-2024 | Mazda | CX-5 | SubModel:2.5 Turbo Signature; Position:Front Left |
Select 22-291240 only when the vehicle and equipment requirements above match.
Specifications
| Detail | Value |
|---|---|
| Manufacturer | Bilstein |
| Manufacturer part number | 22-291240 |
| Collapsed Length (in) | 16.08 |
| Extended Length (in) | 23.62 |
| Collapsed Length (mm) | 408.5 |
| Extended Length (mm) | 600.0 |
| Lower Mount Type | Clevis |
| Upper Mount Type | Stem |
| Internal Design | Twintube |
| Finish | Yellow Paint |
| Reservoir | No |
| Boot Included | No |
| Spring Seat Included | Yes - Fixed |
| Adjustable Damping | Non-Adjustable |
| Country of Origin | RO |
| Quantity per Vehicle | 1 |
What's Included
The 22-291240 package includes:
- One front strut assembly
About Bilstein
Bilstein develops application-specific dampers, springs and suspension systems.
Related Parts
Related products are sold separately. Check each product’s application and equipment requirements.
FAQ
What is the 22-291240?A front left twintube damper from the B6 series for the exact applications and suspension configurations below.
Is this a pair or a single part?One front strut assembly.
What suspension restrictions apply?Review the suspension notes in every fitment row, including electronic suspension, load, ride height and engine restrictions where listed.
What is included?One front strut assembly.
What is the key specification?Collapsed Length (in): 16.08; Extended Length (in): 23.62.
How do I confirm the correct application?Match every requirement in the fitment table and the manufacturer’s exact-part record. A matching model name alone is insufficient.
Are related products included?No. Related items are separate purchases with their own fitment and equipment requirements.
Where can I verify the manufacturer information?Use the manufacturer or exact-part information link below and the instructions supplied with the product.
Installation Instructions
- Confirm 22-291240 against the exact manufacturer application record. Verify axle position, suspension equipment and every application restriction before removal.
- Have a suspension technician install the damper using the manufacturer instructions; use proper spring-compression equipment when transferring strut components.
- Use specified torque values, check routing and clearance, and align the vehicle after front strut service.
