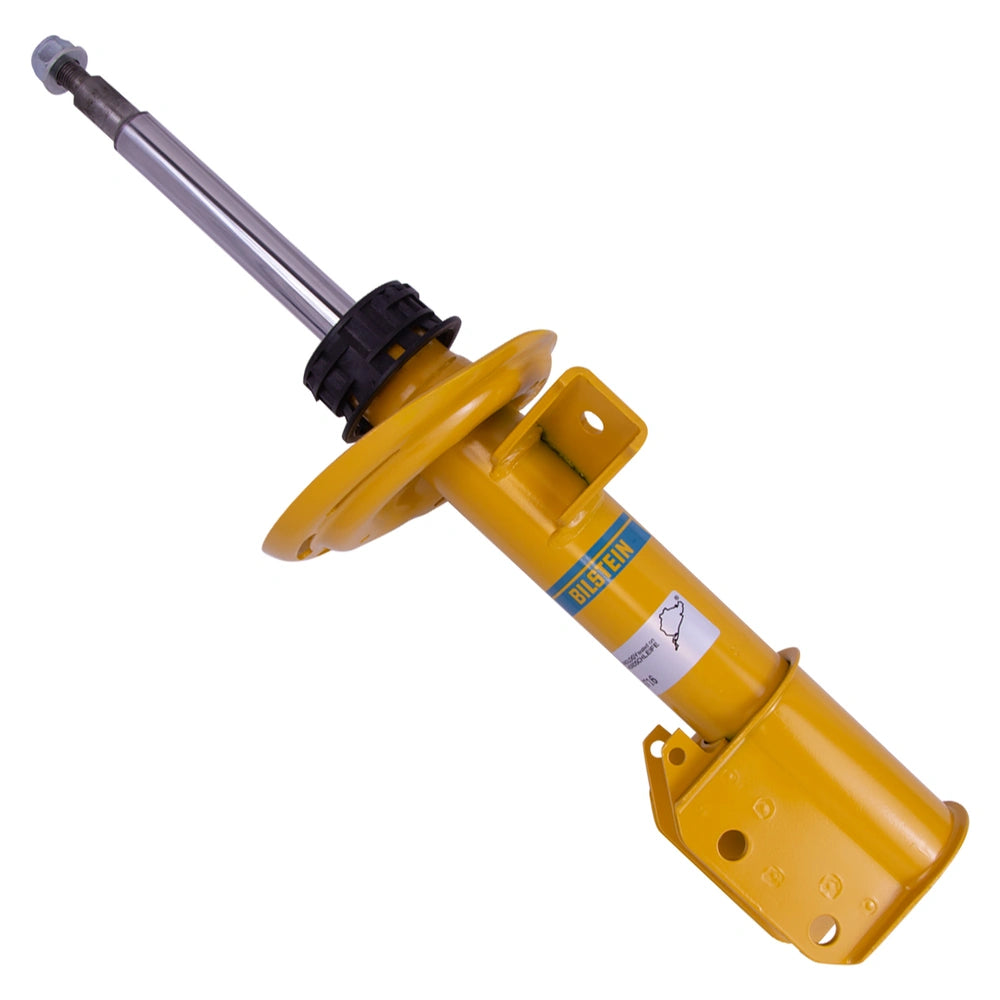

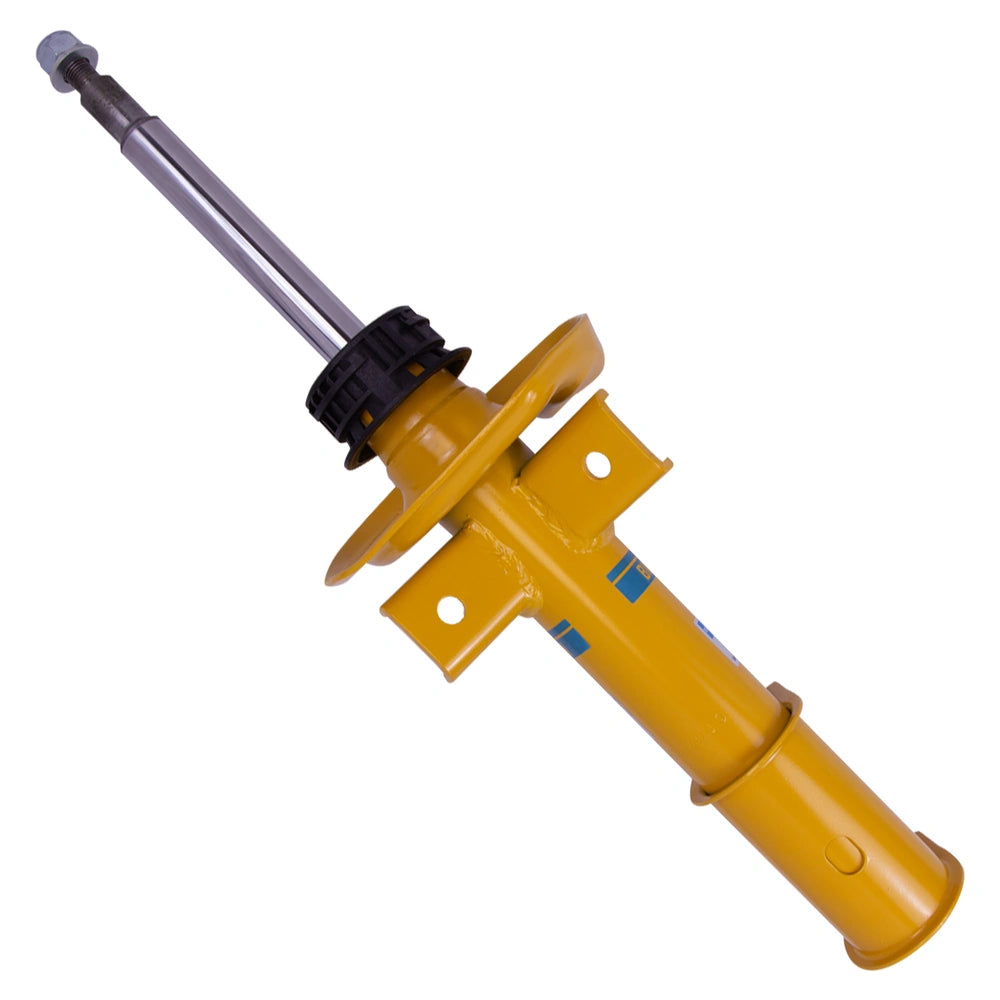

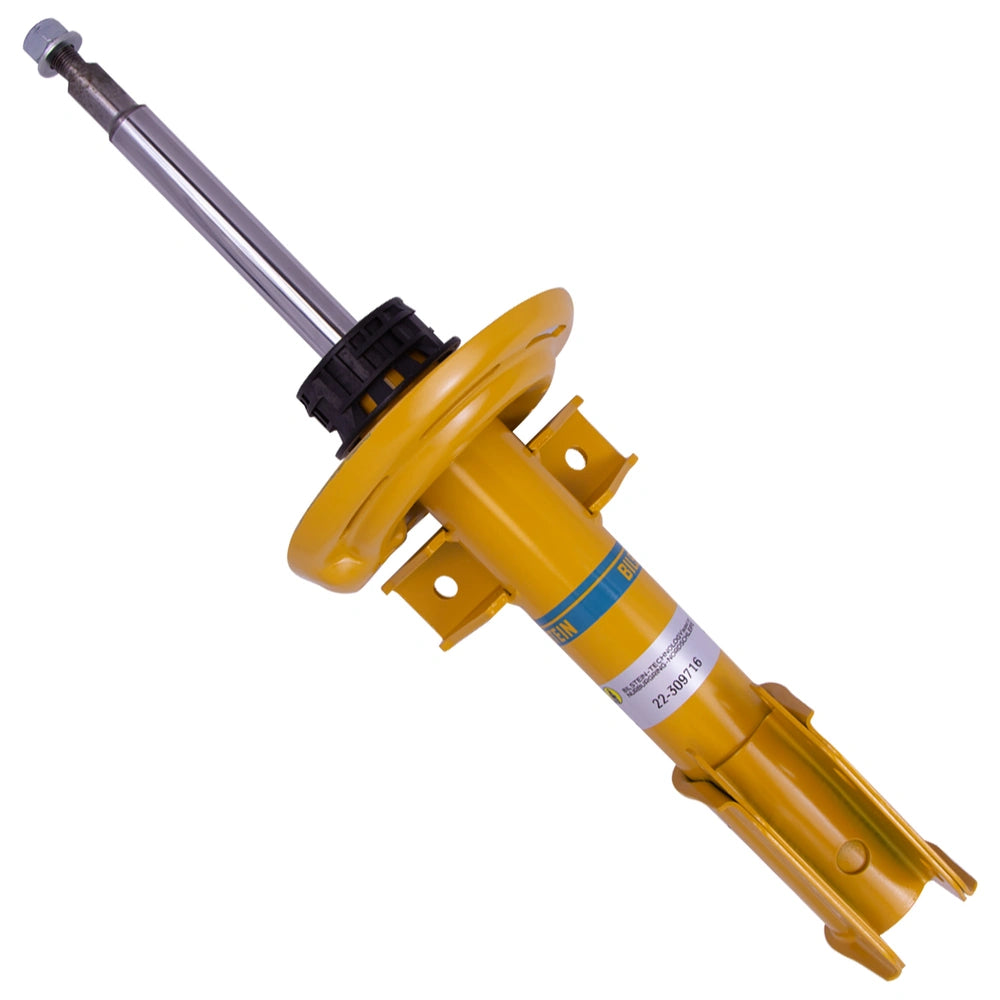

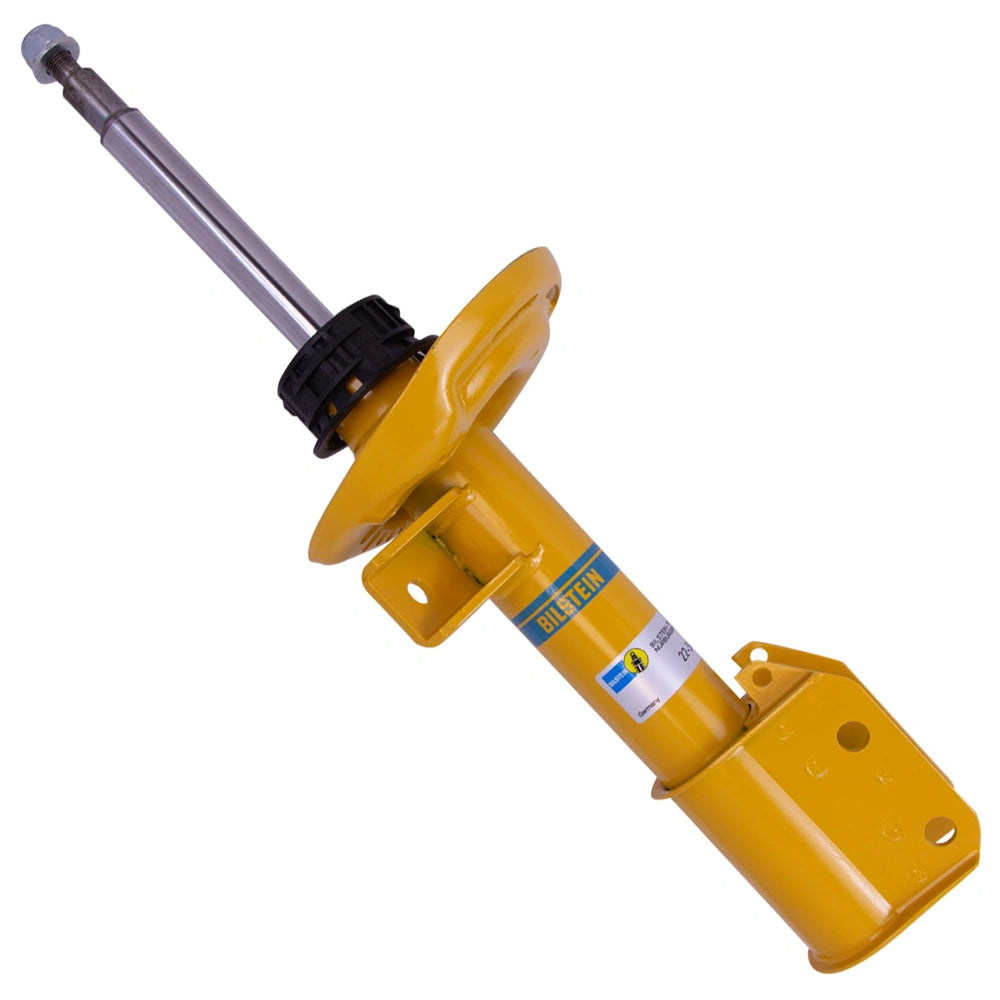

Front Strut Control for Mercedes-Benz GLK250 / GLK350
Bilstein 22-309716 is a B6 Performance front strut for upgrading damping while retaining compatible factory springs. Match the exact applications and suspension notes below before ordering this individual damper.
Key Features
- Twintube construction for upgrading damping while retaining compatible factory springs.
- Yellow-painted body with stem upper mount and bracket lower mount.
- Application-specific damping for the listed vehicle configurations.
- 22-309716 is sold as one individual front strut.
Fitment
Designed for use with the compatible factory spring. The verified US applications below do not include GLK280.
| Years | Make | Model | Submodel | Suspension / mounting notes |
|---|---|---|---|---|
| 2013-2015 | Mercedes-Benz | GLK250 | Bluetec 4Matic | Confirm factory suspension configuration |
| 2010-2015 | Mercedes-Benz | GLK350 | 4Matic | Confirm factory suspension configuration |
| 2010-2015 | Mercedes-Benz | GLK350 | Base | Confirm factory suspension configuration |
Use the verified application rows for 22-309716; a matching model name alone does not establish compatibility.
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | 22-309716 |
| Series | B6 Performance |
| Position | front strut |
| Internal design | Twintube |
| Extended length | 540.5 mm / 21.28 in |
| Collapsed length | 382.0 mm / 15.04 in |
| Upper mount | Stem |
| Lower mount | Bracket |
| Finish | Yellow Paint |
| Boot included | No |
| Spring seat included | Yes - Fixed |
| Sale quantity | One individual front strut |
What's Included
- One Bilstein 22-309716 front strut.
- Fixed spring seat as part of the strut.
A coil spring and complete assembled top-mount/spring unit are not supplied. A qualified installer must inspect the original mounting and protective components and replace worn service parts as required.
About Bilstein
Bilstein develops dampers for specific vehicles and suspension configurations. The B6 Performance range focuses on upgrading damping while retaining compatible factory springs. This product carries the manufacturer's limited lifetime warranty, subject to its terms.
Related Parts
- H&R sport springs for Mercedes-Benz GLK350 4MATIC — A separate lowering-spring option for applicable GLK350 vehicles. This B6 strut is specified for factory springs; a combined installation has not been verified.
FAQ
What is the 22-309716?It is an individual Bilstein B6 Performance front strut for the exact vehicle and suspension applications listed above.
Is this a pair or a complete suspension kit?No. The listing supplies one individual front strut; other suspension parts are separate.
Which suspension configuration does it require?Designed for use with the compatible factory spring. The verified US applications below do not include GLK280.
Is a new coil spring included?No. Select or retain the correct spring for the verified vehicle and damper application.
Is a protective boot included?No. The manufacturer lists no included boot; the installer must inspect the applicable original protective components.
What is the internal design?Bilstein specifies a twintube design with application-specific damping.
Will it fit every trim of the vehicles in the title?No. Match the exact year, model, submodel and suspension notes in the fitment table before ordering.
Who should install this part?A qualified suspension specialist with the appropriate lifting and service tools should perform installation. Spring transfer requires suitable spring-compression equipment.
Installation Instructions
- Verify the exact application and suspension restrictions, then review the official Bilstein installation instructions.
- Have a qualified suspension specialist support the vehicle and remove the original front strut using the vehicle service procedure.
- Transfer only the correct serviceable spring and mounting components using suitable spring-compression equipment. Inspect mounts, bump stops and protective parts before assembly.
- Tighten fasteners according to the vehicle and Bilstein service instructions, then check clearances, alignment where applicable and suspension operation.
