BLOX Racing Tuner Series HSL (High Speed Lift) Camshafts for B-series DOHC VTEC

High Speed Lift Performance Built on OEM-Grade Cores for the B-Series DOHC VTEC Platform

The BLOX Racing BXCM-10104 Tuner Series HSL (High Speed Lift) camshafts are engineered to extract meaningful power gains from B-series DOHC VTEC engines found in the Acura Integra GS-R, Integra Type R, Honda Civic Si, and Honda Del Sol VTEC. Each BXCM-10104 camshaft is manufactured on an OEM-spec chill-cast core, the same core process used by Honda for production camshafts, which provides the hardness and consistency needed for long-term durability under high-RPM use. The HSL grind delivers 255 degrees of intake duration at 0.496 inches of peak lift and 256 degrees of exhaust duration at 0.494 inches of lift, a profile designed to open valves aggressively and quickly for strong mid-to-top-end output in naturally aspirated builds. Upgraded valvetrain components including springs and retainers are required for use with the BXCM-10104.

Key Features

• BLOX Racing BXCM-10104 Tuner Series HSL direct application for B-series DOHC VTEC
• Manufactured on OEM-spec chill-cast camshaft cores for consistent hardness and durability
• Intake duration: 255 degrees at 0.496 inches of peak lift
• Exhaust duration: 256 degrees at 0.494 inches of peak lift
• High Speed Lift profile ideal for mild to highly modified naturally aspirated street builds
• Compatible with B16A2, B16A3, B16B, B18C1, and B18C5 B-series DOHC VTEC engines
• Upgraded valve springs and retainers required prior to installation
• Designed for use with cam gears for further tuning and power optimization

Fitment

Specifications

What's Included

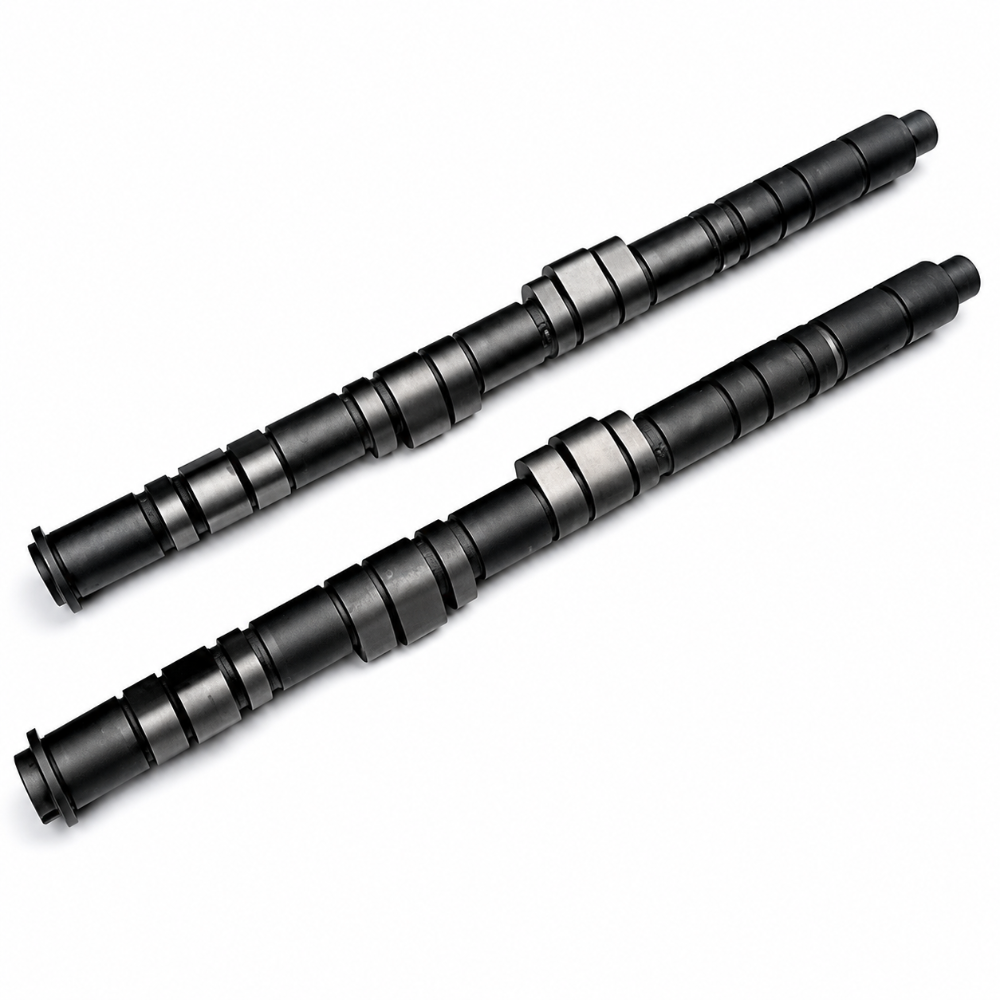

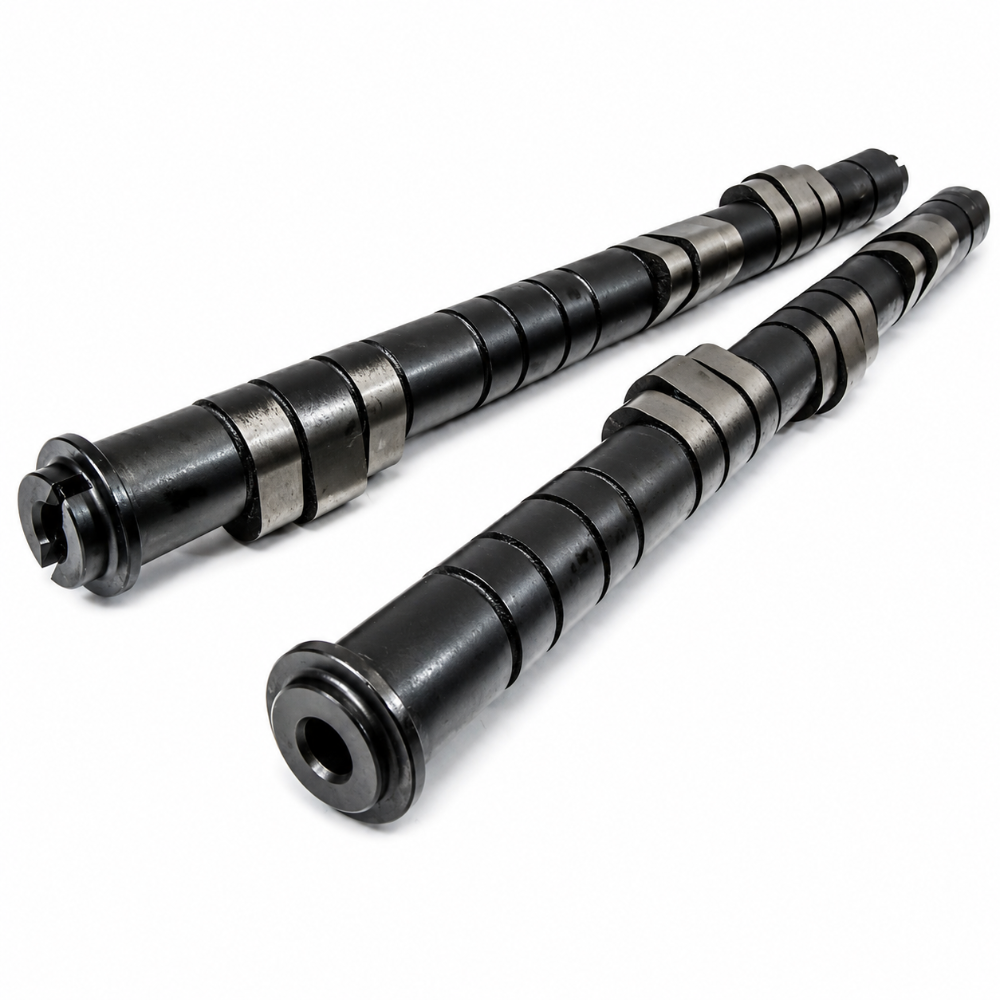

• 1 x BXCM-10104 intake camshaft
• 1 x BXCM-10104 exhaust camshaft

Note: Upgraded valve springs, retainers, and related valvetrain components are NOT included and are required for safe installation. A professional camshaft installation and engine tune is highly recommended.

Frequently Asked Questions

The BXCM-10104 is designed for Honda and Acura vehicles equipped with B-series DOHC VTEC engines. USDM fitments include the 1994-2001 Acura Integra GS-R (B18C1), 1997-2001 Acura Integra Type R (B18C5), 1999-2000 Honda Civic Si (B16A2), and 1994-1995 Honda Del Sol VTEC (B16A3). Always confirm your engine code before purchasing.

Yes. BLOX Racing explicitly states that upgraded valvetrain components are required with the BXCM-10104 HSL camshafts. The higher lift and aggressive profile exceed what stock valve springs are rated to control safely at high RPM. Running these cams on stock springs risks valve float, which can cause engine damage. Source compatible aftermarket valve springs designed for your specific B-series head before installing.

The BXCM-10104 intake camshaft offers 255 degrees of duration with 0.496 inches (12.6mm) of peak lift. The exhaust camshaft features 256 degrees of duration with 0.494 inches (12.6mm) of peak lift. These specs were confirmed and dynoed in DSPORT Magazine Issue 203, showing gains of approximately 15 horsepower at the wheels over a stock B17A on a tested build.

The HSL profile is primarily optimized for naturally aspirated builds where high lift and shorter duration produce strong top-end response. For turbocharged applications, BLOX Racing offers higher duration options like the Type-B or Type-C grind which provide more overlap and work better with positive manifold pressure. The BXCM-10104 can be used in mild turbo builds but it is not the ideal profile for high-boost applications.

Yes. BLOX Racing and other manufacturers produce adjustable cam gears for the B-series DOHC VTEC head. Using adjustable gears with the BXCM-10104 allows you to fine-tune intake and exhaust cam timing on a dyno to extract more power and improve the RPM range where peak output occurs. This is strongly recommended for modified builds to fully realize the potential of these camshafts.

The BXCM-10104 HSL features 255 to 256 degrees of duration with 0.494 to 0.496 inches of lift, while the Type-B grind (BXCM-10102) uses 266 degrees of duration with slightly lower exhaust lift at 0.472 inches. The HSL opens valves quickly with shorter duration, making it well suited for smaller B-series displacements and high-revving naturally aspirated builds. The Type-B provides more duration and better suits larger displacement builds or applications needing more low-end torque.

A professional engine tune using a standalone ECU or piggyback management system is highly recommended after installing the BXCM-10104. The changed valve timing events will shift the engine's power band compared to stock. Without a proper tune, the engine may not idle cleanly, may run rich or lean at certain RPM ranges, and will not produce optimal power or reliability. Honda B-series engines respond well to standalone management such as Hondata S300 or similar systems.

BLOX Racing provides a fifteen-month limited warranty against defects in materials and workmanship under normal use from the date of retail purchase. The warranty does not cover damage caused by improper installation, misuse, or abuse. Any warranty claims require a returned merchandise authorization number and the original proof of purchase. Contact BLOX Racing directly at bloxracing.com for warranty claim procedures.

Installation Instructions

1. Disconnect the negative battery terminal before beginning any engine work.
2. Remove the valve cover and related components to access the cam sprockets and camshafts.
3. Set the engine to top dead center (TDC) on the compression stroke using timing marks before removing the OEM camshafts.
4. Remove the cam chain tensioner carefully and relieve tension before loosening cam sprocket bolts.
5. Remove the camshaft bearing cap bolts in a gradual, alternating sequence to avoid warping the head.
6. Lift the factory camshafts out and clean all mating surfaces thoroughly.
7. Install upgraded valve springs and retainers per the spring manufacturer's instructions before proceeding.
8. Lubricate the BXCM-10104 camshaft lobes and bearing journals with fresh engine oil or assembly lube.
9. Lower the new camshafts into position and torque bearing caps to factory specification in the correct sequence.
10. Reinstall or install adjustable cam gears and set to factory baseline timing as a starting point.
11. Reinstall the cam chain tensioner, verify timing marks, and double-check all torque values.
12. Reinstall the valve cover, reconnect all sensors, and start the engine to verify operation before dyno tuning.
