SKU: 179356 | UPC: 840232704372

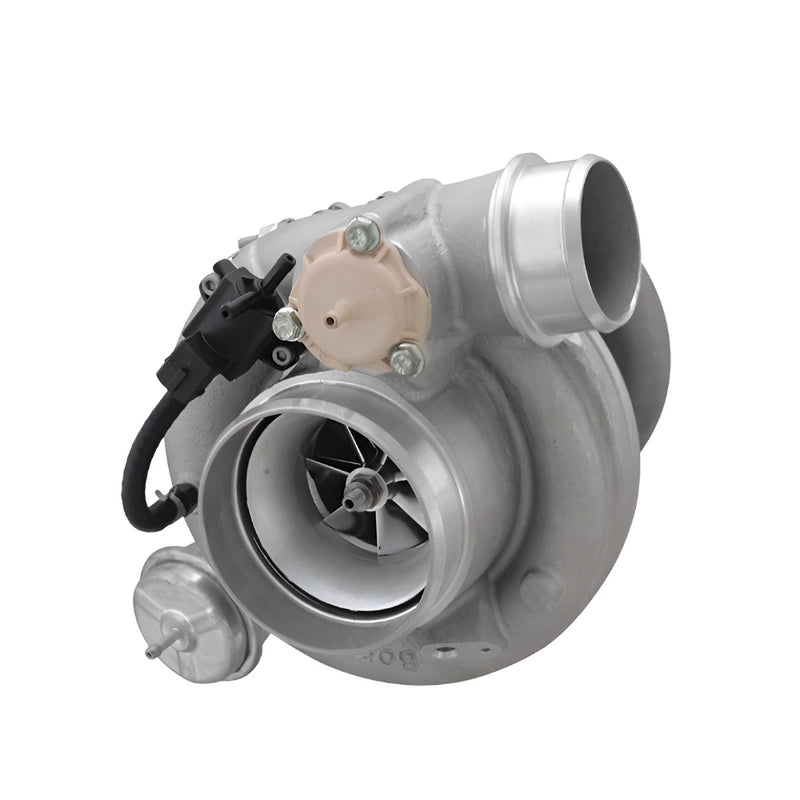

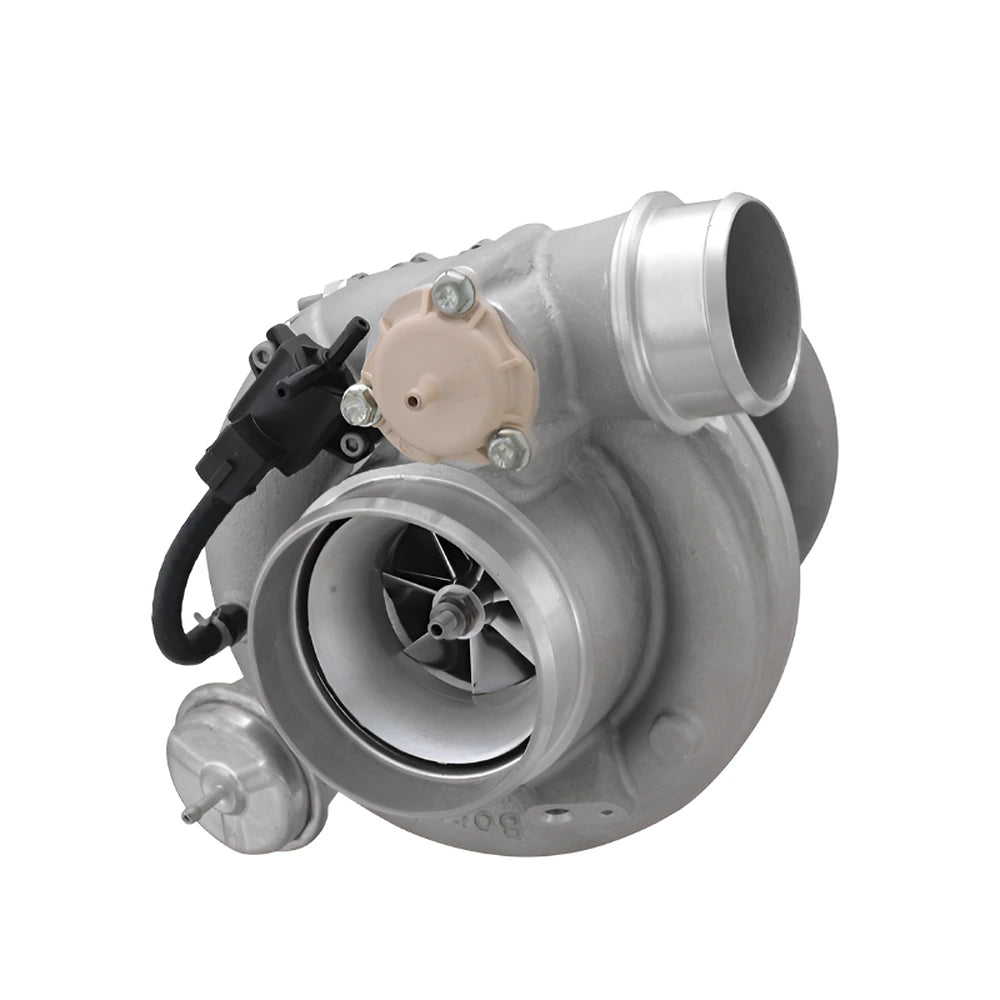

BorgWarner Super Core EFR B2 9180 Turbo Assembly
The BorgWarner Super Core EFR B2 9180 assembles the center housing rotating assembly with compressor and turbine wheels for high-output turbocharger builds. This super core fits B2 frame turbine and compressor housings in T3 or T4 configurations for custom applications in drag racing and motorsports. It supports airflow for 900-1200+ horsepower with fast spool and high efficiency across the powerband.
Key Features
- Compressor Wheel: Forged milled 69.6mm inducer and 91mm exducer design with 80% map width and extended Gamma 1.98 for massive airflow and surge resistance
- Turbine Wheel: Inconel Gamma-T 80mm inducer and 73.5mm exducer with 84% trim for quick response and endurance under extreme boost
- Dual Ball Bearing: Ceramic hybrid cartridge provides low friction, high RPM capability over 200000 and long service life
- Cooling System: Integrated water and oil ports maintain temperatures for reliability in sustained high-power operation
- Power Rating: Handles 900-1200+ HP in single turbo setups with proven performance in professional racing
Product Notes
- Super core requires separate purchase of B2 frame compressor and turbine housings
- Special order item. processing time may apply before shipment
- Standard ground shipping. oversized packaging used for protection
Installation Notes
- Professional installation recommended.
- Match with B2 frame T3 .85/.96 or T4 .85/1.05 turbine housings and compressor housings
- Oil feed line M12x1.5 and water ports M14x1.5. restrictors may be required based on engine setup
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | - | Custom Turbo Builds | EFR B2 Frame 9180 Series |
| 1980-2024 | Universal | Performance Vehicles | High HP Drag/Race Applications |
Why Choose BorgWarner?
- Leaders in OEM and aftermarket turbochargers for automotive and racing
- Components tested to withstand extreme conditions in professional competition
- Precision manufacturing ensures balance and flow for consistent power delivery
Frequently Asked Questions
-
Q: What housings are compatible with this super core?
A: B2 frame compressor housings in 50mm or 64mm inlet sizes and T3 or T4 turbine housings with .85 to 1.05 A/R options -
Q: What materials are used in construction?
A: Forged milled aluminum compressor wheels, Inconel turbine wheels and investment cast center housing with nickel plating -
Q: What is the warranty coverage?
A: BorgWarner offers a limited warranty against defects in materials and workmanship. register product for full terms
Shipping & Handling
- Method: Standard ground shipping
- Availability: In stock - ships same or next business day
- Packaging: Securely boxed 14in x 14in x 14in
- Weight: 19.4 lbs
