BorgWarner Turbine Housing S400SX T6 A/R 1.45 (96mm) - Black Ops Auto Works
Click to zoom in

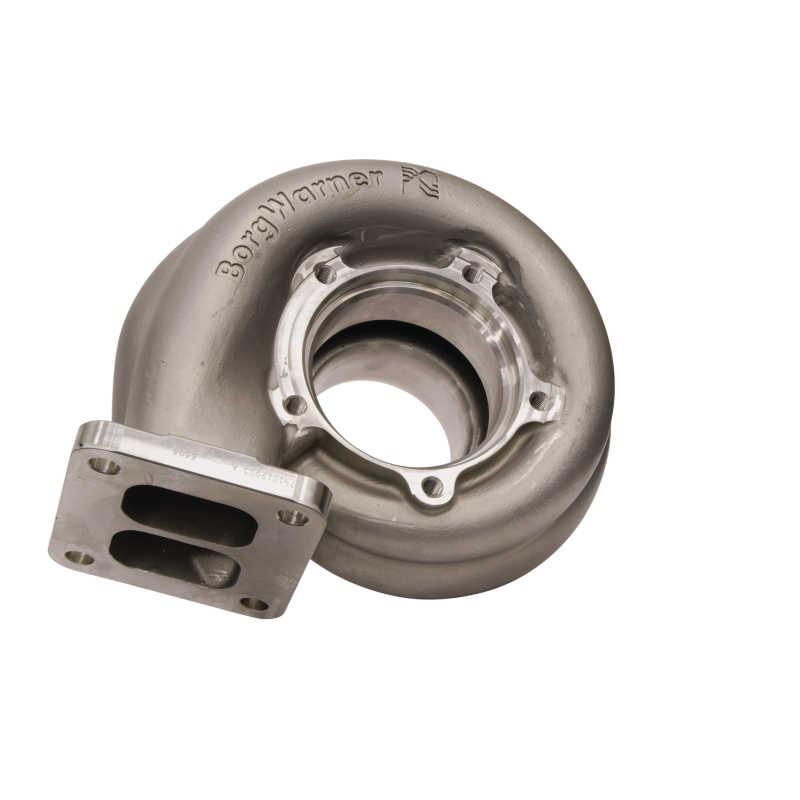

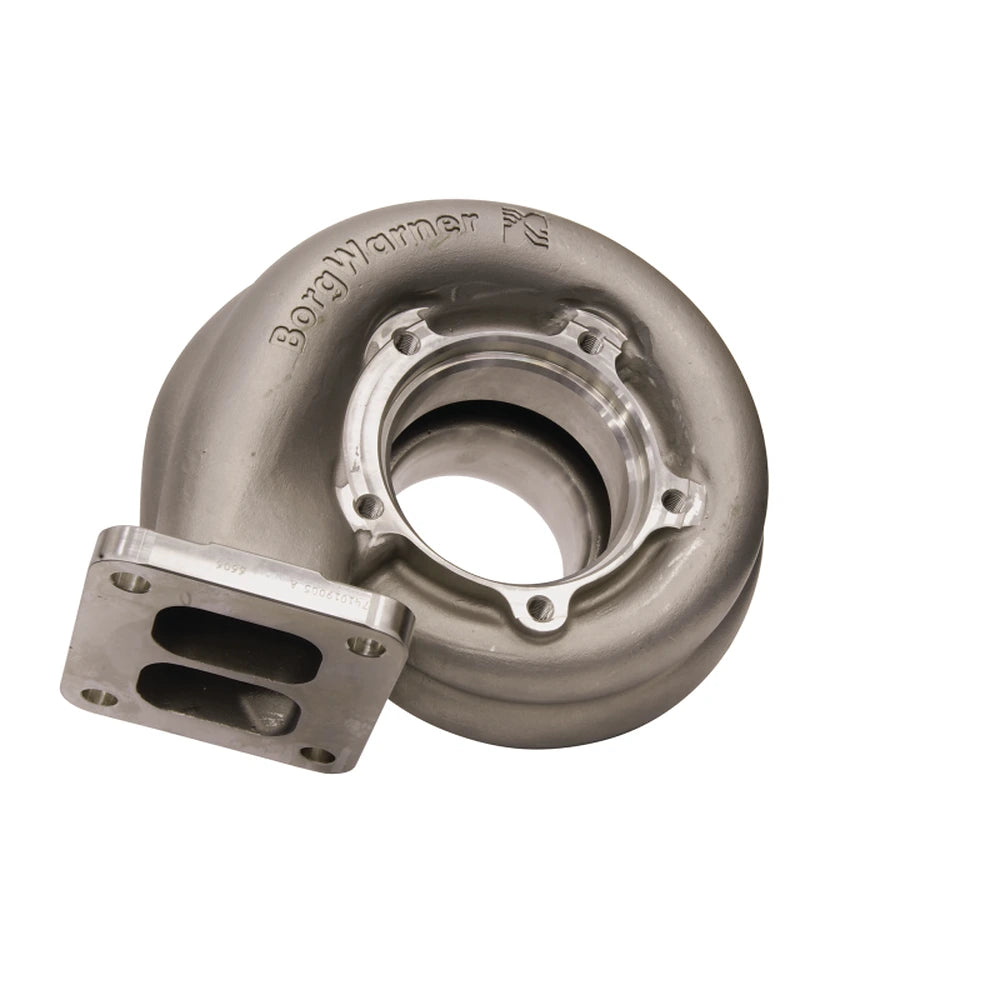

BorgWarner Turbine Housing S400SX T6 A/R 1.45 (96mm)

BorgWarner
BWA14961016101
840232707212
Turbine Housings
1 Units In Stock - Ships Next Business Day
$ 587.74 $ 470.19
$ 470.19

SKU: 14961016101 | UPC: 840232707212

BorgWarner Turbine Housing S400SX T6 A/R 1.45 (96mm) 2007.5-2018 Ram 6.7L Cummins

Boost your Ram Cummins 6.7L with this BorgWarner S400SX turbine housing featuring T6 divided inlet A/R 1.45 and 96mm turbine. It pairs with S400SX CHRA for trucks needing 800-1200 HP. Expect responsive throttle and strong exhaust flow in diesel performance setups.

Key Features

  • T6 Divided Inlet: 4-bolt flange pulls exhaust efficiently for quicker turbo response in high-flow systems
  • A/R 1.45 Ratio: Balances low-end spool with high-RPM power ideal for street and track Cummins builds
  • 96mm Turbine Exducer: Handles massive airflow up to 1200 HP without choking under boost
  • Ni-Resist Casting: Resists heat over 1800°F and cracking for long-term durability in competition use
  • 5-inch V-Band Outlet: Clamps securely to downpipes minimizing leaks and easing alignment

Product Notes

  • Requires S400SX center housing and compressor cover for complete assembly
  • Inspect CHRA turbine wheel for 96mm compatibility before install
  • Standard ground shipping with freight protection

Installation Notes

  • Professional installation recommended.
  • Remove stock VGT actuator and housing before swap
  • Bolts to S400 frame CHRA with M10 hardware included

This Part Fits

Year Make Model Submodel
2007.5-2009 Dodge 2500 6.7L Cummins Diesel
2007.5-2009 Dodge 3500 6.7L Cummins Diesel
2010-2012 Ram 2500 6.7L Cummins Diesel
2010-2012 Ram 3500 6.7L Cummins Diesel
2013-2018 Ram 2500 6.7L Cummins Diesel
2013-2018 Ram 3500 6.7L Cummins Diesel

Why Choose BorgWarner?

  • Supplies turbos to leading diesel OEMs and race teams worldwide
  • Backed by decades of turbo engineering for real-world power gains
  • Machined to tight tolerances ensuring bolt-on fit and peak efficiency

Frequently Asked Questions

  • Q: Will this housing fit 2019+ 6.7L Cummins trucks?
    A: Fits with aftermarket S400SX turbo kits or VGT delete manifolds designed for newer emissions systems
  • Q: What material construction does it use?
    A: Ni-Resist high-nickel ductile iron handles extreme EGTs and backpressure better than standard castings
  • Q: What warranty coverage applies?
    A: BorgWarner one-year unlimited mileage warranty when installed by certified shop with proof

Shipping & Handling

  • Method: Standard ground freight
  • Availability: In stock - ships same or next business day
  • Packaging: Foam protected in 16x16x16 inch double-wall box
  • Weight: 25 lbs
