SKU: 177209 | UPC: 840232708769

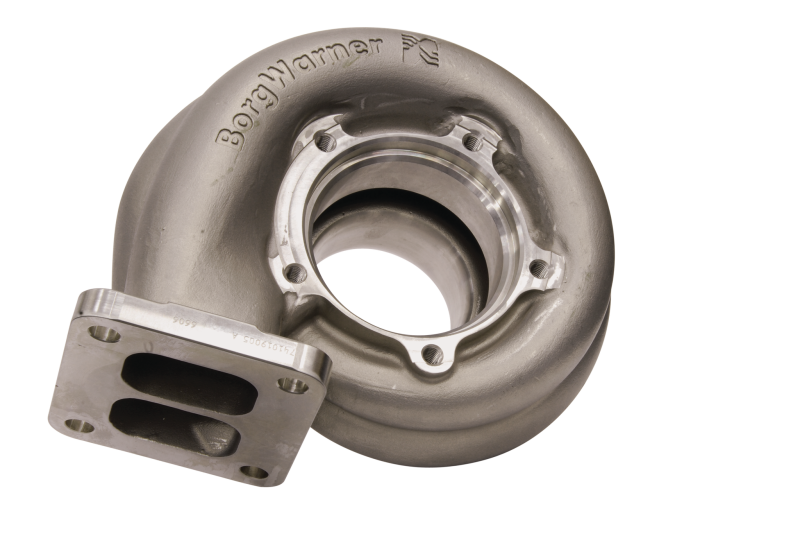

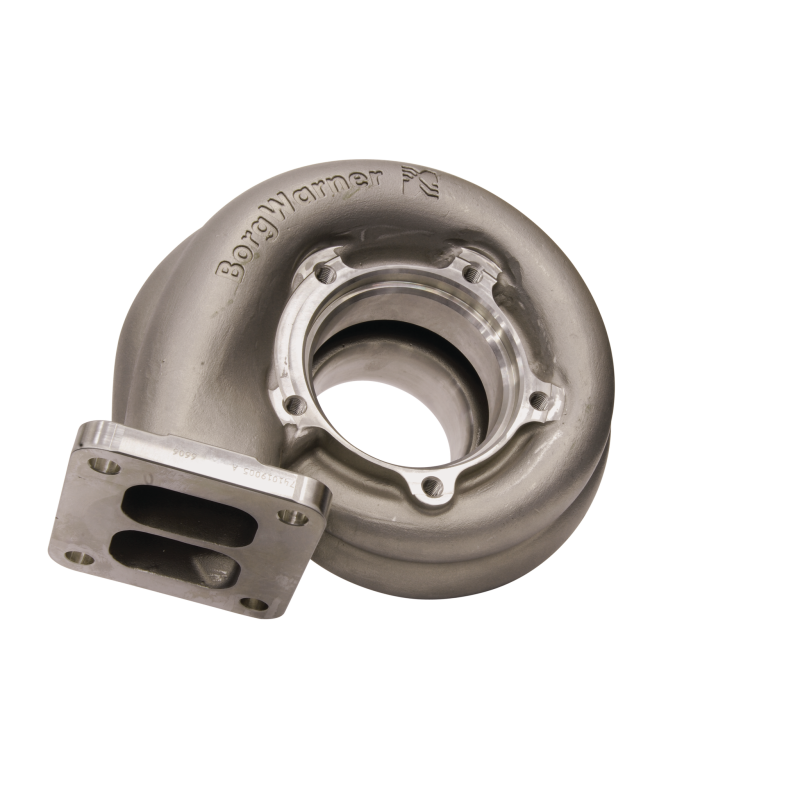

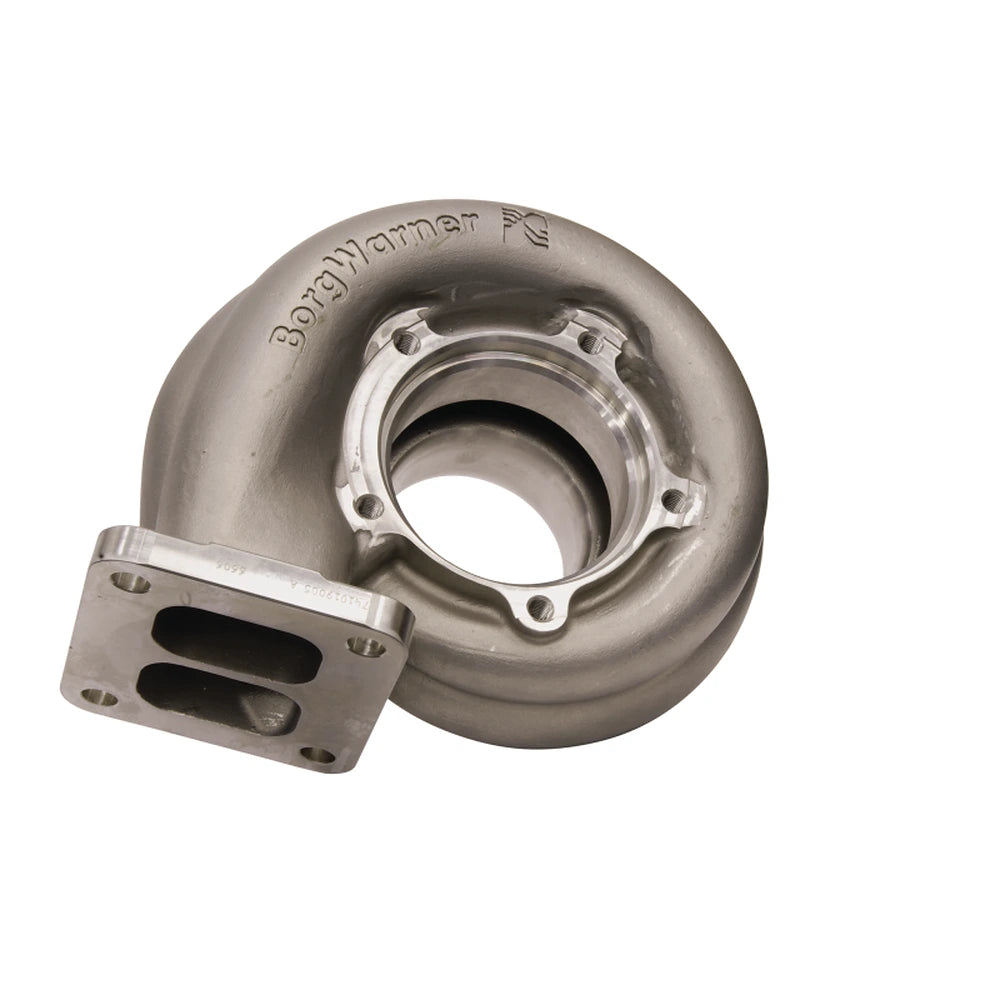

BorgWarner Turbine Housing SX S300 A/R 1.00 68mm for 2004-2018 Dodge Ram Cummins 5.9L/6.7L
The BorgWarner Turbine Housing SX S300 A/R 1.00 68mm delivers enhanced exhaust flow for S300 series turbochargers in Dodge Ram Cummins trucks. Designed for 2004-2018 Ram 2500 and 3500 models with 5.9L and 6.7L diesel engines, it supports faster spool-up and higher boost levels in performance setups. This T4 divided housing pairs with 68mm turbine wheels for reliable power across RPM ranges.
Key Features
- A/R 1.00 Ratio: Provides balanced response with strong mid-range torque and top-end power for towing and racing
- 68mm Turbine Wheel Compatibility: Matches SX-S300 series wheels for efficient energy conversion and reduced backpressure
- T4 Divided Inlet: Captures exhaust pulses separately to improve turbine drive and eliminate lag
- Ni-Resist Material: Resists high temperatures up to 1700°F and corrosion for long-term durability
- V-Band Flanges: 4-inch inlet and 3-inch outlet enable quick swaps without welding
Product Notes
- Pair with matching S300SX center and compressor housings for complete assembly
- Inspect turbine wheel for damage before installation
- Standard ground shipping with no LTL required
Installation Notes
- Professional installation recommended.
- Use new gaskets and V-band clamps torqued to 11 ft-lbs
- Compatible with BorgWarner S300 frame center sections and HX40/S366/S467 turbos
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004-2007 | Dodge | Ram 2500 | 5.9L Cummins Diesel |
| 2004-2007 | Dodge | Ram 3500 | 5.9L Cummins Diesel |
| 2007-2018 | Dodge | Ram 2500 | 6.7L Cummins Diesel |
| 2007-2018 | Dodge | Ram 3500 | 6.7L Cummins Diesel |
| 2003-2004 | Dodge | Ram 2500 | 5.9L Cummins Diesel |
Why Choose BorgWarner?
- Original equipment supplier for Cummins turbo systems
- Engineered for diesel racing and heavy-duty use
- Machined castings ensure leak-free seals and precise fit
Frequently Asked Questions
-
Q: Will this housing bolt onto my stock 5.9L Cummins turbo?
A: Fits S300 frame turbos like HX40 or aftermarket S366/S467 with matching center section, common on 2004.5-2007 Ram 5.9L -
Q: What is the housing material and heat rating?
A: Ni-Resist cast iron handles 1700°F exhaust gas temperatures with anti-corrosion properties -
Q: What warranty applies and installation tips?
A: BorgWarner one-year limited warranty on defects, use anti-seize on studs and verify manifold alignment
Shipping & Handling
- Method: Standard Ground
- Availability: In stock - ships same or next business day
- Packaging: Heavy-duty cardboard box 16 x 16 x 16 inches
- Weight: 24 lbs
