SKU: 177103 | UPC: 840232706697

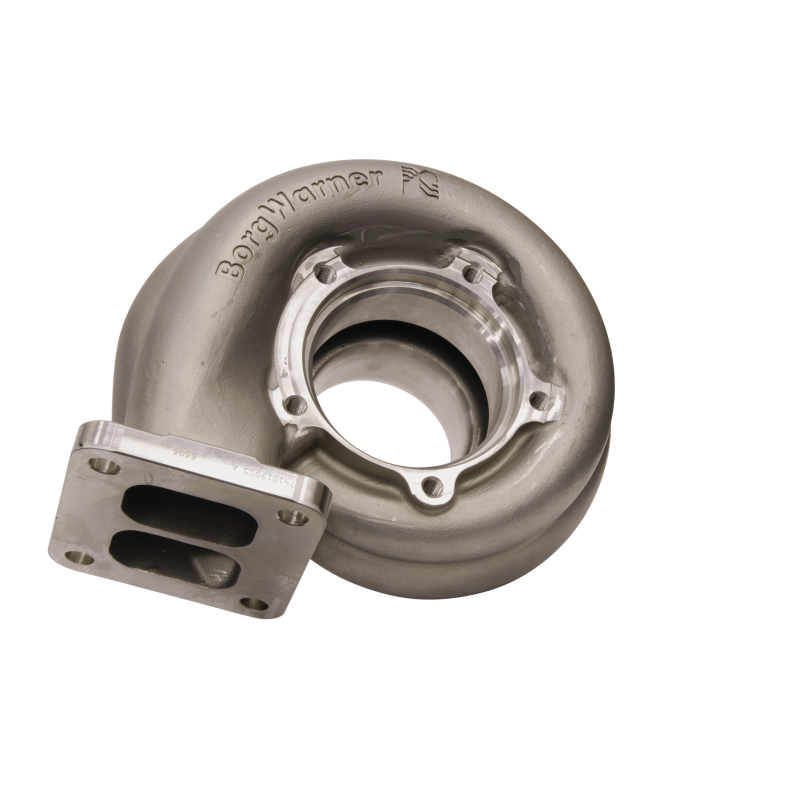

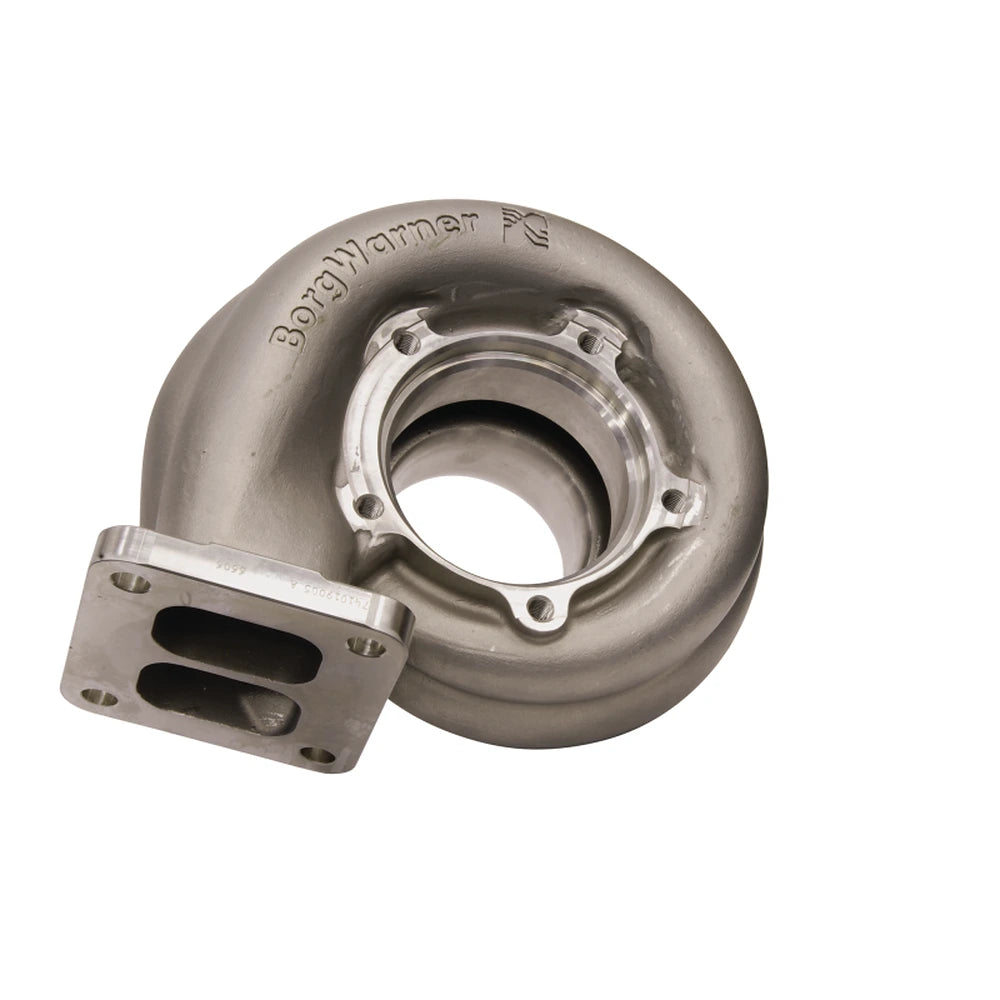

BorgWarner Turbine Housing SX S400 T4 A/R 1.00 83/74mm Twin Scroll for 2003-2023 Dodge Ram Cummins 5.9L/6.7L
This BorgWarner turbine housing equips SX S400 turbochargers with T4 twin scroll inlet and A/R 1.00 ratio for diesel trucks seeking higher power. It fits modified Dodge Ram 2500/3500 Cummins 5.9L and 6.7L engines in performance builds. Expect quicker spool-up reduced backpressure and sustained power through 1200 HP.
Key Features
- Twin Scroll T4 Inlet: Separates exhaust pulses to deliver faster turbo response and wider torque curve across RPM range
- A/R 1.00 Ratio: Provides balanced exhaust flow for strong mid-range pull and top-end capability in 800-1200 HP applications
- 83/74mm Turbine Size: Supports massive airflow while maintaining drive efficiency for street and track diesel setups
- NiResist Cast Iron Build: Resists high heat and thermal distortion for long-term durability under extreme boost conditions
- V-Band 4.0" Outlet: Ensures leak-free connections with quick-clamp design for simplified assembly and maintenance
Product Notes
- Pair with matching SX S400 center housing rotating assembly for complete turbo
- Inspect manifold flange alignment prior to install to avoid leaks
- Standard ground shipping applies nationwide
Installation Notes
- Professional installation recommended.
- Requires S400 frame CHRA with 83/74mm turbine wheel
- Bolts to T4 divided manifolds common on Cummins performance kits
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2003-2007 | Dodge | Ram 2500 Pickup | 5.9L Diesel |
| 2003-2007 | Dodge | Ram 3500 Pickup | 5.9L Diesel |
| 2004-2007 | Dodge | Ram 2500 Mega Cab | 5.9L Diesel |
| 2004-2007 | Dodge | Ram 3500 Mega Cab | 5.9L Diesel |
| 2007-2018 | Dodge | Ram 2500 Pickup | 6.7L Diesel |
| 2007-2018 | Dodge | Ram 3500 Pickup | 6.7L Diesel |
| 2007-2018 | Dodge | Ram 3500 Mega Cab | 6.7L Diesel |
Why Choose BorgWarner?
- Supplies turbos to major OEMs including Cummins factory programs
- Track-tested in NHRA Pro Stock and diesel sled pulling wins
- Machined to micron tolerances for perfect balance and longevity
Frequently Asked Questions
-
Q: Will this housing fit 2004-2007 5.9L Cummins Ram trucks?
A: Yes it bolts to T4 twin scroll manifolds in S400 turbo conversions on 2004-2007 Ram 2500/3500 5.9L Cummins with matching CHRA -
Q: What material is used for heat resistance?
A: NiResist high-chrome cast iron handles EGTs over 1800°F without warping or cracking -
Q: Is special tuning needed after install?
A: ECU tuning required to match increased boost and airflow recalibrate fuel and timing for safe operation
Shipping & Handling
- Method: Standard ground freight
- Availability: In stock - ships same or next business day
- Packaging: Foam-protected in 14 x 14 x 14 inch box
- Weight: 20 lbs
