SKU: 179351 | UPC: 840232704013

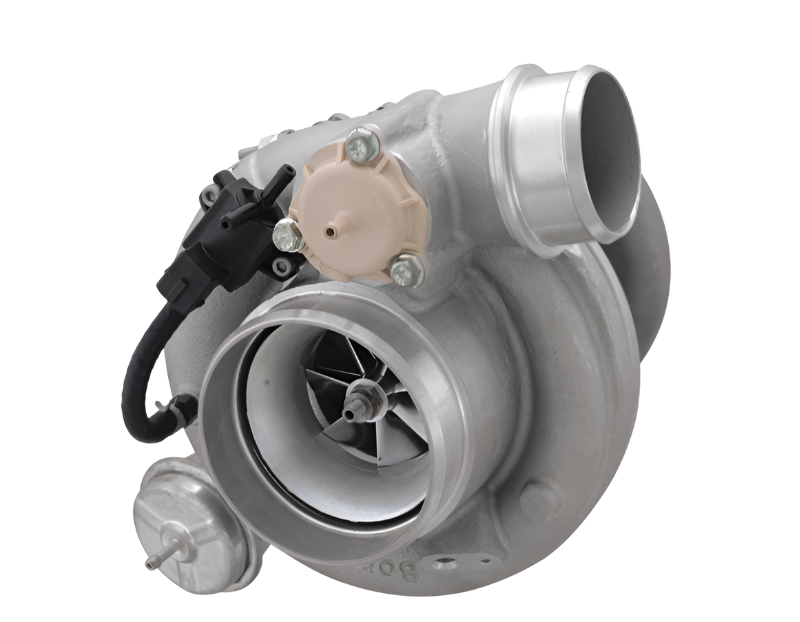

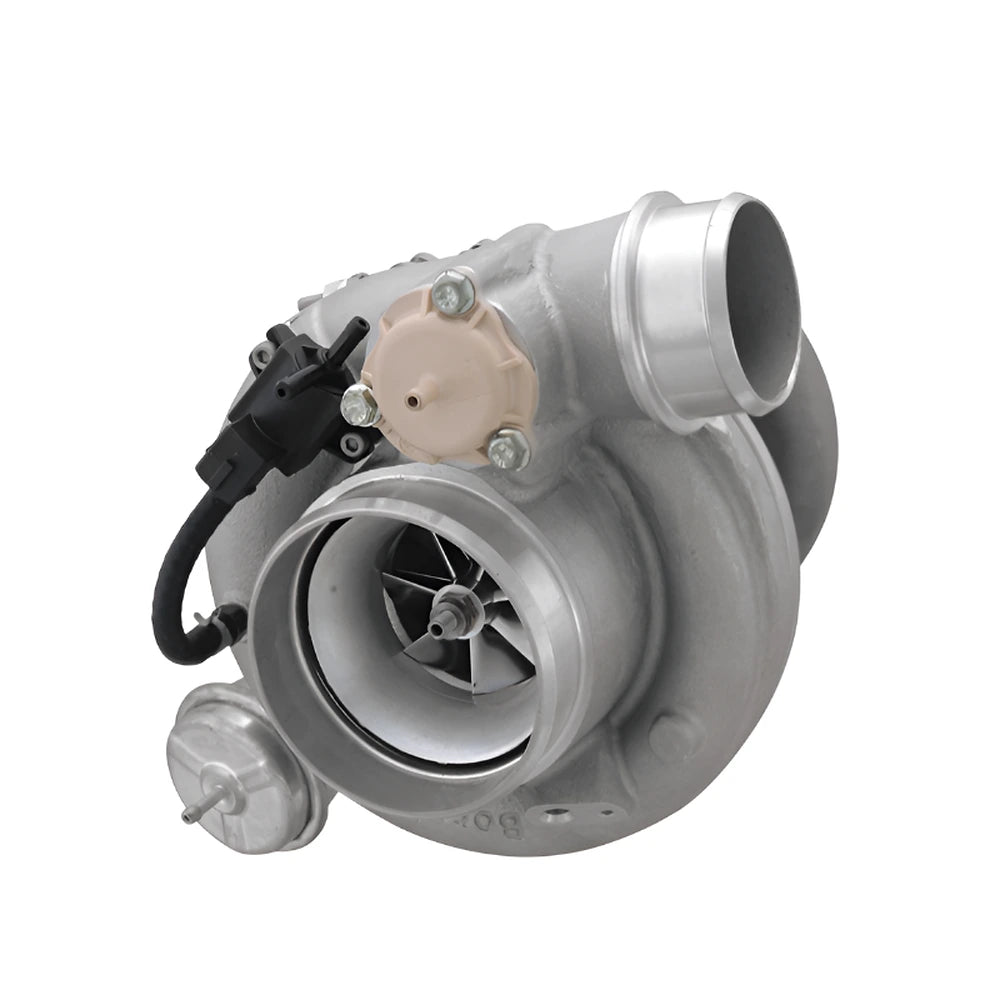

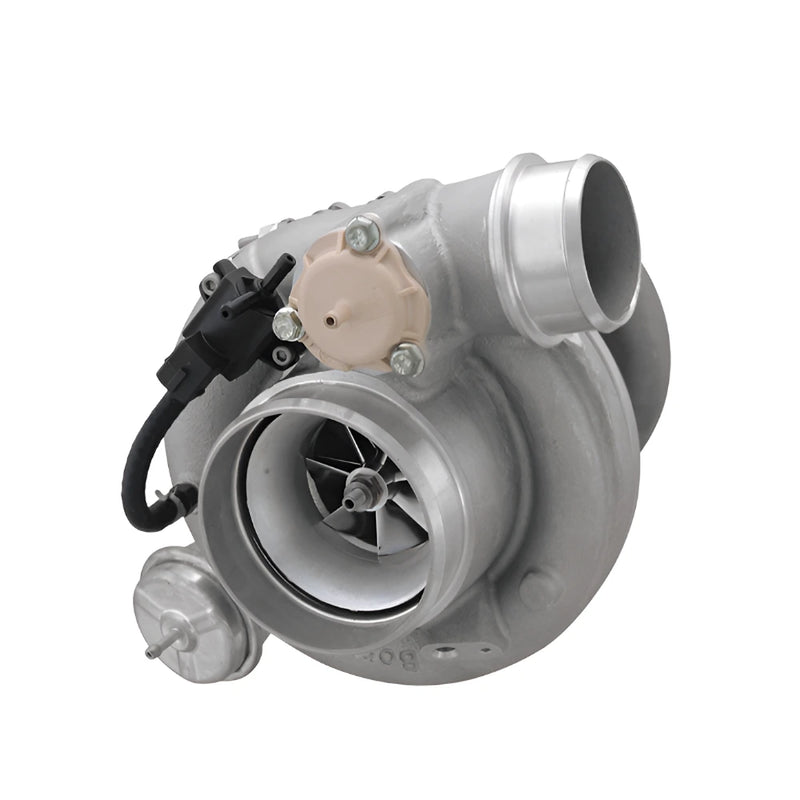

BorgWarner Turbo EFR B2 7670 0.83 A/R T4 Twin Scroll V-Band Outlet Wastegate
This BorgWarner EFR 7670 turbocharger delivers fast spool and high airflow for 450-800 HP applications. It fits custom builds on inline-six engines like Toyota 2JZ-GTE, Nissan RB26DETT, Subaru EJ25, and V8 LS swaps with T4 manifolds. Ball-bearing CHRA ensures responsive throttle and durability under high boost.
Key Features
- Dual Ceramic Ball Bearings: Reduces friction for spool under 3000 RPM and supports 200,000+ mile service life
- Forged Milled Compressor Wheel: 67mm inducer, 76.7mm exducer flows 76 lb/min for efficient 450-800 HP range
- Gamma-Ti Turbine Wheel: 70mm Inconel wheel resists 1050°C exhaust temps in twin-scroll housing
- Integrated Boost Solenoid: Precise control with factory-style actuator for easy boost tuning
- T4 Divided 0.83 A/R Housing: V-band outlet simplifies piping, twin-scroll design improves low-end response
Product Notes
- Requires oil and water cooling lines. use -4AN fittings minimum
- Pair with 750cc+ injectors and proper ECU tune for safe operation
- Ships fully assembled with actuator pre-installed
Installation Notes
- Professional installation recommended.
- Uses standard T4 divided inlet flange. custom manifold often required
- V-band clamps included for turbine outlet. torque to 8 ft-lbs
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1993-1998 | Toyota | Supra | 2JZ-GTE |
| 1989-2002 | Nissan | Skyline GT-R | RB26DETT |
| 2004-2021 | Subaru | WRX STI | EJ257 |
| 1997-2013 | Chevrolet | Corvette | LS1/LS6/LS2 |
| Universal | - | Custom Builds | 450-800 HP T4 |
Why Choose BorgWarner?
- Global leader supplying turbos to Ford, VW, GM factories
- Proven EFR series wins NHRA, Formula Drift races
- Investment cast 310SS housings withstand track abuse
Frequently Asked Questions
-
Q: What power range does this turbo support?
A: Rated for 450-800 HP on gasoline 4-6 cylinder engines with proper fueling and tuning -
Q: What materials are used in construction?
A: Nickel-chrome-moly housings, Gamma-Ti turbine wheel, billet aluminum compressor wheel -
Q: Does it include a wastegate actuator?
A: Yes, pre-assembled internal actuator with boost solenoid for plug-and-play control
Shipping & Handling
- Method: Standard ground UPS/FedEx
- Availability: In stock - ships same or next business day
- Packaging: Secure foam-packed box 18 x 17 x 17 inches
- Weight: 27.85 lbs shipping weight
