BWA179180-BorgWarner Turbo S400SX SX 80mm (110/87)-Turbochargers-BorgWarner
Click to zoom in

BorgWarner Turbo S400SX SX 80mm (110/87)

BorgWarner
BWA179180
840232701678
Turbochargers
1 Units In Stock - Ships Next Business Day
$ 2,034.27 $ 1,627.42
$ 1,627.42

SKU: 179180 | UPC: 840232701678

BorgWarner Turbo S400SX SX 80mm (110/87) for Dodge Ram Cummins 5.9L 1998-2007

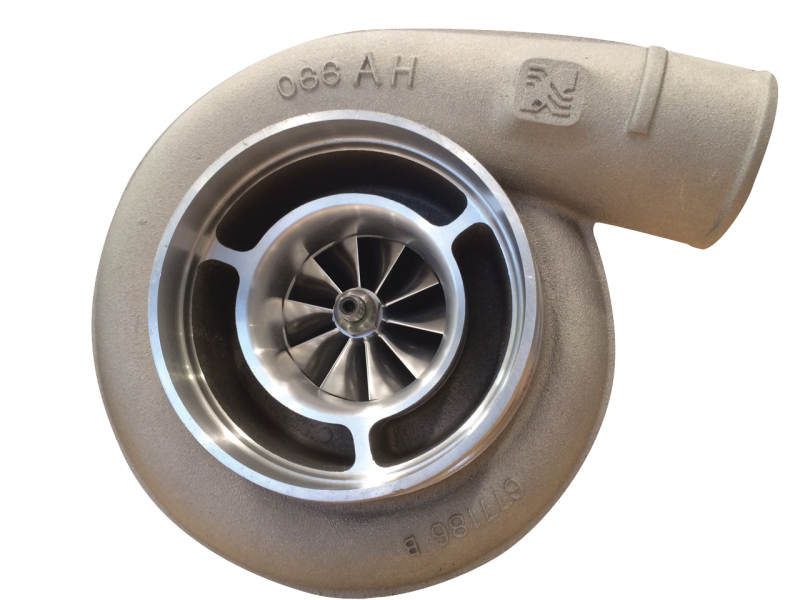

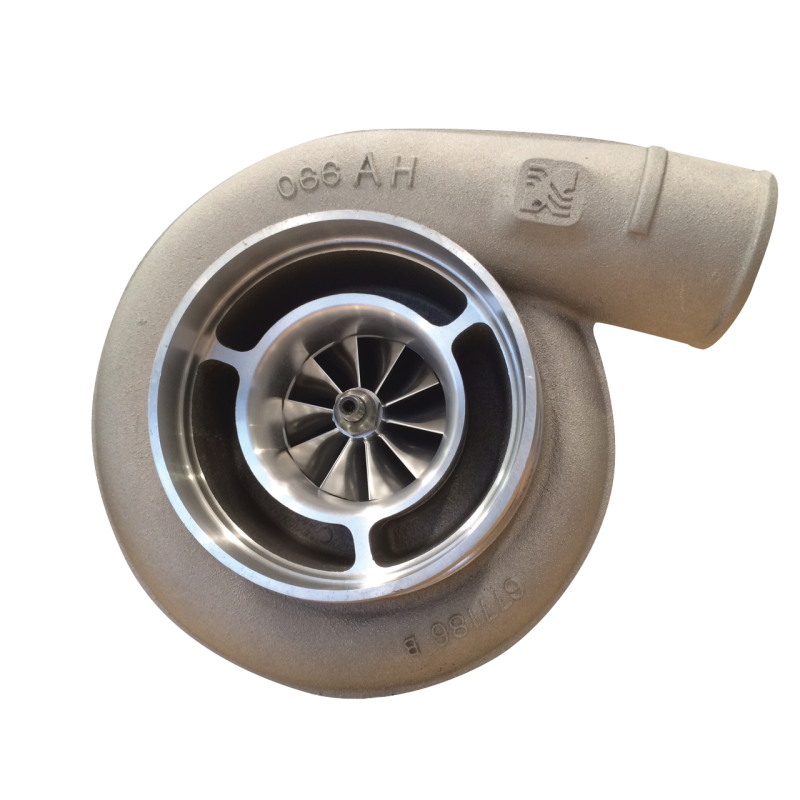

The BorgWarner S400SX 80mm turbocharger SKU 179180 features a billet compressor wheel and SX turbine technology for high horsepower builds in Dodge Ram Cummins 5.9L trucks from 1998 to 2007. This turbo flows over 110 lb/min supporting 900-1200 HP with responsive boost across the RPM range. It upgrades stock turbos for racing towing or heavy hauling while fitting common S400 frames.

Key Features

  • Billet Compressor Wheel: 80mm inducer 110mm exducer 9+2 extended tip blades provide massive airflow up to 110+ lb/min for big power gains
  • SX Turbine Wheel: 96mm inducer 87mm exducer advanced aerodynamics ensure quick spool and high exhaust flow without lag
  • Compressor Housing: Aluminum .82 A/R ported anti-surge shroud 4-inch inlet 2.5-inch outlet handles high pressure ratios efficiently
  • Turbine Housing: T4 divided .96 A/R cast iron construction V-band outlet simplifies installation and promotes even flow
  • Center Housing: Oil-cooled journal bearing with 360-degree thrust design offers reliable durability under extreme conditions

Product Notes

  • Requires professional tuning and supporting mods like injectors fuel pump for full potential
  • Inspect oil feed drain lines during install to ensure proper lubrication
  • Oversize item expect secure freight or ground shipping handling

Installation Notes

  • Professional installation recommended.
  • Bolts to stock Cummins pedestal mount on 5.9L with matching T4 manifold
  • Compatible with v-band clamps includes hardware for turbine outlet

This Part Fits

Year Make Model Submodel
1998-2002 Dodge Ram 2500 5.9L Cummins Diesel
1998-2002 Dodge Ram 3500 5.9L Cummins Diesel
2003-2007 Dodge Ram 2500 5.9L Cummins Diesel
2003-2007 Dodge Ram 3500 5.9L Cummins Diesel
2007-2009 Dodge Ram 2500 6.7L Cummins Diesel
2007-2009 Dodge Ram 3500 6.7L Cummins Diesel

Why Choose BorgWarner?

  • Direct OEM supplier to Cummins for proven real-world reliability
  • High-flow components built for racing and daily driven trucks
  • Precision machined for exact fit and long-term performance

Frequently Asked Questions

  • Q: Will this turbo fit my 2004.5-2007 Dodge Ram 5.9L Cummins?
    A: Yes it mounts directly to the stock exhaust pedestal and T4 manifold location on common rail 5.9L engines with no major fabrication
  • Q: What materials are used in construction?
    A: Billet aluminum compressor wheel investment cast aluminum compressor housing NiResist turbine housing for heat resistance
  • Q: What warranty coverage is provided?
    A: One-year unlimited mileage warranty covers defects in materials and workmanship when installed by certified shop

Shipping & Handling

  • Method: UPS Ground or Freight
  • Availability: In stock - ships same or next business day
  • Packaging: Original BorgWarner box 22in x 18in x 18in protective foam inserts
  • Weight: 28 lbs
