BorgWarner Turbocharger EFR B1 7163F 0.85 a/r VOF WG V-Band Inlet - Black Ops Auto Works
Click to zoom in

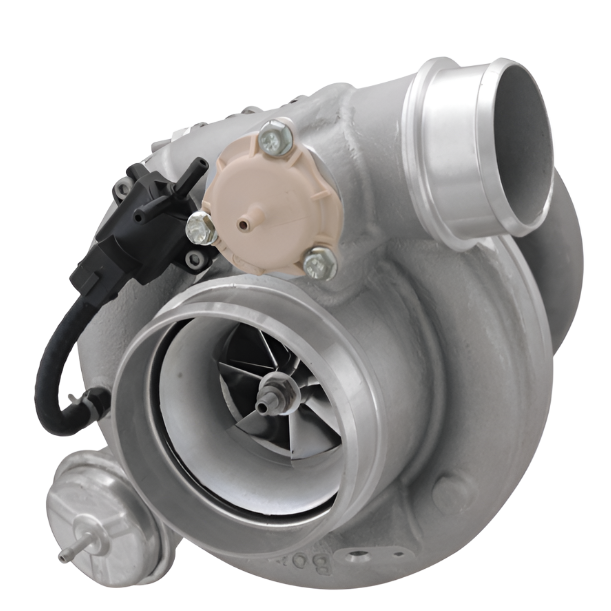

BorgWarner Turbocharger EFR B1 7163F 0.85 a/r VOF WG V-Band Inlet

BorgWarner
BWA11639880006
840232703511
Turbochargers
4 Units In Stock - Ships Next Business Day
$ 3,575.29 $ 2,860.10
$ 2,860.10

SKU: 11639880006 | UPC: 840232703511

BorgWarner Turbocharger EFR B1 7163F 0.85 a/r VOF WG V-Band Inlet - Universal Performance Fitment

This BorgWarner EFR B1 7163F turbocharger features a 0.85 A/R turbine housing with V-band inlet and V-band outlet integrated wastegate for quick spool and precise boost control up to 600 HP. Designed for high-performance engines like Subaru STI WRX Mitsubishi Evo Nissan 350Z G35 Toyota 2JZ Supra Nissan RB26 Skyline it provides efficient airflow and durability in racing and street applications. Ball bearing CHRA ensures low lag and reliable operation across 300-600 HP range.

Key Features

  • Dual Ceramic Ball Bearing CHRA: Reduces friction for spool times under 1500 RPM and supports 160000+ RPM operation with water cooling ports for longevity
  • Gamma-Ti Turbine Wheel: Lightweight 63.5mm OD x 66.8mm inducer design flows 72 lbs/min for responsive power delivery without excessive backpressure
  • Compressor Wheel: 62mm inducer x 83mm exducer billet aluminum with extended tips handles 62 lbs/min air flow for broad efficiency map 55-72 trim
  • T4 0.85 A/R V-Band Housing: Balances low-end response and top-end power with VOF internal wastegate actuator for accurate 20-40 psi boost holding
  • V-Band Connections: Inlet and outlet V-band flanges simplify installation and allow leak-free seals on custom manifolds and downpipes

Product Notes

  • Requires -4AN oil feed M8x1.25 drain and optional water cooling for CHRA during extended high-boost use
  • Break-in procedure includes 15-20 minutes easy driving followed by oil change to ensure proper seating
  • Ships fully assembled tested and balanced ready for performance builds

Installation Notes

  • Professional installation recommended.
  • Verify manifold and downpipe V-band flange compatibility 4.00 inch turbine inlet V-band size
  • Uses M8x1.25 oil return -6AN feed recommended with 80-120 psi pressure

This Part Fits

Year Make Model Submodel
2004-2021 Subaru Impreza WRX STI
2003-2008 Nissan 350Z All
2003-2007 Infiniti G35 Coupe Sedan
1993-1998 Toyota Supra 2JZ-GTE
1989-2002 Nissan Skyline GT-R R32 R33 R34 RB26
2003-2006 Mitsubishi Lancer Evolution Evo VIII IX
2007-2015 Mitsubishi Lancer Evolution Evo X
Universal Various Performance Engines 300-600 HP Builds

Why Choose BorgWarner?

  • Proven in professional motorsports like Formula Drift and rallycross
  • Investment cast housings with nickel-chromium corrosion resistance
  • Factory direct engineering from OEM turbo leaders for consistent results

Frequently Asked Questions

  • Q: What vehicles does the EFR 7163F fit best?
    A: Perfect for 2.0-3.0L engines in Subaru STI Evo Nissan 350Z 2JZ RB26 needing 350-600 HP with supporting fuel injectors pump clutch and tuning
  • Q: What material is the turbine housing?
    A: High-temperature Ni-Resist cast iron turbine housing with V-band flanges and stainless steel wastegate actuator assembly
  • Q: What is the warranty and install requirements?
    A: BorgWarner 1-year unlimited mileage warranty applies with proper oiling cooling and no abuse professional tuning required for boost over 30 psi

Shipping & Handling

  • Method: Standard Ground UPS FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Original BorgWarner box 22 x 16 x 16 inches
  • Weight: 20.5 lbs
