BorgWarner Turbocharger SX S400SX3 T4 A/R 1.10 74.56mm Inducer - Black Ops Auto Works
Click to zoom in

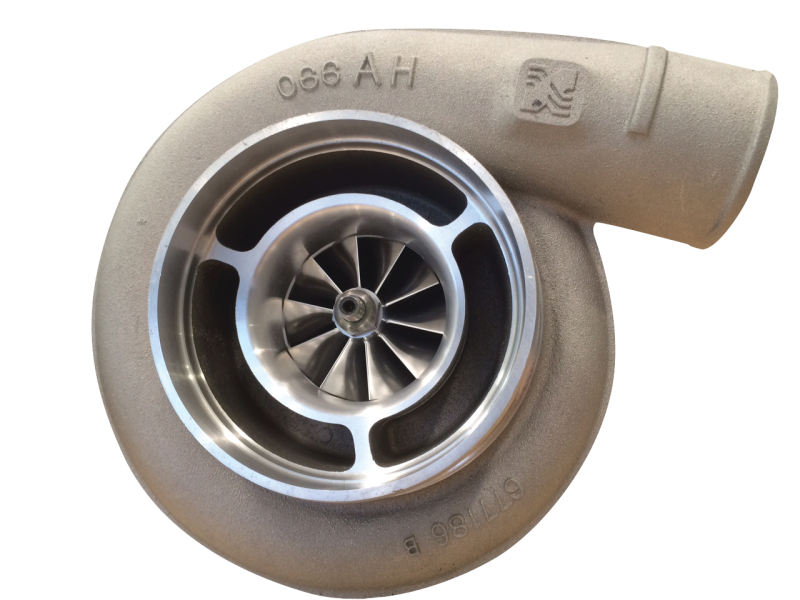

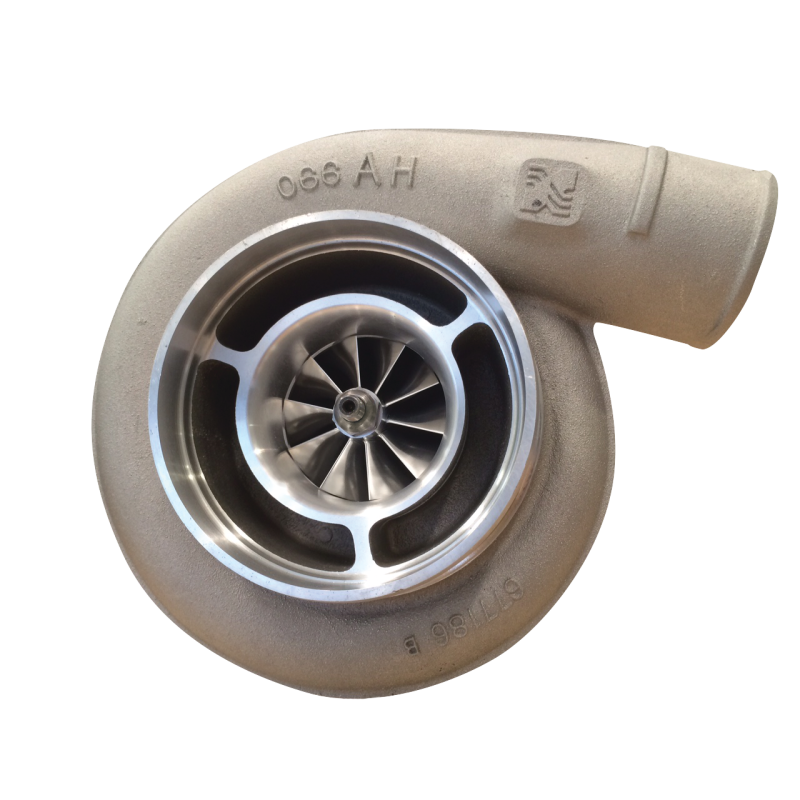

BorgWarner Turbocharger SX S400SX3 T4 A/R 1.10 74.56mm Inducer

BorgWarner
BWA177101
840232706512
Turbochargers
4 Units In Stock - Ships Next Business Day
$ 1,630.53 $ 1,290.78
$ 1,290.78

SKU: 177101 | UPC: 840232706512

BorgWarner SX S400SX3 T4 A/R 1.10 74.56mm Inducer Turbocharger 1994-2018 Dodge Ram Cummins

This BorgWarner AirWerks SX S400SX3 turbocharger delivers massive airflow for high-horsepower diesel builds in Dodge Ram Cummins trucks. Featuring a T4 divided housing with 1.10 A/R and 74.56mm billet compressor inducer it supports 700-1100 HP applications. Ideal for 5.9L and 6.7L Cummins engines in modified trucks seeking quick spool and top-end power.

Key Features

  • Compressor Wheel: 74.56mm inducer x 99mm exducer billet extended-tip design flows 110+ lbs/min for 1100+ HP potential
  • Turbine Housing: T4 divided inlet 1.10 A/R V-band 3.0" outlet balances spool time and exhaust flow on 800+ HP setups
  • Turbine Wheel: 83mm x 74mm Gamma-Ti wheel resists high heat in competition diesel pulling and drag racing
  • Center Housing: Journal bearing oil-cooled construction ensures reliability under extreme boost pressures
  • Power Range: Rated 700-1100 HP perfect for Cummins swaps racing trucks and heavy-duty towing with mods

Product Notes

  • Requires custom intercooler piping oil feed line and drain setup for proper function
  • Pair with high-flow injectors fuel pump and tuning for full performance gains
  • Heavy-duty item ships via freight or ground with signature confirmation

Installation Notes

  • Professional installation recommended.
  • T4 divided manifold and V-band exhaust clamps required sold separately
  • Verify oil feed M12x1.5 and drain M8x1.25 compatibility on engine block

This Part Fits

Year Make Model Submodel
1994-2002 Dodge Ram 2500 5.9L Cummins
1994-2002 Dodge Ram 3500 5.9L Cummins
2003-2007 Dodge Ram 2500 5.9L Cummins
2003-2007 Dodge Ram 3500 5.9L Cummins
2007-2018 Ram 2500 6.7L Cummins
2007-2018 Ram 3500 6.7L Cummins

Why Choose BorgWarner?

  • Trusted OEM supplier for global automakers with decades of turbo engineering
  • Proven in NHRA PDRA and sled pulling championships for durability
  • Precision-machined components from billet aluminum and high-temp alloys

Frequently Asked Questions

  • Q: Does this turbo fit stock Cummins manifolds?
    A: No requires T4 divided manifold upgrade common on modified 5.9L 6.7L Rams
  • Q: What material is used for the compressor wheel?
    A: 2618 billet aluminum with extended tips for aerodynamics and heat resistance
  • Q: What warranty is provided?
    A: 12-month unlimited mileage manufacturer warranty when installed by certified shop

Shipping & Handling

  • Method: UPS or FedEx Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Original BorgWarner box 22in x 18in x 18in
  • Weight: 29 lbs
