BorgWarner Turbocharger SX S400SX4 T6 A/R 1.32 80mm Inducer w/ Race Cover - Black Ops Auto Works
Click to zoom in

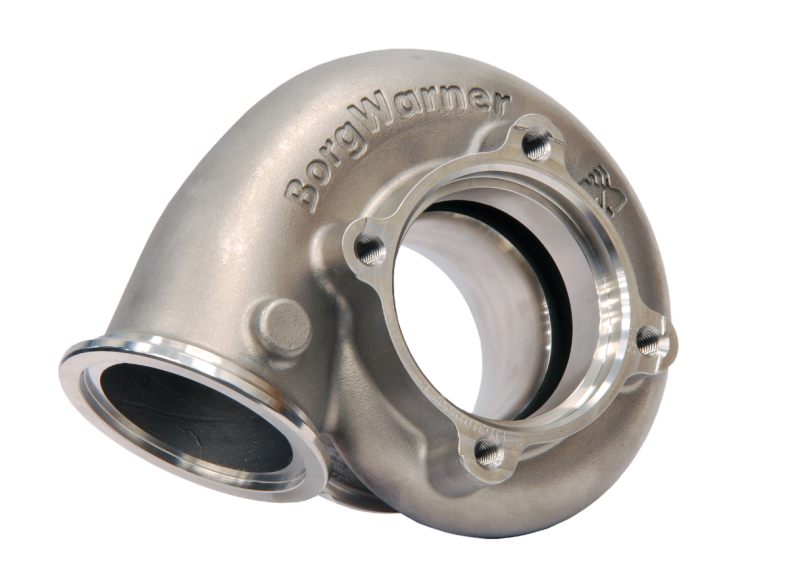

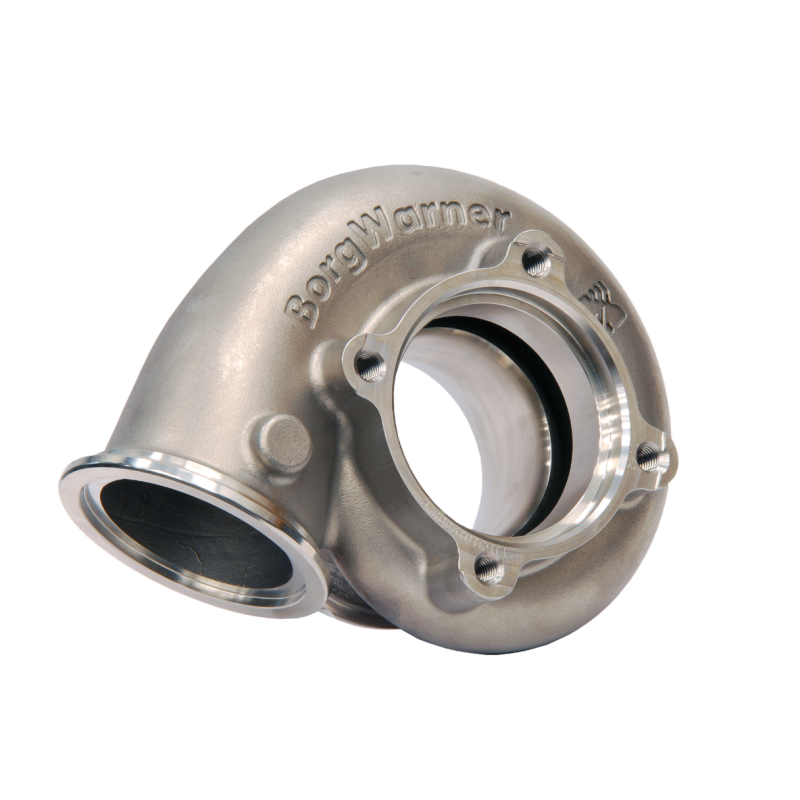

BorgWarner Turbocharger SX S400SX4 T6 A/R 1.32 80mm Inducer w/ Race Cover

BorgWarner
BWA177287
840232711912
Turbochargers
17 Units In Stock - Ships Next Business Day
$ 2,050.01 $ 1,626.39
$ 1,626.39

SKU: 177287 | UPC: 840232711912

BorgWarner Turbocharger SX S400SX4 T6 A/R 1.32 80mm Inducer w/ Race Cover for 2003-2018 Ram Cummins 5.9L/6.7L

This BorgWarner SX S400SX4 turbocharger features an 80mm billet inducer and race cover for extreme airflow in high-horsepower builds. It fits modified Ram Cummins 5.9L and 6.7L diesel trucks with T6 manifolds delivering 1200-2000 HP potential. The T6 A/R 1.32 divided housing ensures responsive spool while supporting massive top-end power for drag racing and sled pulling.

Key Features

  • 80mm Billet Compressor Wheel (80/107mm): Delivers 110+ lbs/min airflow for dyno-proven power gains in 1000+ HP applications
  • Race Compressor Cover: Open design allows 10%+ higher wheel speeds and unrestricted flow for maximum boost levels
  • T6 Divided A/R 1.32 Turbine Housing: Optimizes exhaust flow for quicker spool-up and sustained power across the RPM range
  • SX-E Turbine Wheel (99/109mm): Advanced aerodynamics transfer energy efficiently reducing backpressure in big single turbo setups
  • Oil-Cooled CHRA with Speed Sensor Port: Factory-machined port supports monitoring for safe reliable operation at high boost

Product Notes

  • Requires aftermarket T6 divided manifold and custom piping for installation
  • Designed for race and off-road use only no emissions compliance
  • No core charge required includes all necessary turbo assembly components

Installation Notes

  • Professional installation recommended.
  • Match to T6 divided inlet manifold V-band outlet flange standard
  • External wastegate required compatible with T6 V-band clamps sold separately

This Part Fits

Year Make Model Submodel
2003-2007 Dodge Ram 2500 5.9L Cummins Diesel
2003-2007 Dodge Ram 3500 5.9L Cummins Diesel
2007-2012 Dodge Ram 2500 6.7L Cummins Diesel
2007-2012 Dodge Ram 3500 6.7L Cummins Diesel
2013-2018 Ram 2500 6.7L Cummins Diesel
2013-2018 Ram 3500 6.7L Cummins Diesel

Why Choose BorgWarner?

  • Direct OEM technology used in professional motorsports worldwide
  • Investment cast housings endure extreme heat and boost cycles
  • Precision balanced assembly for vibration-free performance

Frequently Asked Questions

  • Q: Will this bolt up to stock Cummins manifolds?
    A: No it requires aftermarket T6 divided manifolds from brands like Wehrli HSP or Patriot Diesel for proper fit
  • Q: What materials are used in construction?
    A: Billet 2618 aluminum compressor wheel Inconel turbine wheel and Ni-Resist housings for heat resistance
  • Q: What warranty applies?
    A: BorgWarner offers 12-month unlimited mileage warranty for race applications with proof of professional installation

Shipping & Handling

  • Method: UPS Ground or Freight
  • Availability: Special order ships within 3-5 business days
  • Packaging: Secure double-walled box 24 x 20 x 20 inches
  • Weight: 55 lbs
