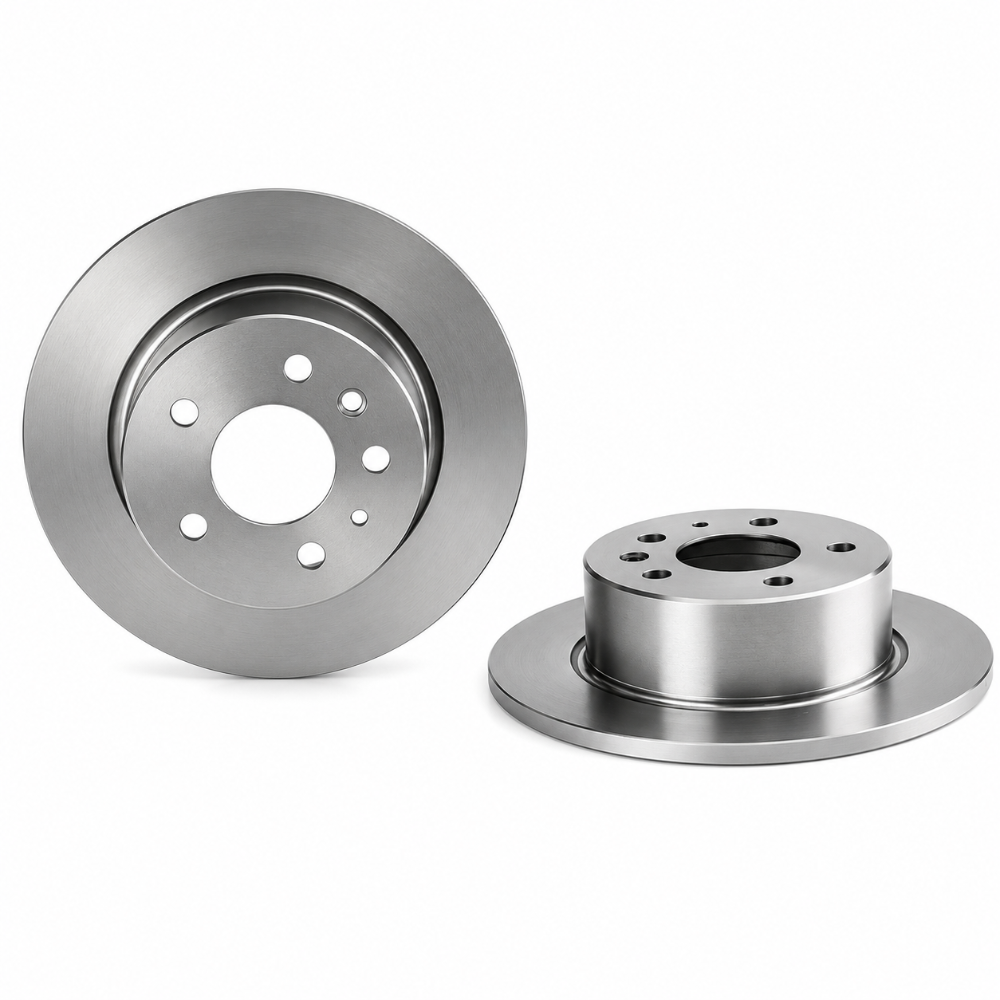

UV Coated OE Rear Rotor for BMW E30 and Early E36 3 Series
The Brembo 08.3947.24 rear brake rotor is a direct OE replacement for select 1985-1993 BMW 3 Series models including the 318i, 318is, 325, 325e, and 325i. Built from high carbon cast iron and finished with Brembo's solvent-free UV coating, 08.3947.24 protects braking surfaces from corrosion right out of the box while delivering smooth, quiet stopping that matches factory specifications. Whether you're restoring an E30 or maintaining a classic E36, 08.3947.24 installs without modification and comes with a fixing screw kit for a complete, worry-free installation.
Key Features
- Brembo 08.3947.24 UV coated solid rear rotor — factory replacement for BMW E30 and early E36 3 Series
- Solvent-free UV coating protects braking surfaces from corrosion during storage and early service life
- High carbon cast iron construction minimizes noise, vibration, and harshness for smooth daily driving
- Meets or exceeds OEM specifications — direct bolt-on with no modification required
- Solid disc design engineered to BMW E30 and E36 rear axle specifications
- 258mm outer diameter, 10mm thick, 4-lug mounting pattern
- Part number and minimum thickness marked on disc for easy identification
- Fixing screw kit included for complete, tool-ready installation
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 1991-1992 | BMW | 318i | Sedan |
| 1991 | BMW | 318is | Coupe |
| 1986-1988 | BMW | 325 | Convertible |
| 1985-1987 | BMW | 325e | Sedan |
| 1987-1993 | BMW | 325i | Sedan |
| 1987-1993 | BMW | 325i | Coupe |
| 1987-1993 | BMW | 325i | Convertible |
Specifications
| Detail | Value |
|---|---|
| Part Number | 08.3947.24 |
| Position | Rear |
| Rotor Type | Solid |
| Surface Finish | UV Coated |
| Outer Diameter | 258 mm |
| Thickness | 10 mm |
| Lug Holes | 4 |
| Material | High Carbon Cast Iron |
| Compatible BMW Chassis | E30, E36 |
| Quantity | 1 rotor (sold individually) |
What's Included
- 1x Brembo 08.3947.24 UV coated solid rear brake rotor
- Fixing screw kit
Frequently Asked Questions
What BMW models does the Brembo 08.3947.24 fit?08.3947.24 fits the 1991-1992 BMW 318i, 1991 318is, 1986-1988 325 Convertible, 1985-1987 325e Sedan, and 1987-1993 325i in Sedan, Coupe, and Convertible body styles. These are E30 and early E36 chassis BMW 3 Series models.
Is the Brembo 08.3947.24 a vented or solid rotor?08.3947.24 is a solid disc rotor. BMW E30 and early E36 models use solid rotors at the rear axle, which is correct for OE specification on these platforms.
What does the UV coating on Brembo 08.3947.24 do?Brembo's solvent-free UV coating protects the entire rotor surface, including the braking plates, from corrosion during shipping, storage, and early use. This eliminates the rust bloom common on bare-metal rotors and provides a cleaner appearance when installed.
Does 08.3947.24 come with hardware?Yes. Brembo includes a fixing screw kit with 08.3947.24 for a complete and straightforward installation with all necessary hardware.
Do I need to bed in Brembo 08.3947.24 rotors?Yes. Perform a break-in procedure after installation: complete 6 to 10 moderate stops from approximately 30 mph without fully stopping, allowing the rotor to cool between each stop. This conditions the rotor surface and transfers a uniform pad deposit for optimal performance.
What brake pads pair well with the Brembo 08.3947.24?Brembo recommends pairing 08.3947.24 with Brembo NAO Ceramic or Low-Metallic brake pad formulations. For street use on vintage BMW 3 Series, a ceramic compound pad offers low dust, reduced noise, and smooth pedal feel compatible with solid rotor designs.
Is Brembo 08.3947.24 sold as a single rotor or a pair?08.3947.24 is sold as a single rotor. For a complete rear axle replacement, two units are required. Order two to service both rear corners at the same time, which is always recommended for even braking performance.
How does Brembo 08.3947.24 compare to OEM BMW rear rotors for the E30 and E36?Brembo manufactured brake components for several BMW production lines and engineered 08.3947.24 to meet or exceed OEM specifications in every measurable dimension, material grade, and surface finish. The UV coating and high carbon cast iron formulation give it a quality edge over basic OEM replacements in corrosion resistance and NVH performance.
Installation Instructions
- Safely raise the vehicle and support it on jack stands. Remove the rear wheels.
- Remove the brake caliper mounting bolts and hang the caliper aside with a wire hook. Do not allow it to hang by the brake hose.
- Remove the brake pads from the caliper bracket.
- Remove the caliper bracket mounting bolts and set the bracket aside.
- Remove the old rotor. On E30 and E36 models, a center retaining screw secures the rotor to the hub — remove it using the included fixing screw hardware.
- Clean the hub mating surface with a wire brush to remove rust and debris. Apply a thin layer of anti-seize to the hub face only, avoiding the brake surface.
- Install the new Brembo 08.3947.24 rotor onto the hub and secure it with the included fixing screw.
- Reinstall the caliper bracket and torque mounting bolts to BMW specification.
- Install fresh brake pads and reinstall the caliper. Torque caliper bolts to spec.
- Reinstall the wheels, torque lug nuts to spec, and pump the brake pedal until firm. Perform a break-in procedure before aggressive braking.
WARNING: This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
