SKU: KT00A78
Brembo OE 14-23 Jaguar F-Type/12-15 XF/10-19 XJ Front Disc Brake Kit
This Brembo front disc brake kit delivers reliable stopping power for Jaguar F-Type 2014-2023, XF 2012-2015, and XJ 2010-2019 models. It includes two 09.B556.11 UV-coated vented rotors at 355mm diameter and one P36028N ceramic pad set for reduced noise, vibration, and dust. High-carbon construction ensures effective heat dissipation and consistent performance in all conditions.
Key Features

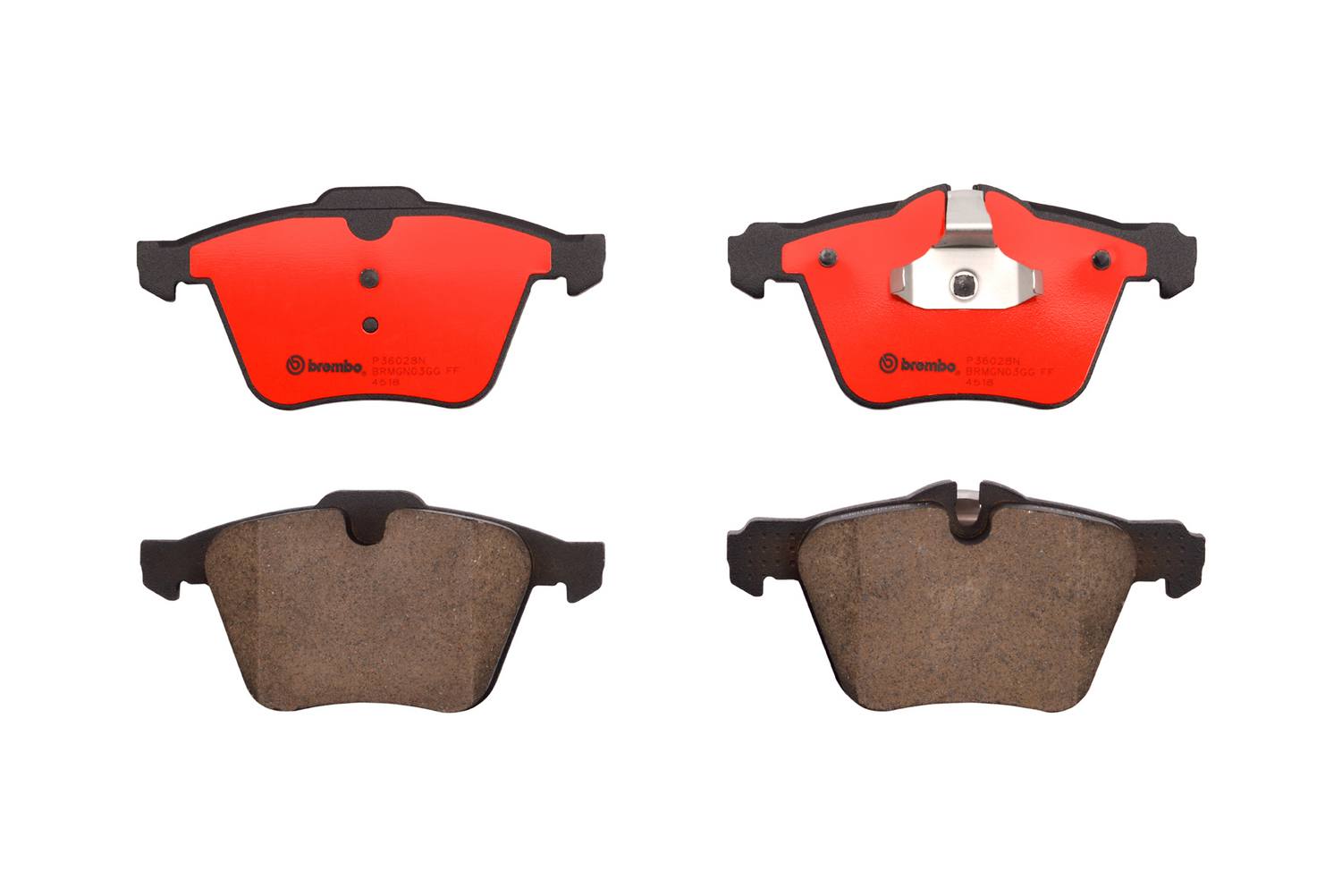

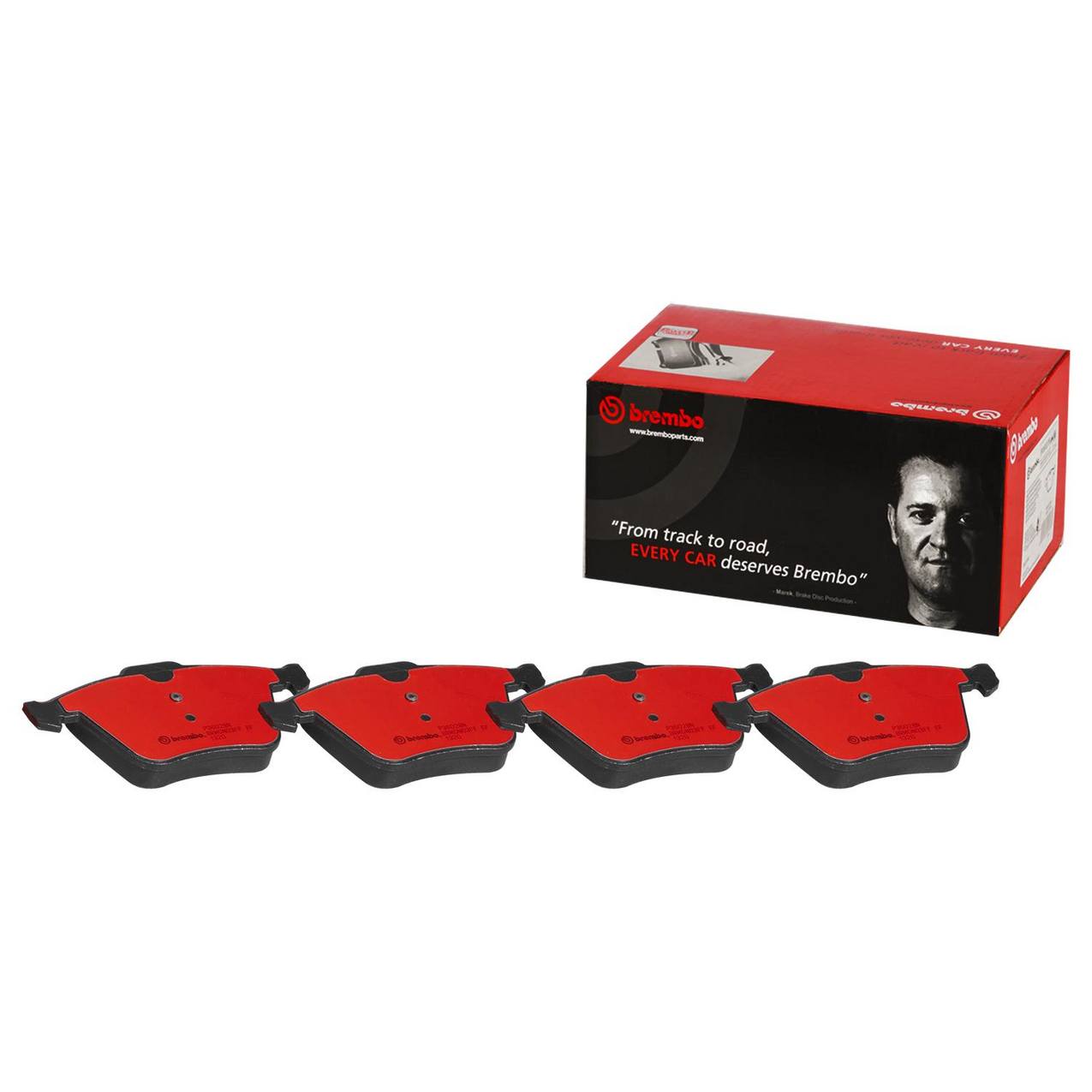

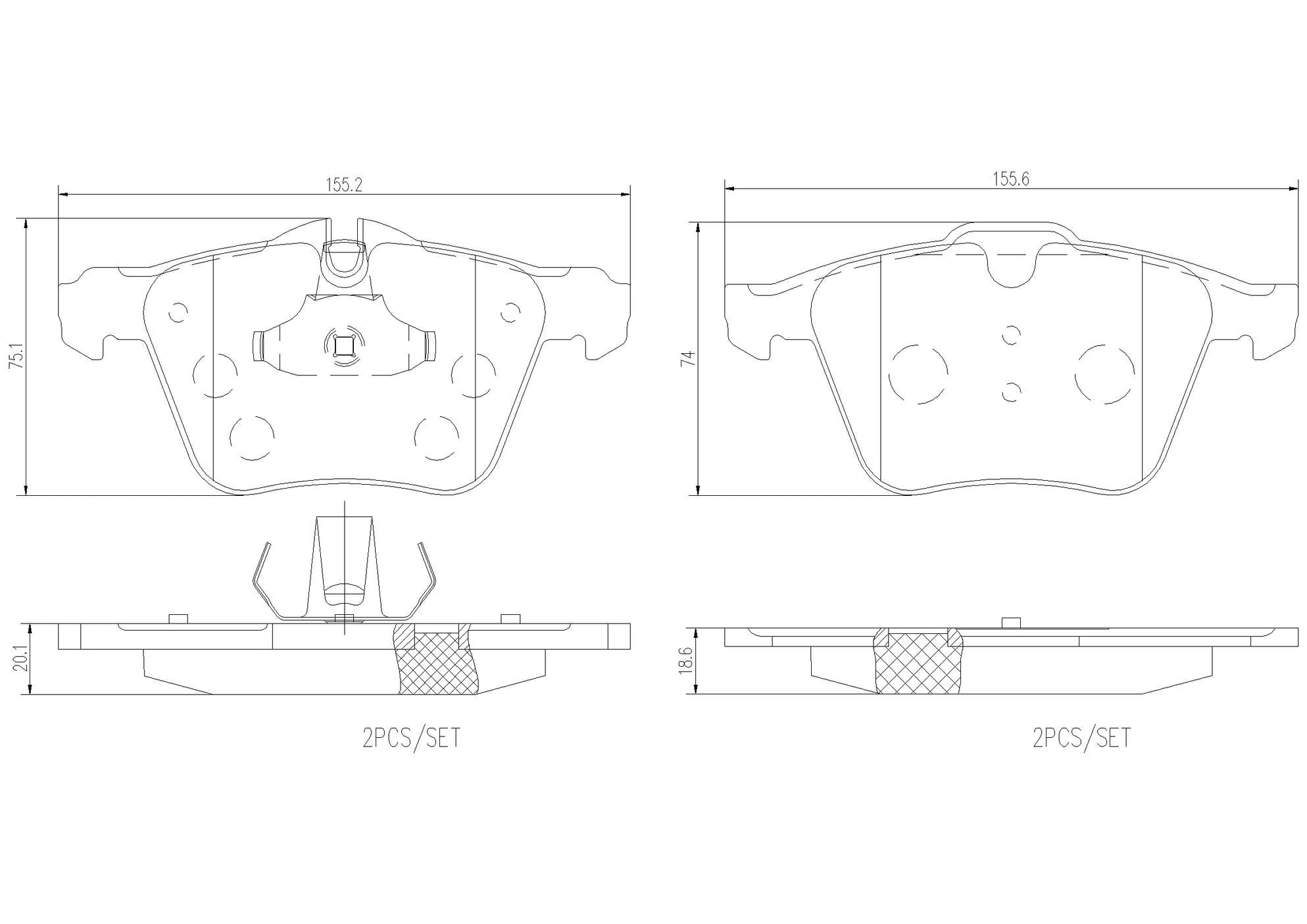

- Ceramic Brake Pads (P36028N): Minimize noise and vibration while producing low dust to keep wheels clean. dimensions 74.5/75.3mm height, 156.5/155.2mm width, 18.6/20.1mm thickness. prepared for wear sensor. 4.93 lbs.

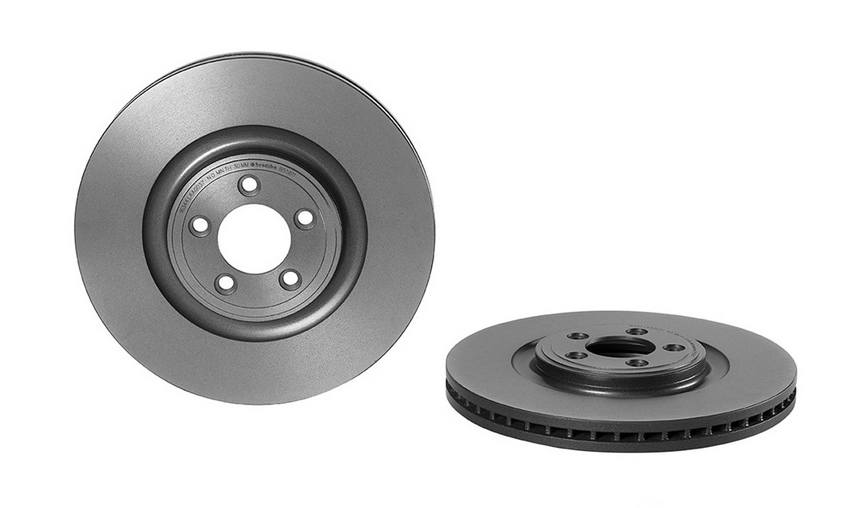

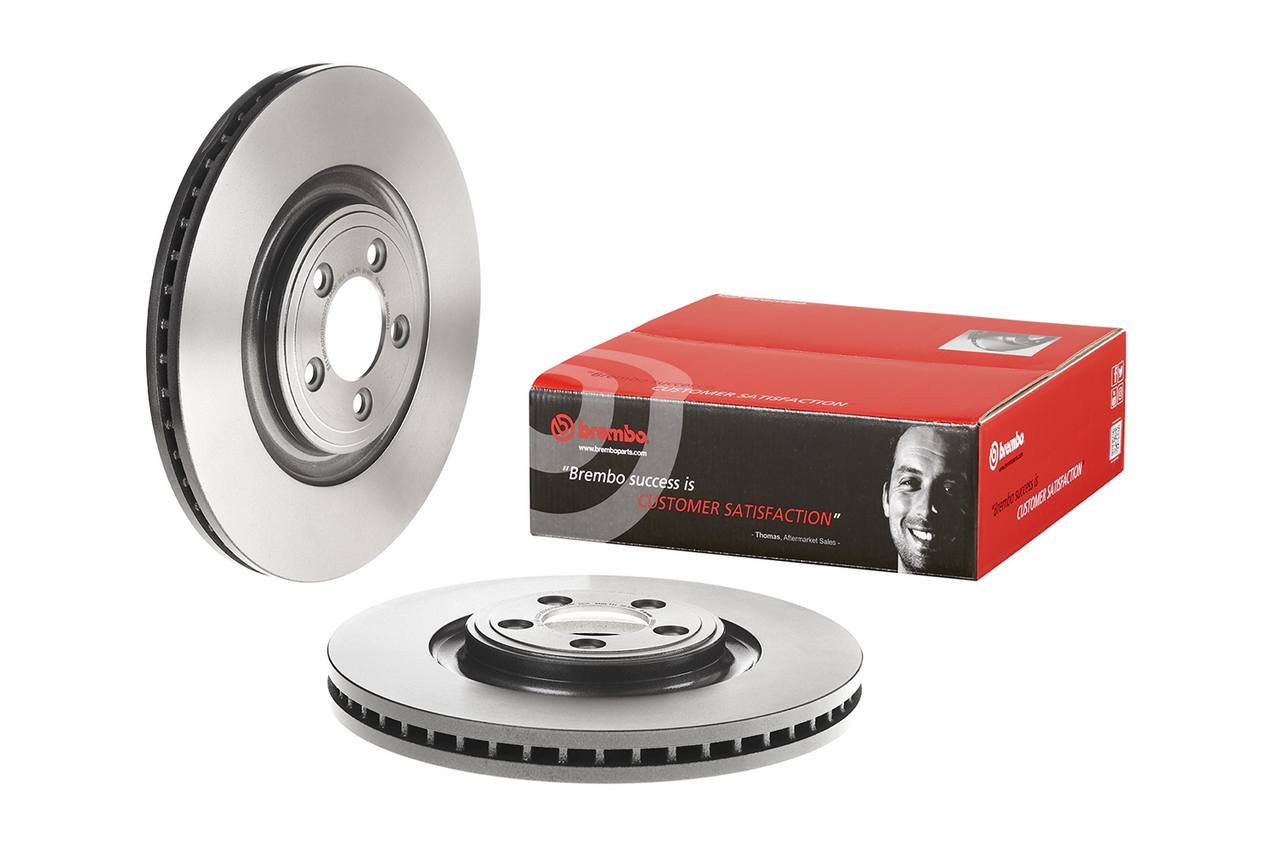

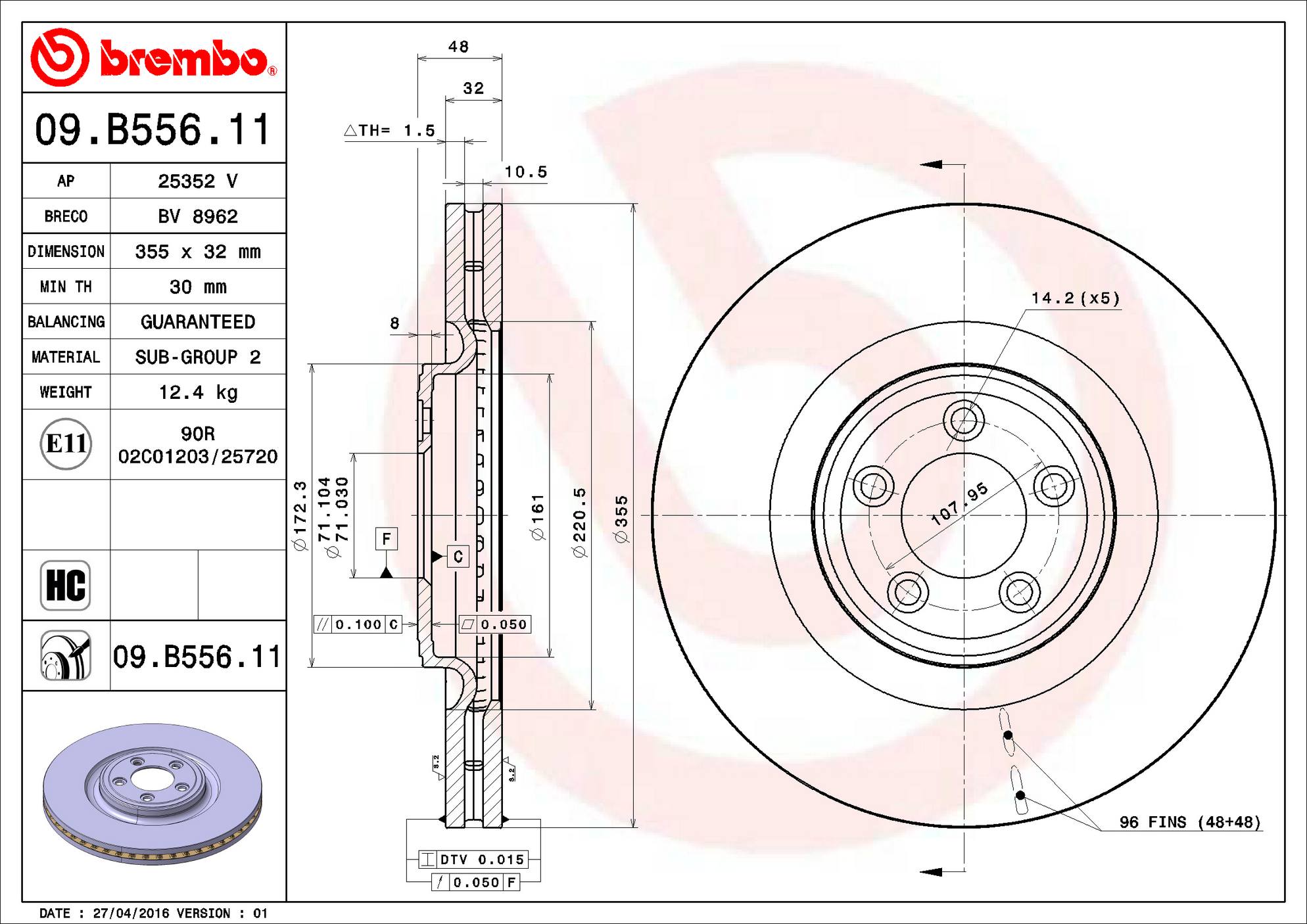

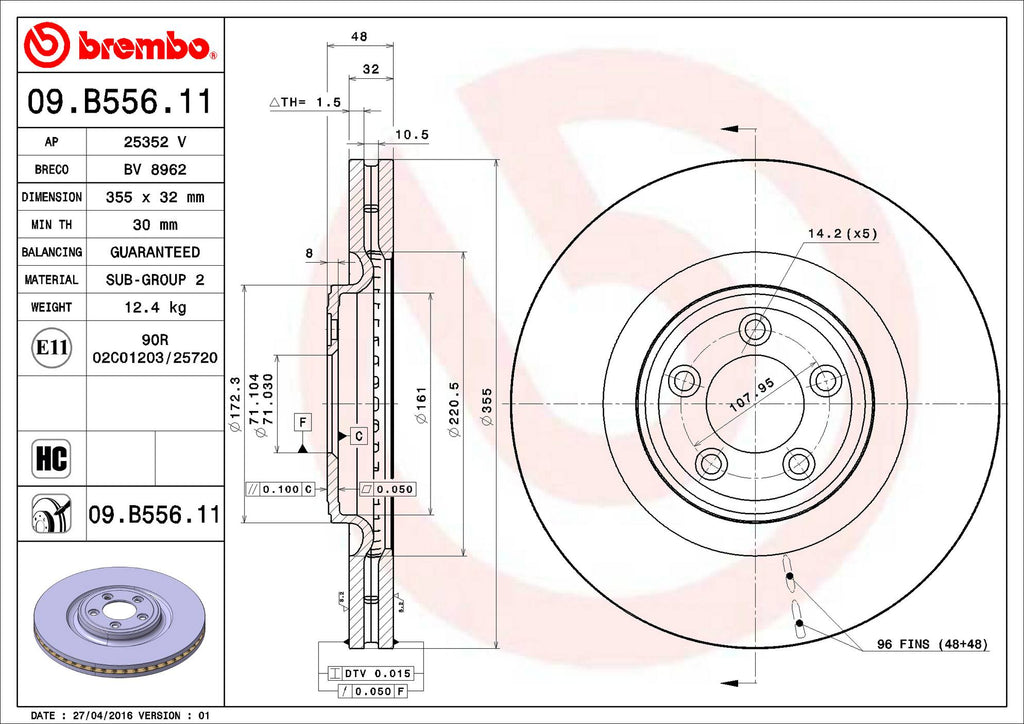

- UV-Coated Rotors (09.B556.11 x2): 355mm outside diameter, 32mm nominal thickness, 30mm minimum thickness, vented design with high-carbon cast iron for better heat transfer and reduced vibration. rust-resistant coating.
- Precise Specifications: 5-lug mounting, 71mm center bore, 48mm overall height. Teves brake system compatibility for direct OE replacement.
- Durability Enhancements: Chamfered pad edges reduce wear. special high-carbon alloy resists thermo-mechanical stress for longer life.

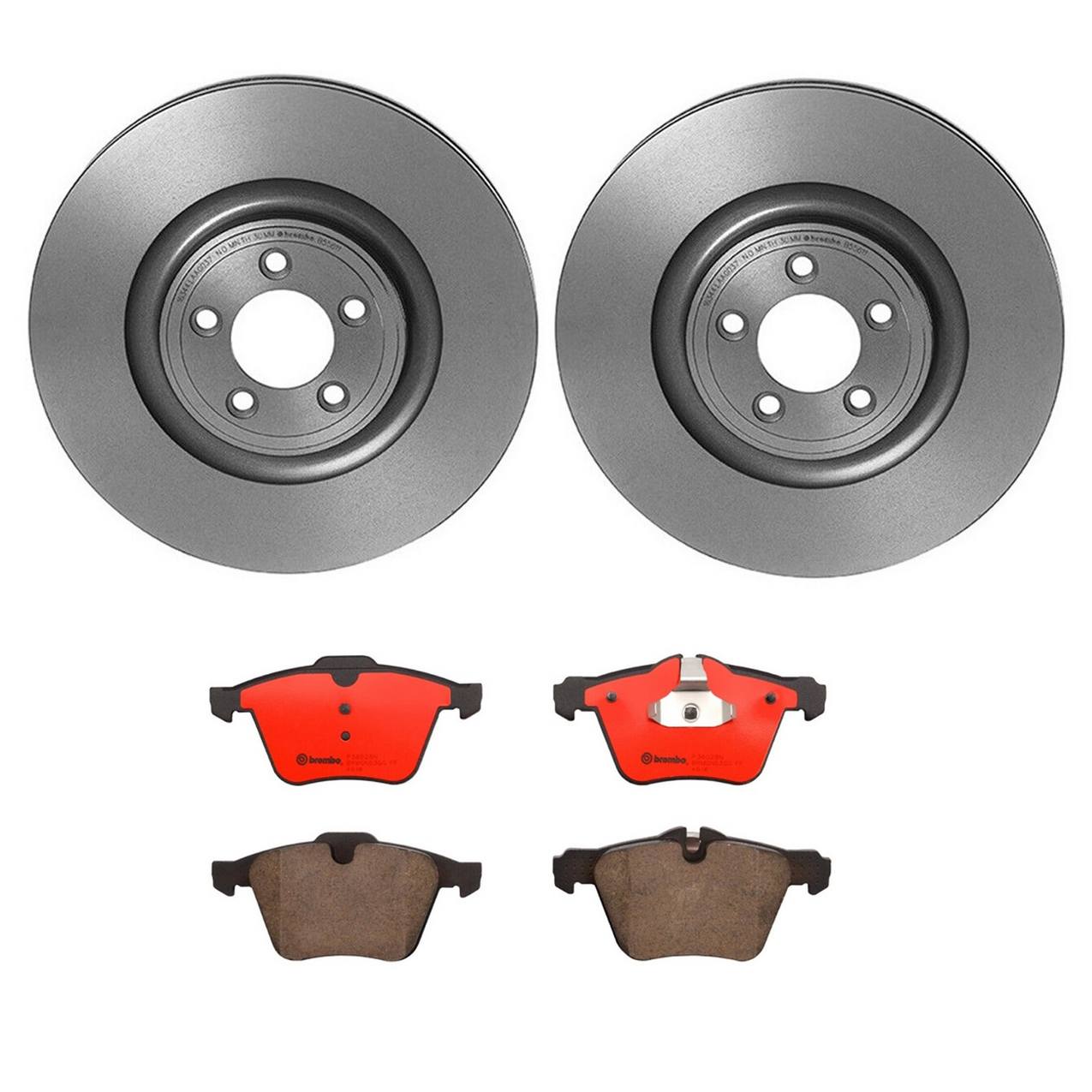

- Complete Kit: Everything needed for front brakes including pads and rotors. matches original manufacturer materials for consistent braking feel.
Product Notes
- Direct replacement for stock front brakes on specified Jaguar models.
- Ceramic pads require no bedding-in period unlike some organics.
- Total kit weight 34.61 lbs. securely packaged for damage-free delivery.
Installation Notes
- Professional installation recommended.
- Torque rotor bolts to manufacturer specs. clean hub surfaces before mounting.
- Compatible with factory calipers and hardware. no modifications required.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014-2023 | Jaguar | F-Type | All |
| 2012-2015 | Jaguar | XF | All |
| 2010-2019 | Jaguar | XJ | All |
Why Choose Brembo?
- Trusted OE supplier to Jaguar with proven track record in high-performance braking.
- High-carbon discs match OEM materials for reliable heat management and fade resistance.
- Engineered and tested for exact vehicle fit with focus on noise reduction and longevity.
Frequently Asked Questions
-
Q: Does this kit fit 2016 Jaguar F-Type with Teves brakes?
A: Yes, it fits all 2014-2023 F-Type models equipped with Teves front brake system including 355mm rotors. -
Q: What material are the rotors made from?
A: High-carbon cast iron with UV coating for corrosion resistance and improved damping to cut vibration. -
Q: What is the warranty on this Brembo kit?
A: Backed by Brembo's 24-month warranty covering defects in materials and workmanship.
Shipping & Handling
- Method: Ground shipping via UPS or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Heavy-duty box with protective foam inserts
- Weight: 34.61 lbs
